Airtec XL 40/125. ISO 15552 cylinders, piston 40 mm, stroke 125 mm

Name: Airtec XL 40/125. ISO 15552 cylinders, piston 40 mm, stroke 125 mm
Brand: Airtec
SKU: FL-XL-40/125
Price: 9945 EUR
Availability: InStock

€9,945.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-XL-40/125

Manufacturer Nr.

XL 40/125

ISO 15552 cylinders, piston 40 mm, stroke 125 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Airtec XL 40/125. ISO 15552 cylinders, piston 40 mm, stroke 125 mm
€9,945.00
Excl. 19% VAT , excl. Shipping Cost

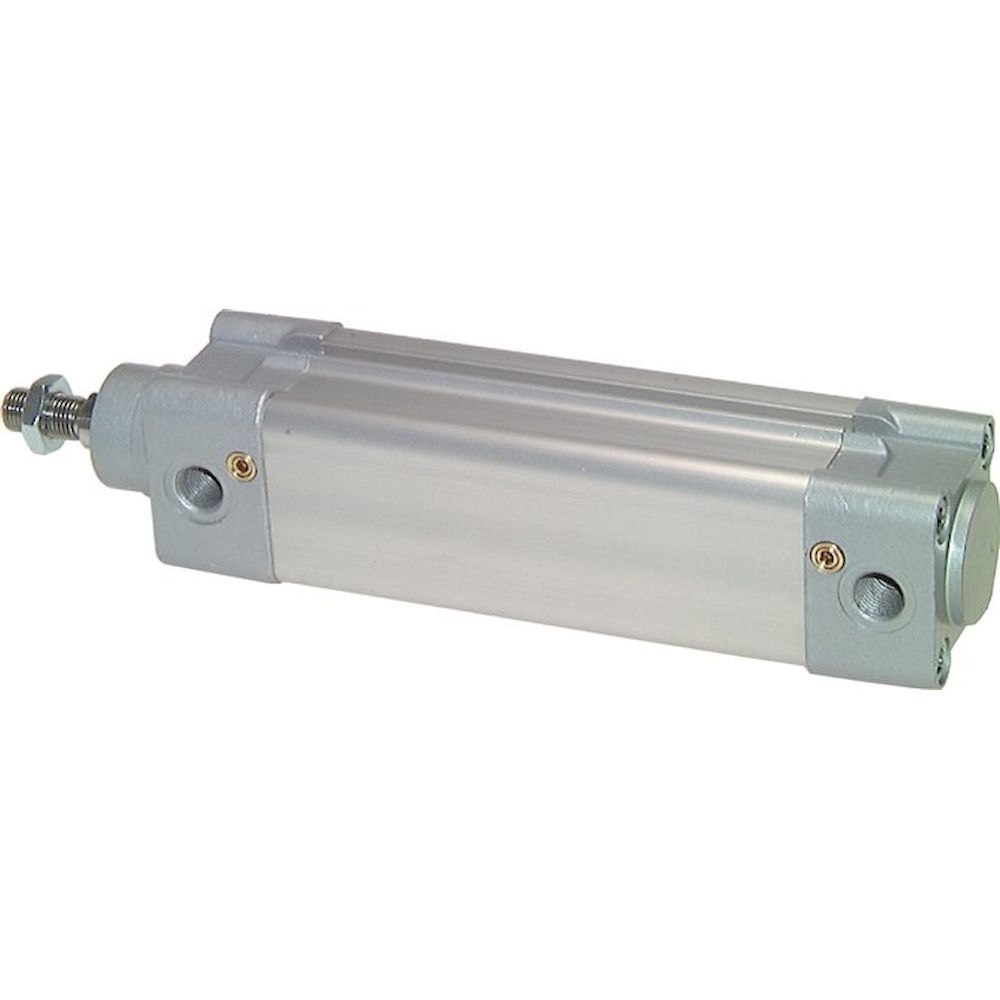

Airtec XLK 50/25. ISO 15552 cylinders, piston 50 mm, stroke 25 mm
€22,909.00
Excl. 19% VAT , excl. Shipping Cost
Airtec XL 32/600-EK. ISO 15552 cylinders, piston 32 mm, stroke 600 mm
€18,022.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Head and foot: stove-enamelled die-cast aluminium, cylinder tube: anodized aluminium profile tube, piston rod: hard chromium plated steel, piston: complete piston (ST / NBR), seal: NBR / PUR

Temperature range:
-20°C to +80°C

Operating pressure:
max. 10 bar

Optional:
FKM seals (temperature range: -10°C to max. +150°C, without magnetic piston) -V, stainless steel piston rod -EK, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -X

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A

Piston diameter [mm]	40
Stroke [mm]	125
Version	Standard
A (thread)	M 12x1,25
G (compressed air port)	G 1/4"
Repair sets	XL 40 REP
B [mm]	16
C [mm]	35
D [mm]	22,0
F [mm]	24
G [mm]	30
H [mm]	135
K [mm]	4
M [mm]	54,0
N [mm]	38,0
CH [mm]	13
RT	M 6

Information

More Information
Manufacturer Nr.	XL 40/125
Manufacturer	Airtec
EAN	4050571798314
Weight	14.000000
HS-Code	84123100
GPSR manufacturer information	AIRTEC Pneumatic GmbH, Westerbachstraße 7, DE-61476 Kronberg, www.airtec.de
Article authenticity	Original product
Condition of article	New
