ESD audit kit Basic, resistance and field - A1-ESD TeraResist 8000

The ESD audit kit Basic combines two core instruments for testing ESD protected areas (EPA): the TeraResist 8000 high-resistance meter for resistance measurement and the EP-EFM823 field meter for measuring electric fields and electrostatic charges. With a charge plate set and walk-test set, the kit covers resistance, field and body voltage measurement in one package, designed for a complete basic audit to IEC 61340.

Key benefits

• Resistance, field and body voltage measurement in one set
• TeraResist 8000 with colour touch display and four test voltages up to 10 TΩ
• EP-EFM823 field meter, induction principle (field mill), 0 to +/-200 kV
• Charge plate and HV generator to verify ioniser effectiveness
• Walk test for body voltage measurement to IEC 61340-4-5
• PC data capture via USB and the supplied software

Technical data

• High-resistance meter: TeraResist 8000, 4 test voltages (10/100/500/1000 V), 1 KΩ to 10 TΩ
• Field meter: EP-EFM823, induction principle (field mill)
• Field range: 0 to +/-200 kV
• HV converter (charge plate): +/-1200 V
• Body voltage: walk test to IEC 61340-4-5
• Electrodes: 2 x 2.5 kg to EOS/ESD-S4.1 and S7.1
• Data interface: USB with PC software KL_ReadOut

Applications

• Basic audit and documentation of ESD protected areas (EPA)
• Resistance measurement on floors, table mats and packaging
• Field and potential measurement and verification of ioniser effectiveness
• Body voltage measurement (walk test) to IEC 61340-4-5

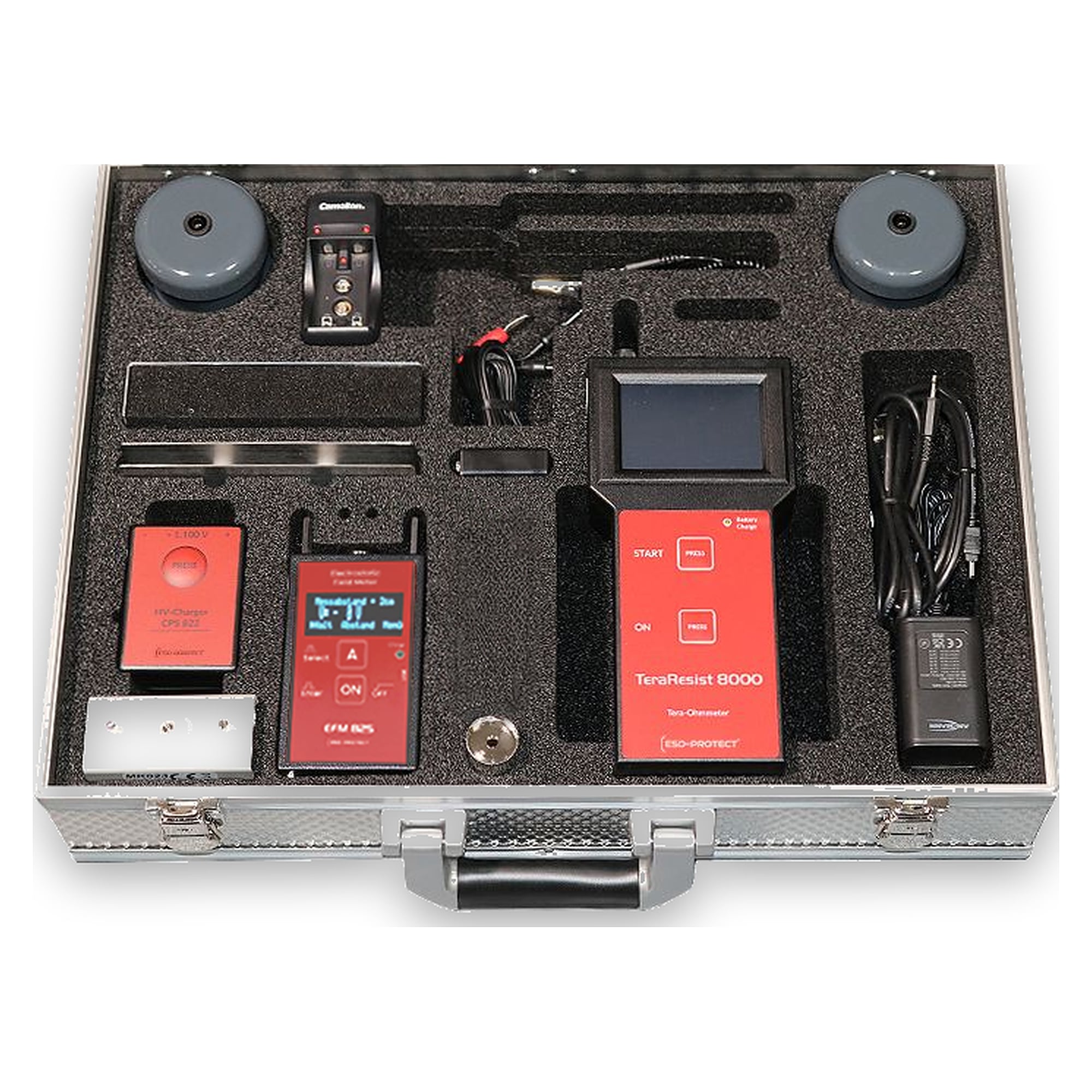

Scope of supply

• TeraResist 8000 high-resistance meter with power supply, 4 x AA NiMH, test leads 2 m and 3 m, 2 electrodes 2.5 kg to EOS/ESD-S4.1 and S7.1, USB cable, PC software KL_ReadOut, manual, calibration certificate and aluminium case
• EP-EFM823 field meter with 3 x 9 V NiMH battery, charger, earthing coil cable, Y-USB cable, 2 spacers (2 cm), calibration certificate and manual

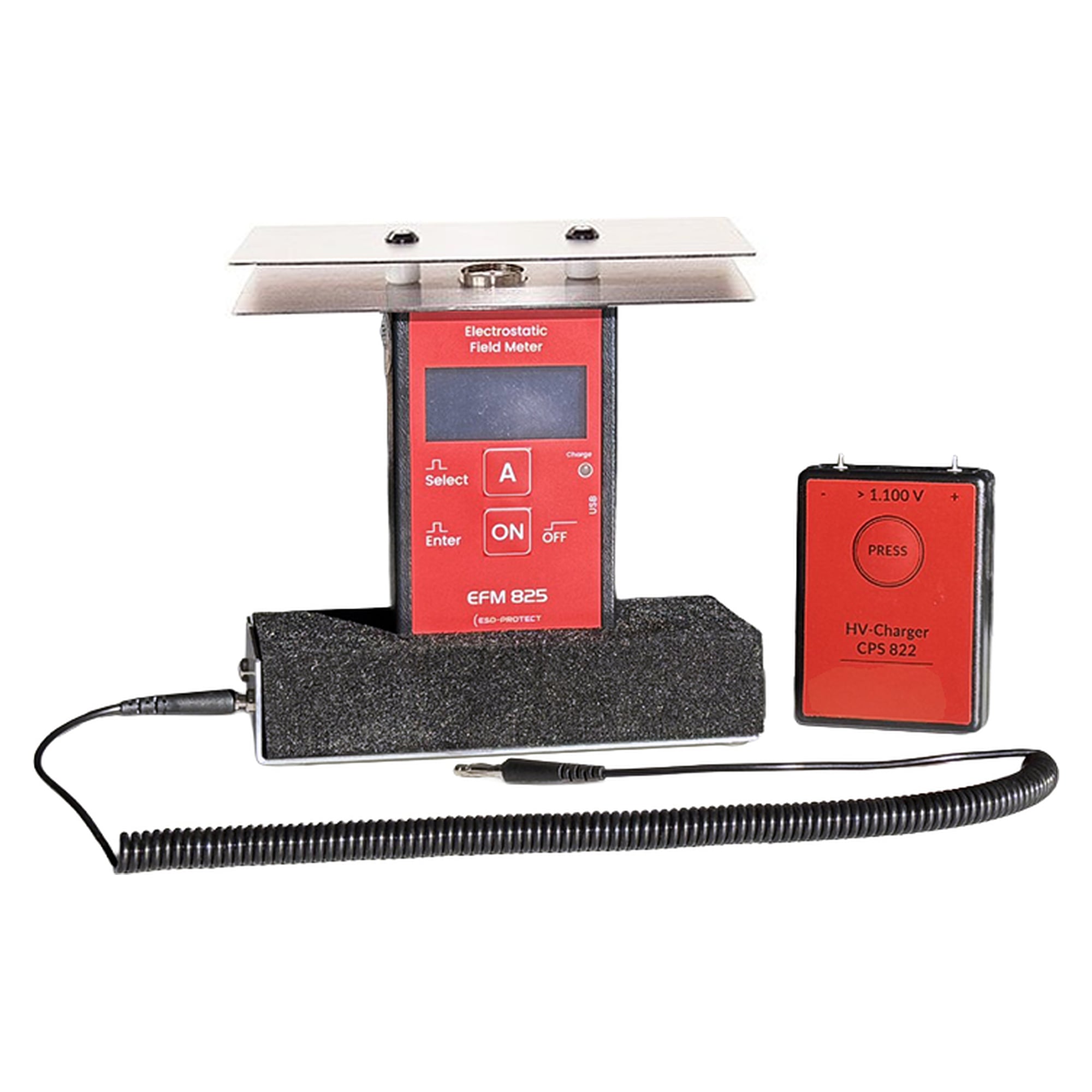

• Charge plate and HV generator with base, plate capacitor, HV converter +/-1200 V and earthing cable

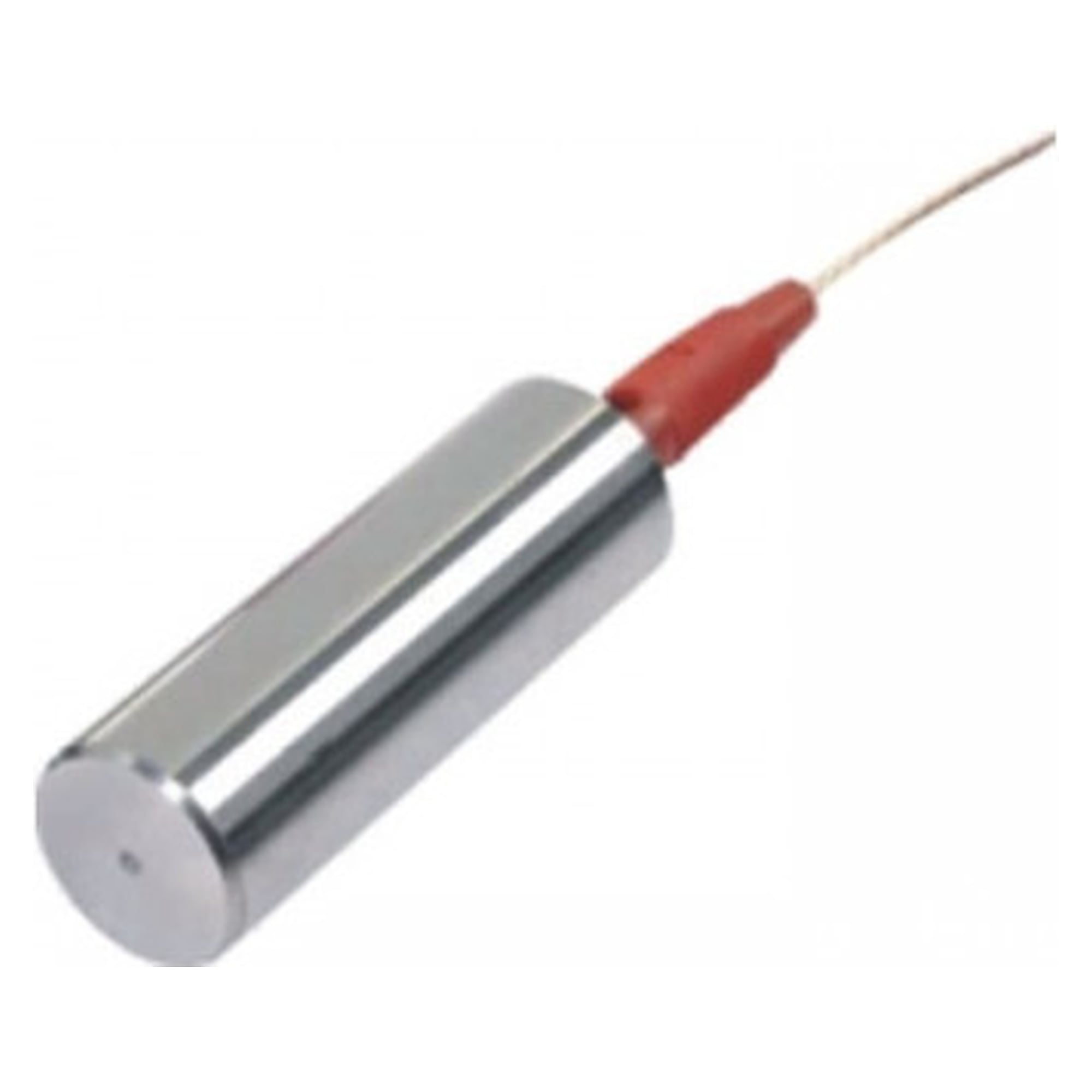

• Walk test with voltage measuring head, hand electrode and silicone cable 3 m
• A/D converter USB stick, recorder output cable 3.5 mm jack/BNC, grounding block EP0101013

Standards and compliance

Suitable for testing to IEC 61340, in particular body voltage measurement to IEC 61340-4-5. Electrodes to EOS/ESD-S4.1 and S7.1.
