ESD audit kit Professional in trolley case

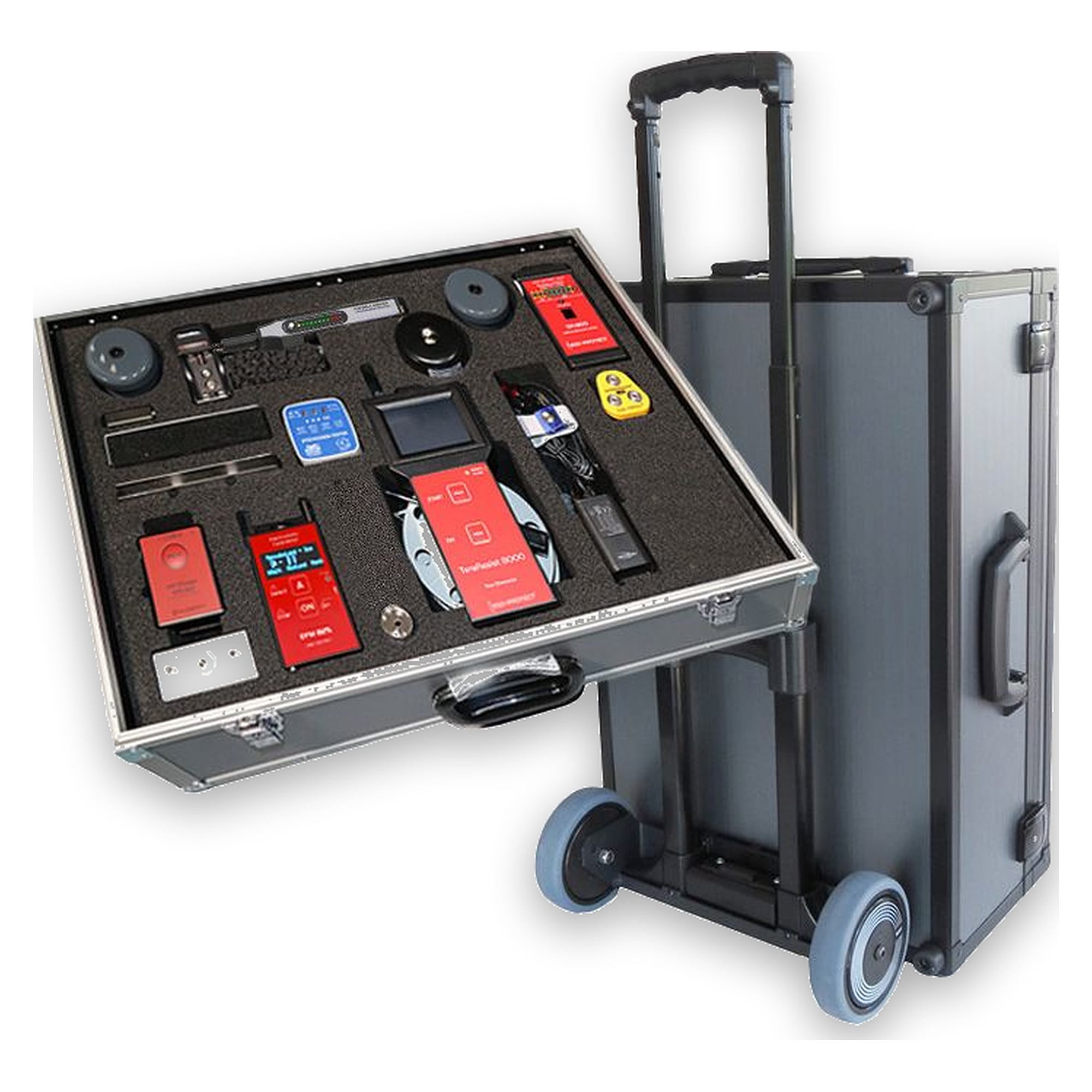

The ESD audit kit Professional with trolley combines the complete professional outfit for auditing ESD Protected Areas (EPAs) in an aluminium case with a detachable trolley and ESD foam inserts for safe storage. It combines the TeraResist 8000 high-resistance meter and the EP-EFM823 field meter with charge-plate and walking-test sets and an extensive accessory package, enabling standard-compliant resistance, field, potential and body-voltage measurements to IEC 61340 while keeping the set mobile and well protected.

Key benefits

• Aluminium case with detachable trolley and ESD foam inserts for safe transport
• Complete professional audit: resistance, field, potential and body voltage
• TeraResist 8000 with colour touchscreen, four test voltages up to 10 T
• EP-EFM823 field meter, induction principle, 0 to +/-200 kV
• Charge plate and HV source for testing ioniser effectiveness
• Walking test for body-voltage measurement to IEC 61340-4-5

Technical specifications

Applications

• Mobile, complete audit and documentation of ESD Protected Areas (EPAs)
• Resistance measurement on floors, table mats, chairs and packaging
• Field and potential measurement and testing of ioniser effectiveness
• Body-voltage measurement (walking test) to IEC 61340-4-5
• Testing of individual components with surface tester, mini-probe and ring electrodes

Scope of delivery

• Aluminium case with detachable trolley and ESD foam inserts for safe storage
• TeraResist 8000 high-resistance meter with plug-in PSU 230 V~ / 50 Hz, 9 V DC / 300 mA, 4 x AA NiMH batteries, 2 measuring electrodes 2.5 kg per EOS/ESD-S4.1 and S7.1, 2 m and 3 m measuring leads, user manual
• EP-EFM823 field meter with analogue output incl. 3 x 9 V NiMH battery, charger, earthing spiral cable with crocodile clip, Y-USB cable, 2 spacers (2 cm), calibration certificate and user manual
• Charge plate and HV source for EP-EFM823 incl. instrument base, plate capacitor, HV converter +/-1200 V, earthing cable and user manual
• Walking test for EP-EFM823 incl. voltage measuring head, hand electrode and 3 m silicone cable
• Accessories: A/D converter USB stick, KL_ReadOut PC software, recorder output cable 3.5 mm jack/BNC, user manual
• Surface tester (EP0201009), digital hygro-thermometer (EP0201039), mini-probe (EP0201089), ring-electrode set in case (EP0204003)
• Earthing module (EP0101001), crocodile clip with DK10 connector (EP0599010), crocodile clip for banana plug (EP0599009)
• Wrist strap with DK10 (EP0105001), coil cord DK10/DK10 (EP0103009), coil cord inv. banana-DK10 1.80 m (EP0103016)
• Socket tester for Schuko outlets (EP0201043), hand reel for the teraohmmeter (EP0201007)
• Insulating plastic plate (400 x 300 x 6 mm) and metal plate (400 x 300 x 2 mm) with earthing connection

Standards and compliance

Suitable for testing to IEC 61340, in particular body-voltage measurement to IEC 61340-4-5; measuring electrodes per EOS/ESD-S4.1 and S7.1.
