ESD audit kit Professional, resistance and field - A1-ESD TeraResist 8000

ESD audit kit Professional TeraResist 8000

The ESD audit kit Professional is the fully equipped solution for the professional auditing of ESD Protected Areas (EPAs). It combines the TeraResist 8000 high-resistance meter and the EP-EFM823 field meter with charge-plate and walking-test sets plus an extensive accessory package, so that resistance, field, potential and body-voltage measurements as well as the testing of individual workplace components are covered in one set. This makes the kit ideal for standard-compliant testing and complete documentation to IEC 61340.

Key benefits

• Complete professional audit: resistance, field, potential and body voltage
• TeraResist 8000 with colour touchscreen, four test voltages up to 10 T
• EP-EFM823 field meter, induction principle, 0 to +/-200 kV
• Charge plate and HV source for testing ioniser effectiveness
• Walking test for body-voltage measurement to IEC 61340-4-5
• Extensive accessories for component testing and earthing

Technical specifications

Applications

• Complete audit and documentation of ESD Protected Areas (EPAs)
• Resistance measurement on floors, table mats, chairs and packaging
• Field and potential measurement and testing of ioniser effectiveness
• Body-voltage measurement (walking test) to IEC 61340-4-5
• Testing of individual components with surface tester, mini-probe and ring electrodes

Scope of delivery

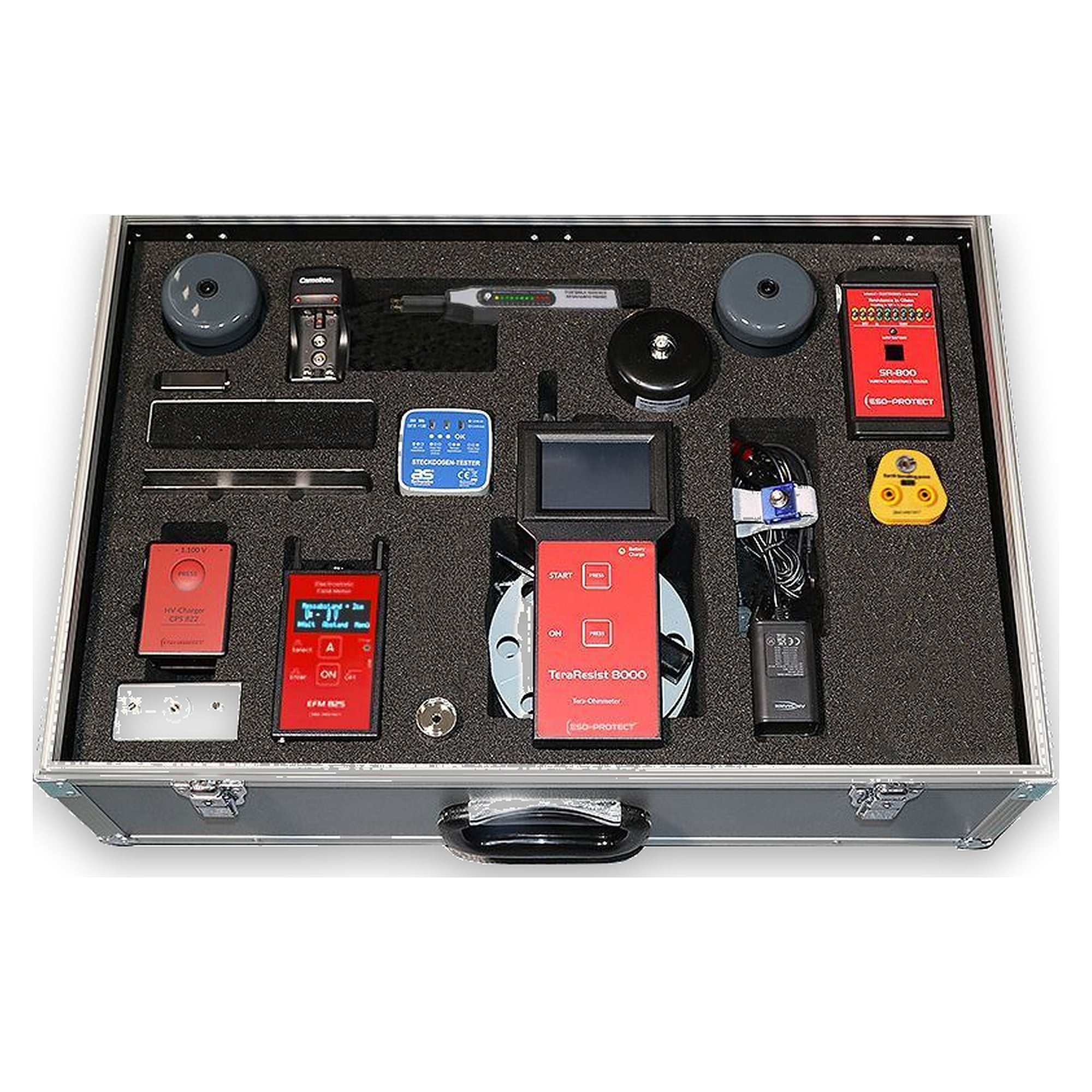

• TeraResist 8000 high-resistance meter with plug-in PSU, 4 x AA NiMH batteries, measuring lead 2 m (yellow) and 3 m (red) banana to safety plug, 2 measuring electrodes 2.5 kg per EOS/ESD-S4.1 and S7.1, USB cable, KL_ReadOut PC software, user manual, calibration certificate and aluminium case
• EP-EFM823 field meter with analogue output incl. 3 x 9 V NiMH battery, charger, earthing spiral cable with crocodile clip, Y-USB cable, 2 spacers (2 cm), calibration certificate and user manual
• Charge plate and HV source for EP-EFM823 incl. instrument base, plate capacitor, HV converter +/-1200 V, earthing cable and user manual

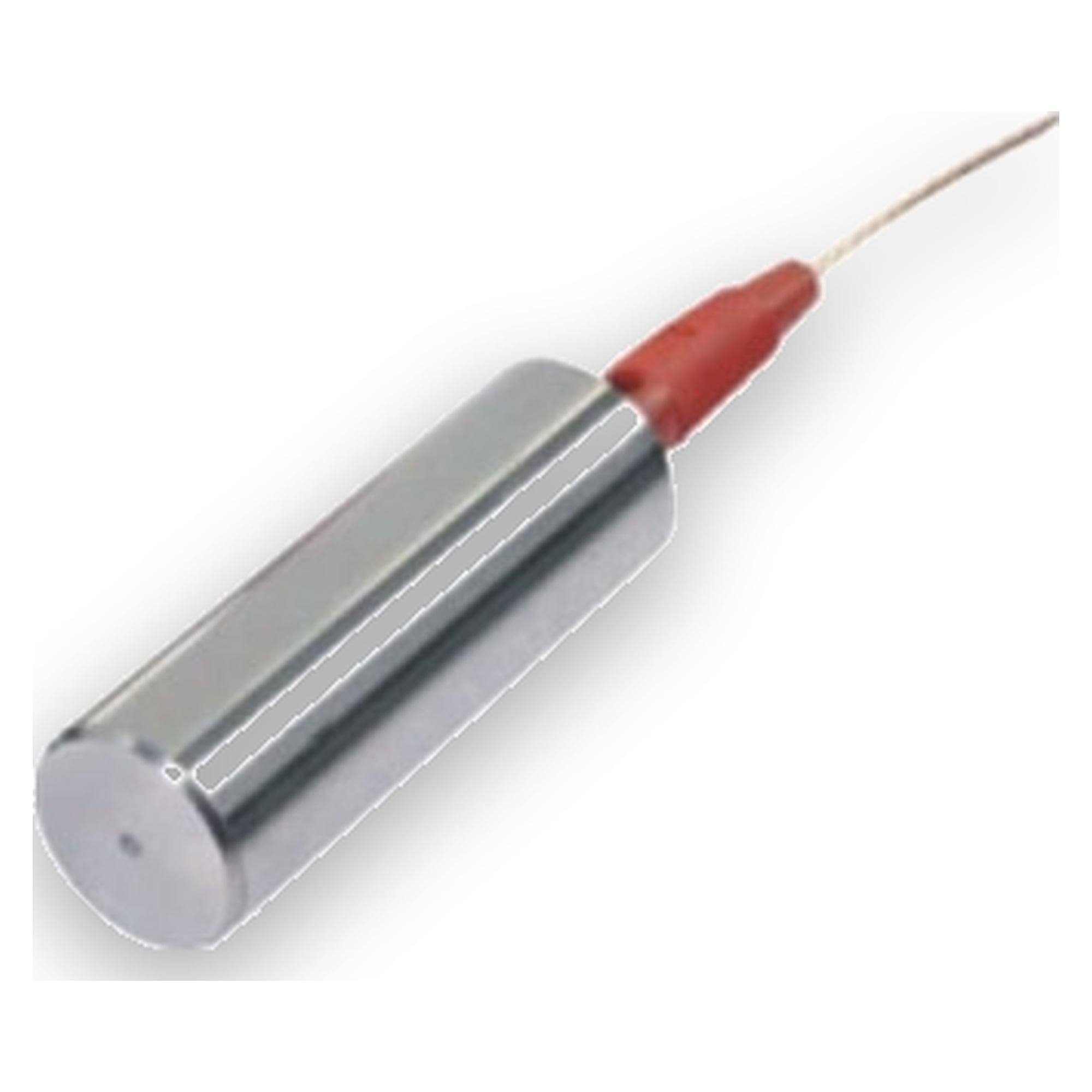

• Walking test for EP-EFM823 incl. voltage measuring head, hand electrode and 3 m silicone cable
• General accessories: A/D converter USB stick, KL_ReadOut PC software, recorder output cable 3.5 mm jack/BNC, user manual

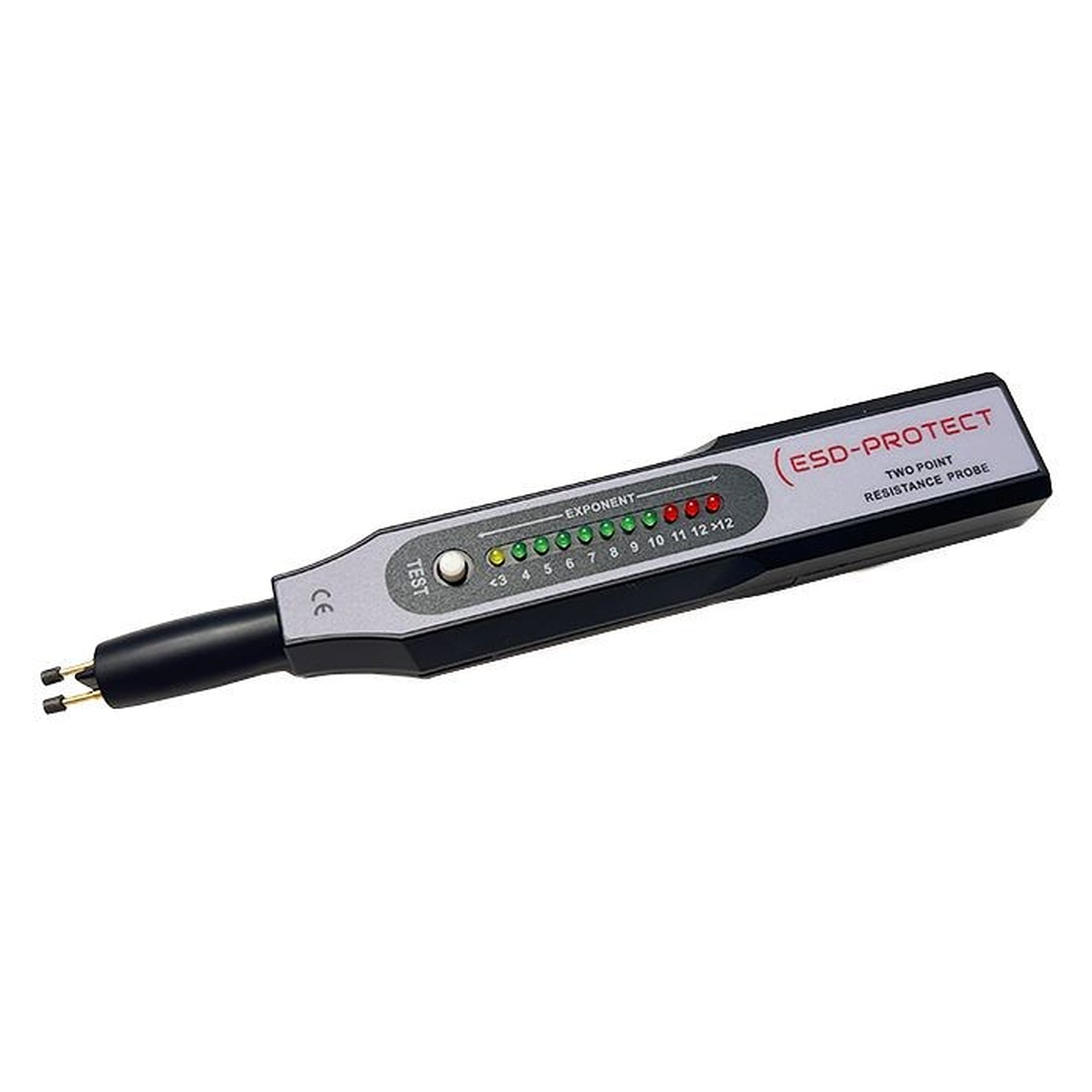

• Surface tester (EP0201009), digital hygro-thermometer (EP0201039), mini-probe (EP0201089), ring-electrode set in case (EP0204003)
• Earthing module (EP0101001), crocodile clip with DK10 connector (EP0599010), crocodile clip for banana plug (EP0599009)
• Wrist strap with DK10 (EP0105001), coil cord DK10/DK10 (EP0103009), coil cord inv. banana-DK10 1.80 m (EP0103016)
• Socket tester for Schuko outlets (EP0201043), hand reel for the teraohmmeter (EP0201007)
• Insulating plastic plate (400 x 300 x 6 mm) and metal plate (400 x 300 x 2 mm) with earthing connection

Standards and compliance

Suitable for testing to IEC 61340, in particular body-voltage measurement to IEC 61340-4-5; measuring electrodes per EOS/ESD-S4.1 and S7.1.
