Electrostatic field meter DESCO 19442, static fields to ±19.99 kV - A1-ESD EP0201084

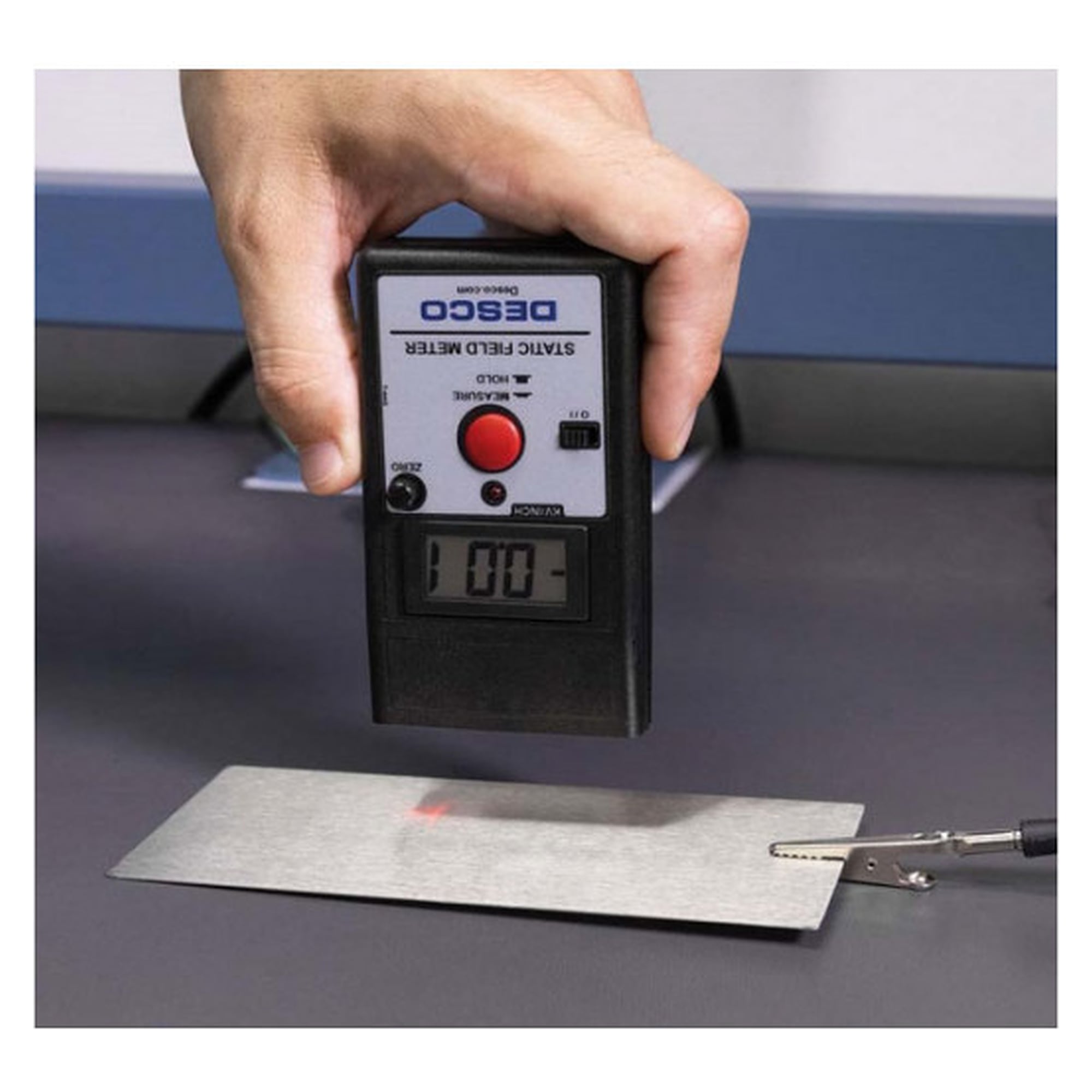

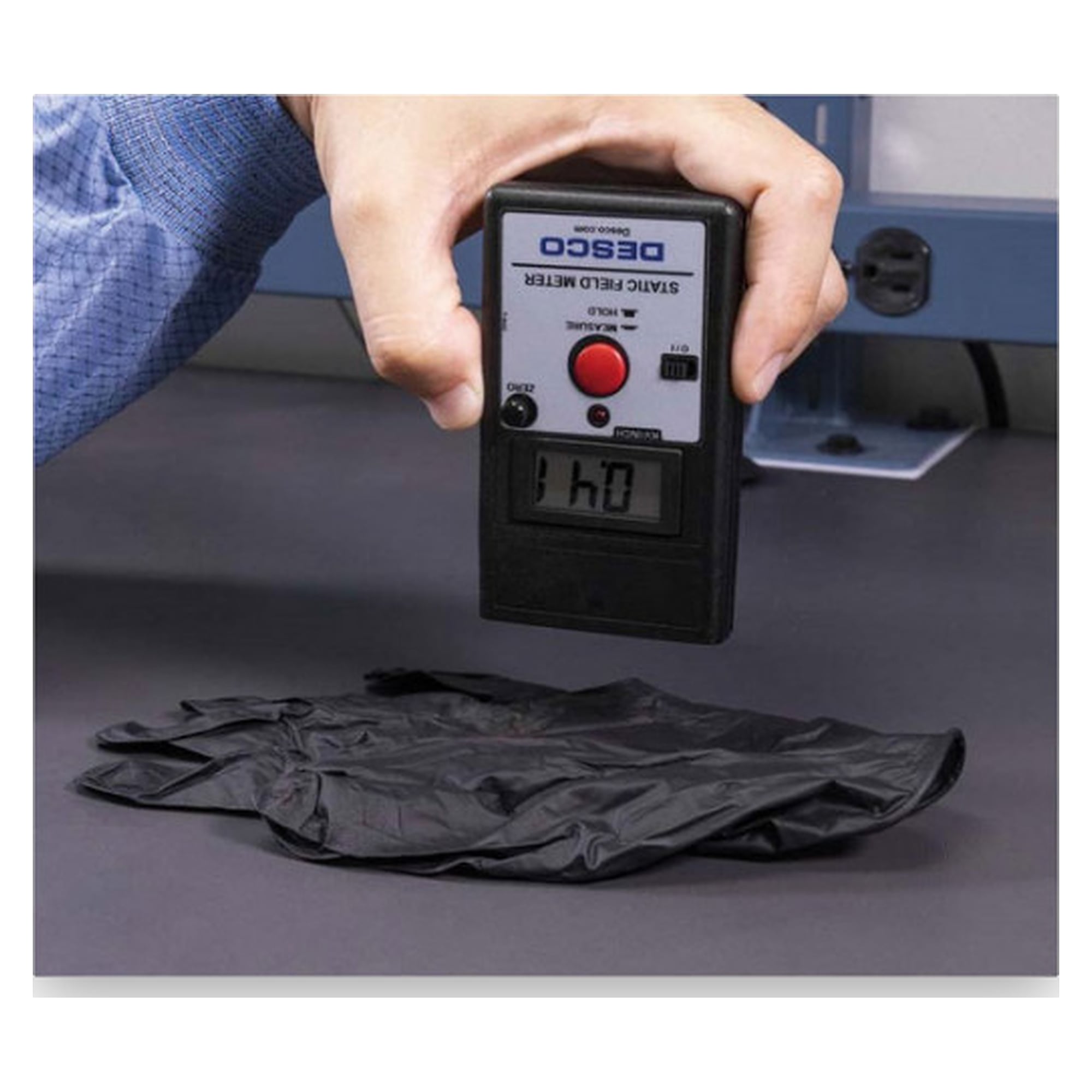

The DESCO 19442 is a light, compact electrostatic field meter for measuring static fields and the charge on objects. It captures voltages from 0 to ±19.99 kV with an accuracy of ±5 %. An LED distance indicator helps the operator keep the correct distance.

Benefits

• LED distance indicator for the correct measuring distance
• Hold function to freeze the last measurement
• Analogue output providing a low-voltage signal of the measured voltage

Technical data

• Measuring range (selectable): 0 to ±19.99 kV (at 1 inch)
• Accuracy: ±5 %
• Dimensions: 24 x 70 x 126 mm
• Weight: 140 g
• Power: 9 V block battery

Applications

For checking static charges on components, packaging and surfaces. A charge plate and HV generator for ioniser testing are available as options.

Standards and compliance

Supports ESD control to IEC 61340-5-1.
