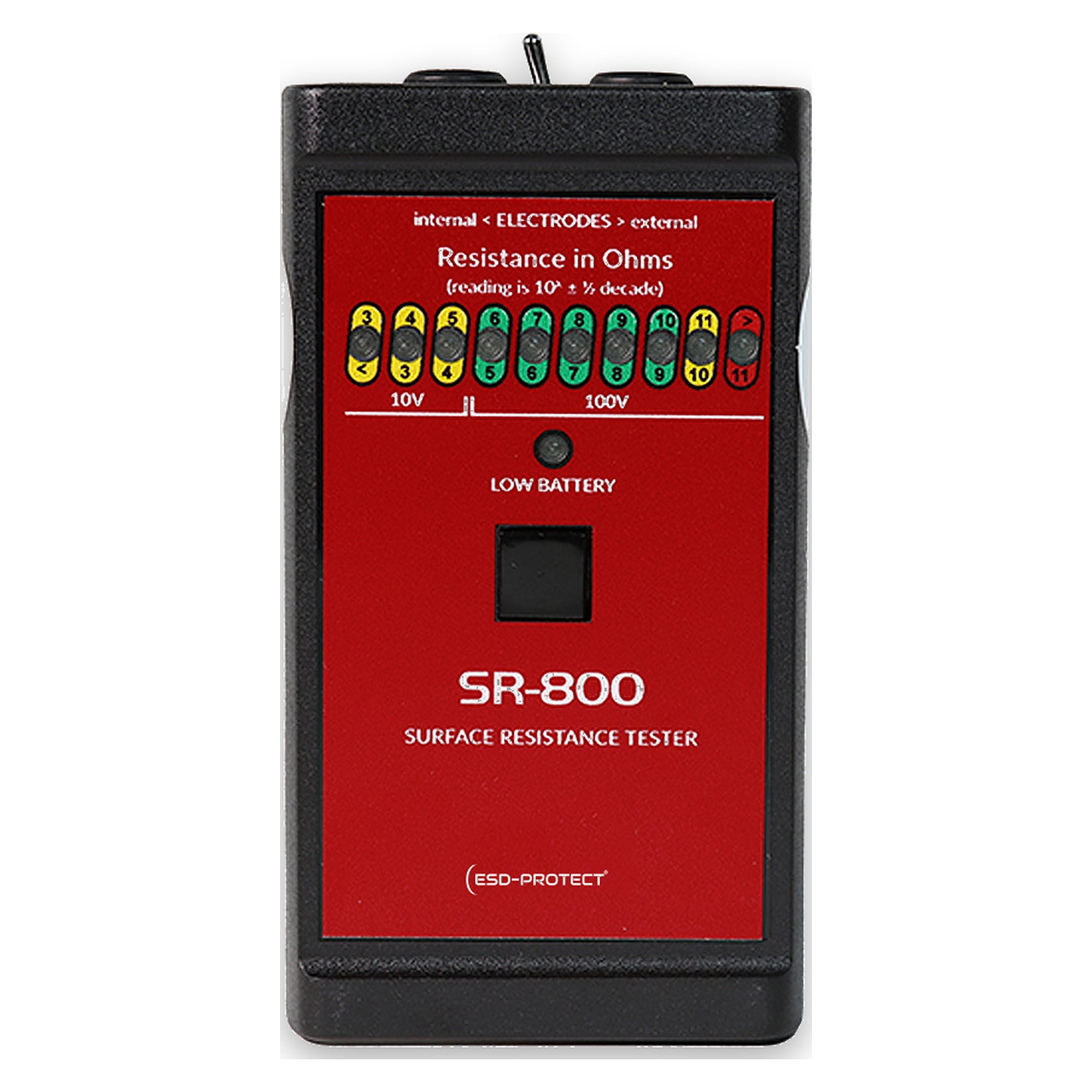

Surface tester with two electrodes, 10^3 to 10^12 Ω - A1-ESD EP0201009

The surface tester checks electrostatically conductive and dissipative surfaces flexibly anywhere, running on a 9 V battery. Two built-in electrodes allow internal point-to-point measurements, while two connections for external electrodes are available for point-to-ground measurements.

Benefits

• Point-to-point measurement via two built-in electrodes

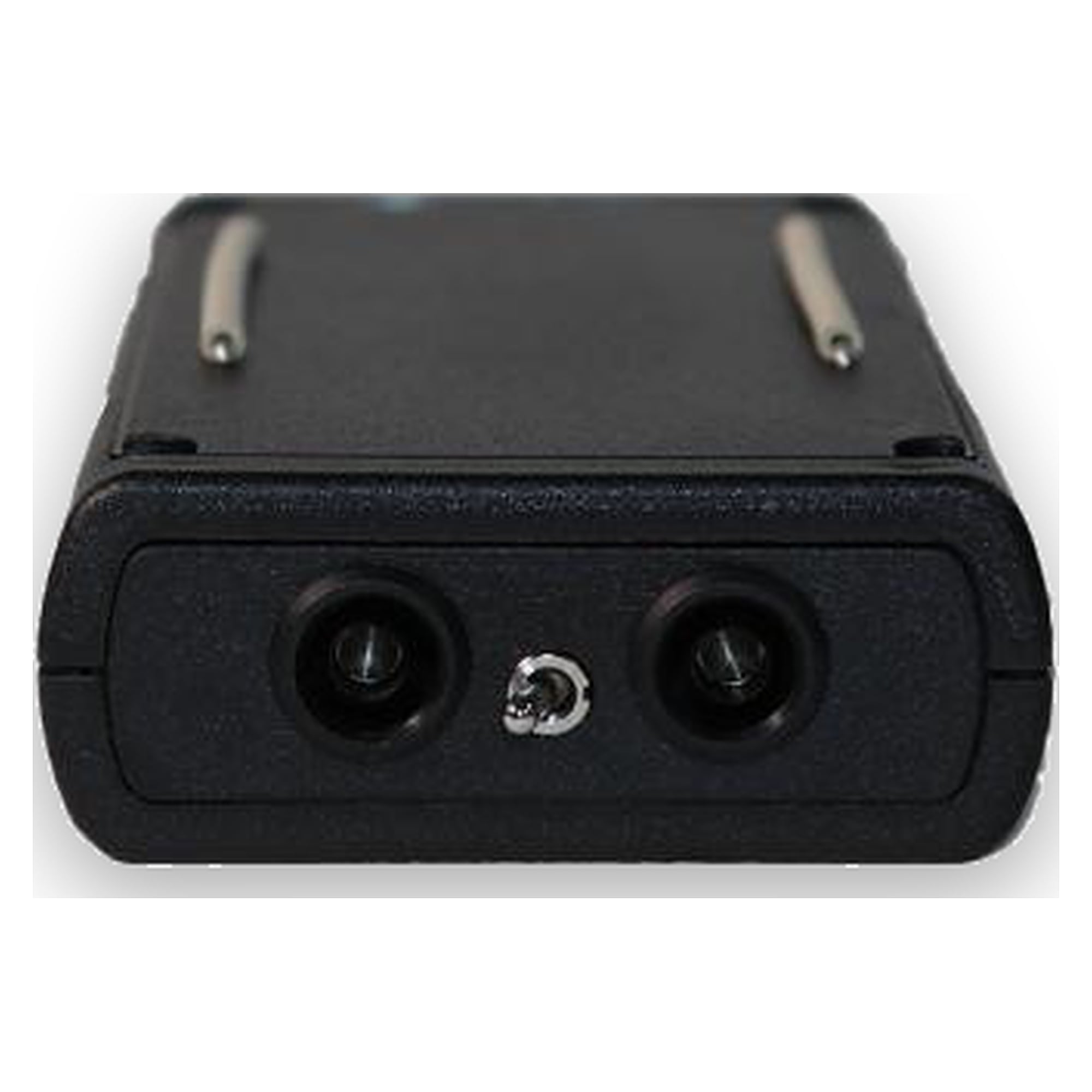

• Two connections for external electrodes for point-to-ground measurements
• Automatic test-voltage switching between 10 V and 100 V plus battery indicator

Technical data

• Measuring range: 10^3 Ω to 10^12 Ω
• Test voltage: 10 V / 100 V, switched automatically
• Power: 9 V battery
• Scope of supply: surface tester, 9 V battery, calibration certificate

Applications

For fast on-site testing of ESD surfaces, mats and packaging.

Standards and compliance

Supports ESD control to IEC 61340-5-1.
