Charged plate monitor with plate electrode and battery operation - A1-ESD EP0201082

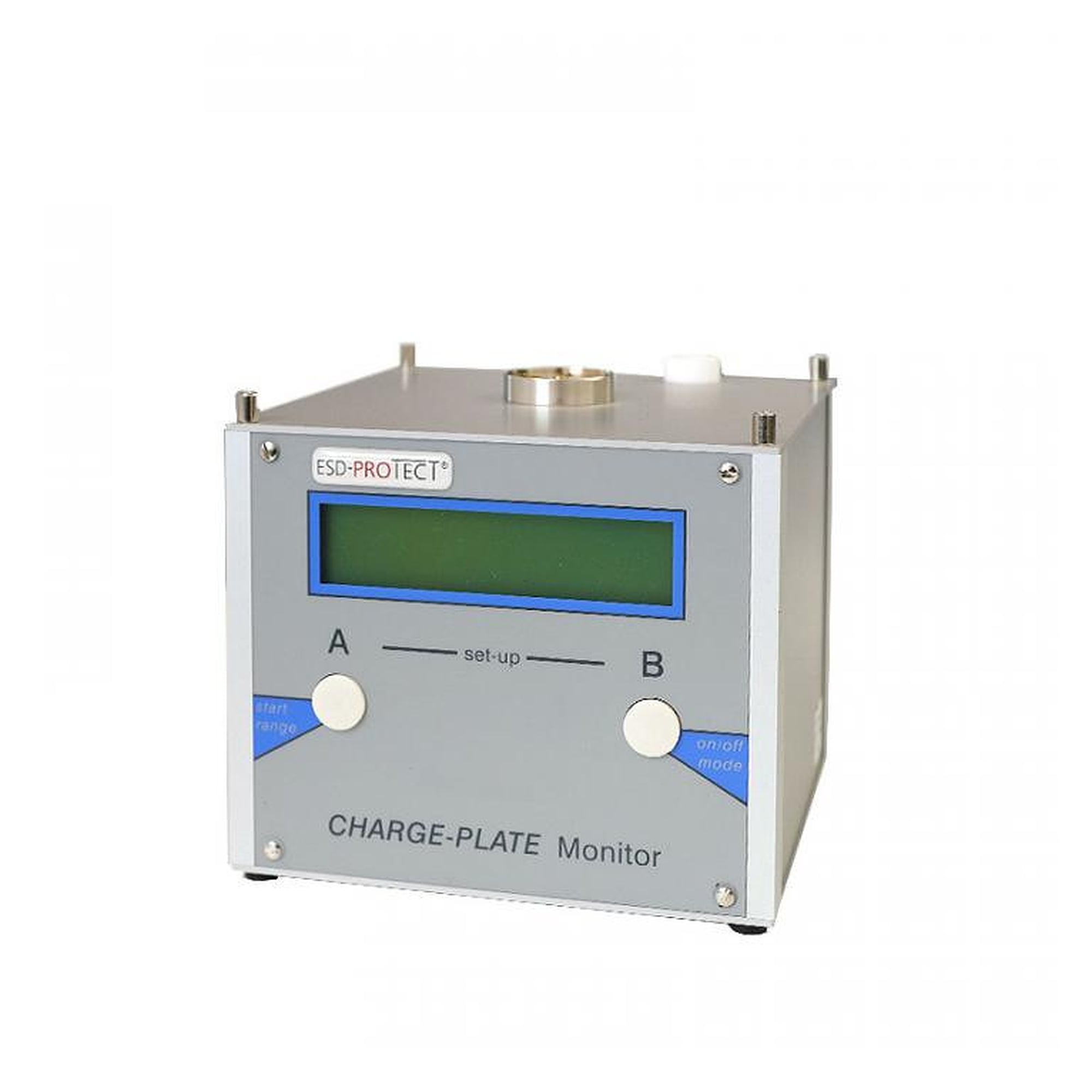

The CPM 8374B charged plate monitor verifies the effectiveness of air ionisers directly at the workstation. Using the integrated plate electrode (150 x 150 mm) it determines the offset voltage and the decay time from a pre-selected threshold to a lower value (default +/- 1000 V to +/- 100 V), making the neutralising performance of the ioniser traceable.

Benefits

• Built-in electrostatic field meter on the field-mill induction principle with high input impedance of 10¹⁵ ohm
• High-voltage unit isolated through high impedance and therefore safe to touch
• Mains or battery operation for stationary and mobile use
• Menu-guided two-button operation with two-line LCD display
• Reading storage in internal EEPROM, readout via RS 232

Technical data

• Plate electrode: 150 x 150 mm
• Decay time measurement: +/- 1000 V to +/- 100 V (selectable)
• Input impedance: 10¹⁵ ohm
• Dimensions: 152 x 152 x 152 mm
• Weight: 990 g
• Display: alphanumeric, 2 lines x 16 characters
• Interface: serial RS 232 (9-pin SUB-D socket)
• Power: battery pack 7.2 V / 1300 mAh, run time approx. 4 h, external 12 V DC / 750 mA
• Charging time: max. 14 h
• Automatic shut-off approx. 5 min after measurement

Scope of delivery

• CPM 8374B charged plate monitor in a conductive-plastic carry case with antistatic foam insert
• Plug-in power supply 230 V~ / 50 Hz to 12 V DC / 750 mA
• Grounding cable with clip, 3 spacers, PTFE-coated measuring lead with tuft plug
• Serial PC cable and KL-ReadOut software
• Operating manual and calibration certificate

Standards and compliance

The instrument conforms to IEC 61340-4-7, EN 61340-5-1 and EOS/ESD S3.1 and supports the periodic verification of ionisation equipment in EPA areas to IEC 61340-5-1.
