What is an ESD field meter?

An ESD field meter is a device used to measure electrostatic fields and ensure proper grounding and protection against static electricity.

Why is electrostatic protection important?

Electrostatic protection is crucial to prevent damage to sensitive electronic components caused by static electricity.

How does an ESD field meter work?

An ESD field meter detects and measures the electrostatic field intensity, helping to identify and control static electricity sources.

What are the benefits of using ESD field meters?

ESD field meters provide accurate measurements, ensuring effective static electricity management and enhancing safety in sensitive environments.

Can ESD field meters measure voltage?

Yes, ESD field meters can measure voltage levels associated with electrostatic fields, aiding in effective control and prevention.

Where can I purchase ESD field meters?

ESD field meters can be purchased from specialized equipment suppliers and online stores that focus on electrostatic protection devices.

Are ESD field meters easy to use?

Yes, most ESD field meters are designed for ease of use, providing intuitive interfaces and clear readings for effective measurement.

ESD Static Field Meter

ESD Measuring

ESD field meters measure electrostatic field strength in V/m or kV/m with typical measurement ranges from 0.1 kV/m up to 200 kV/m at distances of 25-300 mm, enabling non-contact surface voltage detection down to <1 V resolution. In EPA environments, accurate field measurement is the primary diagnostic tool for identifying charge sources exceeding the IEC 61340-5-1 threshold of 100 V on conductors and 200 V on insulators - values that cannot be detected by wrist-strap testers or surface resistance meters alone. Instruments with auto-zeroing and Faraday cup compatibility allow calibrated readings traceable to national standards.

This category covers 15 ESD field meters and electrostatic voltmeters for professional use in EPA qualification, charged-insulator audits, and ionizer performance verification per IEC 61340-5-1 / ANSI/ESD S20.20. Products are selected for industrial metrology accuracy, battery or USB operation, and compatibility with EPA documentation workflows under DIN EN 61340-5-2 site audit requirements.

⚡ 0.1 kV/m - 200 kV/m range - non-contact electrostatic field measurement per IEC 61340-5-1

↕ 25-300 mm sensing distance - configurable standoff for surface and air-gap measurements

???? <1 V resolution - detects charge sources below the 100 V EPA action threshold

⚙ Auto-zero + Faraday cup - traceable calibration for ionizer balance verification per ANSI/ESD SP3.3

???? IEC 61340-5-1 / S20.20 - instrument specs aligned with international EPA qualification norms

✓ DIN EN 61340-5-2 audit ready - supports documented EPA site surveys and periodic re-qualification

ESD Field Meter - Product Overview

Instrument Type	Measurement Range	Key Application	Norm Reference
Handheld field meter	ca. 0.1 - 100 kV/m	EPA audit, charged insulator identification	IEC 61340-5-1
Rotating vane fieldmeter	ca. 1 V - 200 kV/m	Traceable calibration, laboratory reference	ANSI/ESD S20.20

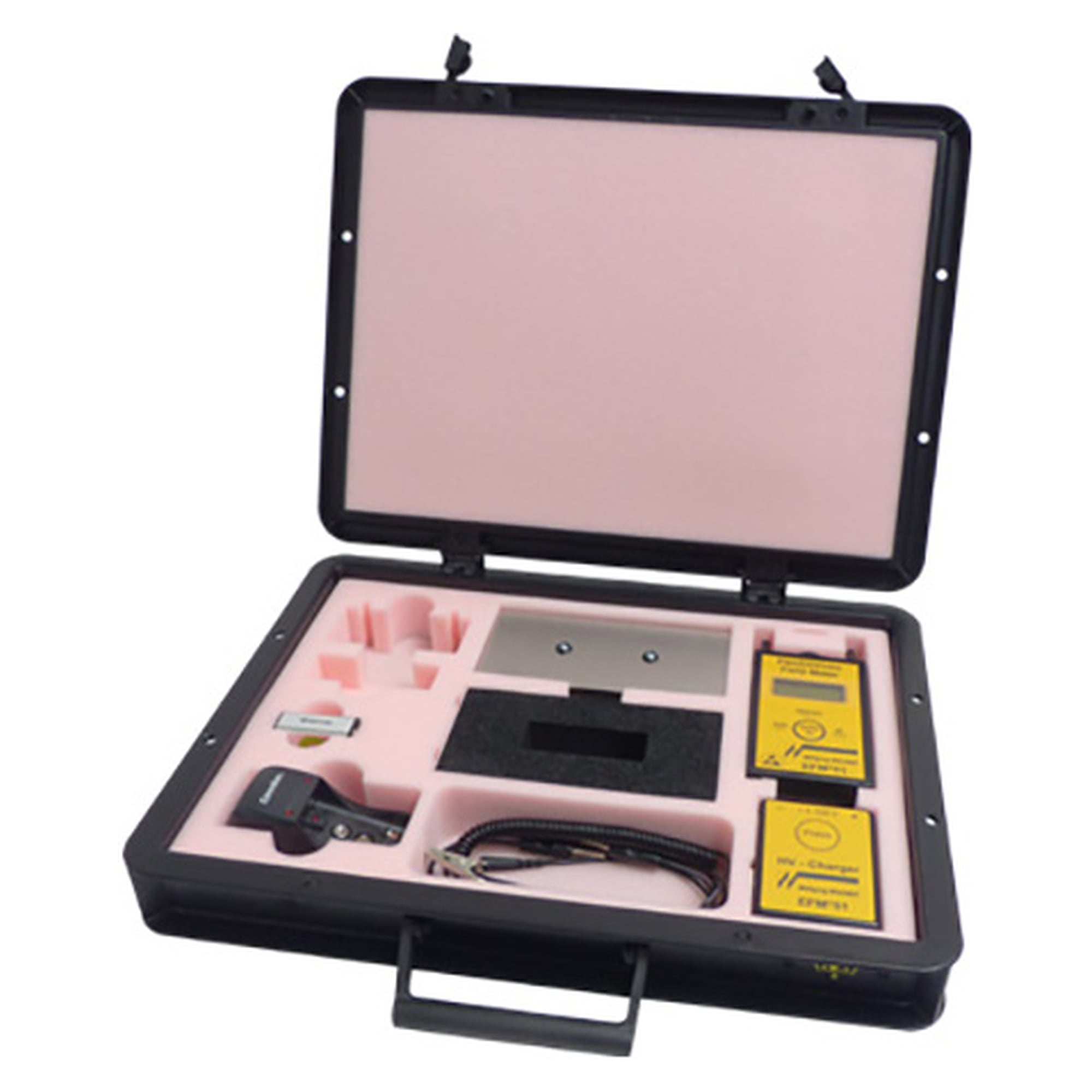

Ionizer performance tester	±1 kV, decay <2 s	Ion balance & decay time verification	ANSI/ESD SP3.3
Stationary field monitor	ca. 0.5 - 50 kV/m	Continuous EPA zone monitoring, alarm output	DIN EN 61340-5-2
Combination meter (field + resistance)	field + 10¹ - 10¹¹ Ω	Complete EPA workstation audit in one device	IEC 61340-5-1, -5-2

Typical applications: Electronics manufacturing and SMT assembly line qualification (IEC 61340-5-1, IPC-A-610), semiconductor fab EPA zoning and wafer-handling audits (SEMI E78, SEMI S1/S2), medical device production area certification (ISO 13485), automotive electronics assembly and supplier audits (IATF 16949, VDA 6.3), aerospace and defense EPA compliance verification (AS9100D), ionizer periodic performance testing and decay-time logging (ANSI/ESD SP3.3).

✓ 15 ESD Field Meters in stockHandheld, stationary and combination instruments for full EPA coverage

???? IEC 61340-5-1 / ANSI S20.20 compliantAll instruments meet international EPA measurement and audit standards

???? Traceable calibration availableCalibration certificates and Faraday cup accessories for audit documentation
