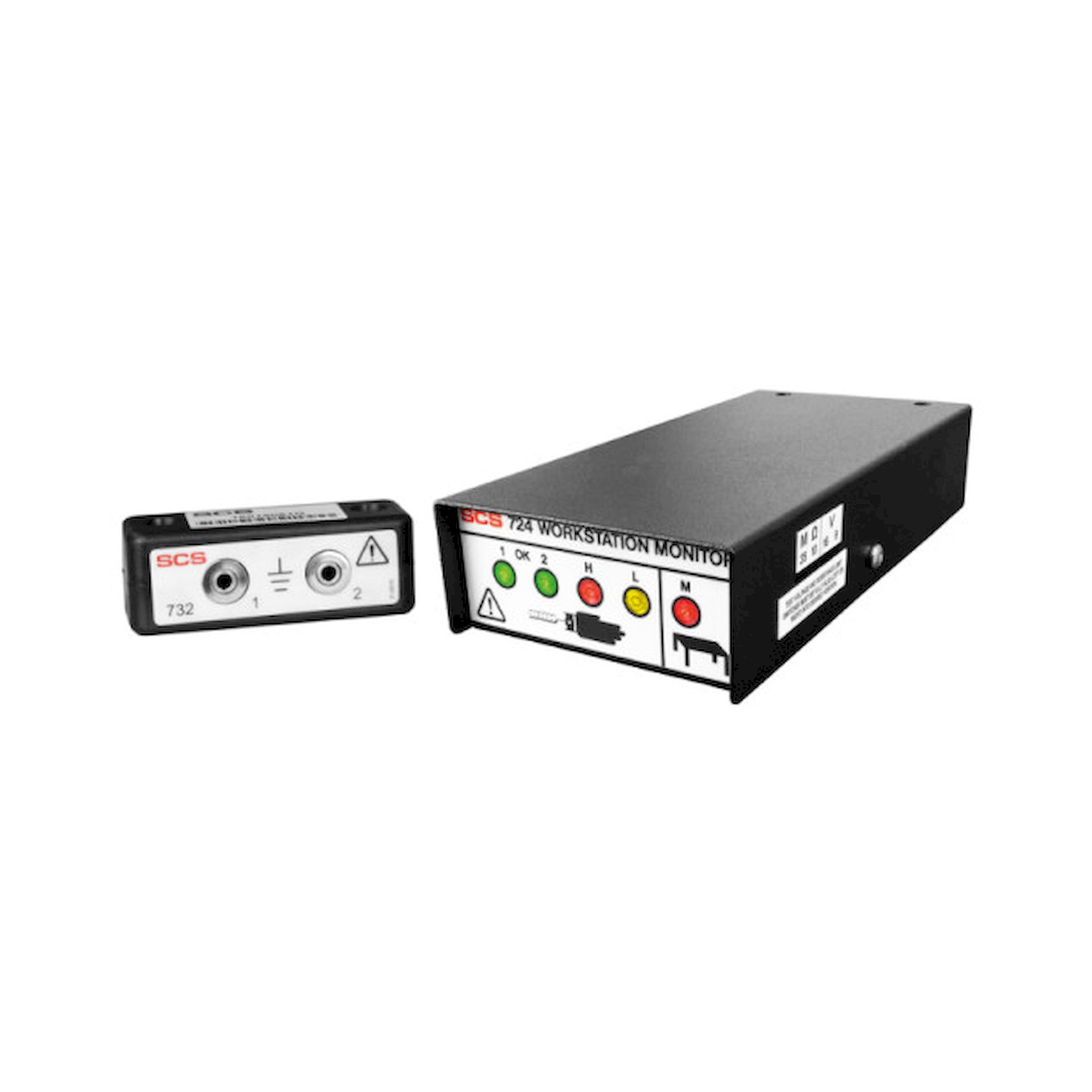

Dual operator continuous monitor with satellites, 10 mm, 220 V - Desco 99095

The Desco 99095 uses a control unit with two satellite remote monitors to continuously verify the grounding of two worksurface mats and two operators. LEDs on the control unit indicate proper grounding, and the control unit can be mounted at eye level so it uses no work surface area.

Key benefits

• Wave Distortion Technology for true 100 percent real-time continuous monitoring
• Two satellite remote monitors with a 10 mm monitored wrist strap ground, a 10 mm parking stud and a 10 mm unmonitored ground for a guest or equipment
• Can be placed up to approx. 2 m (7 ft) from the control unit
• Works with any brand of single-wire wrist strap and matching coil cords
• Audible alarm and LED grounding indication

Technical specifications

• Monitors: 2 mats and 2 operators
• Connection: 10 mm snap, single-wire wrist strap
• Supply: 220 V, IEC input adapter included
• Satellite distance: up to approx. 2 m (7 ft) from the control unit
• Power cords sold separately: 200220 Schuko/Euro, 200225 UK/Asia, 93030 Swiss
• Calibrated to NIST traceable standards

Standards and compliance

Meets the requirements for continuous ground monitoring per IEC 61340-5-1. Made in the USA. Recommended for use with wrist strap 229816.
