Multi-Mount continuous workstation monitor for one operator - Desco 19652

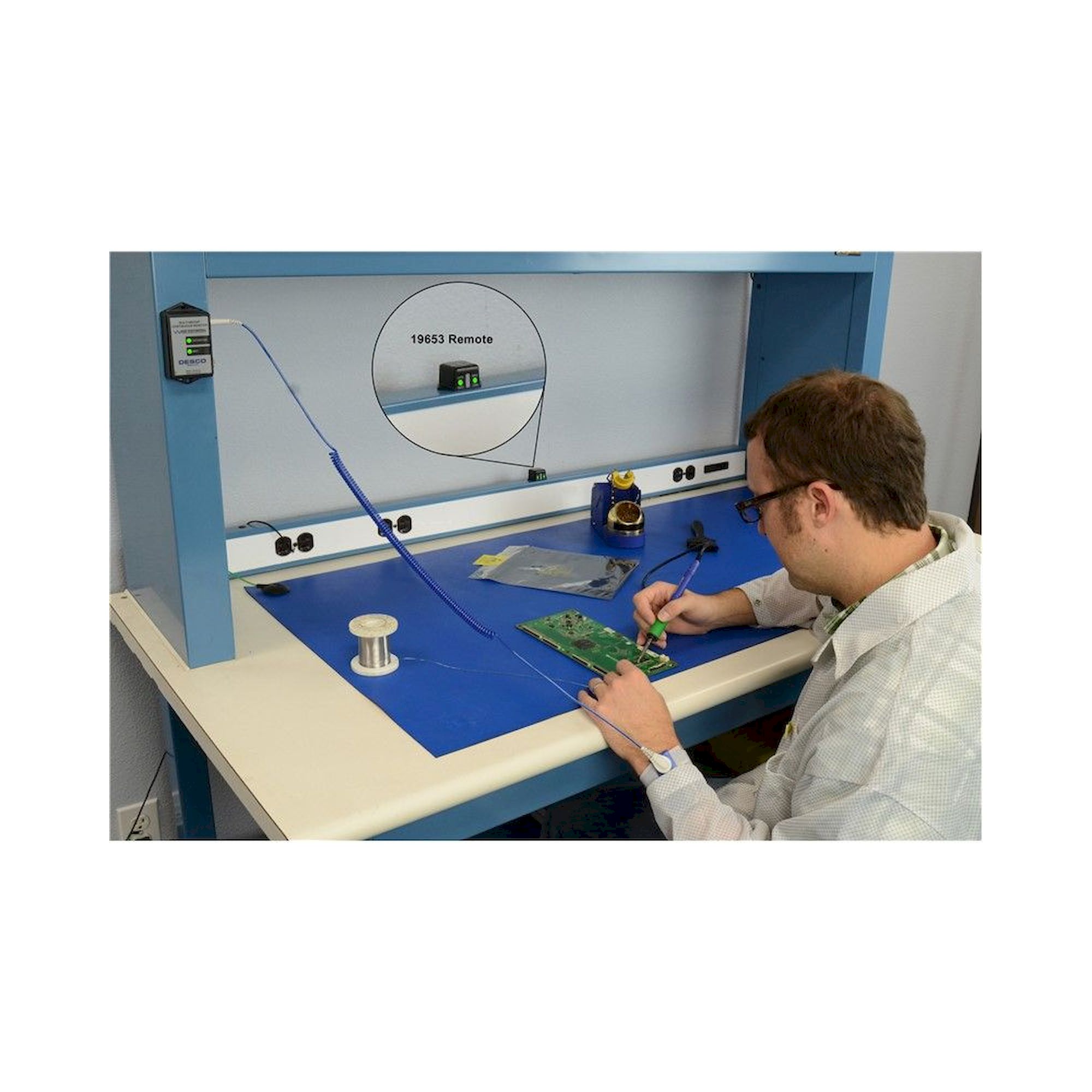

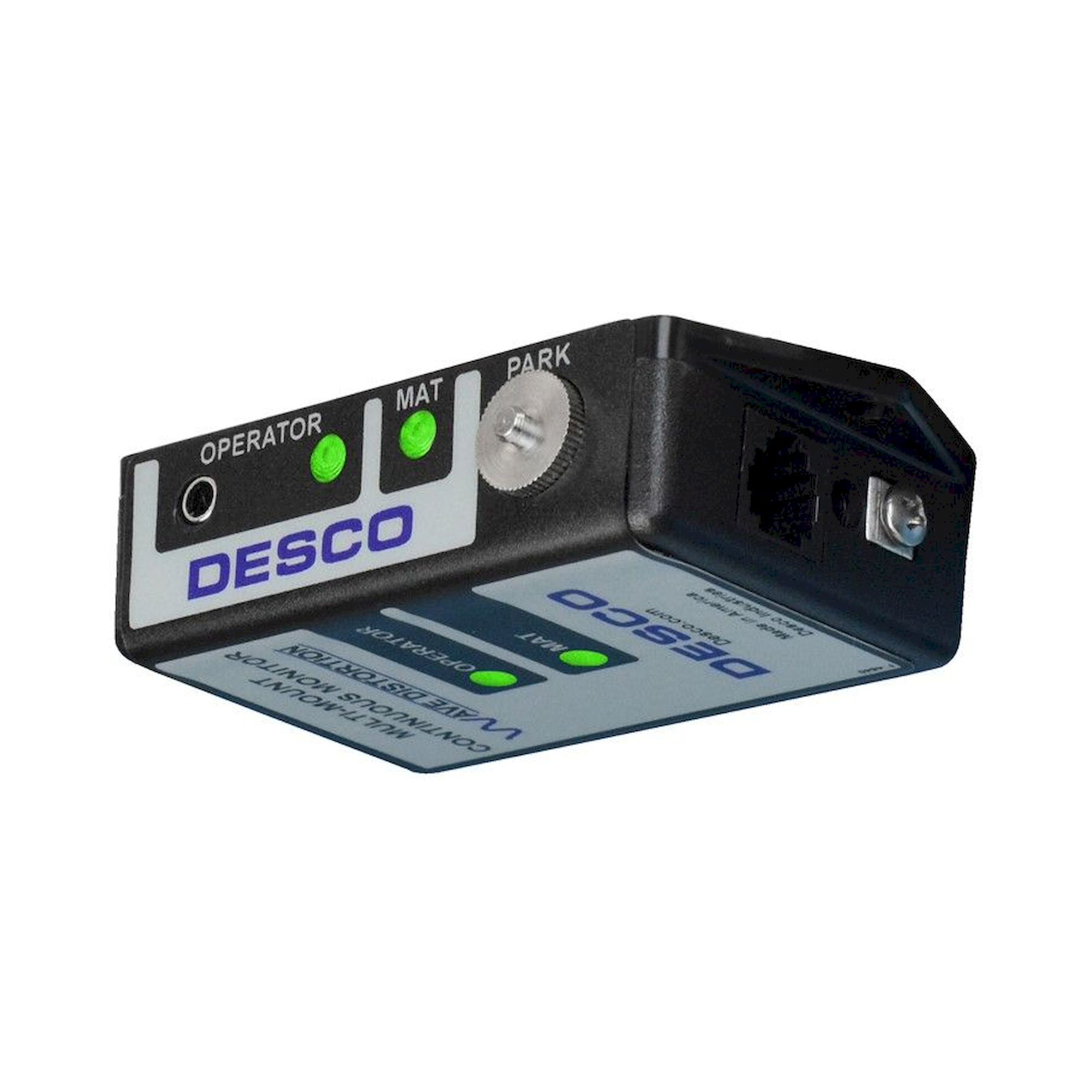

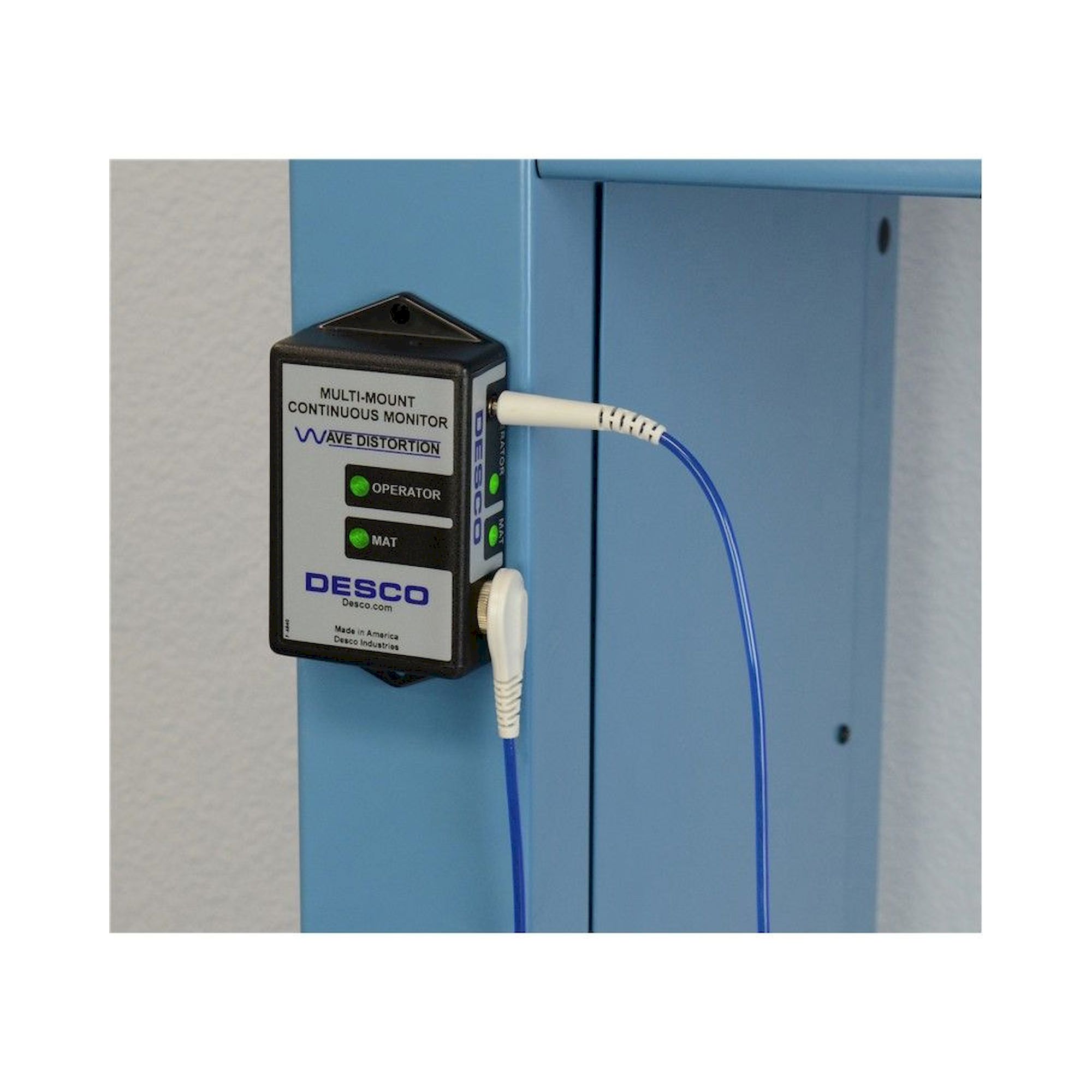

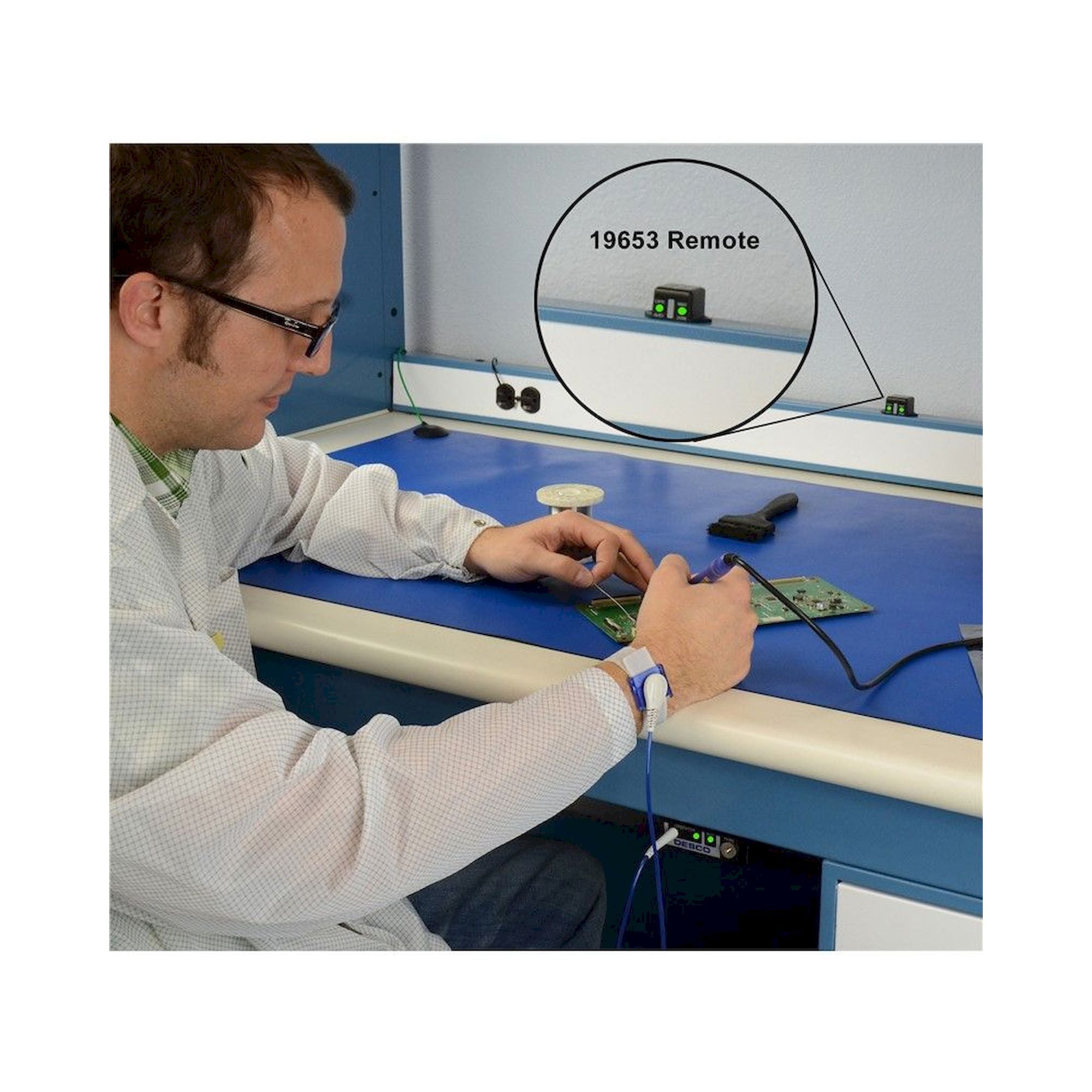

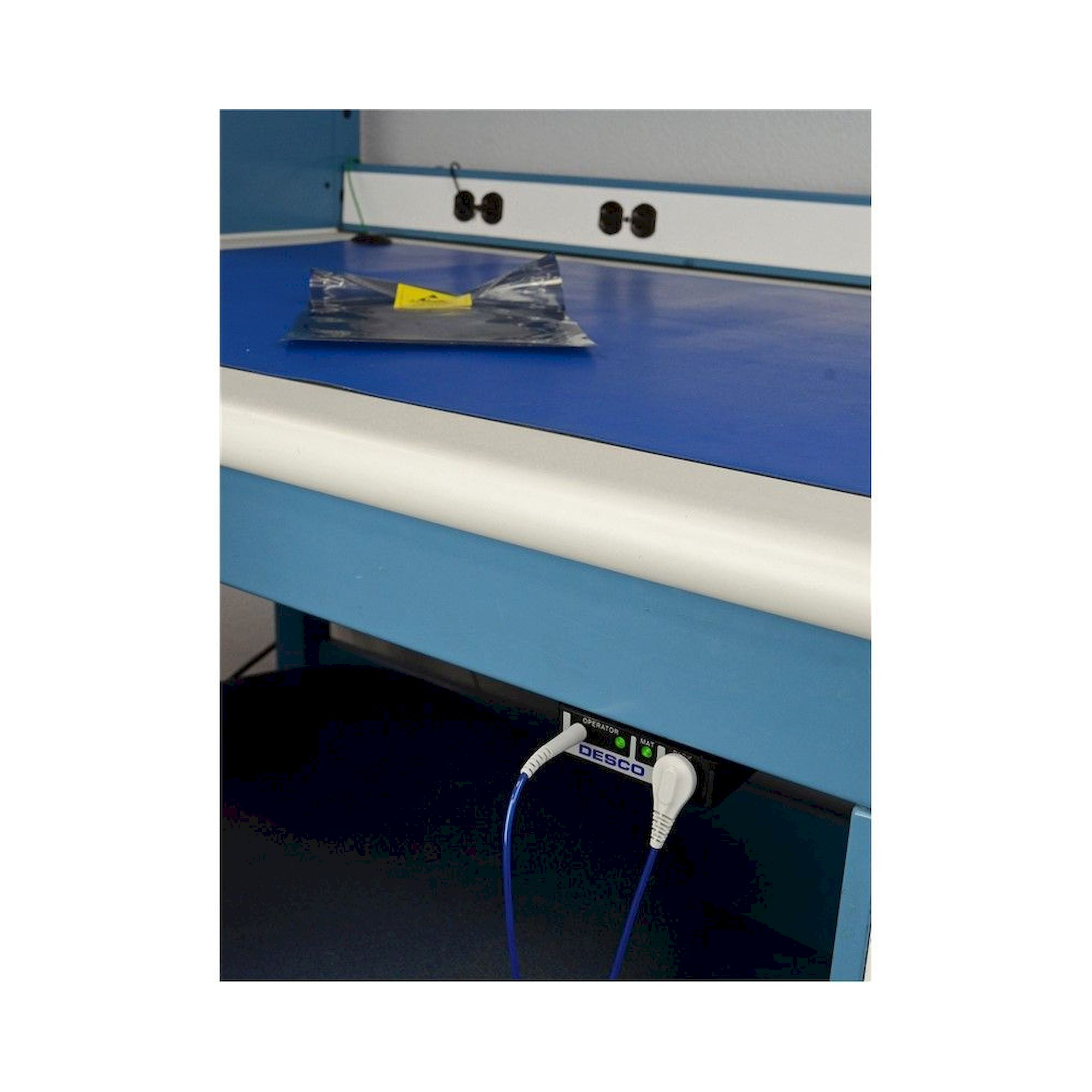

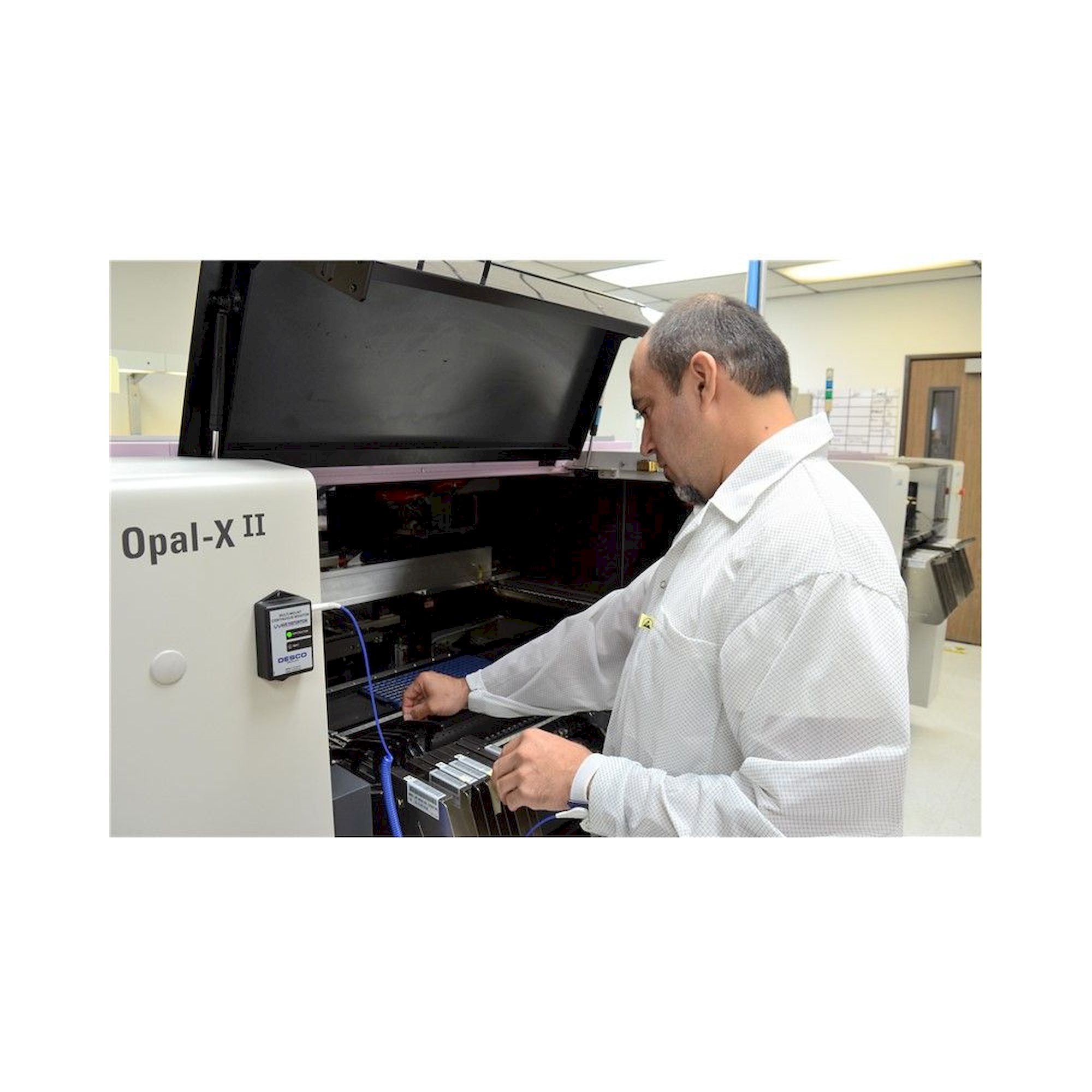

The Desco 19652 Multi-Mount Monitor continuously verifies the path-to-ground integrity of one operator and one ESD worksurface at a single workstation. If the wrist strap is removed or the mat ground lead is disconnected, the monitor immediately triggers a visual and audible alarm, so grounding faults are caught before sensitive components are damaged.

Key benefits

• Patented Wave Distortion Technology for stable, true continuous monitoring instead of pulsed or intermittent measurement
• Improved operator alarm with adjustable volume from loud to louder
• Mat monitor switch disables worksurface monitoring in areas without an ESD worksurface
• Park Snap lets the operator park the wrist strap without a false alarm when leaving the station
• Low 1.2 V operator test voltage reduces the risk of electrical overstress (EOS)

Technical specifications

• Monitors: 1 operator (wrist strap) and 1 ESD worksurface
• Power adapter input: 100 to 240 V AC, 50/60 Hz
• Power adapter output: 24 V DC, 150 mA
• Wrist strap test range: 500 kΩ to 10 MΩ
• Wrist strap test voltage: 1.2 V peak-to-peak at 1.2 µA
• Worksurface limit: 500 kΩ (±10 %)
• Worksurface test voltage: 5 V to 7.5 V
• Alarm response time: less than 50 ms
• Dimensions (LxWxH): 45 x 27 x 20 mm
• NIST calibrated with calibration certificate

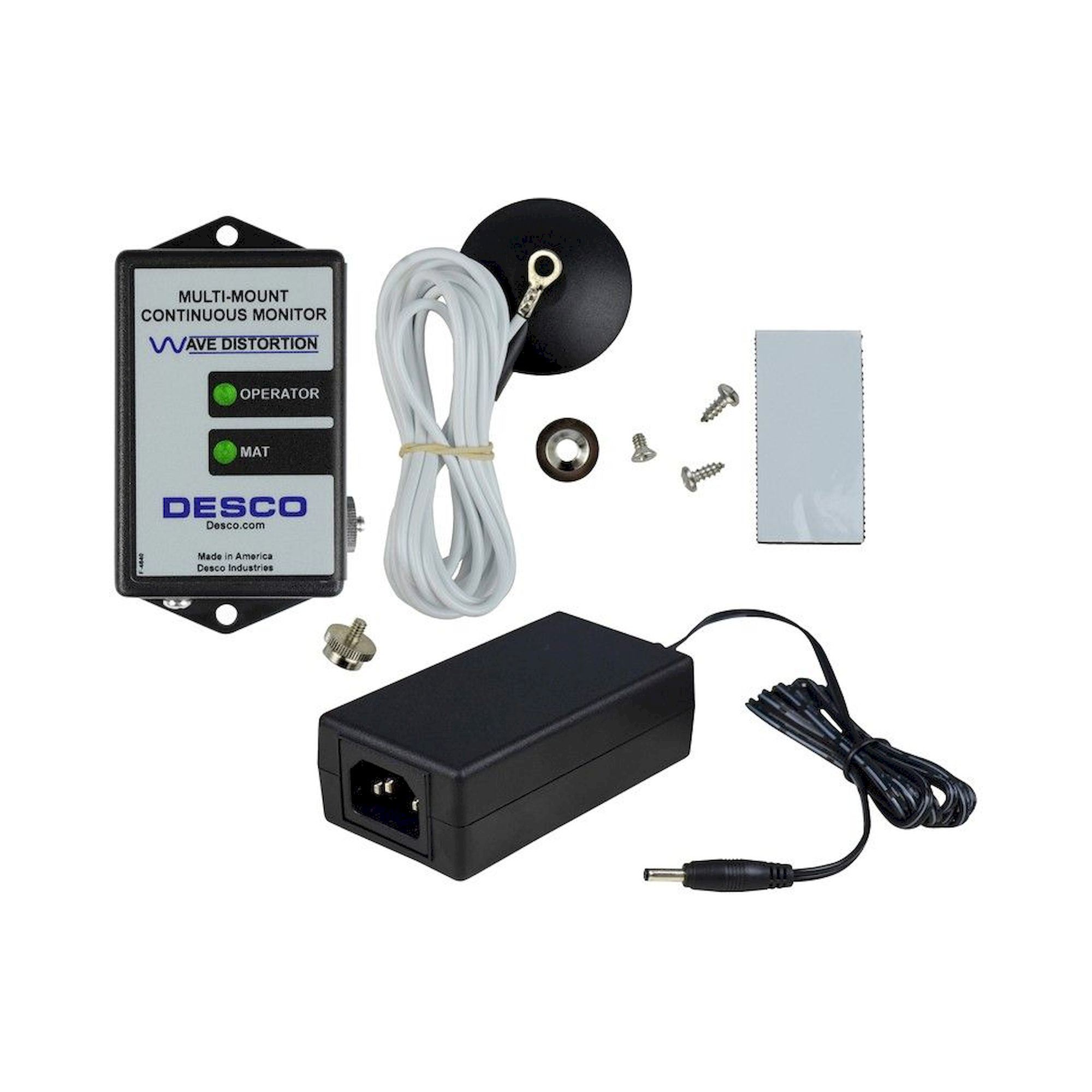

Scope of delivery

• Multi-Mount monitor
• Connection cable for worksurface mat
• DK10 adapter for parking position and for wrist strap
• 24 V DC power adapter and power cord
• Snap clamp for mat connection and mounting screws
• Calibration certificate

Standards and compliance

Meets the requirements for continuous ground monitoring per IEC 61340-5-1. Single-wire impedance design. Made in the USA.
