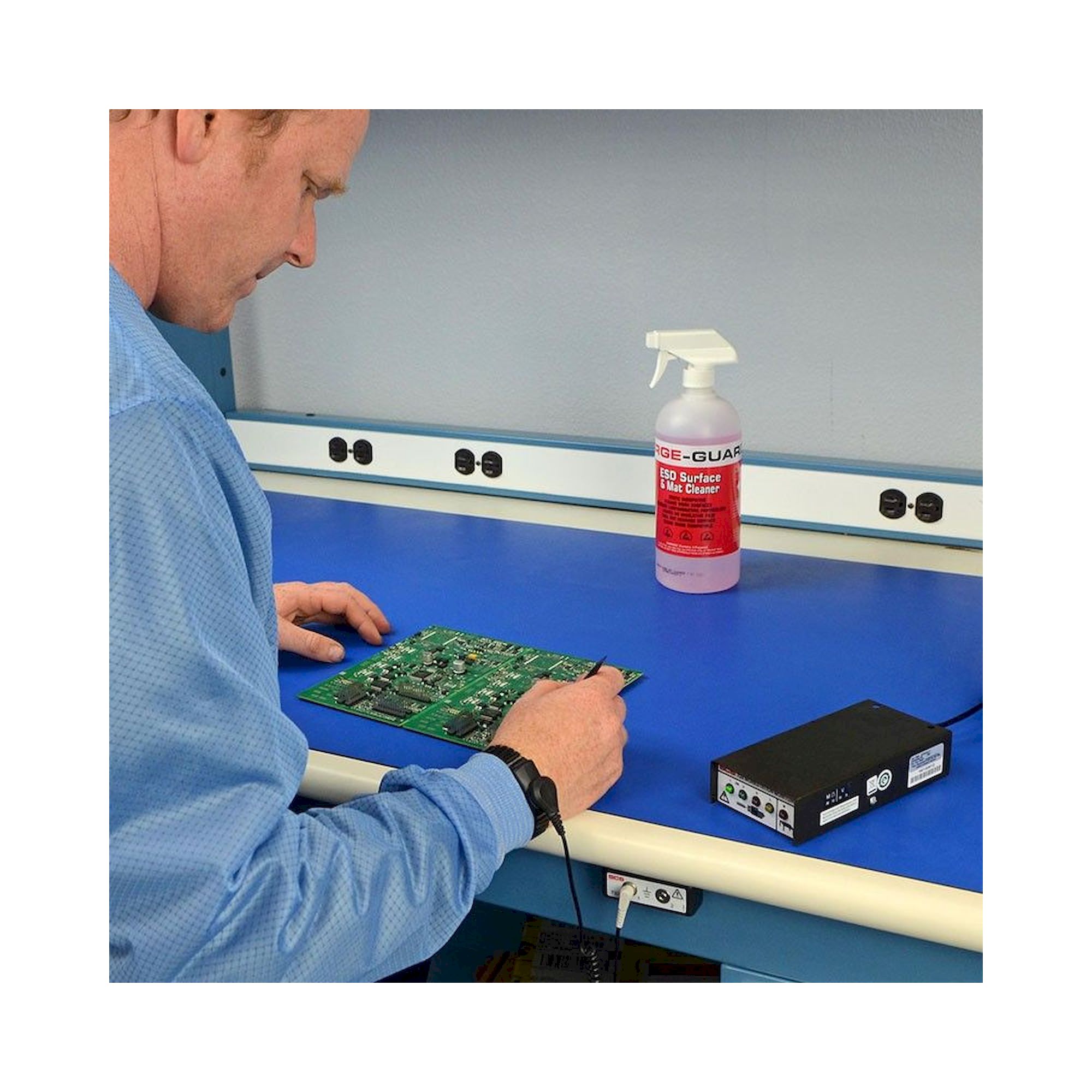

SCS 724 Workstation Continuous Monitor for Two Operators and One Mat, No Power Adapter - Desco 724MO

When two people share an ESD workstation, the grounding of both operators and the worksurface mat has to be secured at all times. The SCS 724 Workstation Monitor watches two operators with dual-wire wrist straps and one conductive or dissipative worksurface and reports every grounding fault immediately by LED and buzzer. Test voltage and upper limit can be matched to your own process requirements.

Key benefits

• Two operators and one mat on a single unit, faults of operator 1 and 2 are distinguished by the buzzer pattern
• Test voltage switchable between 9 V and 16 V to cover different ESD requirements worldwide
• Selectable limit of 10 or 35 megohms with a pass range from 1.5 megohms and separate fail low and fail high indication
• Dual-wire principle: resistance is measured through both conductors of wristband and cord, so a break in either one is detected
• Buzzer can be disabled or set to loud or soft
• Mounting hardware, cable tie mounts and the 732 dual operator remote included

Applications

Two-person workstations in electronics assembly, test and repair where dual-wire wrist straps are used. With the 733 splitter kit the two operator jacks can be split across two separate positions.

Standards

Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-01 and supports continuous ground monitoring within an ESD control programme to IEC 61340-5-1.
