What are ESD ionizers and which industries require them for electrostatic discharge protection?

ESD ionizers are specialized devices that neutralize electrostatic charges by generating balanced positive and negative ions, preventing damaging electrostatic discharges in sensitive manufacturing environments. These systems are essential in electronics assembly, semiconductor fabrication, pharmaceutical cleanrooms, and precision manufacturing facilities where static electricity can destroy components or ignite flammable materials. The ionization process creates a controlled atmospheric environment that maintains charge neutrality within typical working distances of 300mm to 2300mm as demonstrated by the SMC IZS31 series range, ensuring reliable protection for sensitive electronic components and assemblies.

What are the key technical specifications to consider when selecting an ESD ionizer for industrial applications?

The primary selection criteria for ESD ionizers include effective ionization distance, neutralization speed, and ion balance accuracy to ensure optimal static charge elimination. Working distance specifications range from 300mm in compact applications like the SMC IZS31-300P to 2300mm for larger coverage areas using models such as the SMC IZS31-2300P, with intermediate options at 380mm, 620mm, 780mm, 1100mm, 1260mm, 1500mm, and 1900mm distances. Power consumption, mounting configuration, and integration compatibility with existing pneumatic systems are additional critical factors, particularly when selecting between standard and -B variant models that offer different installation and connectivity options for specific operational requirements.

Which international standards and certifications apply to ESD ionization equipment in industrial environments?

ESD ionizers must comply with IEC 61340 series standards for electrostatic discharge protection, specifically IEC 61340-4-7 for ionization equipment performance testing and qualification requirements. Additional relevant standards include EN 61000-4-2 for electrostatic discharge immunity testing and ISO 8015 for cleanroom compatibility in pharmaceutical and semiconductor applications. Many industrial ionizers also require CE marking for European compliance and may need ATEX certification for use in potentially explosive atmospheres, particularly in chemical processing or powder handling environments where static discharge could create ignition hazards.

What are the differences between standard SMC ionizer models and their -B variants in the IZS31 series?

The SMC IZS31 series ionizers are available in both standard configurations and -B variants, with the primary distinction typically relating to mounting options, electrical connections, or additional safety features for specific installation requirements. Standard models like the IZS31-780P offer basic ionization functionality, while corresponding -B variants such as the IZS31-780P-B provide enhanced connectivity, different power supply options, or specialized mounting hardware for integration into automated systems. Both variants maintain identical ionization performance and working distances, with the selection between standard and -B models depending on specific installation constraints, control system integration requirements, and facility infrastructure compatibility.

What are the installation requirements and system compatibility considerations for industrial ESD ionizers?

Industrial ESD ionizers typically require standard 24VDC power supply connections and can integrate with existing pneumatic control systems through standardized electrical interfaces compatible with PLC control systems. Installation height and positioning must align with the specified working distance range, with proper grounding connections essential for optimal ion generation and safety compliance. Most ionizers mount using standard DIN rail systems or dedicated brackets, requiring adequate ventilation clearance and protection from contamination sources, while maintaining accessibility for routine electrode cleaning and maintenance procedures in cleanroom or production environments.

What safety ratings and environmental specifications do ESD ionizers meet for industrial applications?

Industrial ESD ionizers typically achieve IP40 to IP54 protection ratings for dust and moisture resistance, ensuring reliable operation in standard manufacturing environments with ambient temperatures ranging from 0°C to 50°C. Operating voltage specifications commonly include 24VDC nominal with ±10% tolerance, while compliance with low voltage directive 2014/35/EU ensures electrical safety in industrial installations. Many ionizers incorporate safety features including overcurrent protection, electrode monitoring systems, and fail-safe operation modes that maintain system integrity even during power fluctuations or component degradation, meeting stringent reliability requirements for continuous production environments.

What maintenance schedule and service life expectations apply to industrial ESD ionization systems?

ESD ionizers require routine electrode cleaning every 30 to 90 days depending on environmental contamination levels, with ion balance verification recommended monthly using calibrated electrostatic fieldmeters per IEC 61340-4-7 testing procedures. Typical service life exceeds 50,000 operating hours for quality ionizers, with electrode replacement intervals ranging from 12 to 24 months based on usage intensity and environmental conditions. Regular inspection protocols include verification of ion generation efficiency, electrical safety testing, and documentation of neutralization performance to ensure continued compliance with ESD protection standards and optimal component protection in sensitive manufacturing processes.

ESD Ionization - ESD (antistatic)

ESD equipment

ESD ionizers neutralise electrostatic charges on non-conductive materials and insulators that cannot be dissipated by grounding alone. Blow-moulded parts, films, PCBs in production, and packaging materials accumulate high field intensities that ionised air reduces to uncritical levels. The range covers six product groups: compressed-air ionizing guns and nozzles, overhead ionizers for work surfaces, ionizing bars for conveyor systems, bench-top units for stationary workstations, nozzle ionizers in the IZN10 series, and accessories such as power supplies, adapters, and spare parts.

Categories

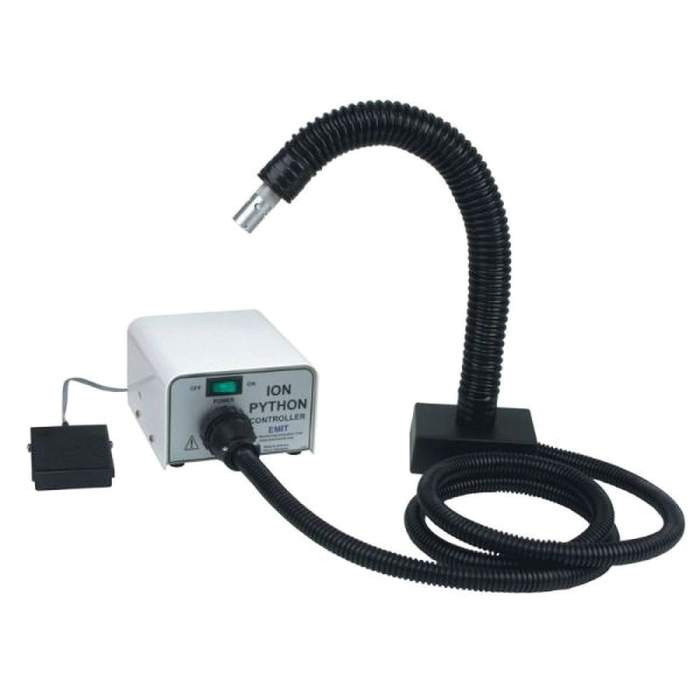

ESD compressed-air ionizersIonizing guns and nozzles for targeted neutralisation with compressed air

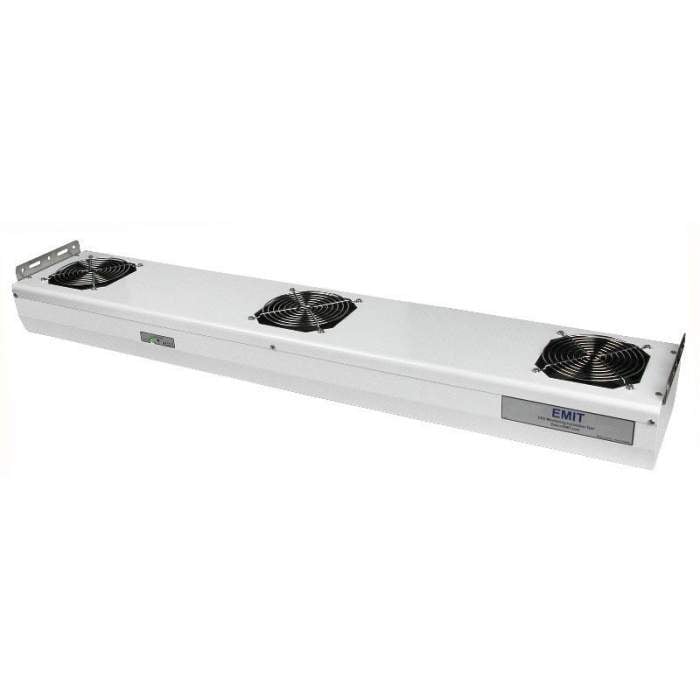

ESD overhead ionizersCeiling and wall mounting for area ionization at assembly workstations

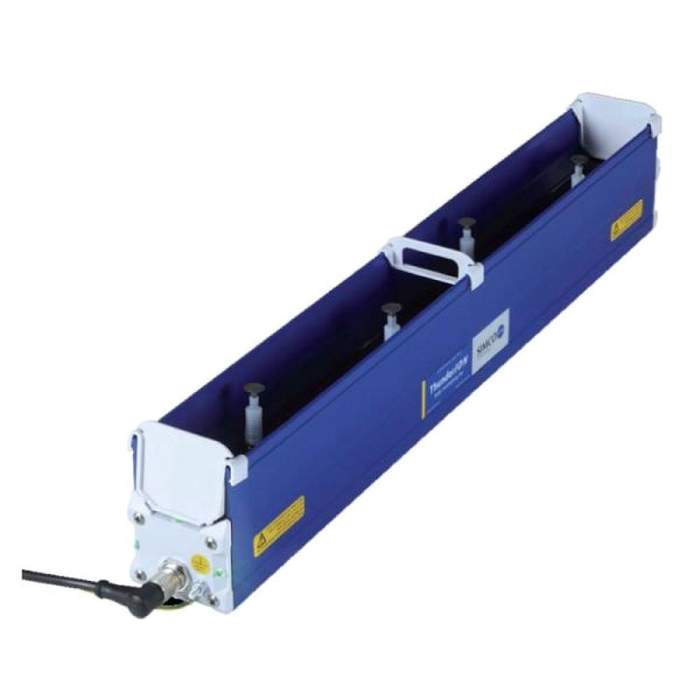

ESD ionizing barsStationary ionizing bars for conveyor and packaging systems

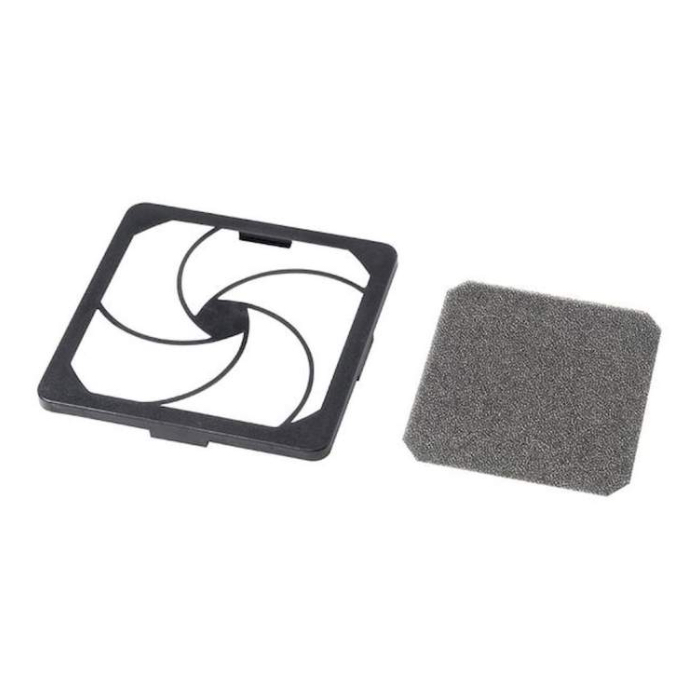

Ionizer accessoriesPower supplies, adapters, replacement emitter tips and cables

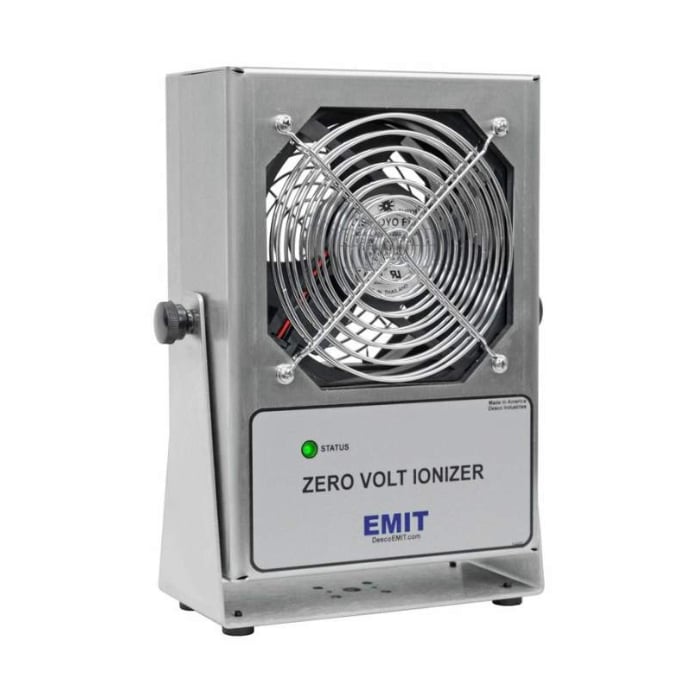

ESD bench-top ionizersCompact desk ionizers for individual workstations and laboratories

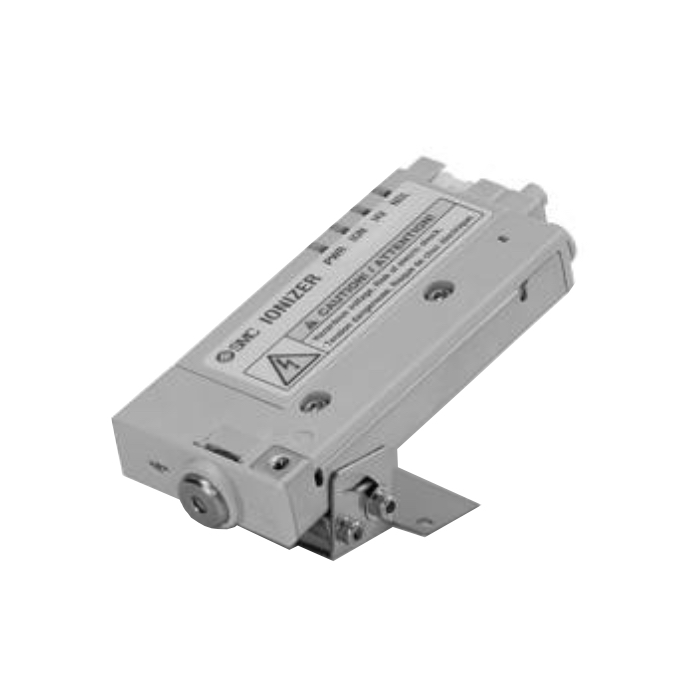

ESD nozzle ionizersIZN10 series, nozzle design for machine installation and confined spaces

⚡ Corona discharge - tip electrodes generate ionised air that neutralises positive and negative charges on insulators

✓ AC and DC technology - AC field ionizers for general applications, DC (pulsed DC) units for precise residual voltage control

⚙ HF ionizers (high frequency) - Warmbier SPN11 series for machine installation, with proximity sensor

📦 Compressed-air ionization - ionizing guns (SCS 980E, Simco TG3, COBRA) combine blowing and ionizing for targeted neutralisation

✦ Verification - charged plate monitor for discharge time and residual voltage measurement (IEC 61340-2-1)

↕ Power supplies - 230 VAC to 24 VAC adapters (DESCO 770753/770754) for device power

Device selection depends on the work area, distance to the charge source, and the required level of automation. Compressed-air ionizing guns (Simco TG3, COBRA, SCS 980E, VIPER ION GUN) suit manual, targeted neutralisation directly at the processing station. Overhead devices and ionizing bars provide continuous area ionisation above conveyor belts and assembly lines. Bench-top units create a stationary ionisation zone for individual workstations. IZN10 series nozzle ionizers and the Simco ORION / Blowflex Easy Inline are designed for machine installation in automated and pick-and-place systems. Effectiveness must be verified regularly using a charged plate monitor.

Typical applications: SMT manufacturing and pick-and-place machines (neutralisation of PCBs and component tapes), packaging lines and film processing (discharge before sealing), compressed-air ionization at rework and repair workstations, conveyor systems in semiconductor and medical device manufacturing, and laboratories with insulating materials (DIN EN 61340-5-1).

✓ Leading brandsSimco-ION, SCS, DESCO, Warmbier, Iteco

⚙ 6 product groupsGuns, overhead, bars, bench-top, nozzles, accessories

Add to Wish List Add to Compare

Warmbier 7530.IG. eco gun
€623.61
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Fernbedienung für Overhead Ionisator ESD-PROTECT Q133
€18.00
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

ESD-Protect Overhead-Ionisator Q133
€1,360.00
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

ESD-Protect Overhead-Ionisator Q133
€1,168.00
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

ESD-Protect Overhead-Ionisator Q133
€1,072.00
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

ESD-Protect Overhead-Ionisator Q133
€948.00
Excl. 19% VAT , excl. Shipping Cost
