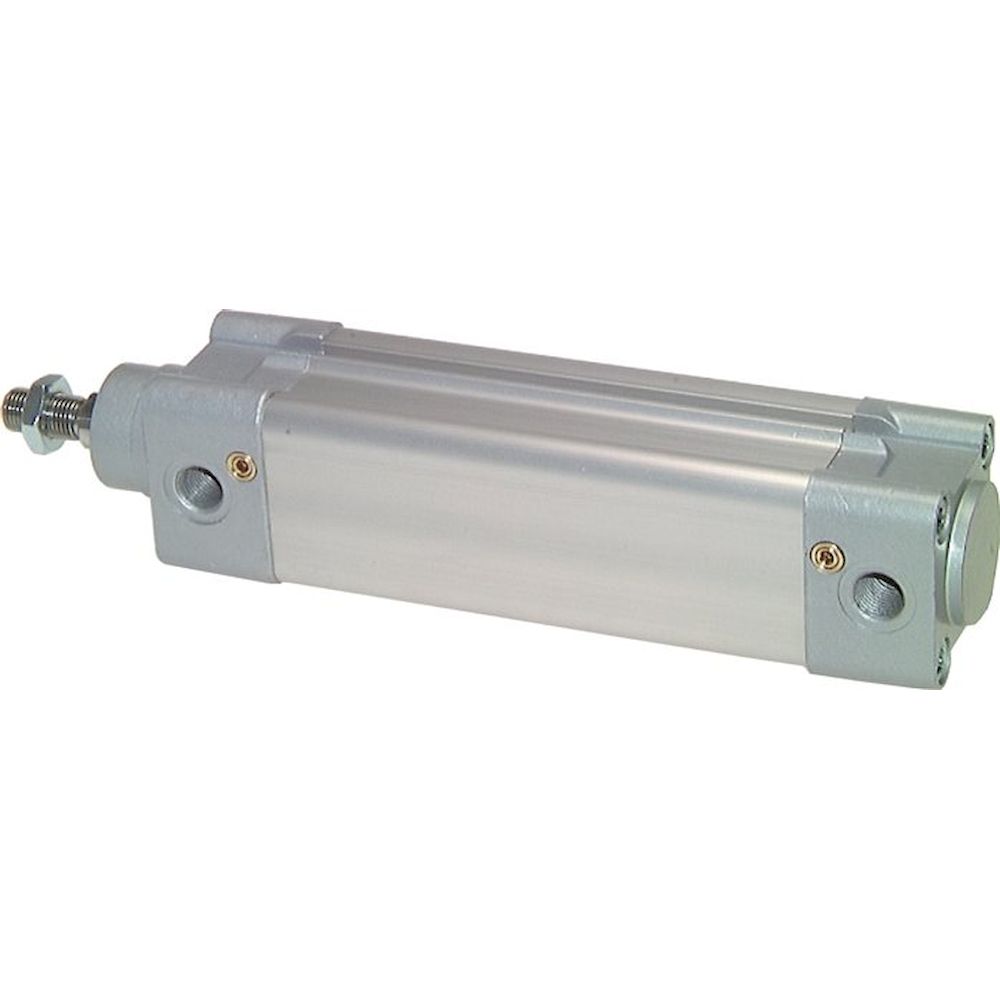

Airtec XL 80/250-EK. ISO 15552 cylinders, piston 80 mm, stroke 250 mm

Name: Airtec XL 80/250-EK. ISO 15552 cylinders, piston 80 mm, stroke 250 mm
Brand: Airtec
SKU: FL-XL-80/250-EK
Price: 22729 EUR
Availability: InStock

€22,729.00

Excl. 19% VAT , excl. Shipping Cost

Article

FL-XL-80/250-EK

Manufacturer Nr.

XL 80/250-EK

ISO 15552 cylinders, piston 80 mm, stroke 250 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Airtec XL 80/250-EK. ISO 15552 cylinders, piston 80 mm, stroke 250 mm
€22,729.00
Excl. 19% VAT , excl. Shipping Cost
Airtec XL 80/700. ISO 15552 cylinders, piston 80 mm, stroke 700 mm
€34,062.00
Excl. 19% VAT , excl. Shipping Cost
Airtec XL 50/250. ISO 15552 cylinders, piston 50 mm, stroke 250 mm
€12,631.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Materials:
Head and foot: stove-enamelled die-cast aluminium, cylinder tube: anodized aluminium profile tube, piston rod: hard chromium plated steel, piston: complete piston (ST / NBR), seal: NBR / PUR

Temperature range:
-20°C to +80°C

Operating pressure:
max. 10 bar

Optional:
FKM seals (temperature range: -10°C to max. +150°C, without magnetic piston) -V, stainless steel piston rod -EK, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -X

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A

Piston diameter [mm]	80
Stroke [mm]	250
Version	Stainless steel piston rods
A (thread)	M 20x1,5
G (compressed air port)	G 3/8"
Repair sets	XL 80 REP
B [mm]	25
C [mm]	45
D [mm]	35,0
F [mm]	40
G [mm]	46
H [mm]	174
K [mm]	4
M [mm]	93,5
N [mm]	72,0
CH [mm]	22
RT	M 10

Information

More Information
Manufacturer Nr.	XL 80/250-EK
Manufacturer	Airtec
EAN	4050571799823
Weight	5.000000
HS-Code	84123100
GPSR manufacturer information	AIRTEC Pneumatic GmbH, Westerbachstraße 7, DE-61476 Kronberg, www.airtec.de
Article authenticity	Original product
Condition of article	New
