Body voltage meter portable for body voltage - A1-ESD DESCO 19431

The DESCO 19431 body voltage meter is a portable measuring system for analysing the charge levels accumulated on the human body per DIN EN 61340-4-5. It is fully portable and needs no PC for data capture, as all data is measured and recorded in internal memory. This makes it suited to evaluating personnel grounding, footwear and ESD floor systems directly at the workplace.

Key benefits

• Standard-compliant: body charge analysis per DIN EN 61340-4-5.
• PC-independent: fully portable thanks to internal data recording.
• Direct evaluation: LCD display shows test diagrams for fast on-site assessment.
• Data export: for PC analysis to create professional records and reports.
• Fully equipped: hand electrode and grounding cable included.

Technical data

• Measured quantity: body voltage / charge level on the body
• Test standard: DIN EN 61340-4-5

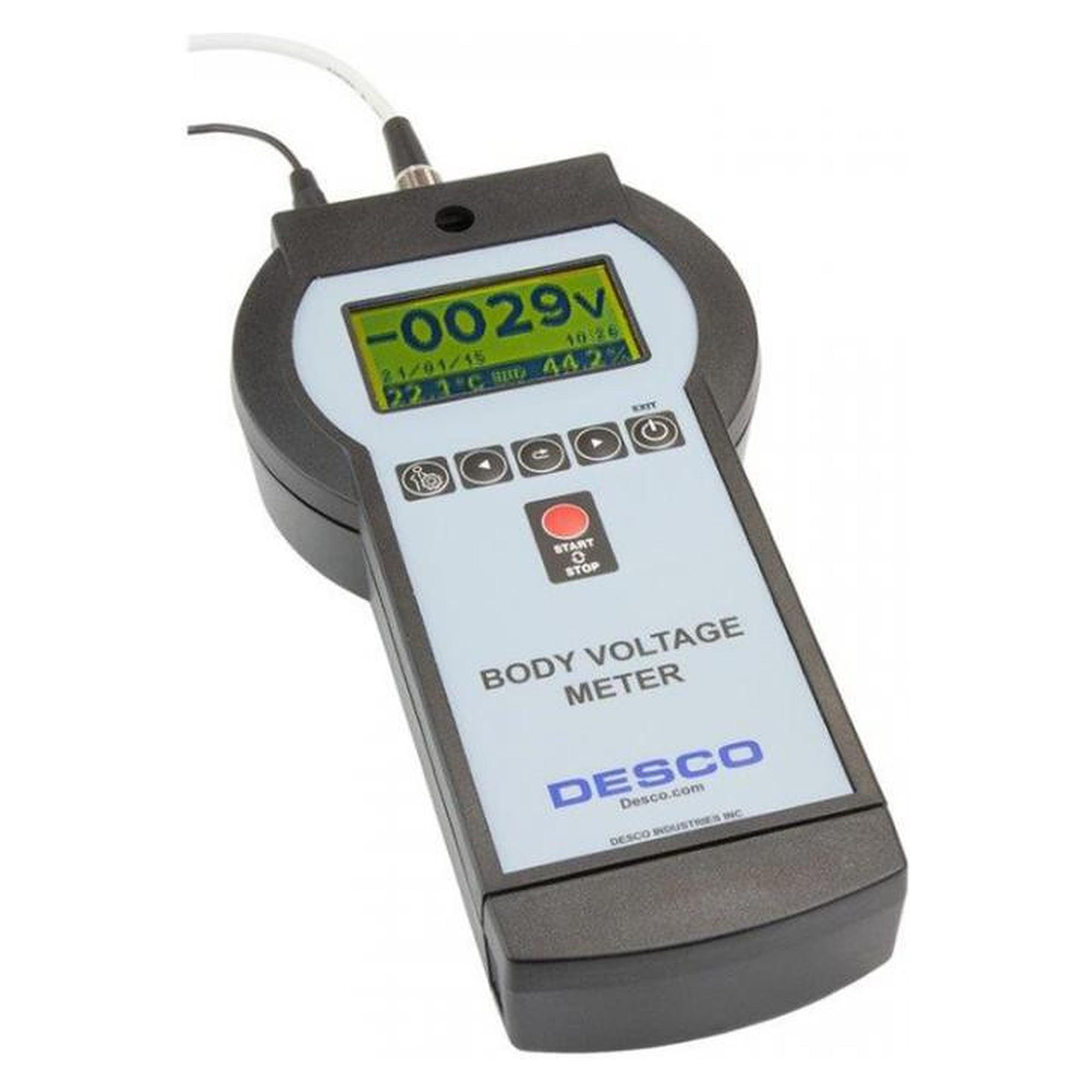

• Display: LCD with test diagram
• Data storage: internal memory, PC-independent
• Data export: via USB for PC analysis

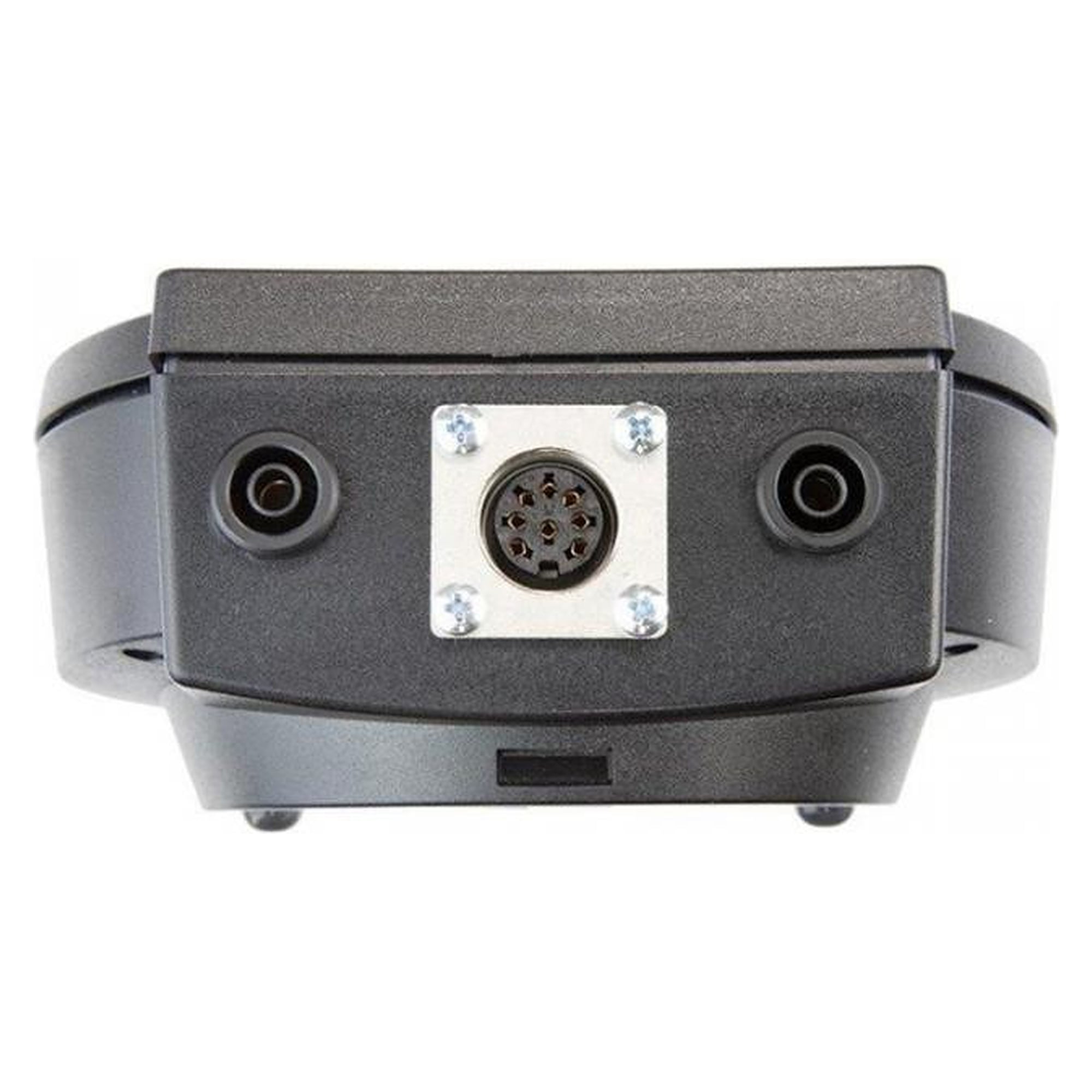

• USB cable: USB to 8-pin DIN, 1.80 m
• Grounding cable: 5 m

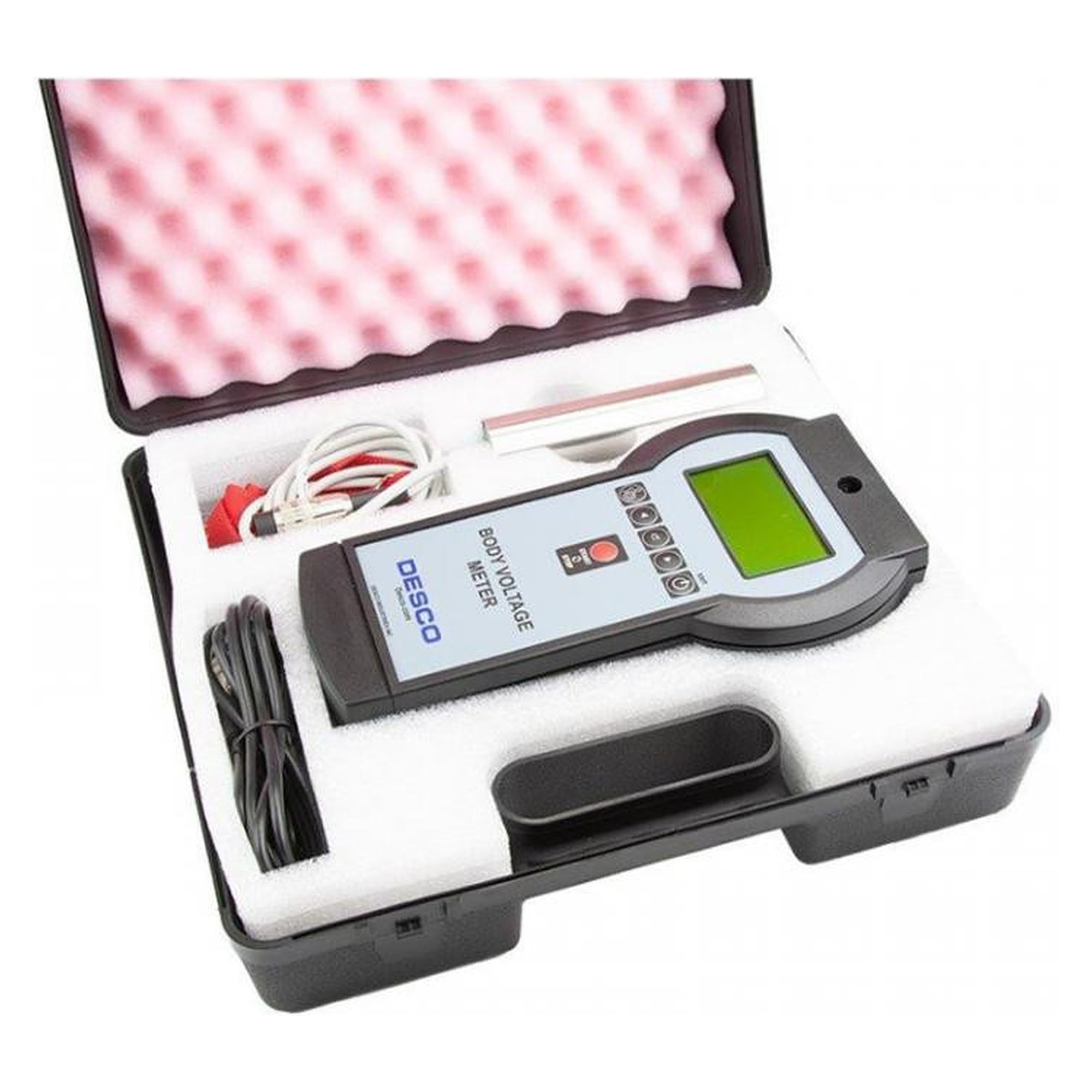

Scope of delivery

• DESCO 19431 body voltage meter
• Hand electrode
• USB cable to 8-pin DIN, 1.80 m
• Grounding cable, 5 m
• Calibration certificate

Applications

• Evaluation of personnel grounding in ESD protected areas (EPA)

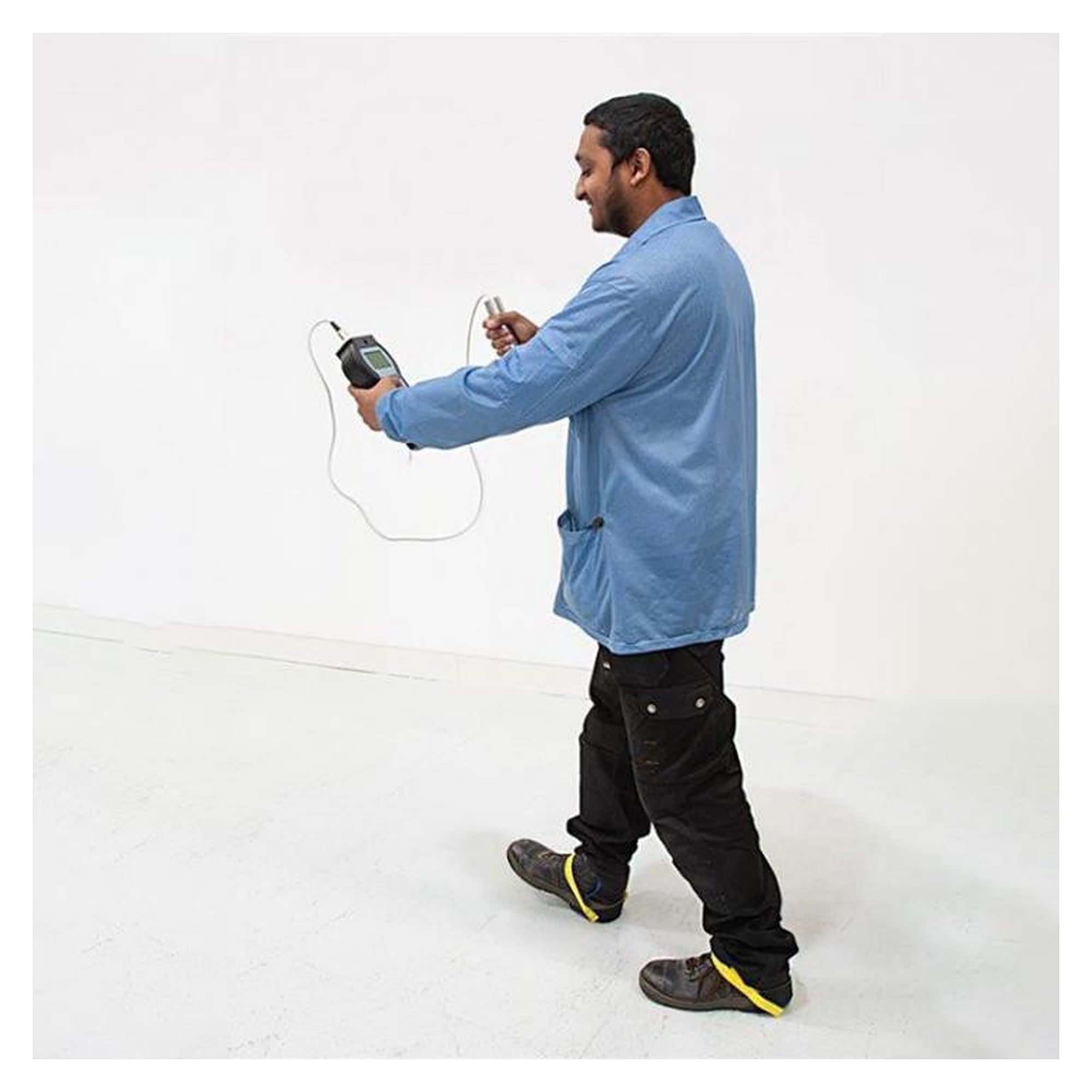

• Walking test of footwear and floor systems
• Checking of wrist straps and personnel grounding devices
• Documentation of body voltage in ESD quality assurance

Standards and compliance

Measurements per DIN EN 61340-4-5 (walking test / body voltage) as part of ESD management under the IEC 61340 series.
