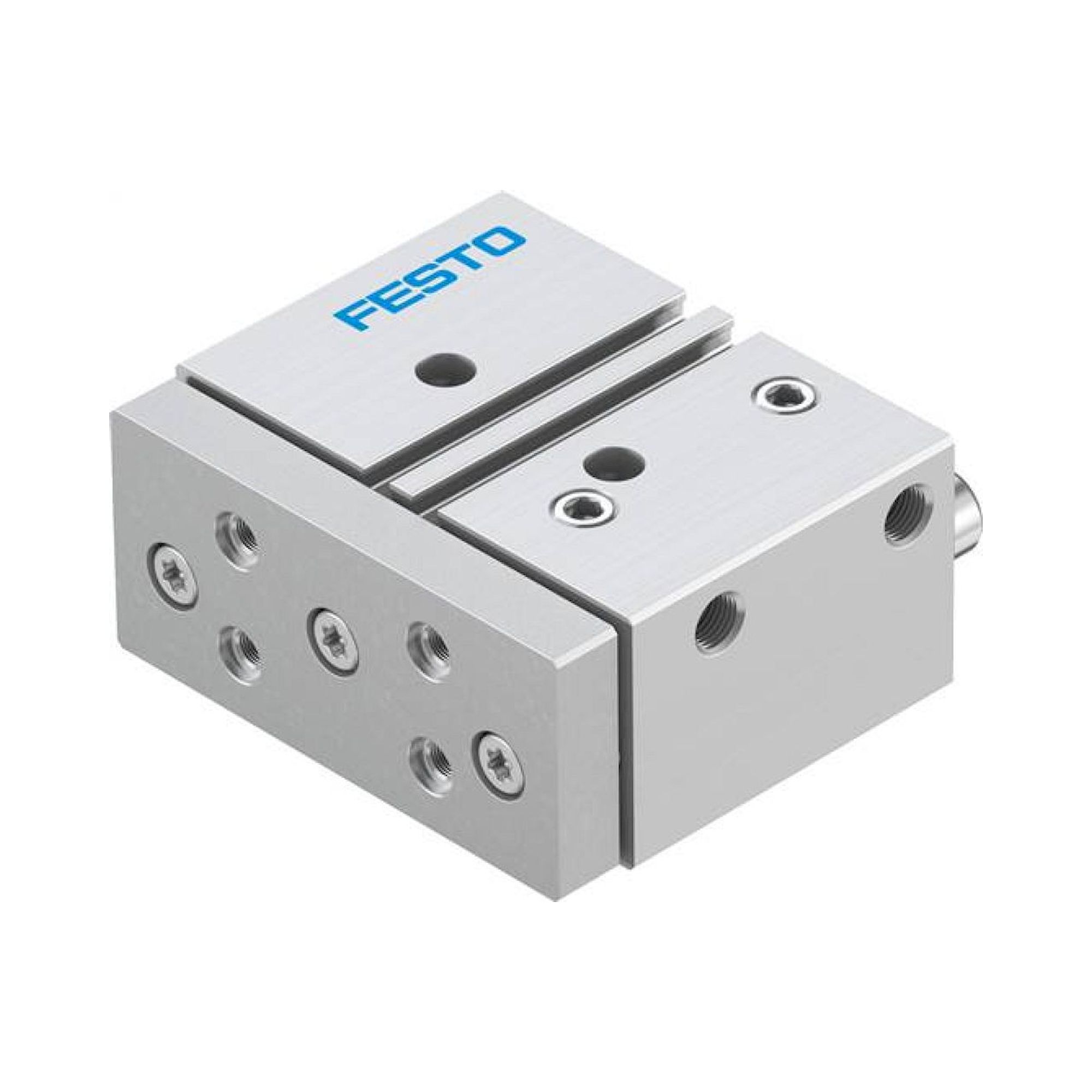

Festo DFM-25-25-P-A-GF (170848) Guided Drive
€291.68
Excl. 19% VAT , excl. Shipping Cost
Article
FES-170848
Manufacturer Nr.
DFM-25-25-P-A-GF
Guided Drive
Frequently Bought Together
- This Item: €291.68Excl. 19% VAT , excl. Shipping Cost
- Festo DFM-12-50-P-A-KF (170904) Guided Drive €293.05Excl. 19% VAT , excl. Shipping Cost
- Festo DPZ-25-80-P-A-KF (162100) Twin-Piston Cylinder €799.49Excl. 19% VAT , excl. Shipping Cost
Total price
| Centre of mass distance of payload to Joch plate [mm] | 50 |
| Stroke [mm] | 25 |
| Piston diameter | 25 mm |
| Operating mode actuator unit | Joch |
| Dampening | P: Elastic silencer rings / plates double-sided |
| installation position | arbitrary |
| Guide | sliding guide |
| Construction set up | Guide |
| Position detection | For proximity switch |
| Operating pressure [bar] | 1.5 to 10 |
| Max. speed [m/s] | 0,8 |
| Principle of operation | double acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Corrosion resistant class KBK | 1 - low corrosion stress |
| ambient temperature [°C] | -20 to 80 |
| Impact energy at the end positions [J] | 0,300 |
| Max. permitted moment load Mx depending on stroke [Nm] | 3,900 |
| Max. usable load depending on the stroke at a defined distance xs [N] | 116,00 |
| Theoretical force at 6 bar, Return flow [N] | 247 |
| Theoretical force at 6 bar, flow [N] | 295 |
| Moving mass [g] | 669,0 |
| Product weight [g] | 1.308,0 |
| Alternative connections | See product drawing |
| Pneumatic connection | G1/8 |
| Material information | RoHs compliant |
| Cover material | Aluminium wrought alloy |
| Seals material | NBR |
| Housing material | Aluminium wrought alloy |
| Piston rod material | High-alloyed stainless steels |
| Manufacturer Nr. | DFM-25-25-P-A-GF |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568004750 |
| Weight | 1.300000 |
| HS-Code | 84123100 |
