Festo CPVSC1-M1HT-M-T-M5 (548037) Solenoid Valve
€93.41
Excl. 19% VAT , excl. Shipping Cost
Article
FES-548037
Manufacturer Nr.
CPVSC1-M1HT-M-T-M5
Solenoid Valve
Frequently Bought Together
- This Item: €93.41Excl. 19% VAT , excl. Shipping Cost
- Festo CPVSC1-M1H-N-P-Q4O (527561) Solenoid Valve €94.64Excl. 19% VAT , excl. Shipping Cost

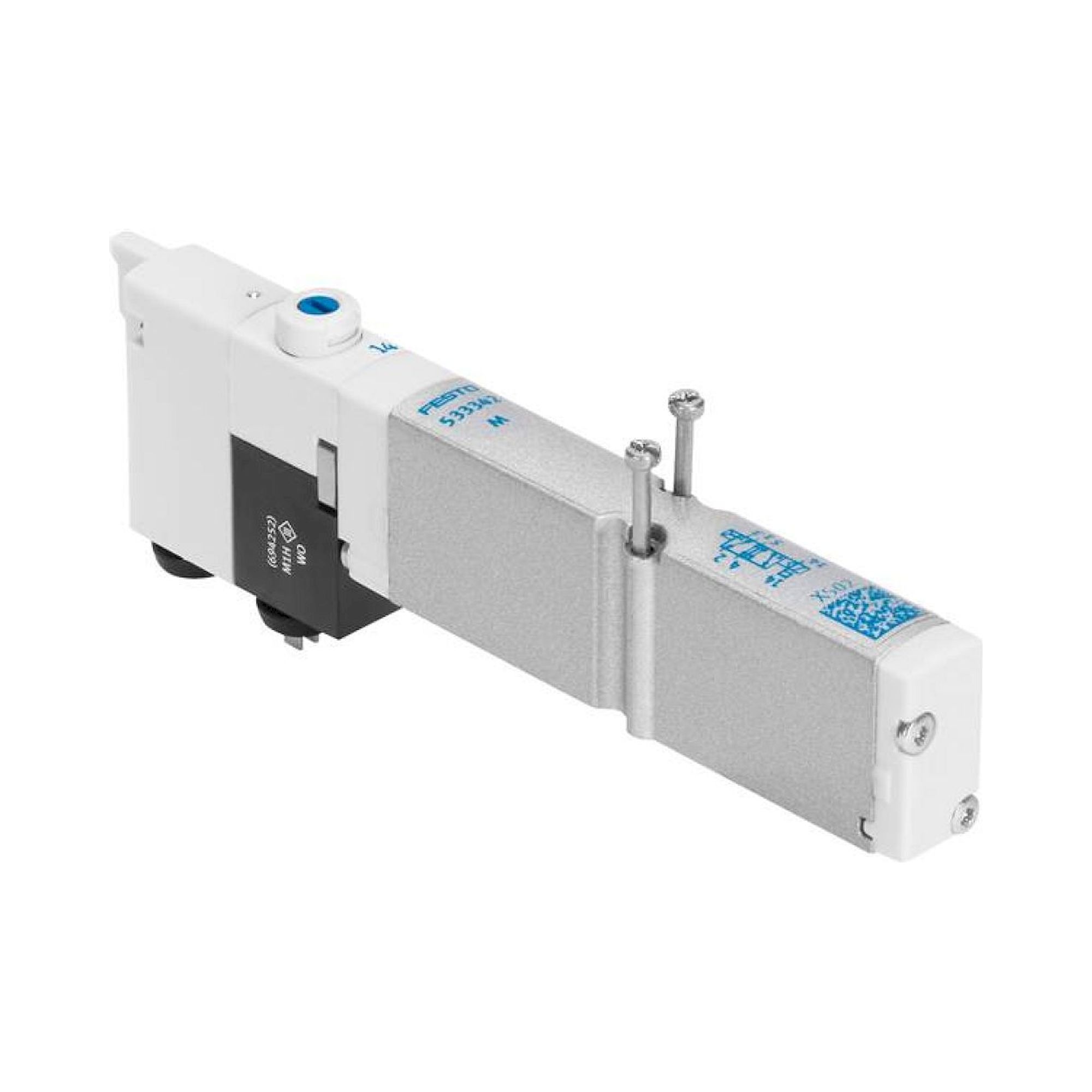

- Festo VMPA1-M1H-K-PI (533347) Solenoid Valve €109.55Excl. 19% VAT , excl. Shipping Cost
Total price
| Valve function | 5/2 monostable |
| Actuation type | Electrical |
| Valve size [mm] | 10 |
| Normal nominal flow [l/min] | 170 |
| Operating pressure [bar] | -0.9 to 7 |
| Construction set up | Piston pusher |
| Reset mode | Pneumatic spring |
| Protection category | IP40 |
| Exhaust function | Cannot be throttled |
| Sealing principle | Soft |
| installation position | arbitrary |
| Hand assist actuation | tentative |
| Control type | pilot operated |
| Control air supply | external |
| Flow direction | Not reversible |
| Überdeckung | positive Überdeckung |
| Control pressure [bar] | 3 to 7 |
| Shifting time off [ms] | 10 |
| Shifting time on [ms] | 10 |
| Max. positive test impulse at 0 signal [µs] | 500 |
| Max. negative test impulse for 1 signal [µs] | 400 |
| Coil characteristic value | 24 V DC: 1 W |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Oscillation strength | Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistant class KBK | 1 - low corrosion stress |
| ambient temperature [°C] | -5 to 50 |
| Product weight [g] | 30,5 |
| Electrical connection | 2 pin Plug |
| Fastening type | With throughway bores |
| Exhaust control connection 82/84 | Hunt group |
| Pneumatic connection 1 | Hunt group |
| Pneumatic connection 2 | M5 |
| Pneumatic connection 3/5 combined | Hunt group |
| Pneumatic connection 4 | M5 |
| Material information | RoHs compliant |
| Seals material | NBR |
| Housing material | Aluminium die casting |
| Medium temperature [°C] | -5 to 50 |
| Permission | c UL us - Recognized (OL) |
| Manufacturer Nr. | CPVSC1-M1HT-M-T-M5 |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568189341 |
| Weight | 0.047000 |
| HS-Code | 84812090 |
