Flow Rack XLean
- Material supply in the supermarket or directly at the workstation
- Cost-effective solution with conveyor tracks consisting of steel profiles and plastic rollers
- Available as ESD-conductive version
- Design: Fully assembled or as a kit for self-assembly
- Allows for the addition of any desired modules, including cross ties and conveyor tracks as well as individual components

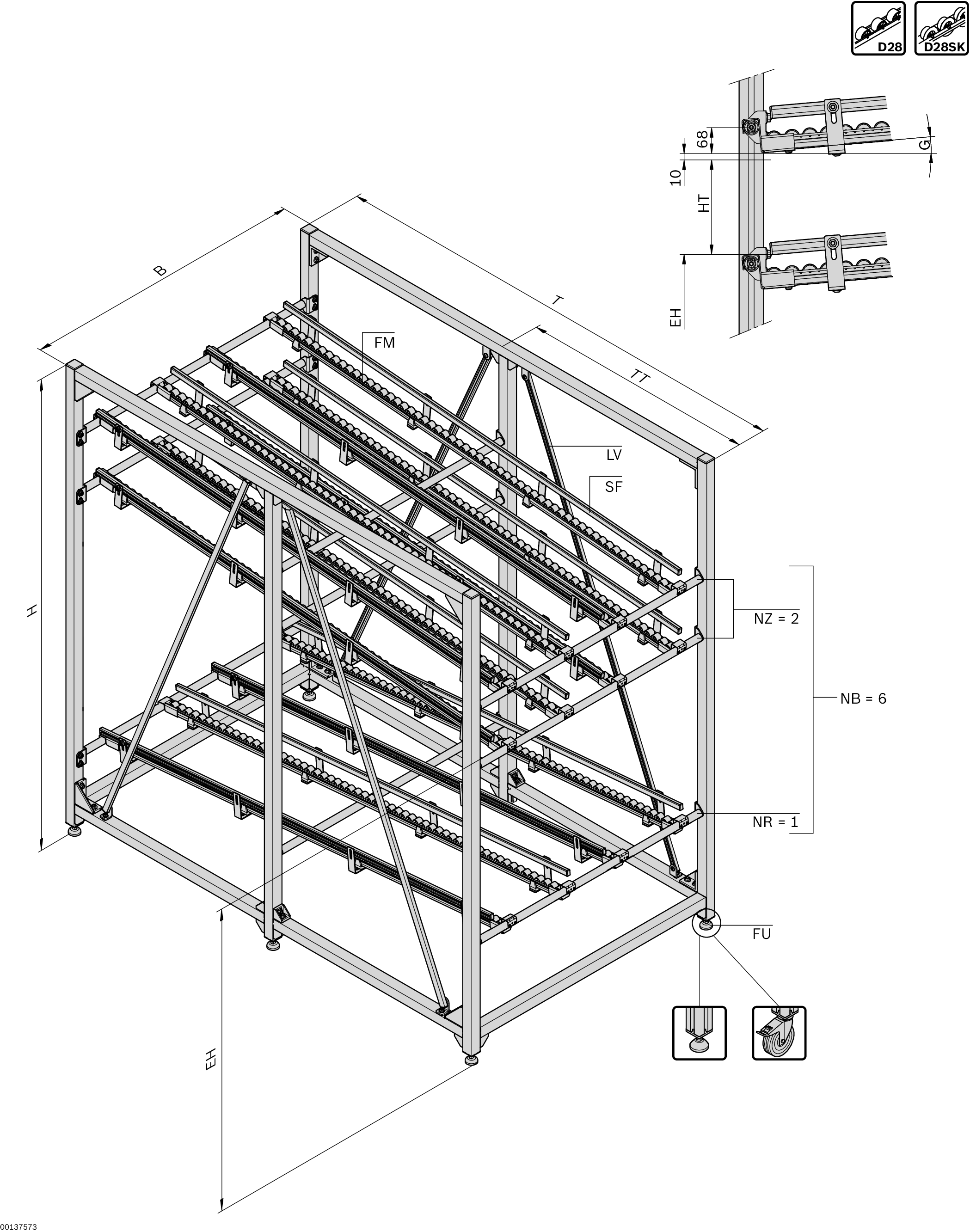

Conductivity [ESD] | yes, no |
Packaging unit | 1 |
Number of Return levels [NR] | 0 ... 7 |
Number of conveyor tracks [NB] | 0 ... 64 |
Load version [LV] | 400 kg, 2000 kg |
Foot type [FU] | Leveling foot, LR |
Gradient G | 0 ... 10 recommended: 6 |
Conveyor medium FM | Rollers with 28 mm with/without roller flange |
Version [A] | Disassembled, assembled |
Cross tie type [PT] | Tubular cross tie, tubular cross tie with bracket, double tubular cross tie |
Number of side elements [Typ] | 0, 1, 2 |
Transportation height min [HT] [mm] | 80 |
Transportation height max [HT] [mm] | 1200 |
Flow rack system depth max [T] [mm] | 6000 |
Flow rack system depth min [T] [mm] | 400 |
Flow rack system height max [H] [mm] | 2000 |
Removal height of the lower supply level min [EH] [mm] | 263 |
Removal height of the lower supply level max [EH] [mm] | 1800 |
Flow rack system width min [B] [mm] | 400 |
Flow rack system height min [H] [mm] | 600 |
Flow rack system width max [B] [mm] | 1500 |
Lateral guide SF | with without |
Number of supply levels [NZ] | 1 ... 8 |
Weight [kg] | 0 |
Manufacturer Nr. | 3842998249 |
---|---|
Manufacturer | Bosch Rexroth |
Country of Manufacture | Germany |
Weight | 0.100000 |
HS-Code | 84283990 |
