Dino-Lite AM4113T-FVW
Lead time
1 week
€439.00
Excl. 19% VAT , excl. Shipping Cost
Article
AM4113T-FVW
Manufacturer Nr.
AM4113T-FVW
The VW series has two types of LED lights that are switchable between white and UV light. This model has a filter to filter out the returning UV light so that an image with natural colors can be obtained. » Also available without return filter (model AM4113T-VW) and in a version with ~375nm LEDs (model AM4113T-FV2W)
Frequently Bought Together
- This Item: €439.00Excl. 19% VAT , excl. Shipping Cost
- Dino-Lite AM4113T-FV2W €439.00Excl. 19% VAT , excl. Shipping Cost
- Dino-Lite BL-ZW1 €259.00Excl. 19% VAT , excl. Shipping Cost
Total price
Additional Info
| Dino-Lite range: | Dino-Lite Special lighting |
|---|
Lighting
| Light/ LED type: | 390-400 nm UV + white |
|---|---|
| Number of LEDs: | 4+4 |
| LED on/off switchable: | Yes |
| Infrared filter: | IR cut-filter >650 nm |
| Diffuser available: | MSAA111A1 (optional accessory) |
| Emission filter: | Yes, Emission barrier filter 400 nm |
| Polarizer: | No |
Optics
| Magnification: | 10-70x, 200x |
|---|---|
| Macro zoom: | No |
| Working distance: | Standard |
| Lens type: | Glass with anti-reflection coating |
Sensor
| Sensor type: | CMOS |
|---|---|
| Resolution: | 1.3 Megapixel (1280x1024) |
| Maximum frame rate: | 30 fps |
Compatibility
| Interface: | USB 2.0 |
|---|---|
| Operating system: | Windows XP, Vista, 7, 8 & 10, MacOS 10.9 and up |
| Included software: | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Supported image formats (Windows): | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats (Windows): | WMV, FLV, SWF |
| Supported image formats (MacOS): | JPEG, PNG |
| Supported video formats (MacOS): | MOV |
| Imaging standards: | DirectShow, UVC |
Housing
| Housing material: | Composite/ plastic housing |
|---|---|
| Magnification lock: | Yes |
| Dimensions: | 10.5cm (L) x 3.2cm (D) |
| Weight: | 105g |
| Cable length: | 1.8m |
Features
| Special feature: | No |
|---|---|
| Measurement: | Yes |
| Calibration: | Yes |
| Microtouch sensor: | Yes |
| ESD safe: | No |
Information
| Package contents: | Microscope, Carry pouch, Software CD, Calibration target, User manual | ||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Warranty information: | 2 years European warranty | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Regulatory approval: | CE, FCC, ROHS | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Price range: | €200,00 - €350,00 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Working distance/ field of view/ depth of field: |
| ||||||||||||||||||||||||||||||||||||||||||||||||||

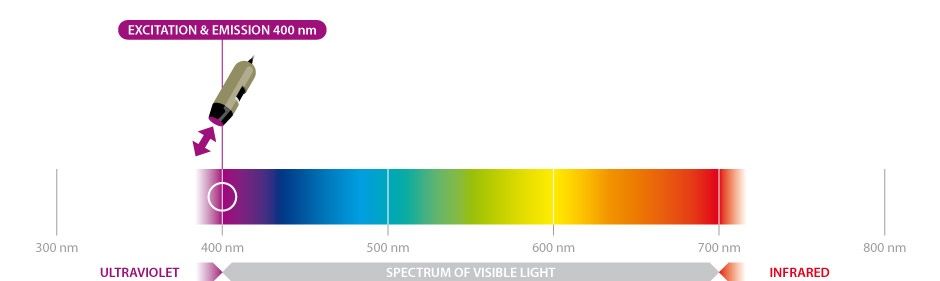

| Special Light: |  |
| Execution | TEC |
|---|---|
| Manufacturer Nr. | AM4113T-FVW |
| Manufacturer | Dino-Lite |
| Country of Manufacture | Taiwan, Province of China |
| EAN | 4712805475001 |
| ESD equipment | USB Mikroskop |
| Lead time | 1 week |
| Weight | 0.009900 |
| HS-Code | 90119090 |
