Glamox 5250826. Architectural Lighting O44-175 LED 1800 HF 840 MB ALU

Name: Glamox 5250826. Architectural Lighting O44-175 LED 1800 HF 840 MB ALU
Brand: Glamox
SKU: GL-5250826
Price: 534.75 EUR
Availability: InStock

Lead time

6 weeks

€534.75

Excl. 19% VAT , excl. Shipping Cost

Article

GL-5250826

Manufacturer Nr.

5250826

O44-175 LED 1800 HF 840 MB ALU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox 5250826. Architectural Lighting O44-175 LED 1800 HF 840 MB ALU
€534.75

Excl. 19% VAT , excl. Shipping Cost
Glamox 523032. Linear O65-550 LED 200 840 OP
€192.00

Excl. 19% VAT , excl. Shipping Cost
Glamox O70211202. O70-S410 LED 1800 HF 830 BL
€338.25

Excl. 19% VAT , excl. Shipping Cost

Total price

General
1. Product shape
  Square
Technical Data
1. Minimum ambient temperature (ºC)
  -25
2. Maximum ambient temperature (°C)
  25
3. IK classification
  07
4. IP classification
  65
5. Corrosion class
  C4
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  1,797
3. Lumen per Watt (lm/W)
  95
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  D
Driver / Ballast
1. Type of LED Driver
  HF: High Frequency
2. Number of Driver
  1
Lifetime
1. L70 Median useful life LED MaxTa (hr)
  50 000
Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Main Feed DC (V) Min
  180
6. Main Feed DC (V) Max
  270
7. Total consumption (W)
  19
8. Number of luminaires on a 10A MCB type B (80% load)
  31
9. Number of luminaires on a 10A MCB type C (80% load)
  53
10. Number of luminaires on a 16A MCB type B (80% load)
  50
11. Number of luminaires on a 16A MCB type C (80% load)
  85

Optic
1. Optic
  MB - Medium beam
2. Material of diffuser
  Tempered glass
3. Diffuser material design
  Clear
Housing
1. Main body material
  Aluminium
2. Body colour
  Grey
3. Main body colour name
  Aluminium grey

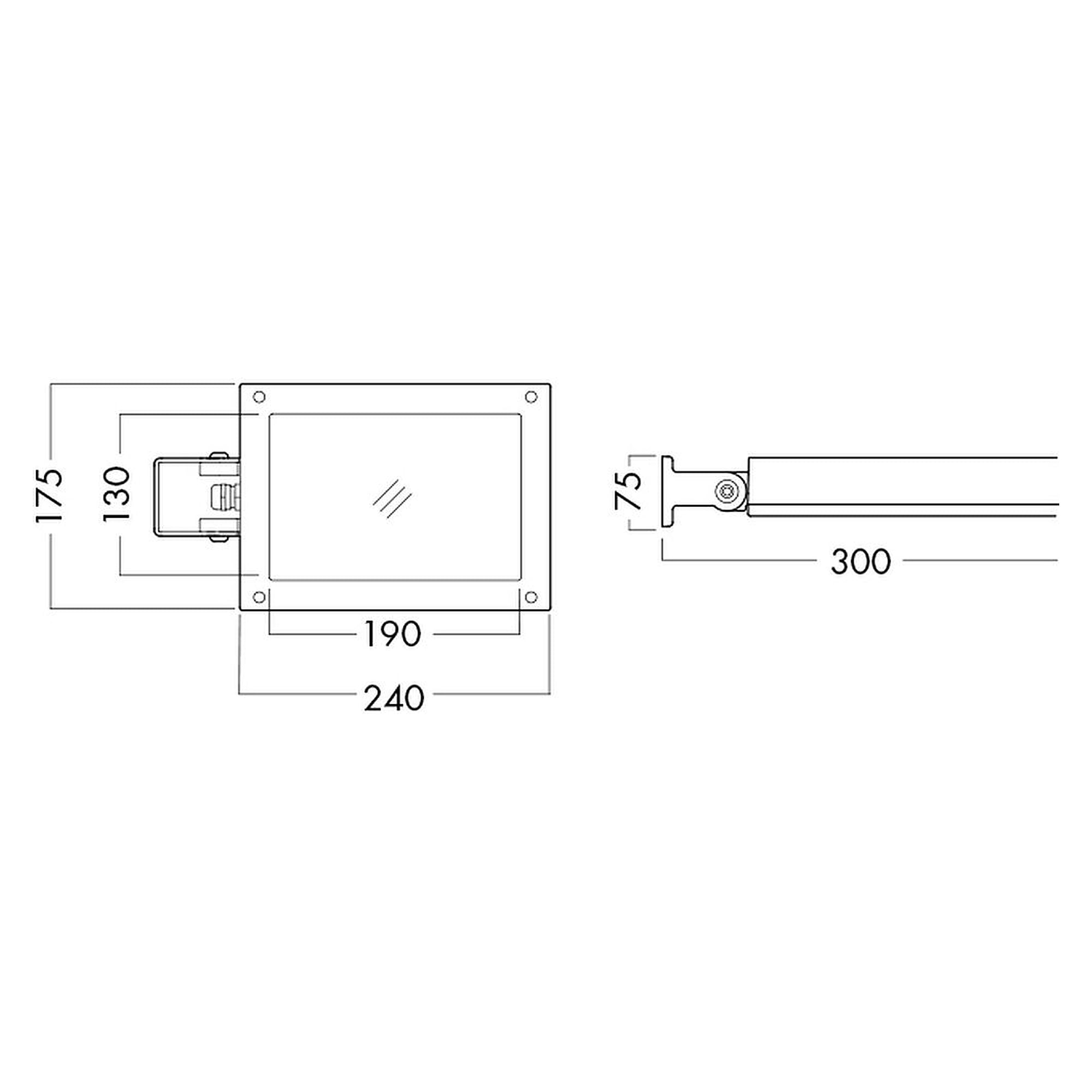

Dimensions
1. Length (mm)
  300
2. Width (mm)
  175
3. Height (mm)
  75
4. Net weight (kg)
  2.63
Mounting
1. Product mounting
  Wall Surface
Logistic Data
1. Item gross weight (kg)
  2.86
