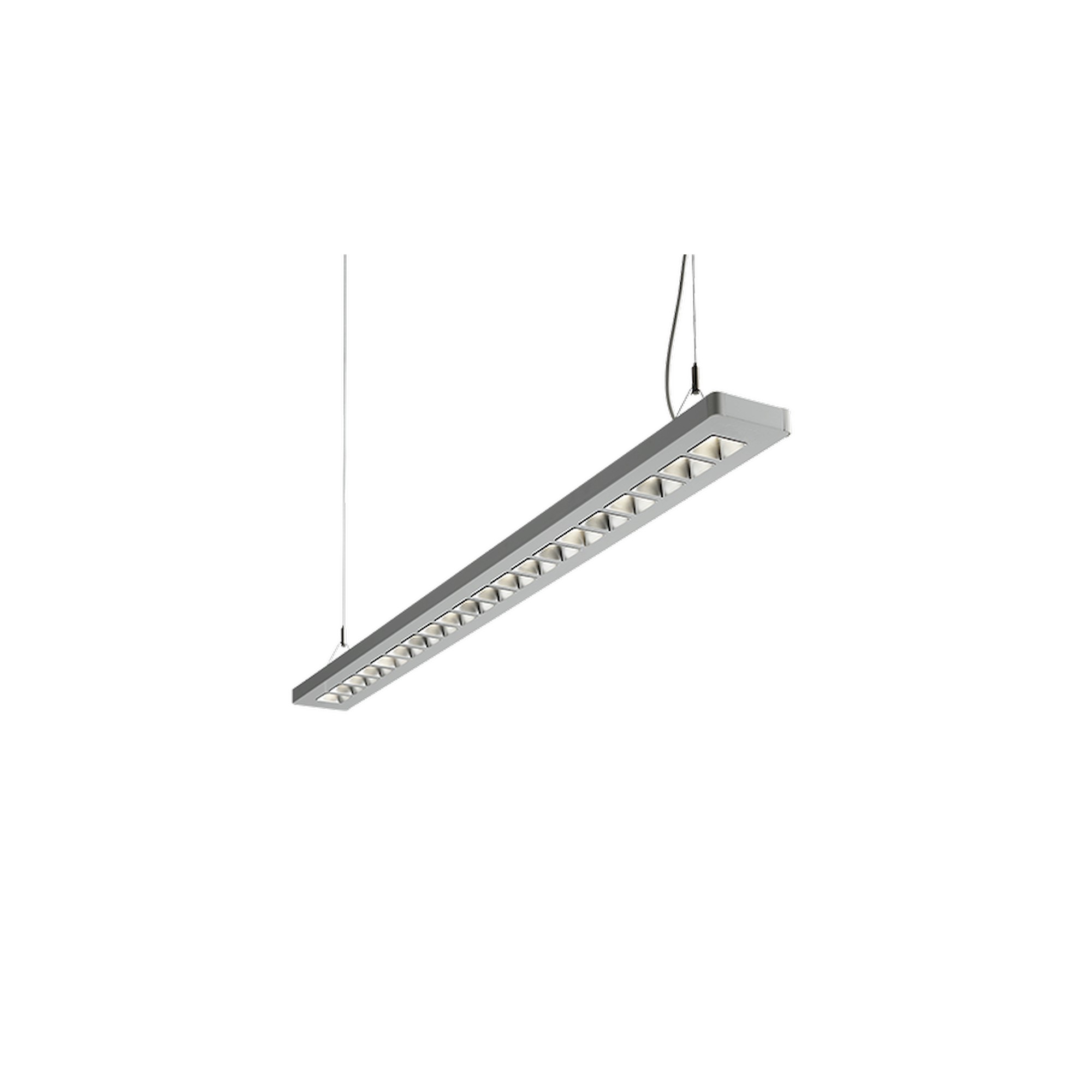

Glamox C77099574. Interior General Lighting C77-P125x1500 WH 30/70 8000 DALI 840 PRE C2.5 SM
Lead time
3 weeks
€309.00
Excl. 19% VAT , excl. Shipping Cost
Article
GL-C77099574
Manufacturer Nr.
C77099574
C77-P125x1500 WH 30/70 8000 DALI 840 PRE C2.5 SM
Frequently Bought Together
- This Item: €309.00Excl. 19% VAT , excl. Shipping Cost
- Glamox C80202434. Innenraumleuchten C80-P2830 30/70 AL G2 13000 DALI 830 PRE C2,5 MP €674.25Excl. 19% VAT , excl. Shipping Cost
- Glamox C77099616. Interior General Lighting C77-P125x1500 WH 30/70 6000 DALI 830 PRE C2.5 SM €301.50Excl. 19% VAT , excl. Shipping Cost
Total price
General
- Product shapeRectangular
- Product shape
Certificates
- Certification5 year warranty,ENEC
- Certification
LMS System
- Number of DALI addresses1
- Number of DALI addresses
Technical Data
- Minimum ambient temperature (ºC)-25
- Maximum ambient temperature (°C)35
- IK classification03
- IP classification20
- Minimum ambient temperature (ºC)

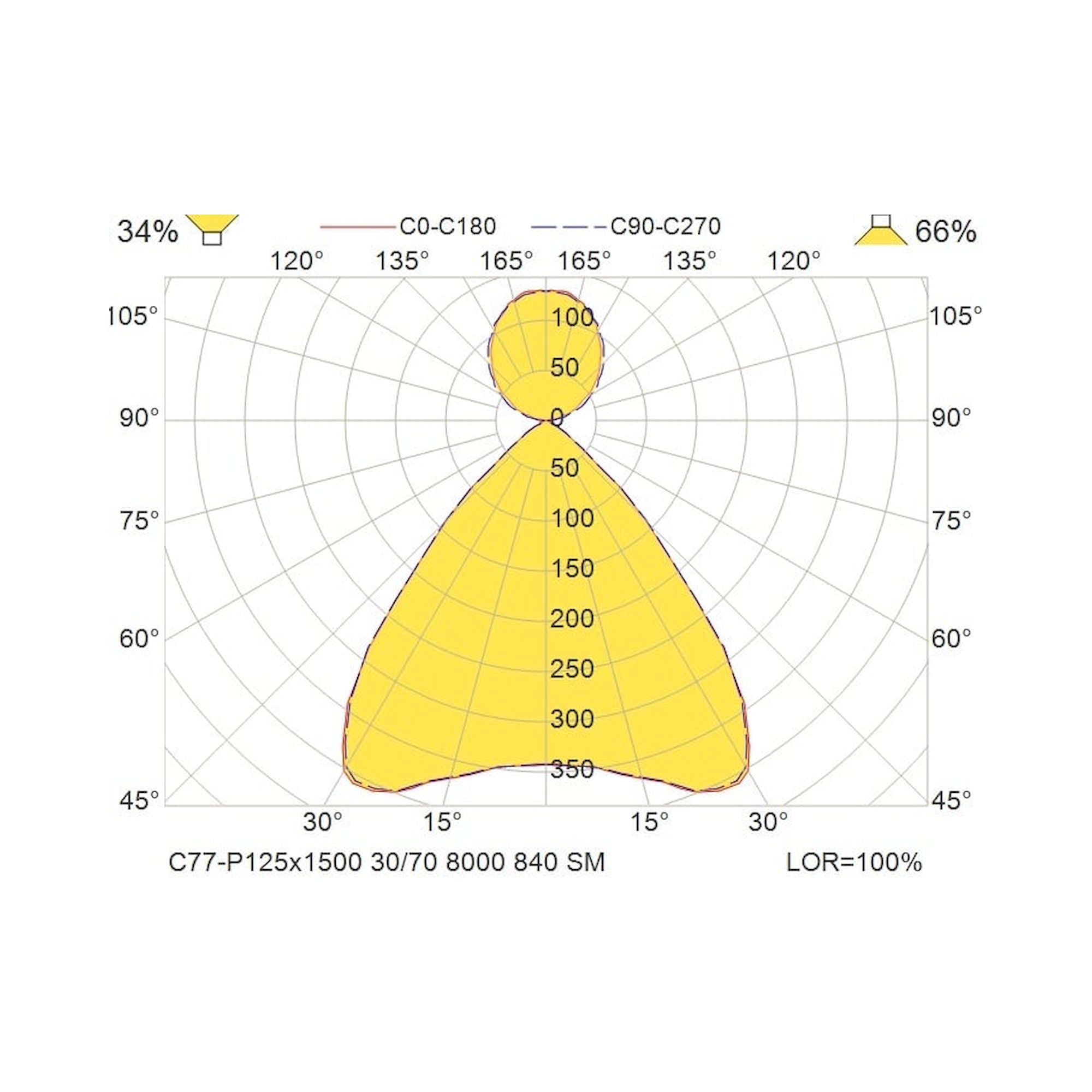

Light Technical Data
- Light sourceLED
- Lumen out (lm)7,799
- Lumen per Watt (lm/W)121
- Lamp colour temp (K)4000
- CRI Colour rendering index80
- Light distribution up %30
- Light distribution down %70
- MacAdam step3
- Energy class light sourceD
- Minimum dim level (%)1
- Light source
Driver / Ballast
- Type of LED DriverDALI: Dimming
- Number of Driver1
- Type of LED Driver
Lifetime
- L80 Median useful life LED Ta25 (hr)100 000
- L80 Median useful life LED MaxTa (hr)100 000
- Median useful life driver Ta25 (hr)100,000
- Median useful life driver Ta45 (hr)50,000
- L80 Median useful life LED Ta25 (hr)
Electrical Data
- Voltage from (V)220
- Maximum voltage (V)240
- Minimum frequency (Hz)50
- Maximum frequency (Hz)60
- Total consumption (W)64.19
- Number of luminaires on a 10A MCB type B (80% load)12
- Number of luminaires on a 10A MCB type C (80% load)21
- Number of luminaires on a 16A MCB type B (80% load)21
- Number of luminaires on a 16A MCB type C (80% load)35
- Voltage from (V)
Optic
- OpticSM - Silver matt reflector
- Optic
Housing
- Main body materialSteel
- Body colourWhite
- Main body colour nameTraffic white
- Main body colour RAL codeRAL 9016
- Main body material

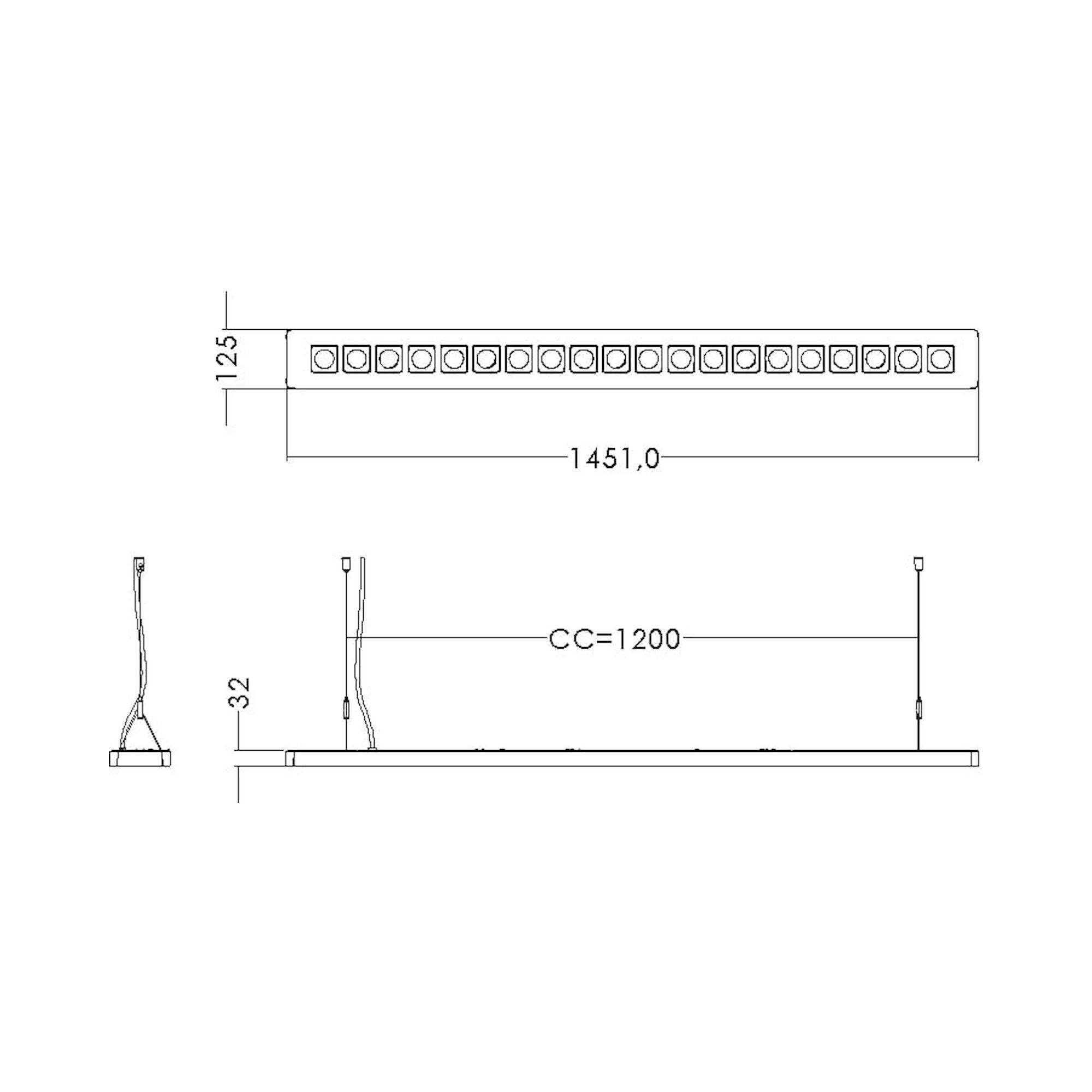

Dimensions
- Length (mm)1,451
- Width (mm)125
- Height (mm)32
- Net weight (kg)3.22
- Length (mm)
Termination
- Termination5x2x2.5mm2 Push In
- Termination
Cable
- Cable Cross section (mm²)0.75
- Cable End / Plug NameOpen End
- Cable length (m)2.50
- Cable materialPVC
- No of leads5
- Cable diameter variation max (mm)8
- Cable Cross section (mm²)
Mounting
- Product mountingPendant
- Product mounting
Logistic Data
- Item gross weight (kg)3.50
- Item gross weight (kg)
| Manufacturer Nr. | C77099574 |
|---|---|
| Manufacturer | Glamox |
| EAN | 7054130995746 |
| Lead time | 3 weeks |
| Weight | 3.500000 |
| Color | 4000K |
| Lenght | 1451 |
