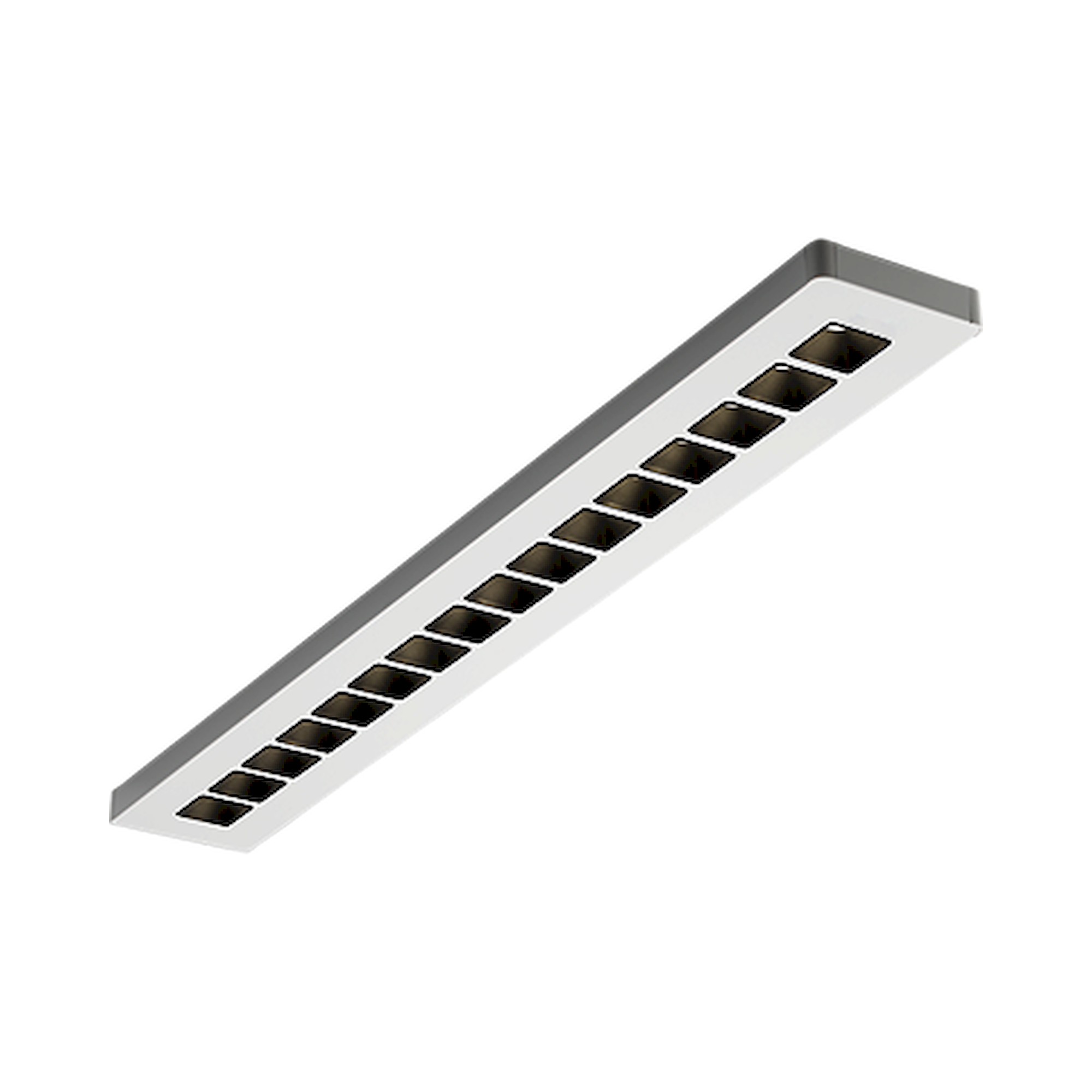

Glamox C77100121. Interior General Lighting C77-S150x1500 WH 2400 DALI 840 BM

Name: Glamox C77100121. Interior General Lighting C77-S150x1500 WH 2400 DALI 840 BM
Brand: Glamox
SKU: GL-C77100121
Price: 252 EUR
Availability: InStock

Lead time

6 weeks

€252.00

Excl. 19% VAT , excl. Shipping Cost

Article

GL-C77100121

Manufacturer Nr.

C77100121

C77-S150x1500 WH 2400 DALI 840 BM

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox C77100121. Interior General Lighting C77-S150x1500 WH 2400 DALI 840 BM
€252.00

Excl. 19% VAT , excl. Shipping Cost
Glamox C77099255. Interior General Lighting C77-S200x1200 WH 4000 HF 840 SM
€244.50

Excl. 19% VAT , excl. Shipping Cost
Glamox C77099993. C77-S475x475 WH 4000 DALI 840 WM
€267.00

Excl. 19% VAT , excl. Shipping Cost

Total price

General
1. Product shape
  Rectangular
Certificates
1. Certification
  5 year warranty,ENEC
LMS System
1. Number of DALI addresses
  1
Technical Data
1. Minimum ambient temperature (ºC)
  -25
2. Maximum ambient temperature (°C)
  40
3. IK classification
  08
4. IP classification
  20

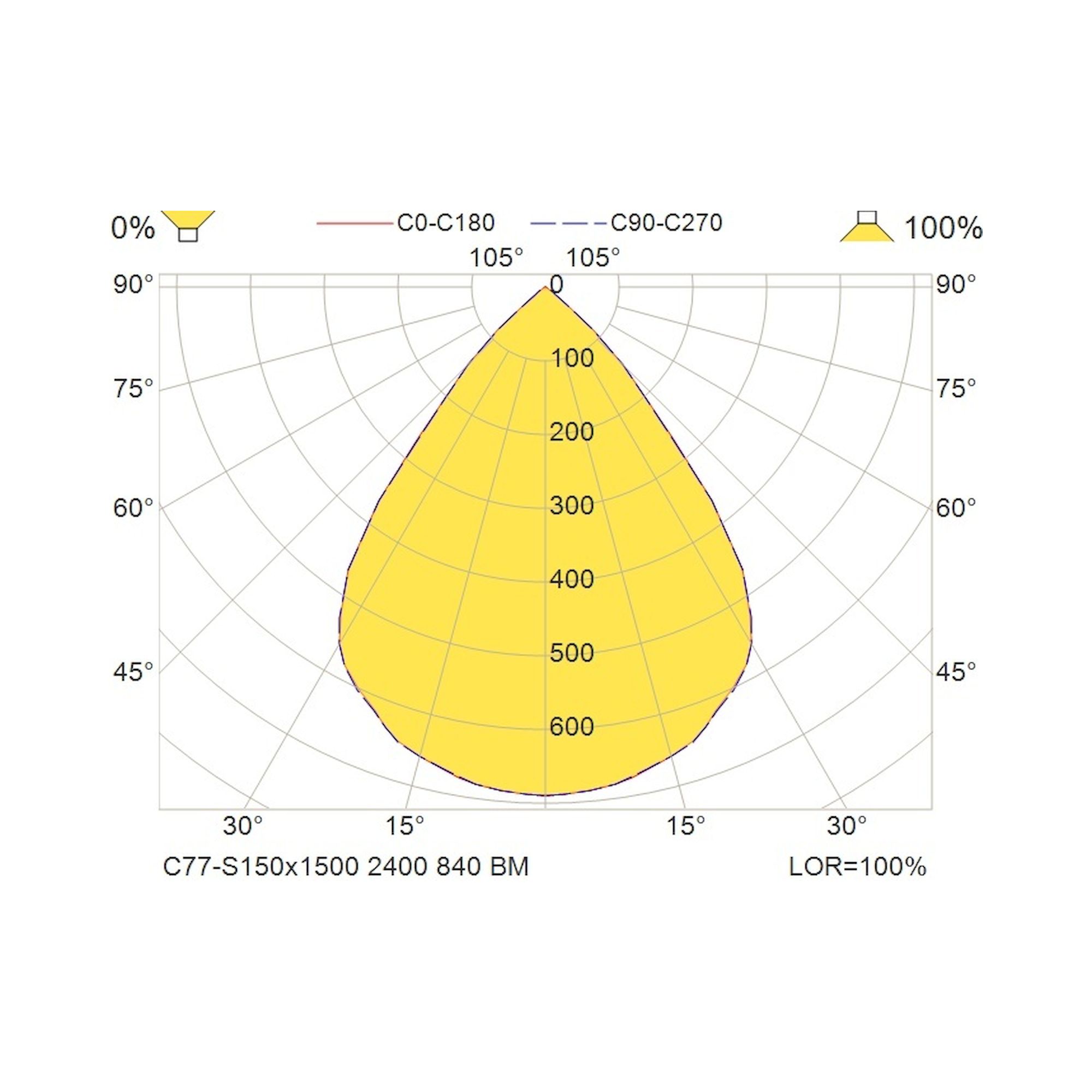

Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  2,304
3. Lumen per Watt (lm/W)
  81
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  D
8. Minimum dim level (%)
  1
Driver / Ballast
1. Type of LED Driver
  DALI: Dimming
2. Number of Driver
  1
Lifetime
1. L80 Median useful life LED Ta25 (hr)
  100 000
2. L80 Median useful life LED MaxTa (hr)
  100 000
3. Median useful life driver Ta25 (hr)
  100,000
4. Median useful life driver Ta45 (hr)
  50,000

Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Total consumption (W)
  28.60
6. Number of luminaires on a 10A MCB type B (80% load)
  12
7. Number of luminaires on a 10A MCB type C (80% load)
  21
8. Number of luminaires on a 16A MCB type B (80% load)
  21
9. Number of luminaires on a 16A MCB type C (80% load)
  35
Optic
1. Optic
  BM - Black matt reflector
Housing
1. Main body material
  Steel
2. Body colour
  White
3. Main body colour name
  Traffic white
4. Main body colour RAL code
  RAL 9016

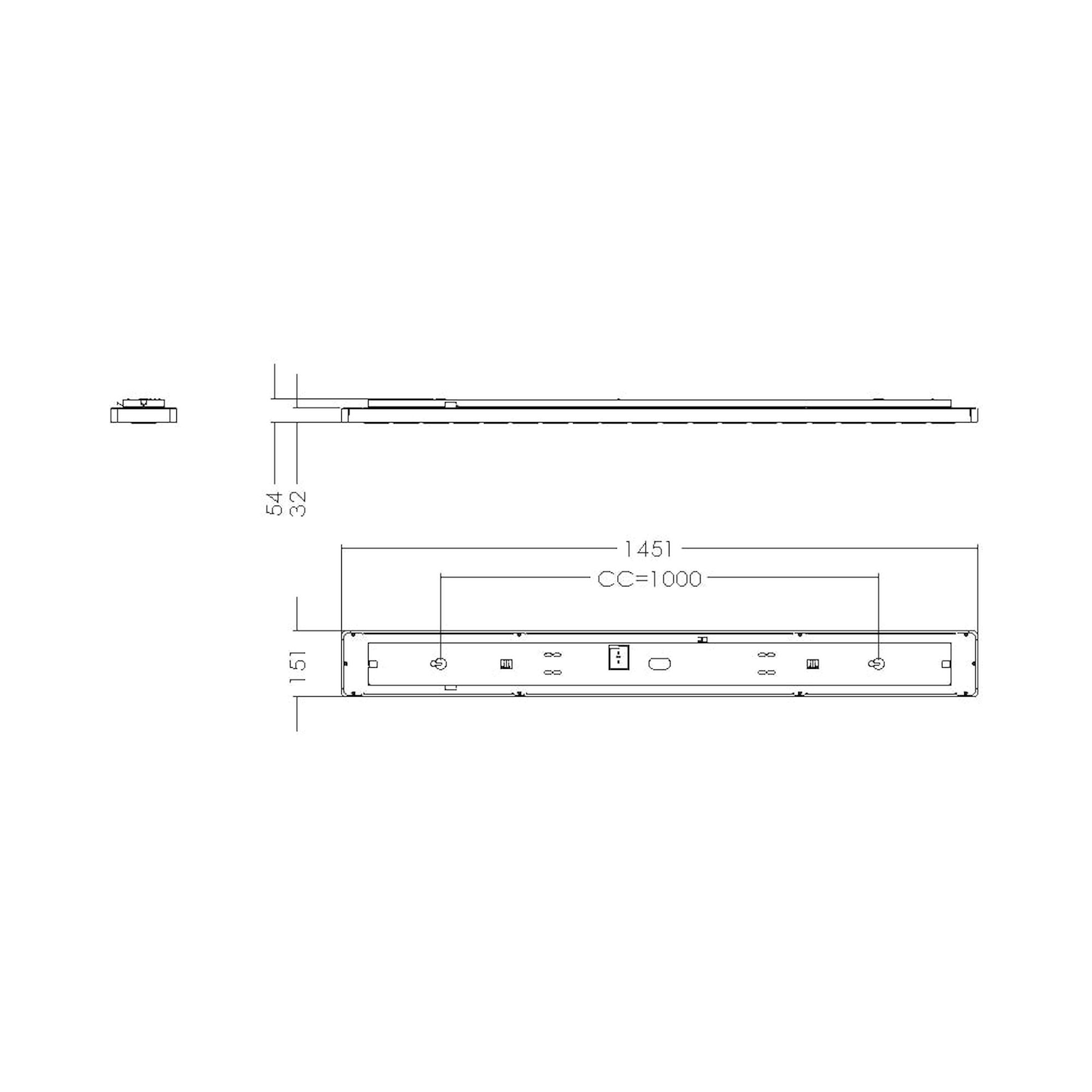

Dimensions
1. Length (mm)
  1,451
2. Width (mm)
  151
3. Height (mm)
  54
Termination
1. Termination
  5x2x2.5mm2 Push In
Mounting
1. Product mounting
  Surface,Ceiling Surface,Ceiling
