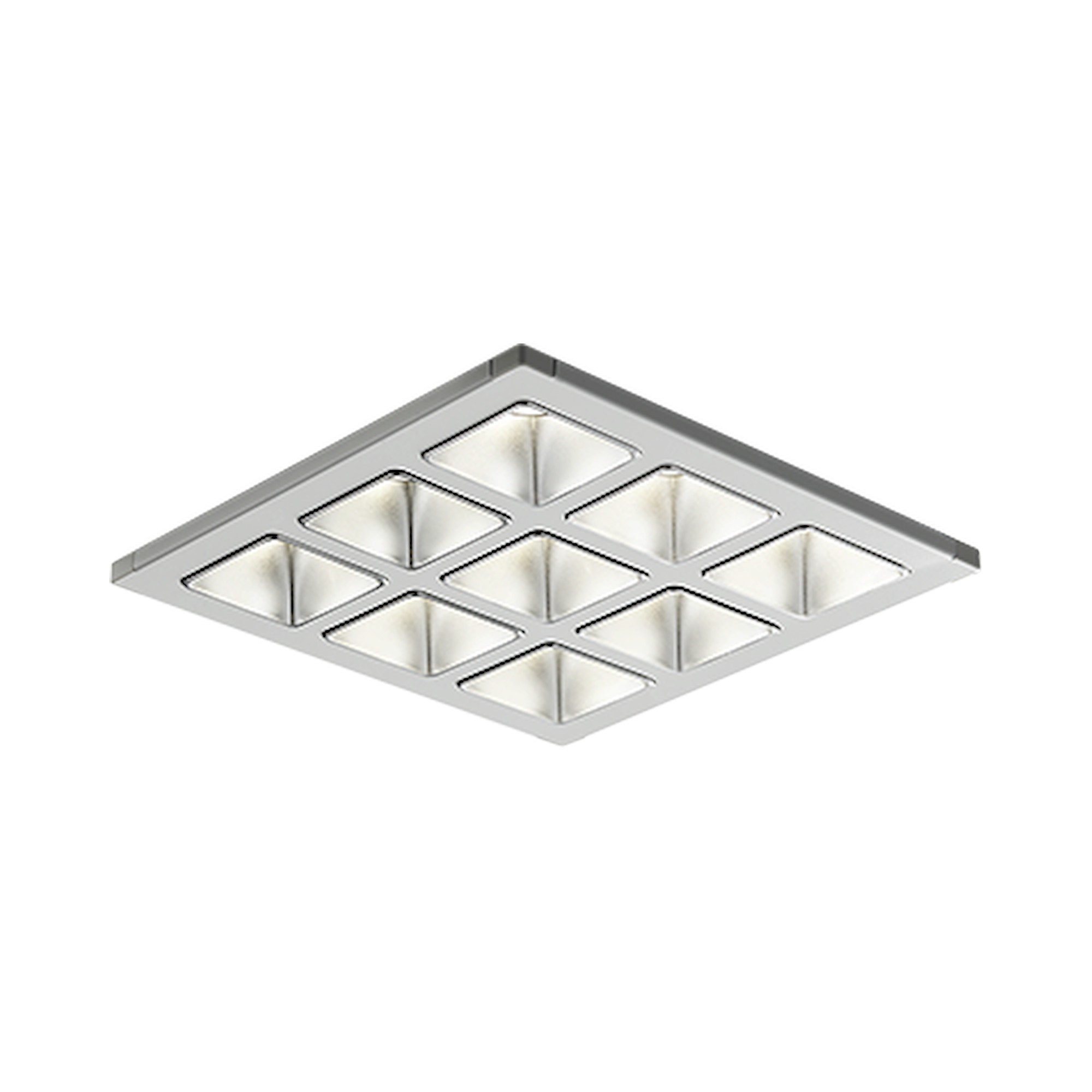

Glamox C77100210. Downlight C77-R230x230 WH 1800 HF 830 LI SM

Name: Glamox C77100210. Downlight C77-R230x230 WH 1800 HF 830 LI SM
Brand: Glamox
SKU: GL-C77100210
Price: 153 EUR
Availability: InStock

Lead time

6 weeks

€153.00

Excl. 19% VAT , excl. Shipping Cost

Article

GL-C77100210

Manufacturer Nr.

C77100210

C77-R230x230 WH 1800 HF 830 LI SM

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox C77100210. Downlight C77-R230x230 WH 1800 HF 830 LI SM
€153.00

Excl. 19% VAT , excl. Shipping Cost
Glamox D70519144. D70-S155 LED 1400 HF 840 SM/WH
€182.25

Excl. 19% VAT , excl. Shipping Cost
Glamox I75071065. Industry Lighting i75 LED 2500 DALI 840 NB CL
€510.00

Excl. 19% VAT , excl. Shipping Cost

Total price

General
1. Product shape
  Square
Certificates
1. Certification
  5 year warranty,ENEC
Technical Data
1. Minimum ambient temperature (ºC)
  -25
2. Maximum ambient temperature (°C)
  30
3. IK classification
  08
4. IP classification
  40 from underneath \ 20 from above

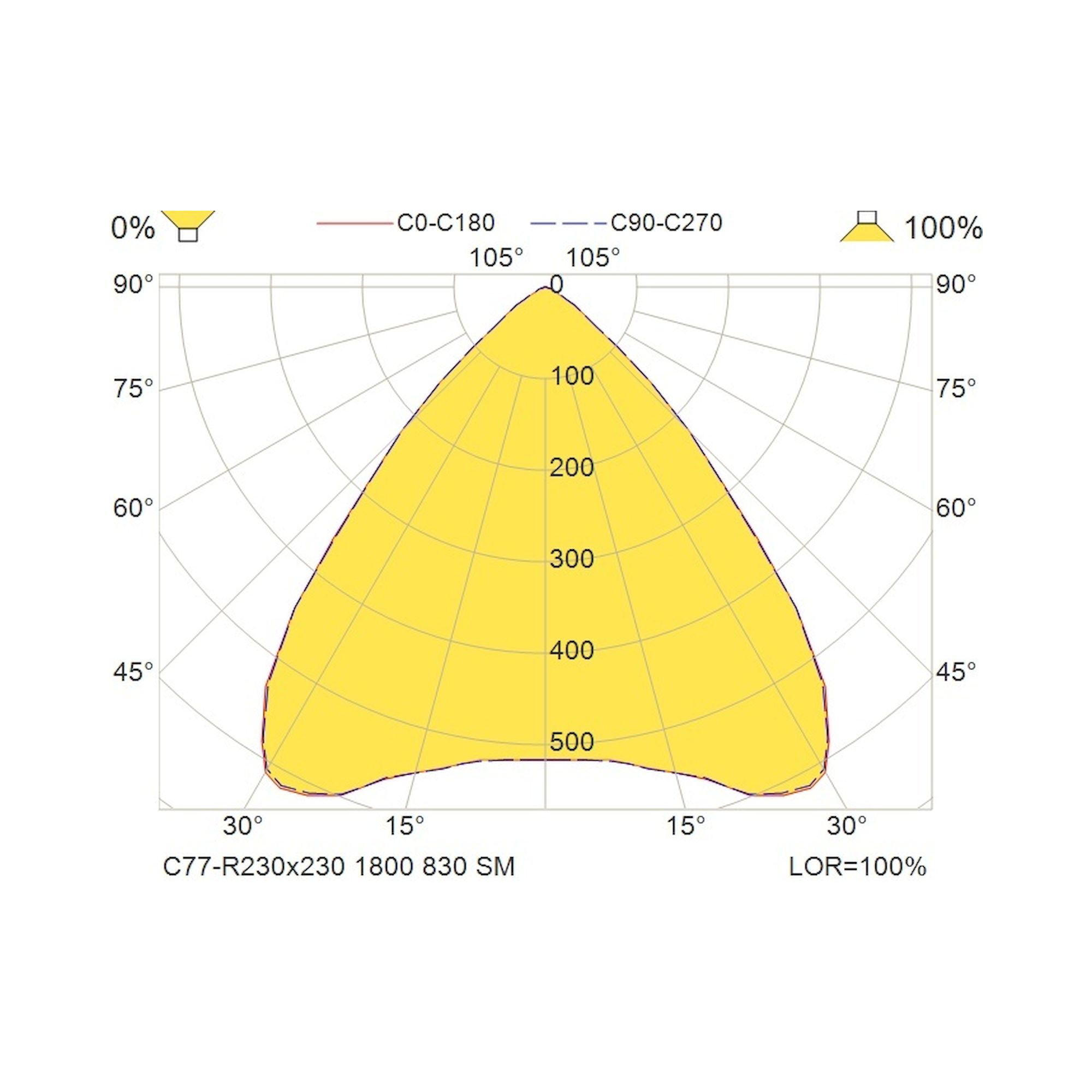

Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  1,679
3. Lumen per Watt (lm/W)
  124
4. Lamp colour temp (K)
  3000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  E
Driver / Ballast
1. Type of LED Driver
  HF: High Frequency
2. Number of Driver
  1
Lifetime
1. L80 Median useful life LED Ta25 (hr)
  100 000
2. L80 Median useful life LED MaxTa (hr)
  100 000
3. Median useful life driver Ta25 (hr)
  100,000
4. Median useful life driver Ta45 (hr)
  50,000
Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Total consumption (W)
  13.55
6. Number of luminaires on a 10A MCB type B (80% load)
  24
7. Number of luminaires on a 10A MCB type C (80% load)
  41
8. Number of luminaires on a 16A MCB type B (80% load)
  40
9. Number of luminaires on a 16A MCB type C (80% load)
  68

Optic
1. Optic
  SM - Silver matt reflector
Housing
1. Main body material
  Steel
2. Body colour
  White
3. Main body colour name
  Traffic white
4. Main body colour RAL code
  RAL 9016

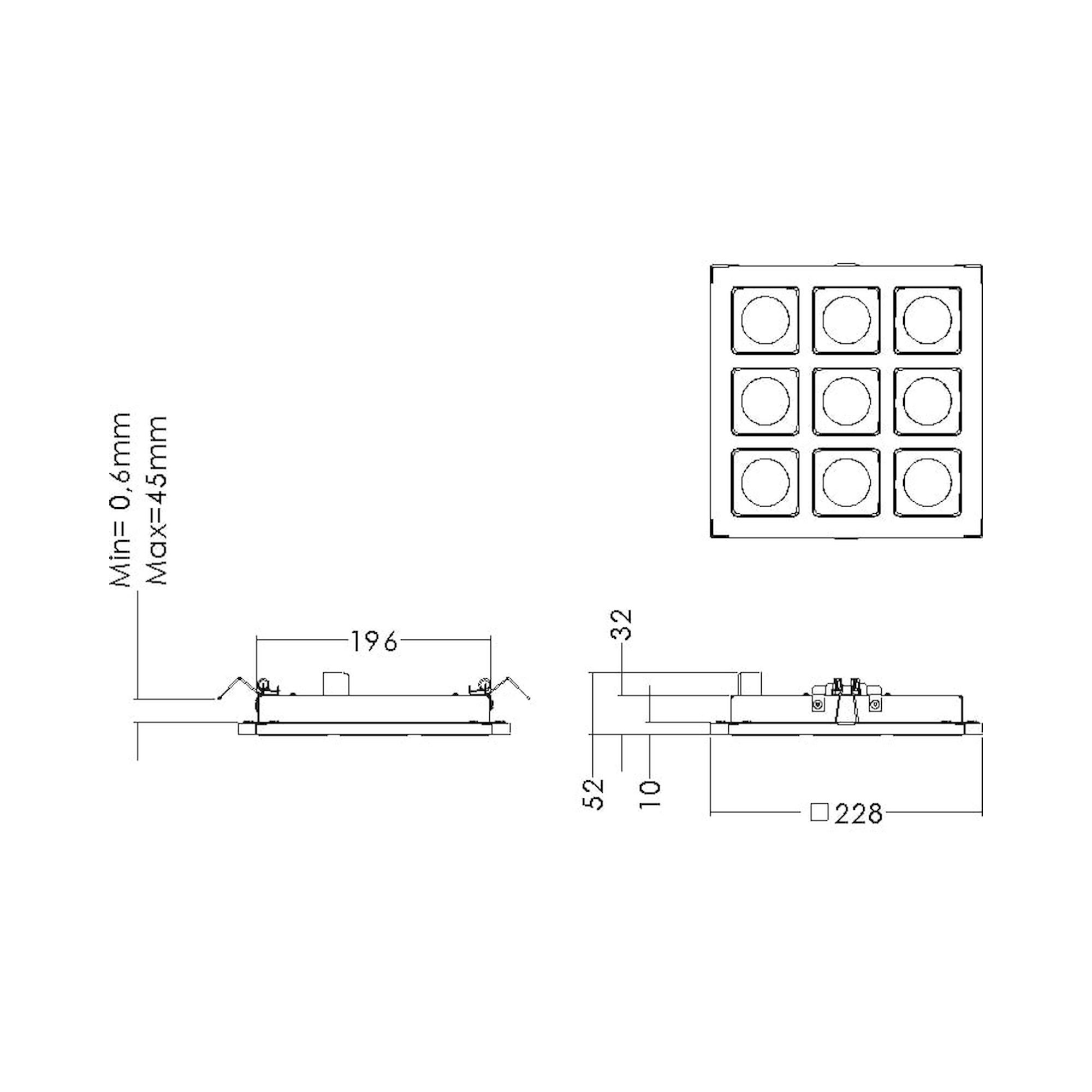

Dimensions
1. Length (mm)
  228
2. Width (mm)
  228
3. Height (mm)
  32
4. Cut out (mm)
  196
5. Net weight (kg)
  0.88
Termination
1. Termination
  3x2x2.5mm2 Push In
2. Plug type
  Linect
Mounting
1. Product mounting
  Ceiling Recessed
Logistic Data
1. Item gross weight (kg)
  0.96
