Glamox C80548551. Linear System Lighting C80-SR/RR1122 AL G2 LU 3600 HO WZ 840 MPW-SEN DIF

Name: Glamox C80548551. Linear System Lighting C80-SR/RR1122 AL G2 LU 3600 HO WZ 840 MPW-SEN DIF
Brand: Glamox
SKU: GL-C80548551
Price: 228.75 EUR
Availability: InStock

Lead time

6 weeks

€228.75

Excl. 19% VAT , excl. Shipping Cost

Article

GL-C80548551

Manufacturer Nr.

C80548551

C80-SR/RR1122 AL G2 LU 3600 HO WZ 840 MPW-SEN DIF

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox C80548551. Linear System Lighting C80-SR/RR1122 AL G2 LU 3600 HO WZ 840 MPW-SEN DIF
€228.75

Excl. 19% VAT , excl. Shipping Cost
Glamox C80548615. Linear System Lighting C80-SR/RR1682 G2 LU 5400 HO DALI 827-865 CCT DIF
€273.75

Excl. 19% VAT , excl. Shipping Cost
Glamox C80549878. Systemleuchten C80-PR1402 50/50 BL G2 3400 LO DALI 830 REF
€363.75

Excl. 19% VAT , excl. Shipping Cost

Total price

General
1. Product shape
  Linear
Certificates
1. Certification
  5 year warranty
Completeness
1. Item is not complete, missing
  Profile and optic
Technical Data
1. Minimum ambient temperature (ºC)
  -25
2. Maximum ambient temperature (°C)
  25
3. IP classification
  40

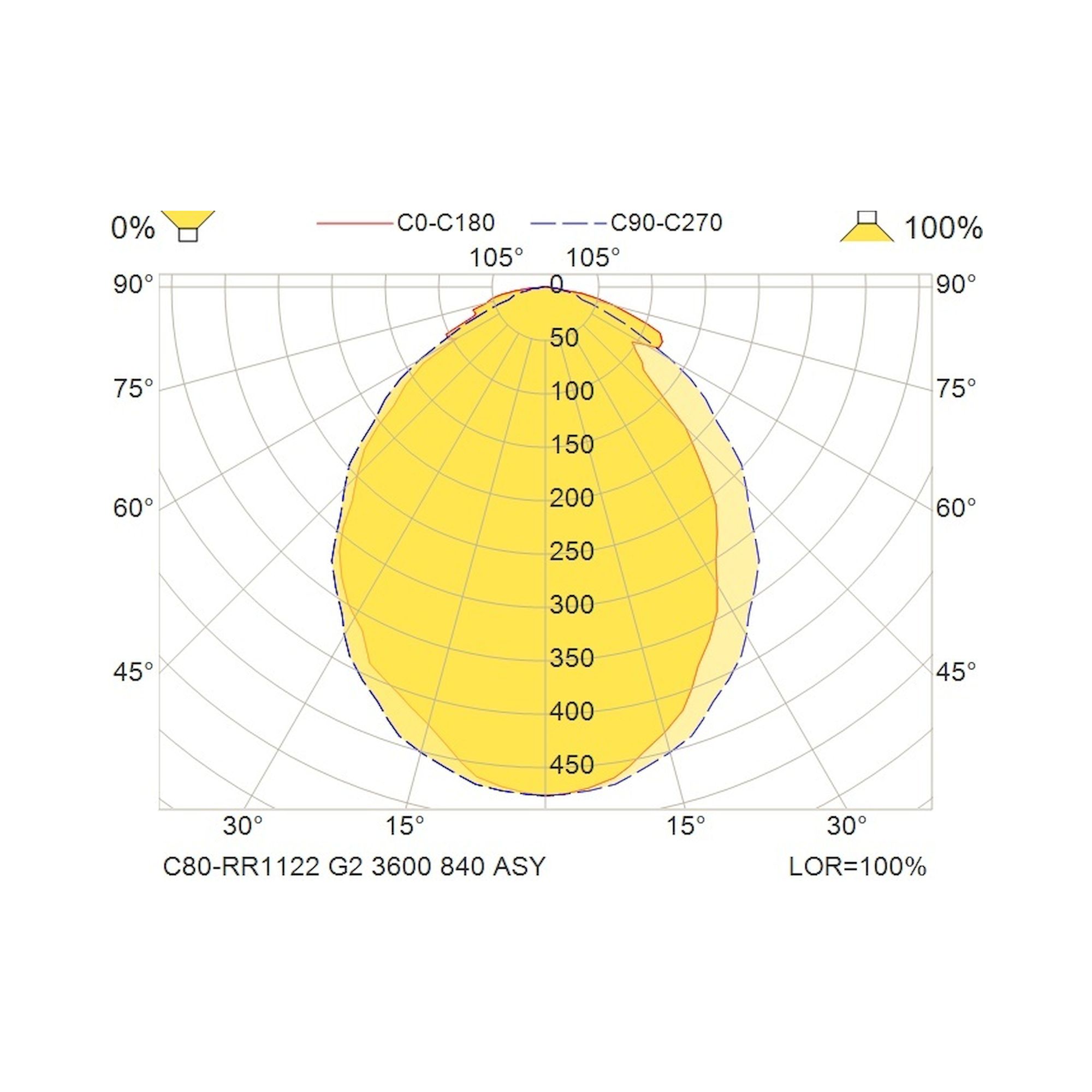

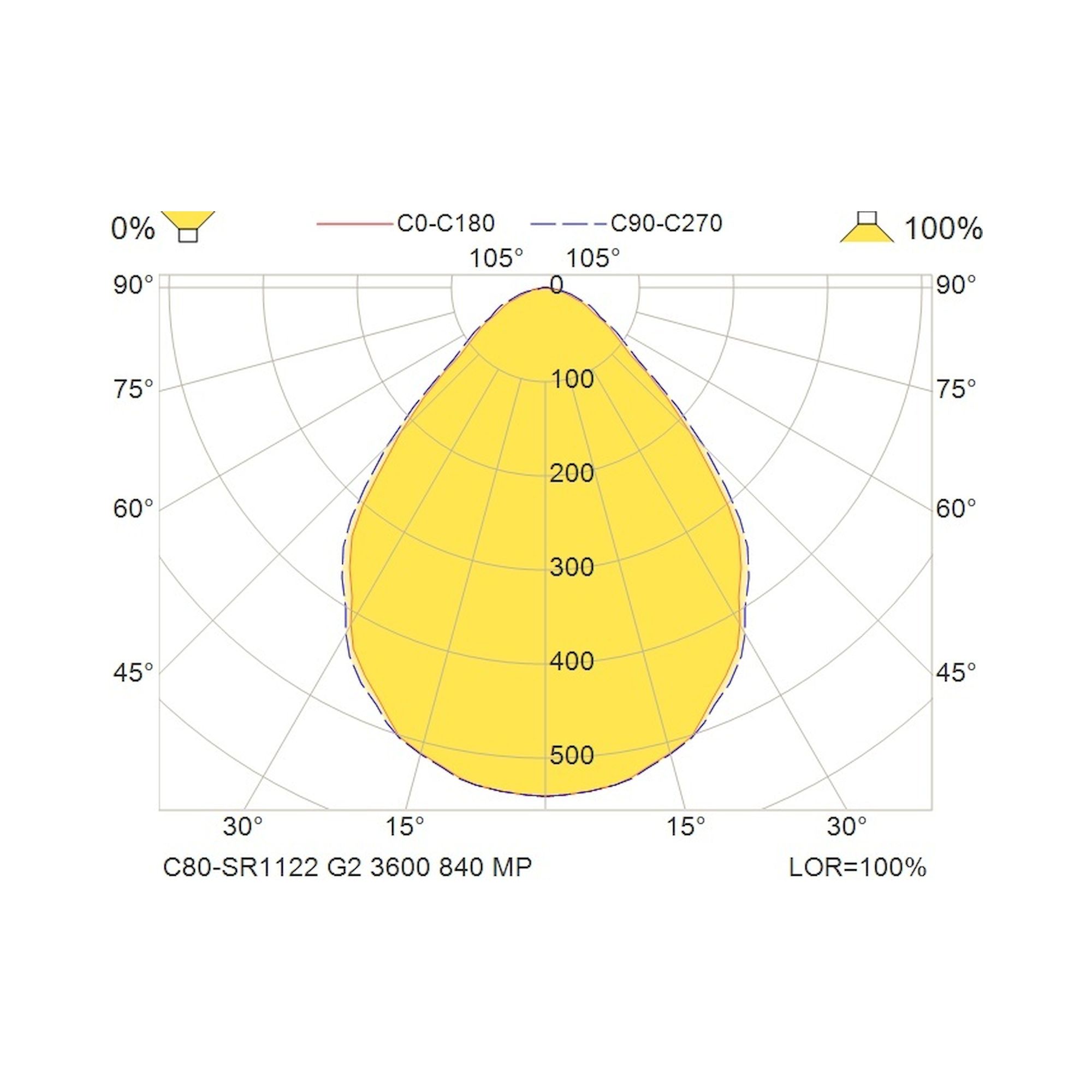

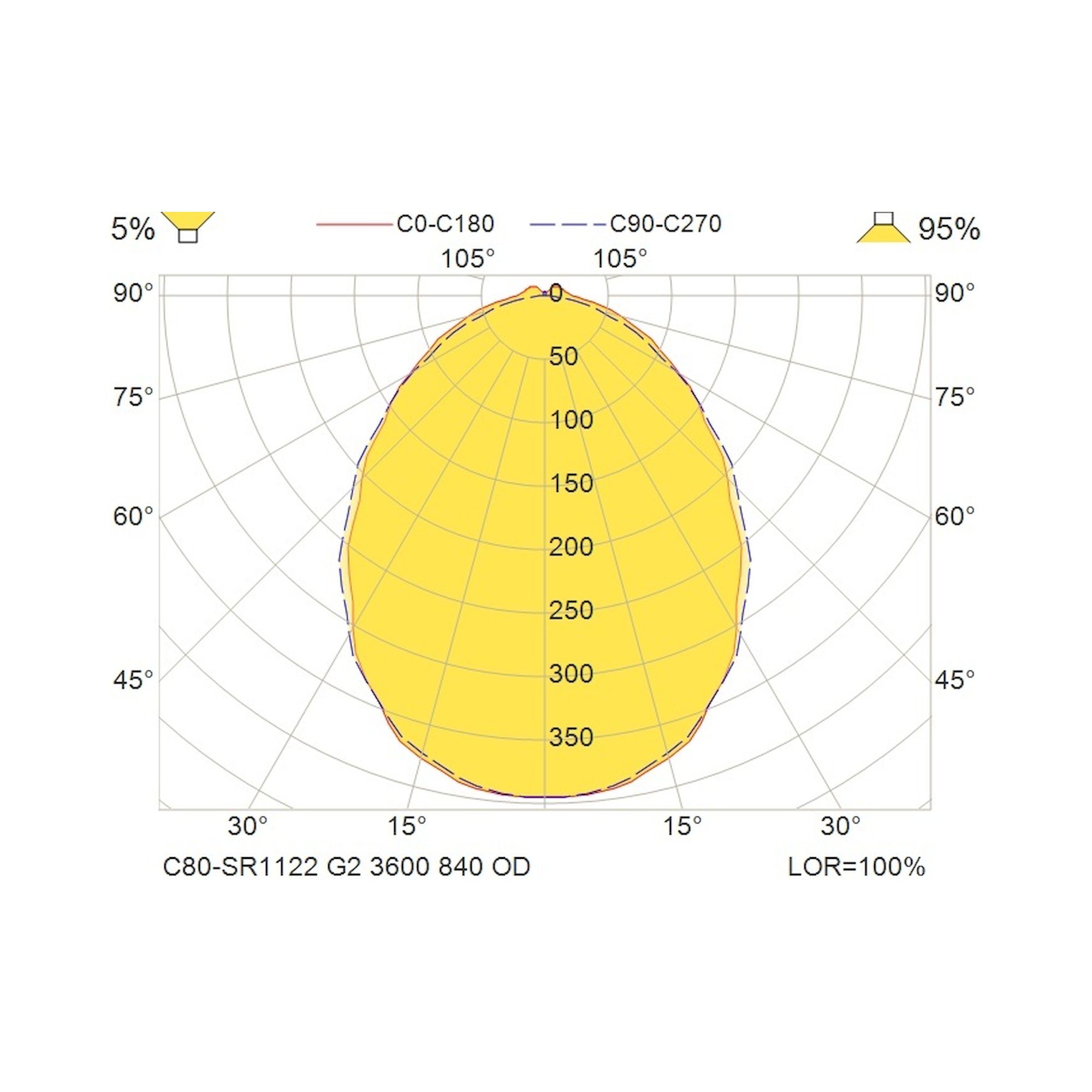

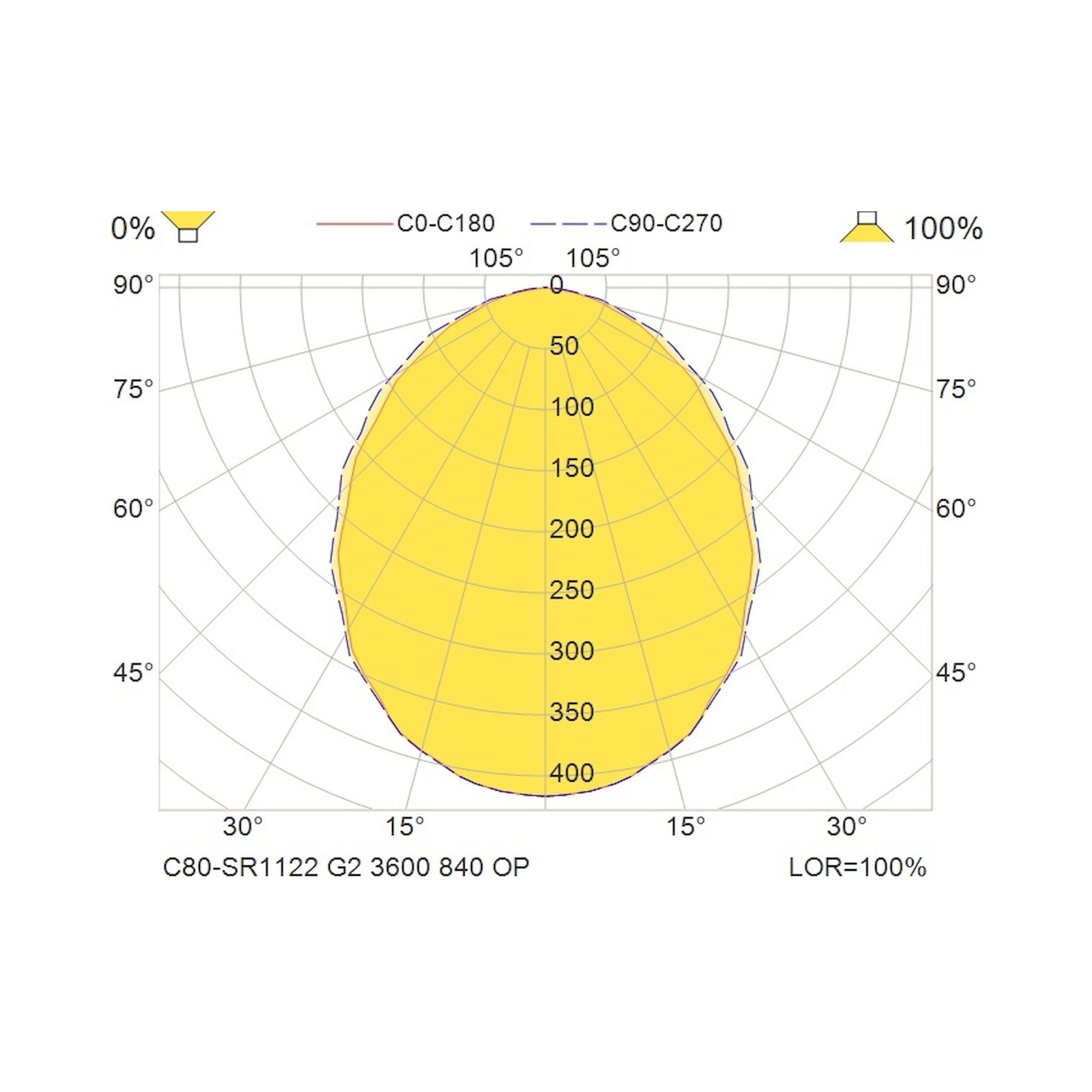

Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  3,832
3. Lumen per Watt (lm/W)
  131
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  C
8. Minimum dim level (%)
  1
9. Light intensity
  HO = High output
10. Dimmable
  Yes
Driver / Ballast
1. Type of LED Driver
  WZ: Wireless Zigbee
2. Number of Driver
  1

Lifetime
1. L80 Median useful life LED Ta25 (hr)
  100 000
2. L80 Median useful life LED MaxTa (hr)
  100 000
3. Median useful life driver Ta25 (hr)
  50,000
Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Total consumption (W)
  29.30
6. Number of luminaires on a 10A MCB type C (80% load)
  22
7. Number of luminaires on a 16A MCB type B (80% load)
  22
8. Number of luminaires on a 16A MCB type C (80% load)
  36
Sensor
1. Sensor type
  PIR+Daylight harvesting (CLS)
2. Daylight functionality
  CLS
3. Light sensor max lux
  999
4. Light sensor min lux
  0
5. Detection angle crosswise (°)
  62
6. Detection angle lengthwise (°)
  84
7. Sensor cover cross presence
  45
8. Sensor cover length presence
  62
9. Max mounting height / detection range (metre)
  3
10. Sensor max hold time
  Programmable
11. Sensor min hold time
  5 sec
Dimensions
1. Length (mm)
  1,122
2. Net weight (kg)
  1.71
Mounting
1. Row mounting
  Yes
2. Product mounting
  Pendant,Ceiling Recessed,Ceiling Surface
Logistic Data
1. Item gross weight (kg)
  1.86
