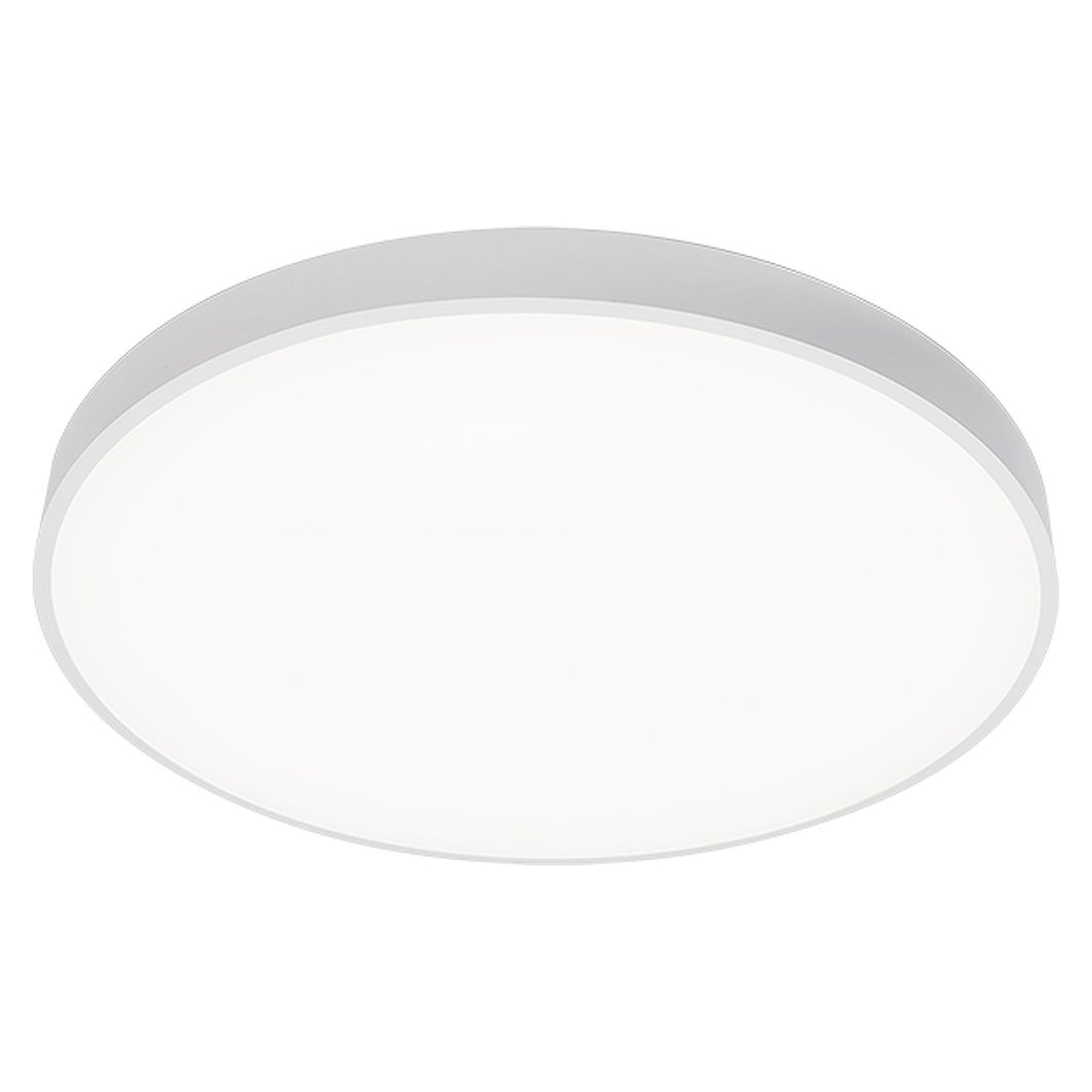

Glamox C90230487. Interior General Lighting C90-S1170 WH 14000 HF 840 OP

Name: Glamox C90230487. Interior General Lighting C90-S1170 WH 14000 HF 840 OP
Brand: Glamox
SKU: GL-C90230487
Price: 1635 EUR
Availability: InStock

Lead time

4 weeks

€1,635.00

Excl. 19% VAT , excl. Shipping Cost

Article

GL-C90230487

Manufacturer Nr.

C90230487

C90-S1170 WH 14000 HF 840 OP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox C90230487. Interior General Lighting C90-S1170 WH 14000 HF 840 OP
€1,635.00

Excl. 19% VAT , excl. Shipping Cost
Glamox C90230961. Interior General Lighting C90-S870 WH 12000 DALI 840 MP
€1,129.50

Excl. 19% VAT , excl. Shipping Cost
Glamox C90230541. Interior General Lighting C90-P870 20/80 GR 9000 HF 840 PRE C5 MP
€1,170.00

Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Fragen

General
1. Product shape
  Round
Electrical Data
1. Leakage current (mA)
  1
2. Voltage from (V)
  220
3. Maximum voltage (V)
  240
4. Minimum frequency (Hz)
  50
5. Maximum frequency (Hz)
  60
6. Total consumption (W)
  94
7. Number of luminaires on a 10A MCB type B (80% load)
  8
8. Number of luminaires on a 10A MCB type C (80% load)
  14
9. Number of luminaires on a 16A MCB type B (80% load)
  13
10. Number of luminaires on a 16A MCB type C (80% load)
  22
Technical Data
1. Maximum ambient temperature (°C)
  45
2. IP classification
  20

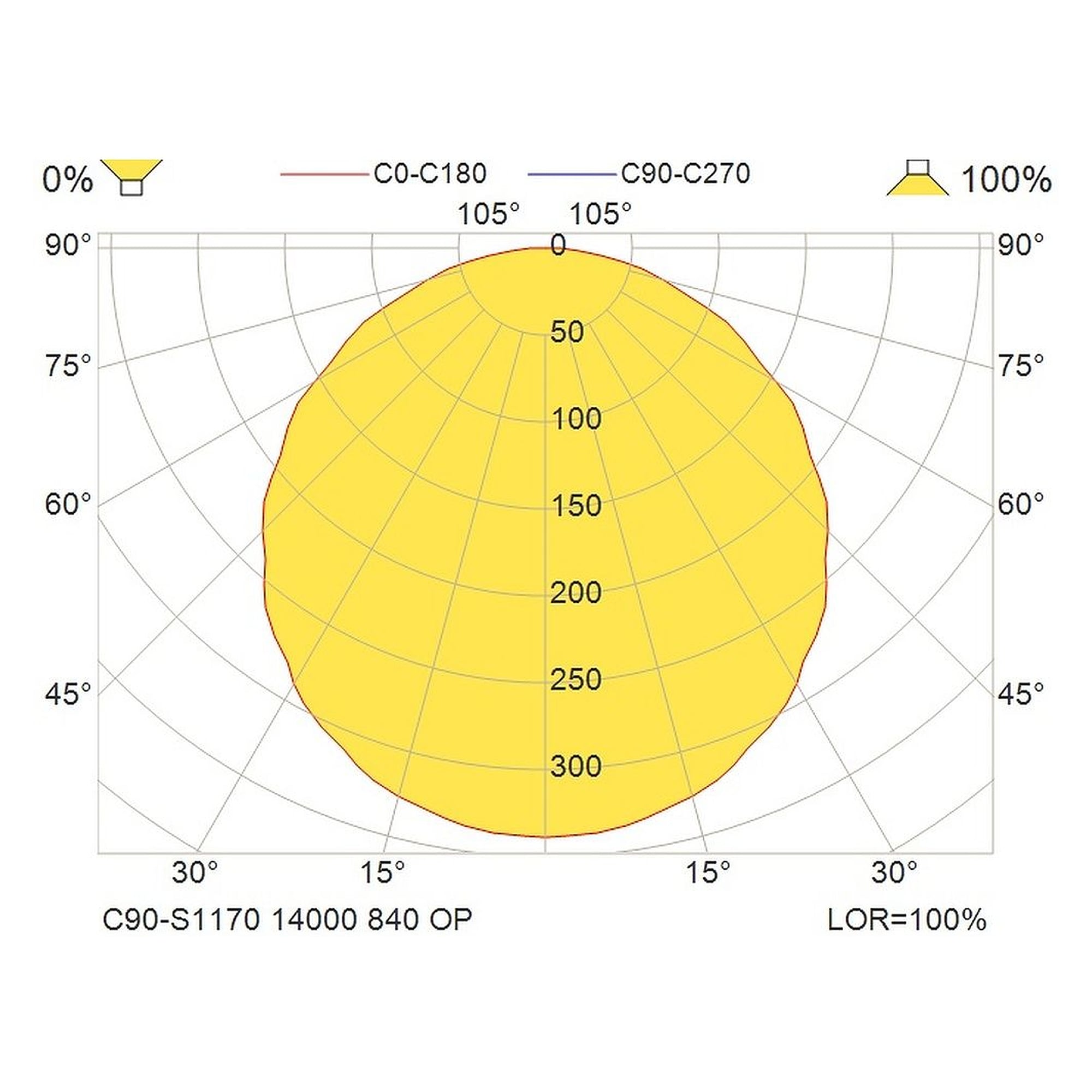

Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  14,701
3. Lumen per Watt (lm/W)
  156
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  C
Driver / Ballast
1. Type of LED Driver
  HF: High Frequency
2. No Of Ballast
  2
Lifetime
1. L80 Median useful life LED Ta25 (hr)
  100 000
2. Luminous flux decline (LLMF) 50.000h Ta25
  0.90

Optic
1. Optic
  OP - Opal diffuser in acrylic
2. Material of diffuser
  Acrylic
3. Diffuser material design
  Opal
Housing
1. Main body material
  Recycled aluminium
2. Body colour
  White
3. Main body colour name
  White

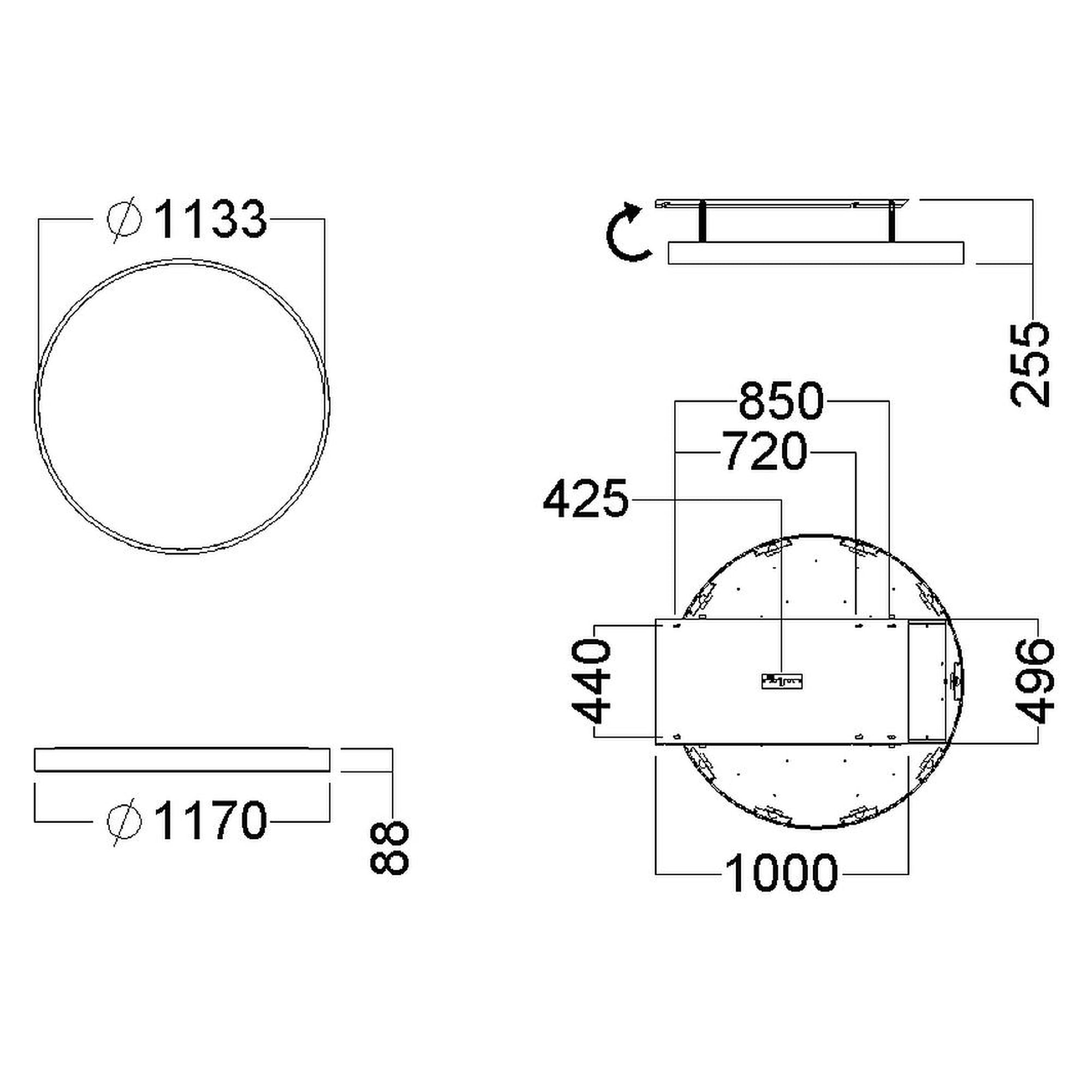

Dimensions
1. Height (mm)
  88
2. Diameter (mm)
  1,170
3. Net weight (kg)
  20.66
Termination
1. Termination
  5x2x2.5mm2 Push In
Mounting
1. Product mounting
  Ceiling Surface
Logistic Data
1. Item gross weight (kg)
  22.46
