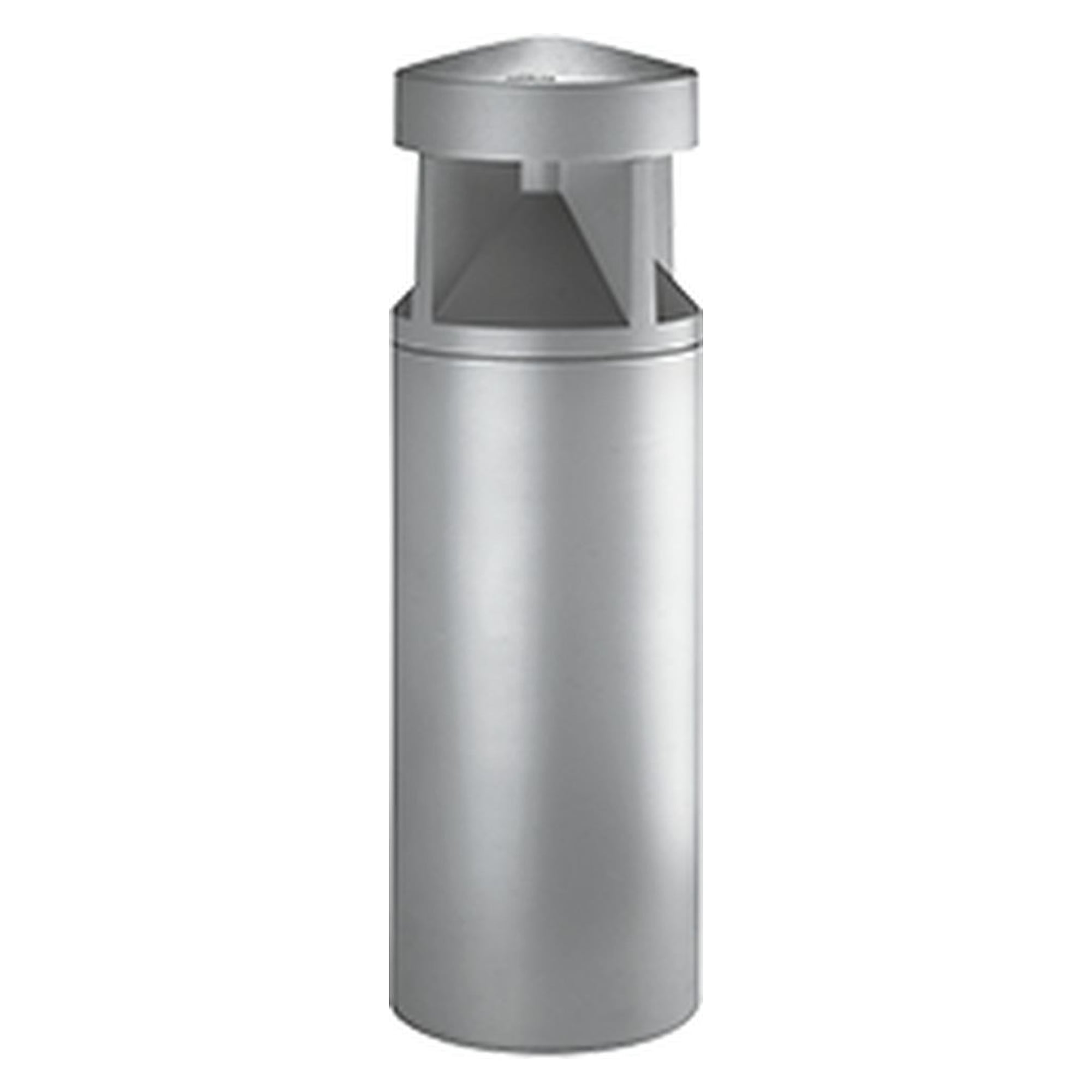

Glamox O34700116. Bollard O34 LED 1400 HF 840 500MM 360° ANTHRACITE

Name: Glamox O34700116. Bollard O34 LED 1400 HF 840 500MM 360° ANTHRACITE
Brand: Glamox
SKU: GL-O34700116
Price: 807 EUR
Availability: InStock

Lead time

6 weeks

€807.00

Excl. 19% VAT , excl. Shipping Cost

Article

GL-O34700116

Manufacturer Nr.

O34700116

O34 LED 1400 HF 840 500MM 360° ANTHRACITE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox O34700116. Bollard O34 LED 1400 HF 840 500MM 360° ANTHRACITE
€807.00

Excl. 19% VAT , excl. Shipping Cost
Glamox O70121202. Architectural Lighting O70-S290-E LED 600 HF 830 BL
€268.50

Excl. 19% VAT , excl. Shipping Cost
Glamox 4022674. ALFA OVAL 40-22 LED 500 HF 830 SILVER
€312.75

Excl. 19% VAT , excl. Shipping Cost

Total price

General
1. Product shape
  Round
Technical Data
1. Minimum ambient temperature (ºC)
  -25
2. Maximum ambient temperature (°C)
  35
3. IK classification
  10
4. IP classification
  66
5. Corrosion class
  C4
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  1,400
3. Lumen per Watt (lm/W)
  54
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  F
Driver / Ballast
1. Type of LED Driver
  HF: High Frequency
2. Number of Driver
  1
Lifetime
1. L80 Median useful life LED Ta25 (hr)
  100 000
2. L70 Median useful life LED MaxTa (hr)
  100 000
Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Main Feed DC (V) Min
  180
6. Main Feed DC (V) Max
  270
7. Total consumption (W)
  26
8. IEC Protection Class
  II
9. Protection against surges (kV)
  4
10. Number of luminaires on a 10A MCB type B (80% load)
  10
11. Number of luminaires on a 10A MCB type C (80% load)
  17
12. Number of luminaires on a 16A MCB type B (80% load)
  16
13. Number of luminaires on a 16A MCB type C (80% load)
  27

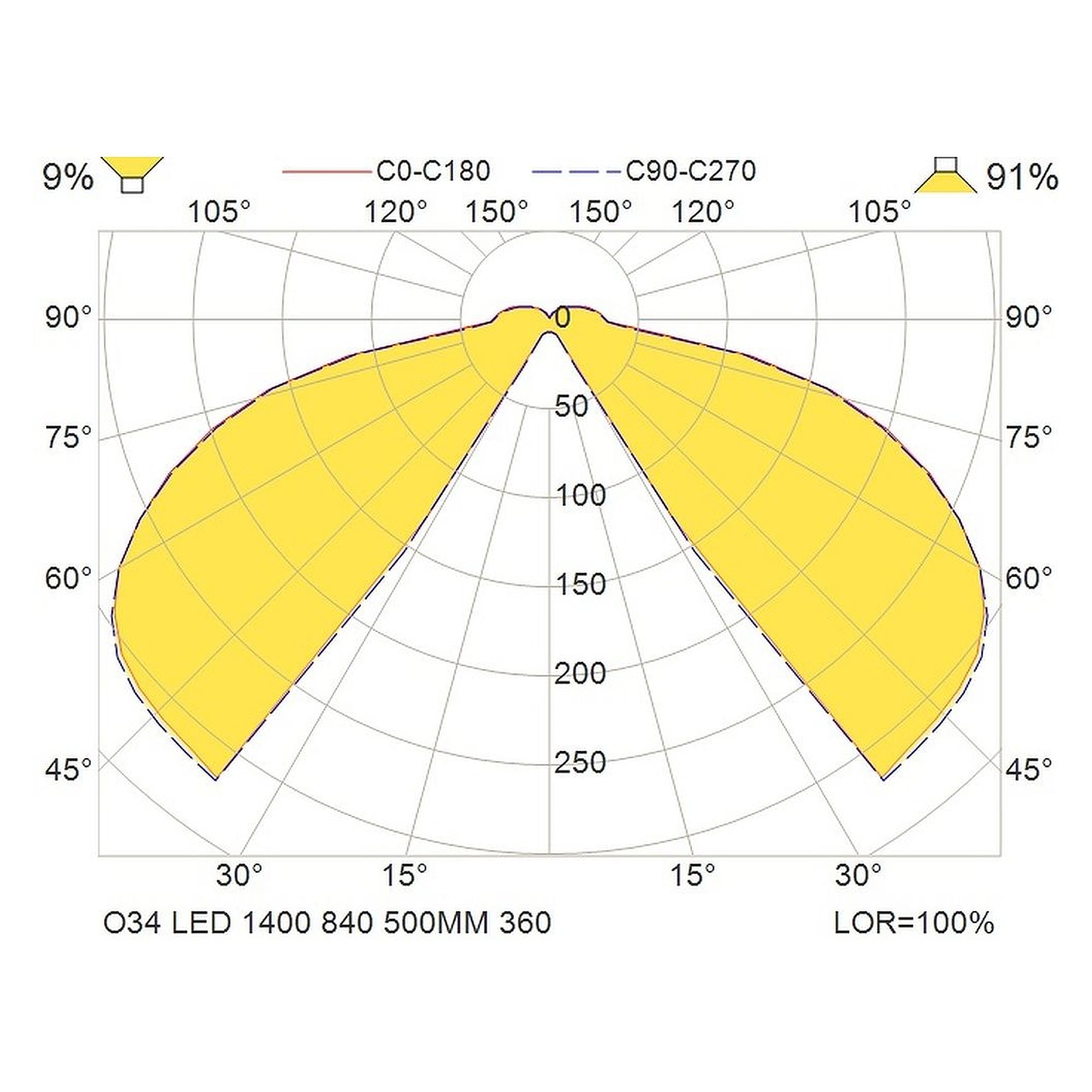

Optic
1. Optic
  360 - 360° radial light distribution
2. Material of diffuser
  Tempered glass
3. Diffuser material design
  Clear
Housing
1. Main body material
  Aluminium
2. Body colour
  Grey
3. Main body colour name
  Anthracite

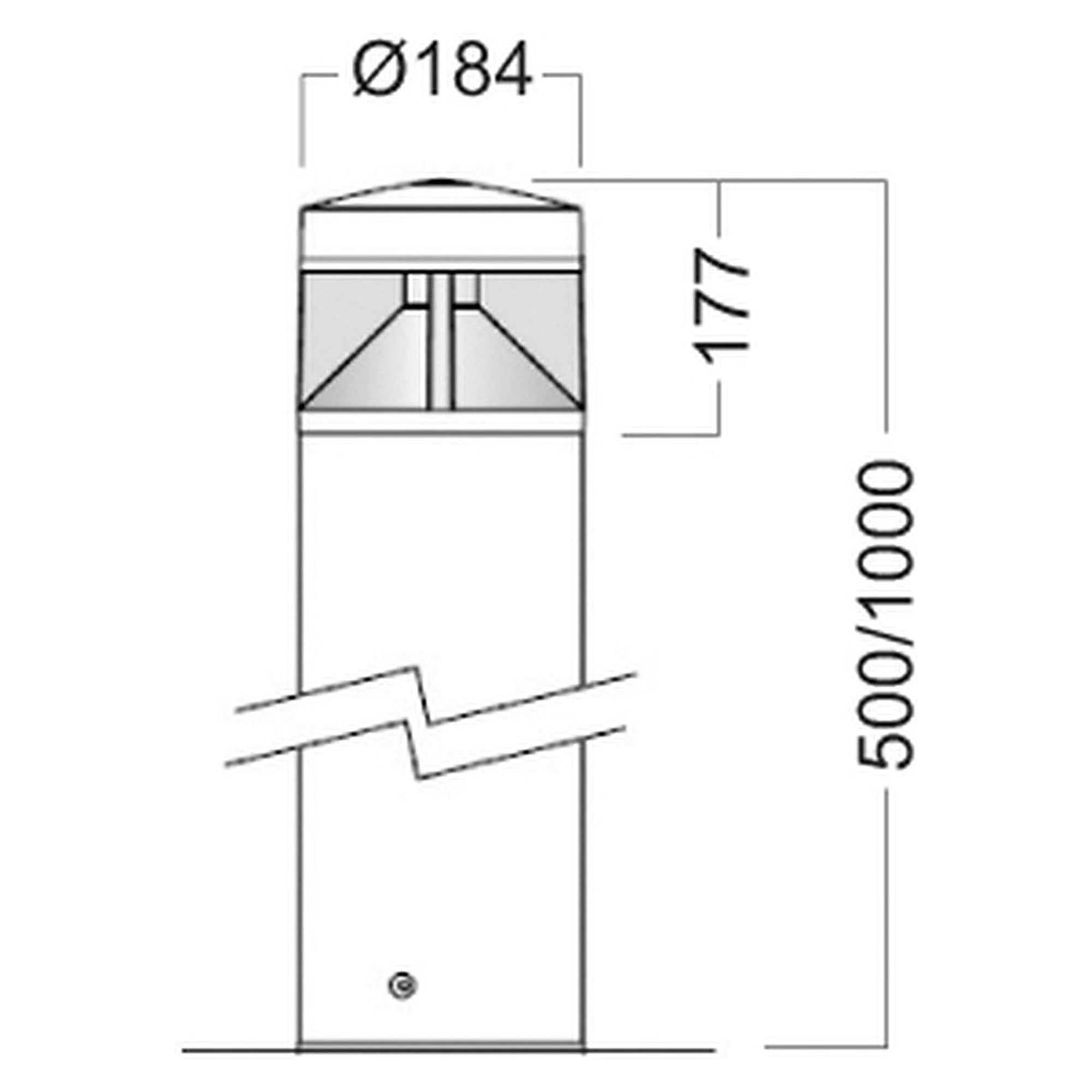

Dimensions
1. Height (mm)
  500
2. Diameter (mm)
  184
3. Net weight (kg)
  7.62
Mounting
1. Product mounting
  Surface Ground
Logistic Data
1. Item gross weight (kg)
  8.28
