Proxxon 23870 Ring spanner. 6x7 mm
€4.41
Excl. 19% VAT , excl. Shipping Cost
Article
PX-23870
Manufacturer Nr.
23870
Doppelringschlüssel. 6 x 7 mm
Frequently Bought Together
- This Item: €4.41Excl. 19% VAT , excl. Shipping Cost
- Proxxon 23888 Ring spanner, 17x19 mm €10.29Excl. 19% VAT , excl. Shipping Cost
- Proxxon 23882 Ring spanner, 16x17 mm €8.61Excl. 19% VAT , excl. Shipping Cost
Total price

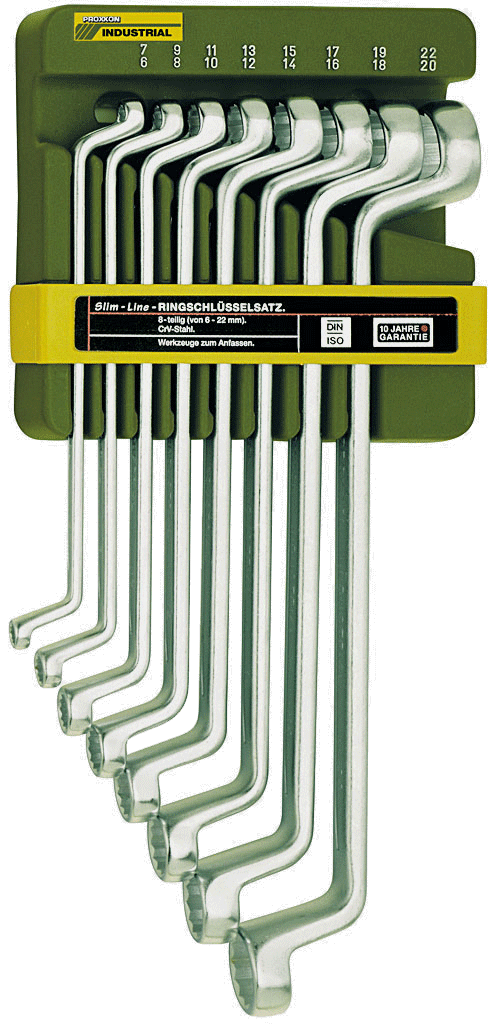

8-piece SlimLine double ring spanner set. Including holder. To DIN 838 and ISO 3318.
Carefully hardened and plated. With clearly readable sizes.
Sizes 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19 and 20 x 22mm. Each spanner has a clearly marked place for storage. The plastic holder also offers holes to allow for fixing it to a wall.
NO 23 810set
- Optimal surface protection by means of double nickel-plating and single chrome-plating. With easy to hold, smooth finish.
- With durable laser inscribed and clearly readable sizes in mm.
- Polished heads: slim and thin walled. Torque characteristics still exceed DIN/ISO requirements.
- Dimensional tolerances are better than those required by DIN/ISO. Each piece is calibrated and checked.
For full
professional use!
SlimLine-open-end spanners, individually

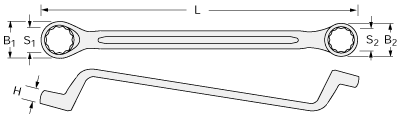

| NO | S1 x S2 | B1 | B2 | L | H | ||
| 23 868 | 5 x 5.5mm | 9 | 10 | 162 | 5.0 | ||
| 23 870 | 6 x 7mm | 10 | 12 | 173 | 5.6 | ||
| 23 872 | 8 x 9mm | 13 | 14 | 182 | 6.1 | ||
| 23 874 | 10 x 11mm | 16 | 17 | 200 | 7.9 | ||
| 23 876 | 12 x 13mm | 18 | 19 | 212 | 8.5 | ||
| 23 878 | 10 x 13mm | 16 | 19 | 212 | 8.5 | ||
| 23 880 | 14 x 15mm | 21 | 23 | 225 | 9.8 | ||
| 23 882 | 16 x 17mm | 24 | 25 | 245 | 10.4 | ||
| 23 886 | 18 x 19mm | 27 | 28 | 260 | 11.3 | ||
| 23 888 | 17 x 19mm | 25 | 28 | 216 | 11.3 | ||
| 23 890 | 20 x 22mm | 30 | 32 | 285 | 12.8 | ||
| 23 892 | 21 x 23mm | 31 | 33 | 310 | 12.9 | ||
| 23 896 | 24 x 27mm | 34 | 38 | 335 | 13.9 | ||
| 23 900 | 30 x 32mm | 42 | 45 | 375 | 15.3 |
Weitere SlimLine-Schraubenschlüsselsätze:
Doppelmaulschlüssel, 8-teiliger Satz mit Halter
Ring-Maulschlüssel, 12-teiliger Satz mit Halter
Ring-Maulschlüsselsatz, 15-teiliger Satz mit Halter
Komplettsätze für Industrie und Gewerbe
Download
| Execution | TEC |
|---|---|
| Manufacturer Nr. | 23870 |
| Manufacturer | Proxxon |
| Country of Manufacture | Germany |
| EAN | 4006274238701 |
| Weight | 0.052000 |
