Proxxon 23874 Ring spanner, 10x11 mm

Name: Proxxon 23874 Ring spanner, 10x11 mm
Brand: Proxxon
SKU: PX-23874
Price: 5.34 EUR
Availability: InStock

€5.34

Excl. 19% VAT , excl. Shipping Cost

Article

PX-23874

Manufacturer Nr.

23874

Doppelringschlüssel, 10 x 11 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Proxxon 23874 Ring spanner, 10x11 mm
€5.34

Excl. 19% VAT , excl. Shipping Cost
Proxxon 23910 Combination spanner, 10 mm
€3.32

Excl. 19% VAT , excl. Shipping Cost
Proxxon 23870 Ring spanner. 6x7 mm
€4.41

Excl. 19% VAT , excl. Shipping Cost

Total price

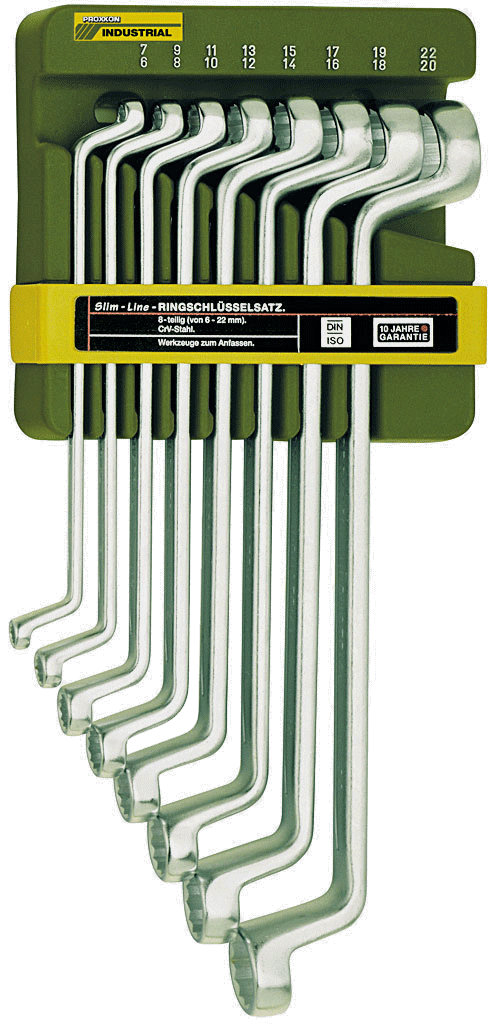

8-piece SlimLine double ring spanner set. Including holder. To DIN 838 and ISO 3318.

Carefully hardened and plated. With clearly readable sizes.

Sizes 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19 and 20 x 22mm. Each spanner has a clearly marked place for storage. The plastic holder also offers holes to allow for fixing it to a wall.

NO 23 810set

Optimal surface protection by means of double nickel-plating and single chrome-plating. With easy to hold, smooth finish.
With durable laser inscribed and clearly readable sizes in mm.
Polished heads: slim and thin walled. Torque characteristics still exceed DIN/ISO requirements.
Dimensional tolerances are better than those required by DIN/ISO. Each piece is calibrated and checked.

For full
professional use!

SlimLine-open-end spanners, individually

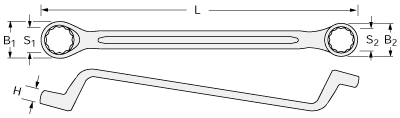

NO	S1 x S2	B1	B2	L	H
23 868	5 x 5.5mm	9	10	162	5.0
23 870	6 x 7mm	10	12	173	5.6
23 872	8 x 9mm	13	14	182	6.1
23 874	10 x 11mm	16	17	200	7.9
23 876	12 x 13mm	18	19	212	8.5
23 878	10 x 13mm	16	19	212	8.5
23 880	14 x 15mm	21	23	225	9.8
23 882	16 x 17mm	24	25	245	10.4
23 886	18 x 19mm	27	28	260	11.3
23 888	17 x 19mm	25	28	216	11.3
23 890	20 x 22mm	30	32	285	12.8
23 892	21 x 23mm	31	33	310	12.9
23 896	24 x 27mm	34	38	335	13.9
23 900	30 x 32mm	42	45	375	15.3

Weitere SlimLine-Schraubenschlüsselsätze:
Doppelmaulschlüssel, 8-teiliger Satz mit Halter
Ring-Maulschlüssel, 12-teiliger Satz mit Halter
Ring-Maulschlüsselsatz, 15-teiliger Satz mit Halter
Komplettsätze für Industrie und Gewerbe
