Lead time
1 week
€759.00
Excl. 19% VAT , excl. Shipping Cost
Article
AM4115T-CFVW
Manufacturer Nr.
AM4115T-CFVW

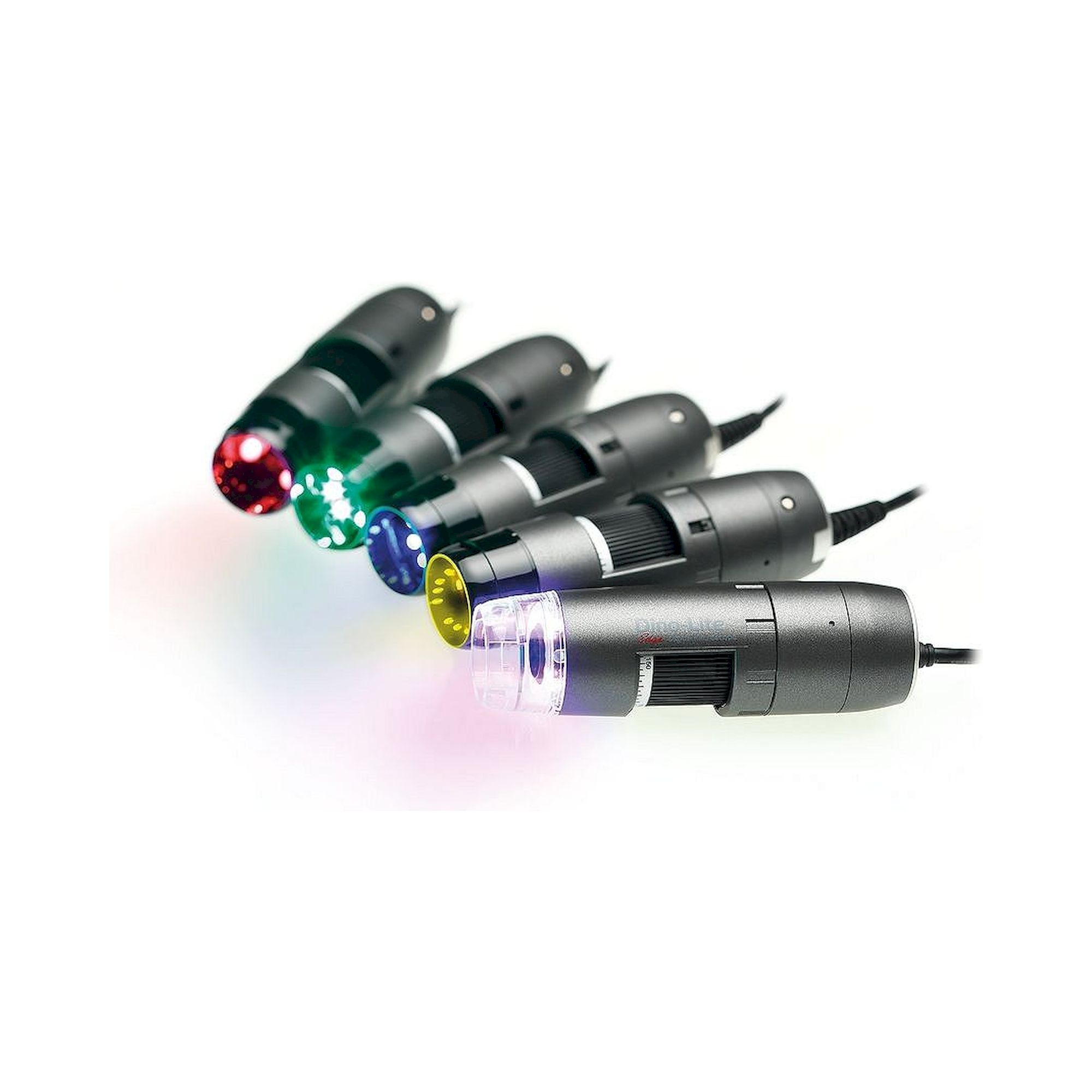

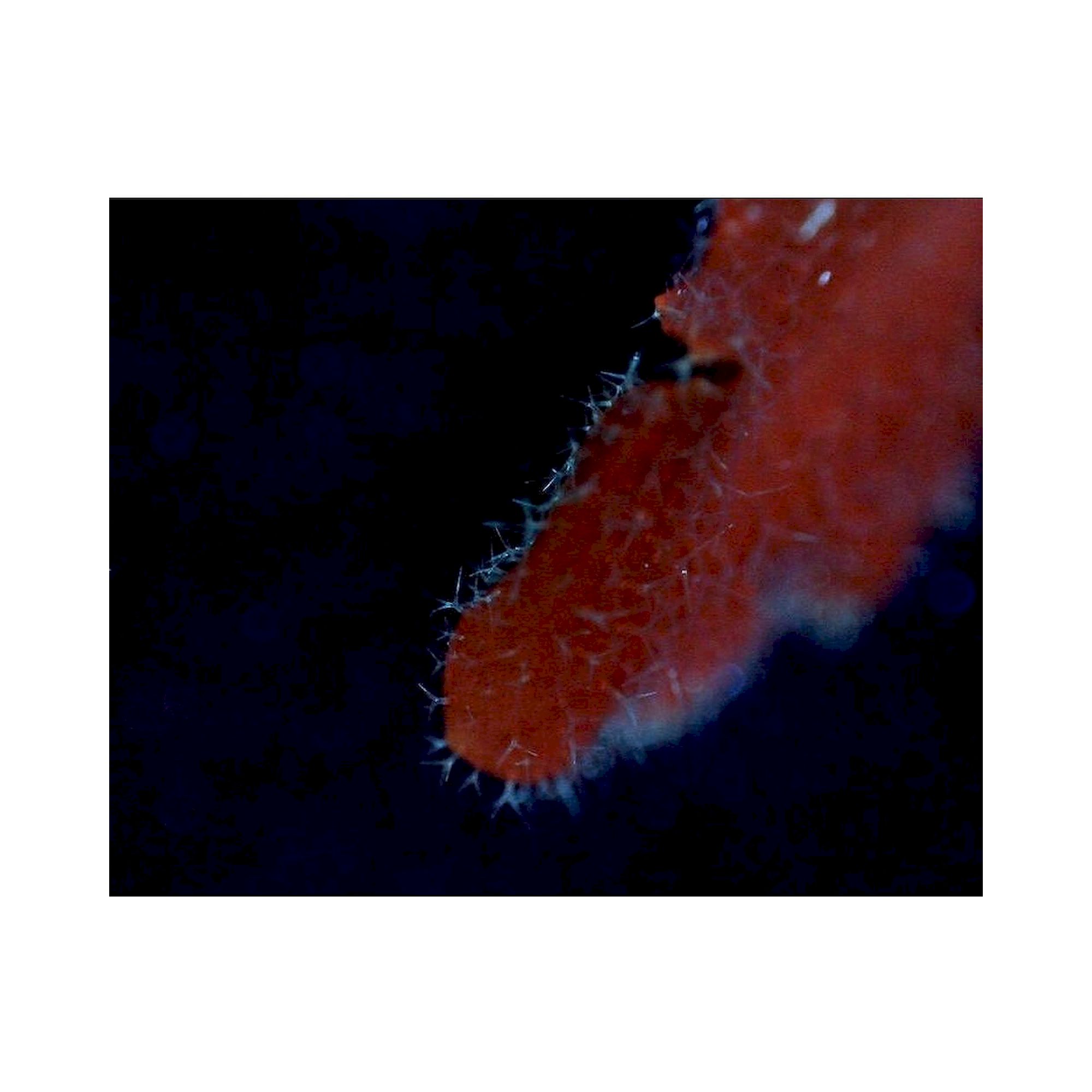

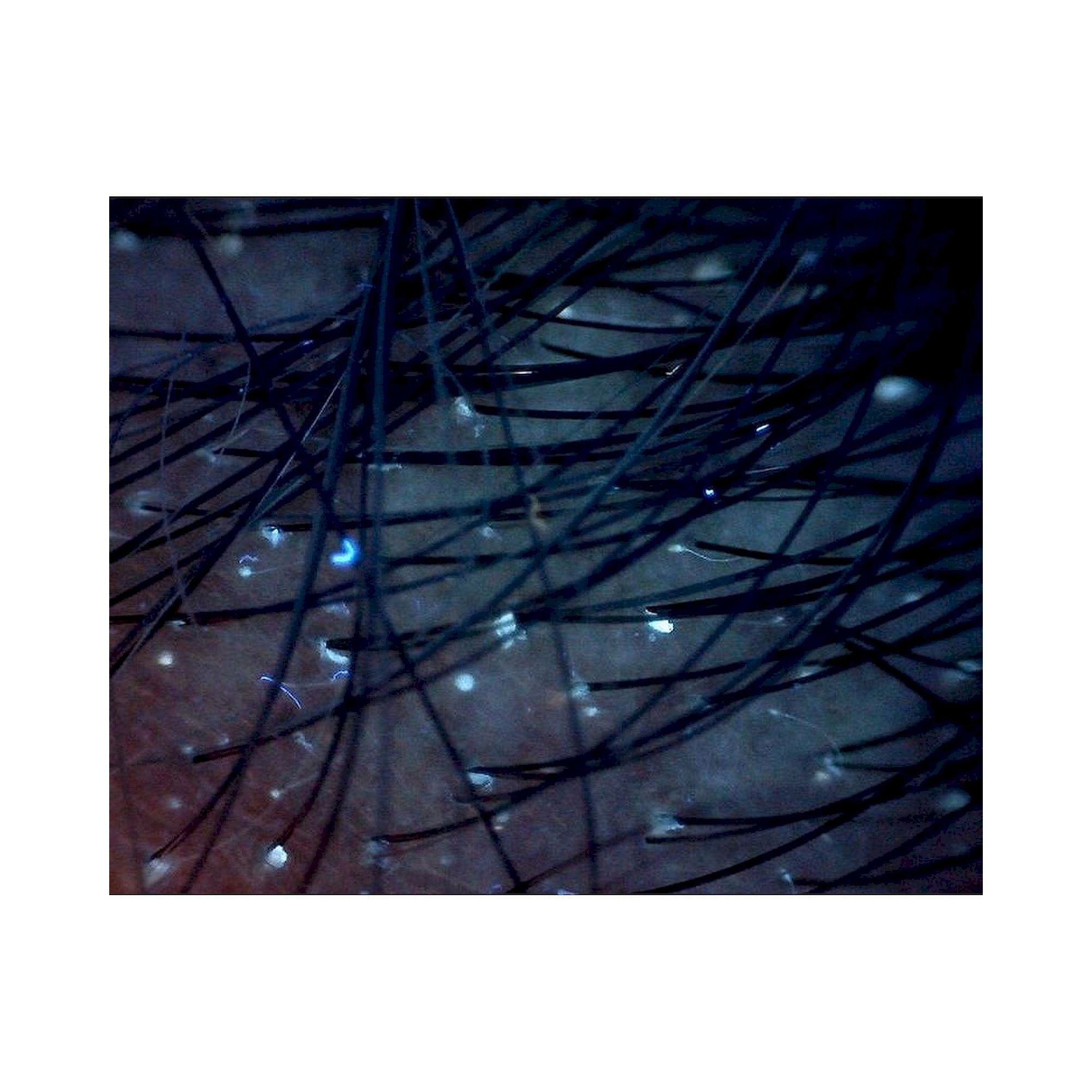

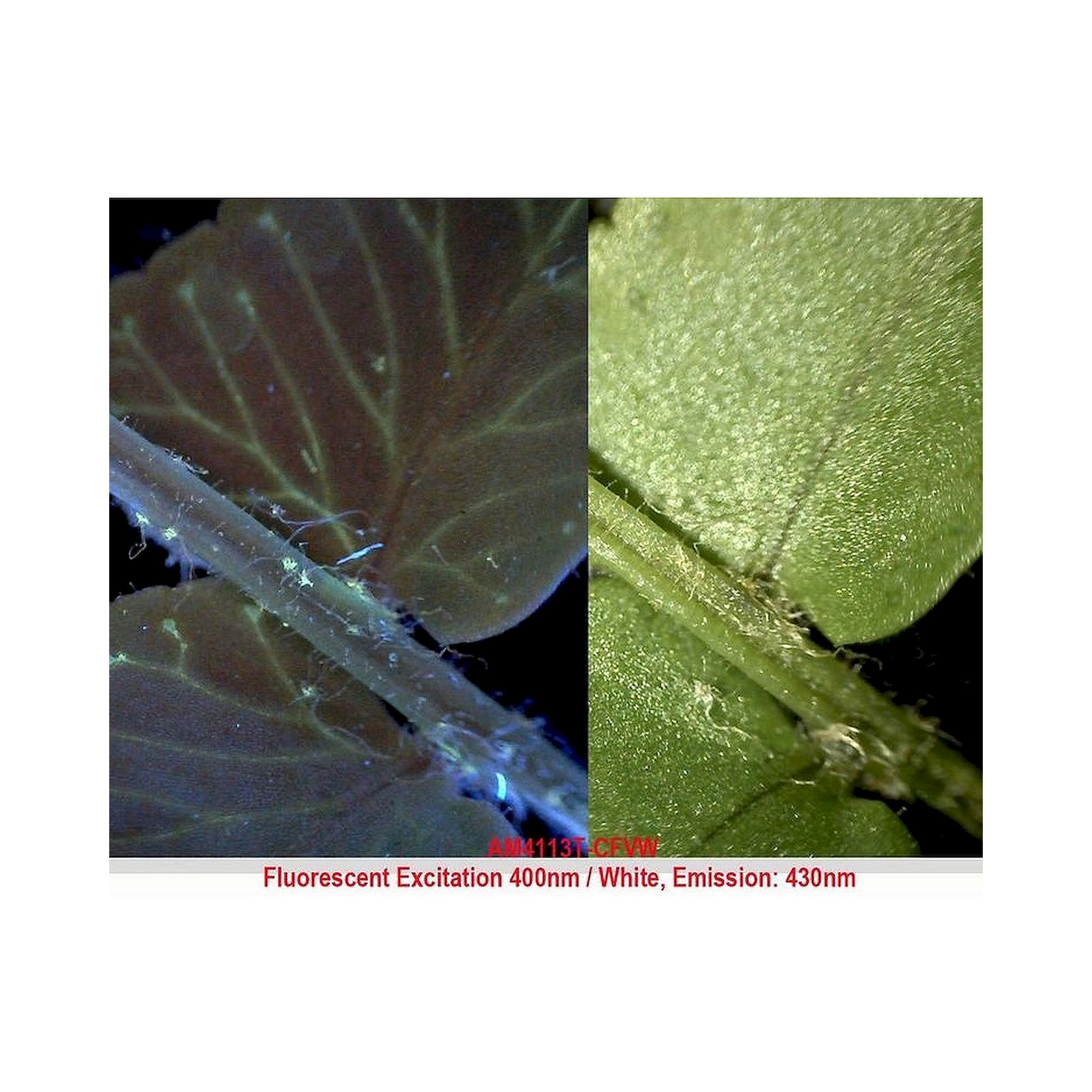

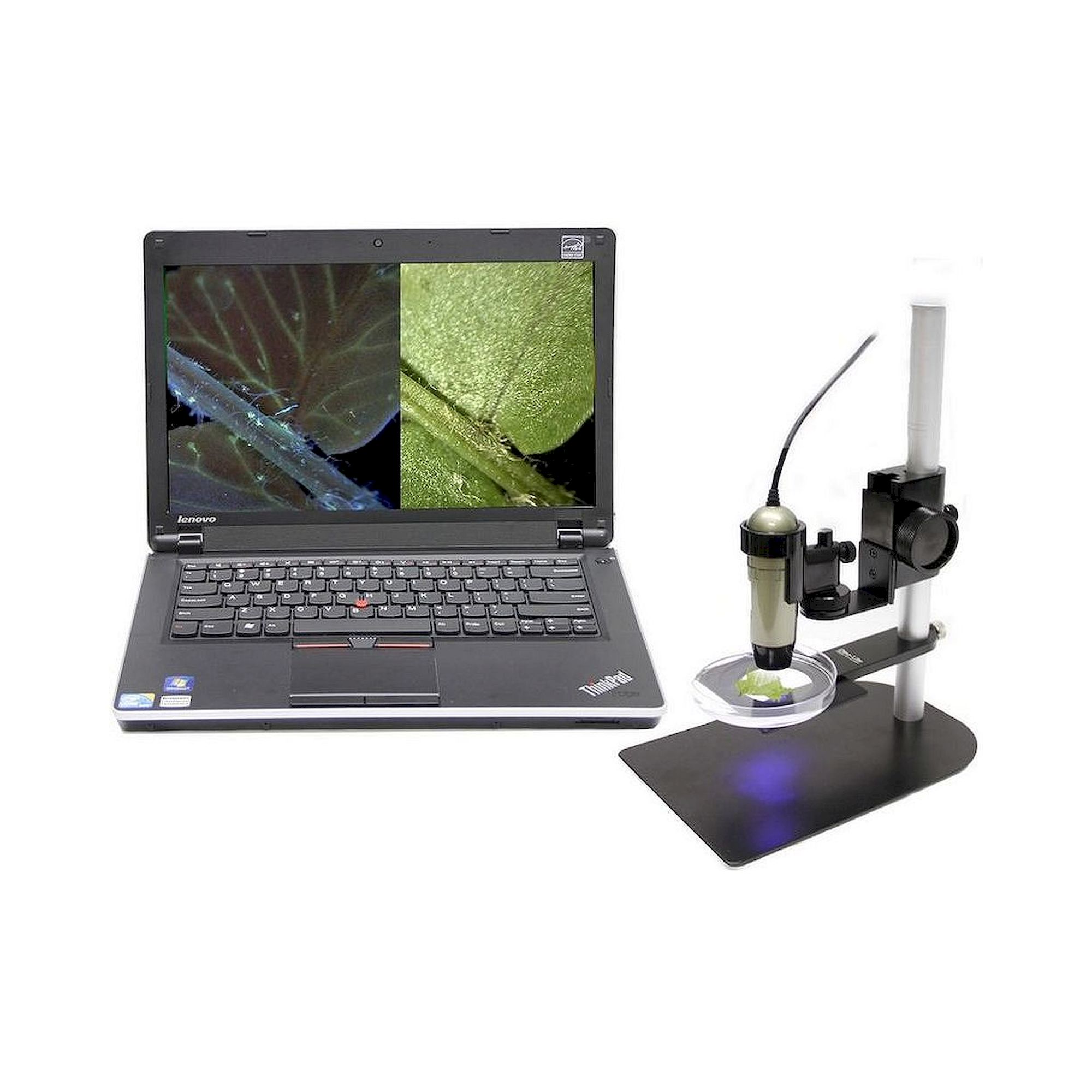

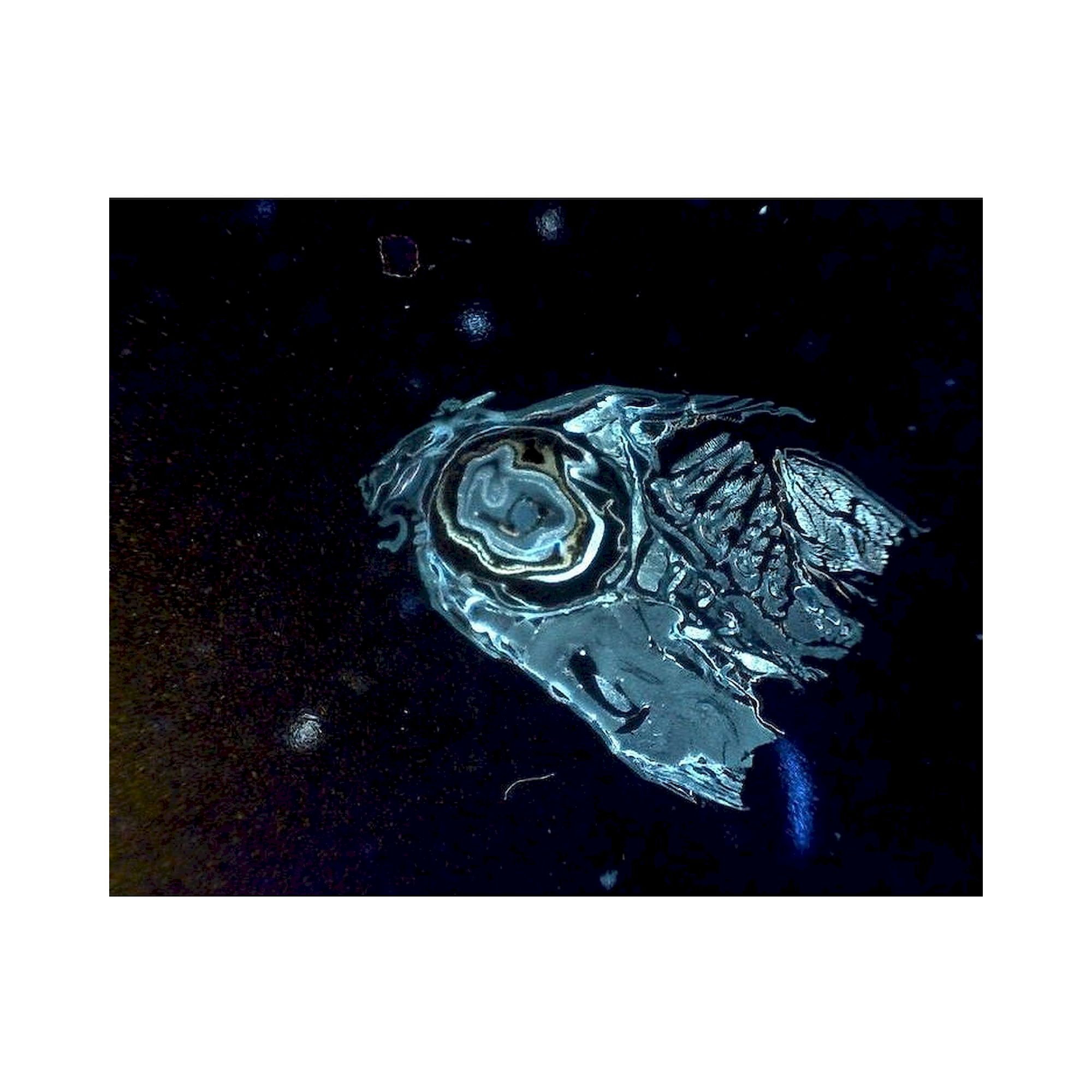

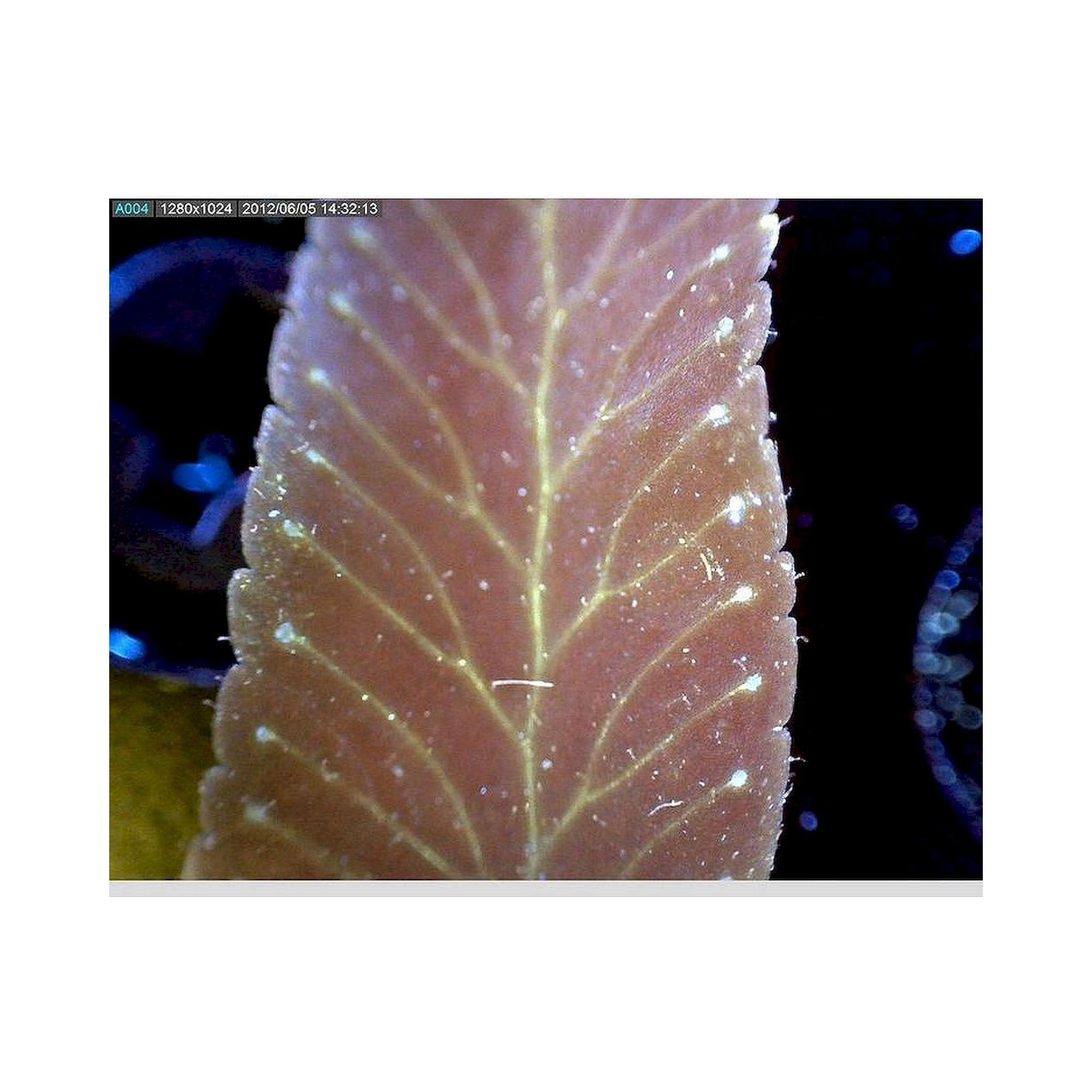

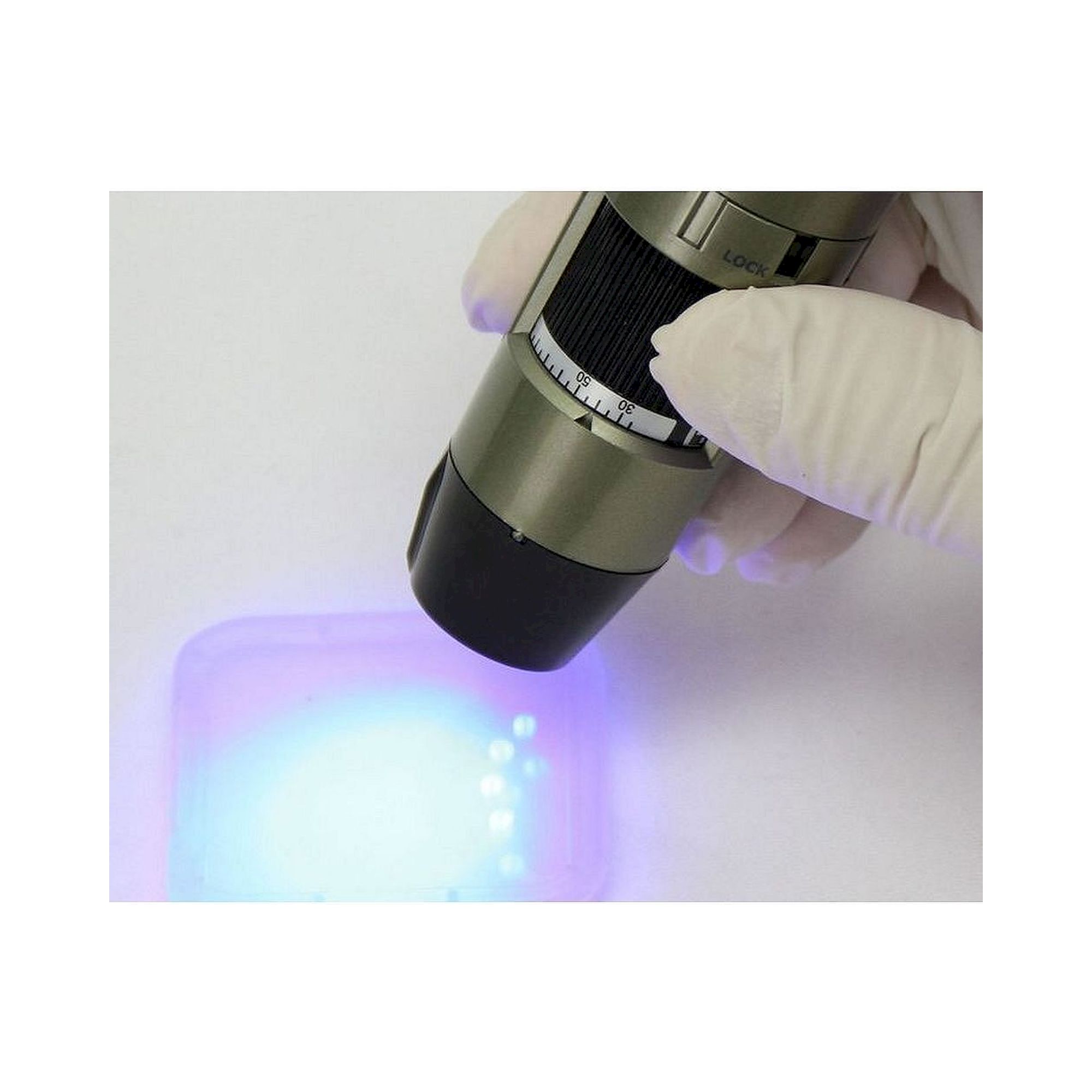

The Dino-Lite AM4115T-CFVW digital microscope is optimized for research and viewing fluorescent objects by using 400nm near UV excitation LEDs. It has a long-pass type 430nm emission filter that is designed to observe a wide range of fluorophores with applications in developmental biology, pathology, and anatomy. The AM4115T-CFVW has the capability of switching the light source from the 400nm near UV excitation LEDs to the white LED, which is convenient for locating the object and obtaining an easy focus. All of these factors make the AM4115T-CFVW the smallest fluorescence microscope in the world, capable of many applications and visualizing a vast range of fluorescence. » Special models available on request.
Frequently Bought Together
- This Item: €759.00Excl. 19% VAT , excl. Shipping Cost
- Dino-Lite AM4116T €303.03Excl. 19% VAT , excl. Shipping Cost
- Dino-Lite AM4113T €349.00Excl. 19% VAT , excl. Shipping Cost
Total price
Additional Info
Dino-Lite range: | Dino-Lite Special lighting |
---|
Lighting
Light/ LED type: | 400nm excitation + white |
---|---|
Number of LEDs: | 7 FL + 1 White |
LED on/off switchable: | Yes |
Infrared filter: | No |
Diffuser available: | No |
Emission filter: | 430nm, LP |
Fluorophores: | DAPI |
Polarizer: | No |
Optics
Magnification: | 20-220x |
---|---|
Macro zoom: | No |
Working distance: | Standard |
Lens type: | Glass with anti-reflection coating |
Sensor
Sensor type: | CMOS |
---|---|
Resolution: | 1.3 Megapixel (1280x1024) |
Maximum frame rate: | 30 fps |
Compatibility
Interface: | USB 2.0 |
---|---|
Operating system: | Windows XP, Vista, 7, 8 & 10, MacOS 10.9 and up |
Included software: | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
Supported image formats (Windows): | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
Supported video formats (Windows): | WMV, FLV, SWF |
Supported image formats (MacOS): | JPEG, PNG |
Supported video formats (MacOS): | MOV |
Imaging standards: | DirectShow, UVC |
Housing
Housing material: | Composite/ plastic housing |
---|---|
Magnification lock: | Yes |
Dimensions: | 10.5cm (L) x 3.2cm (D) |
Weight: | 105g |
Cable length: | 1.8m |
Features
Special feature: | No |
---|---|
Measurement: | Yes |
Calibration: | Yes |
Microtouch sensor: | Yes |
ESD safe: | No |
Information
Package contents: | Microscope, Carry pouch, Software CD, Calibration target, User manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Warranty information: | 2 years European warranty | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Regulatory approval: | CE, FCC, ROHS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Price range: | €550,00 - €750,00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working distance/ field of view/ depth of field: |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Special Light: |
Execution | TEC |
---|---|
Manufacturer Nr. | AM4115T-CFVW |
Manufacturer | Dino-Lite |
Country of Manufacture | Taiwan, Province of China |
EAN | 4712805475568 |
ESD equipment | USB Mikroskop |
Lead time | 1 week |
Weight | 0.009900 |
HS-Code | 90119090 |
