Dino-Lite CapillaryScope 500
€1,168.83
Excl. 19% VAT , excl. Shipping Cost
Article
CapillaryScope 500
Manufacturer Nr.
CapillaryScope 500

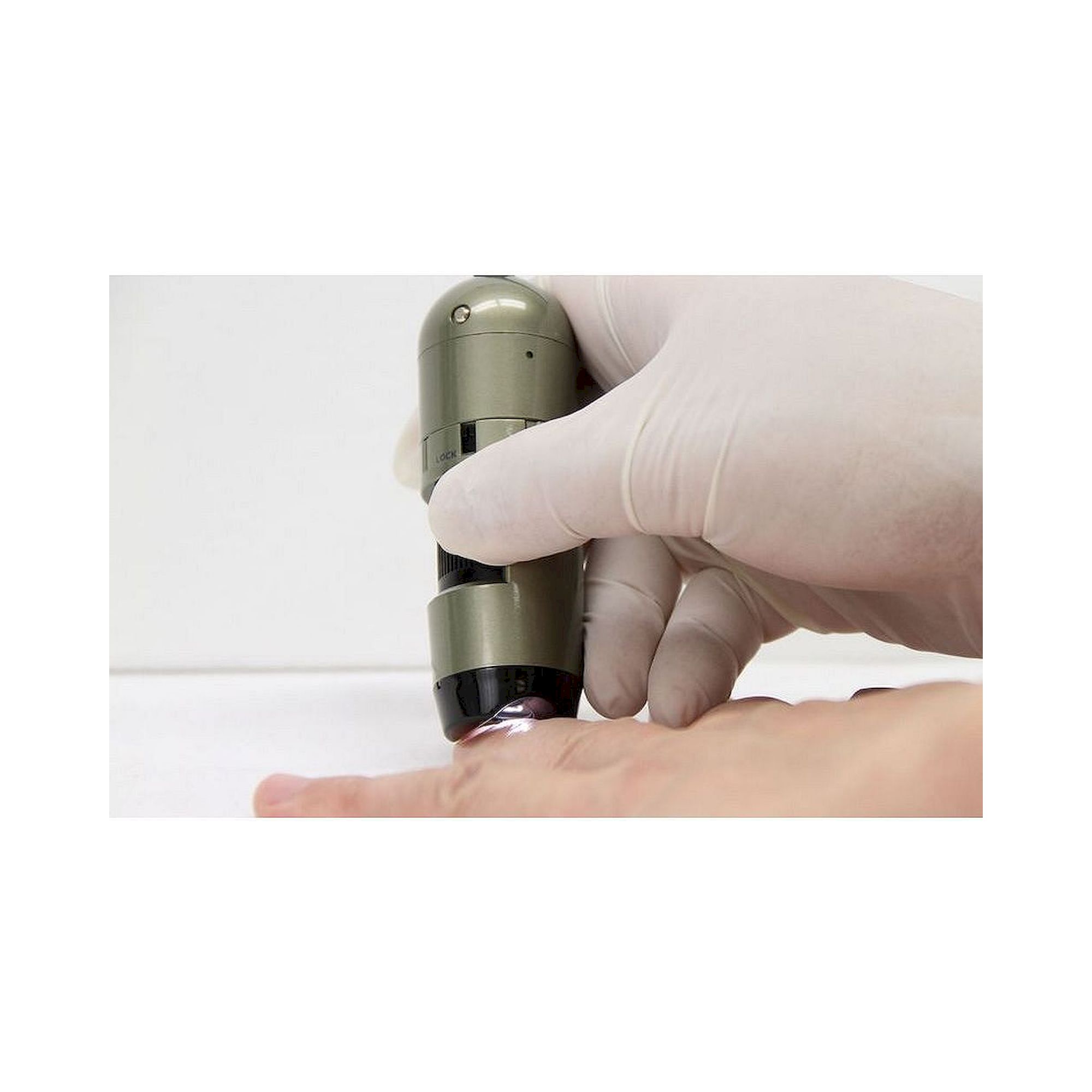

The CapillaryScope 500 (MEDL4N5) is a special version intended for looking at the microcirculation (microcapillar function) under nails. It is very easy to capture and store highly detailed magnified images. The magnification rate is 500x. CapillaryScope Product Brochure
Frequently Bought Together
- This Item: €1,168.83Excl. 19% VAT , excl. Shipping Cost
- Dino-Lite AD4013MZTL €618.93Excl. 19% VAT , excl. Shipping Cost
- Dino-Lite MS15X €175.00Excl. 19% VAT , excl. Shipping Cost
Total price
Additional Info
| Dino-Lite medical range: | Dino-Lite CapillaryScope |
|---|---|
| Article code: | MEDL4N5 |
Lighting
| Light/ LED type: | White |
|---|---|
| Number of LEDs: | 8 |
| LED on/off switchable: | Yes |
| Infrared filter: | IR cut-filter >650 nm |
| Diffuser available: | No |
| Polarizer: | No |
Optics
| Magnification: | 500x |
|---|---|
| Lens type: | Glass with Anti-Reflection coating |
Sensor
| Sensor type: | CMOS |
|---|---|
| Resolution: | 1.3 Megapixel (1280x1024) |
| Maximum frame rate: | 30 fps |
Compatibility
| Interface: | USB 2.0 |
|---|---|
| Operating system: | Windows XP, Vista, 7, 8 & 10, MacOS 10.4 and up |
| Included software: | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Supported image formats (Windows): | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
| Supported video formats (Windows): | WMV, FLV, SWF |
| Supported image formats (MacOS): | JPEG, PNG |
| Supported video formats (MacOS): | MOV |
| Imaging standards: | DirectShow, UVC |
Housing
| Housing material: | Composite/plastic housing |
|---|---|
| Magnification lock: | Yes |
| Dimensions: | 10.5 cm (L) x 3.2 cm (D) |
| Weight: | 95 g |
| Cable length: | 1.8 m |
Features
| Measurement: | Yes |
|---|---|
| Calibration: | Yes |
| Microtouch sensor: | Yes |
Information
| Package contents: | Microscope, Carry pouch, Software CD, Calibration target, User manual |
|---|---|
| Warranty information: | 2 years European warranty |
| Regulatory approval: | Medical Device Class 1 – According to Directive 93/42/EEC modified 2007/47/EC |
| Price range: | €300,00 - €500,00 |
| Execution | TEC |
|---|---|
| Manufacturer Nr. | CapillaryScope 500 |
| Manufacturer | Dino-Lite |
| Country of Manufacture | Taiwan, Province of China |
| Weight | 0.095000 |
| HS-Code | 90119090 |
