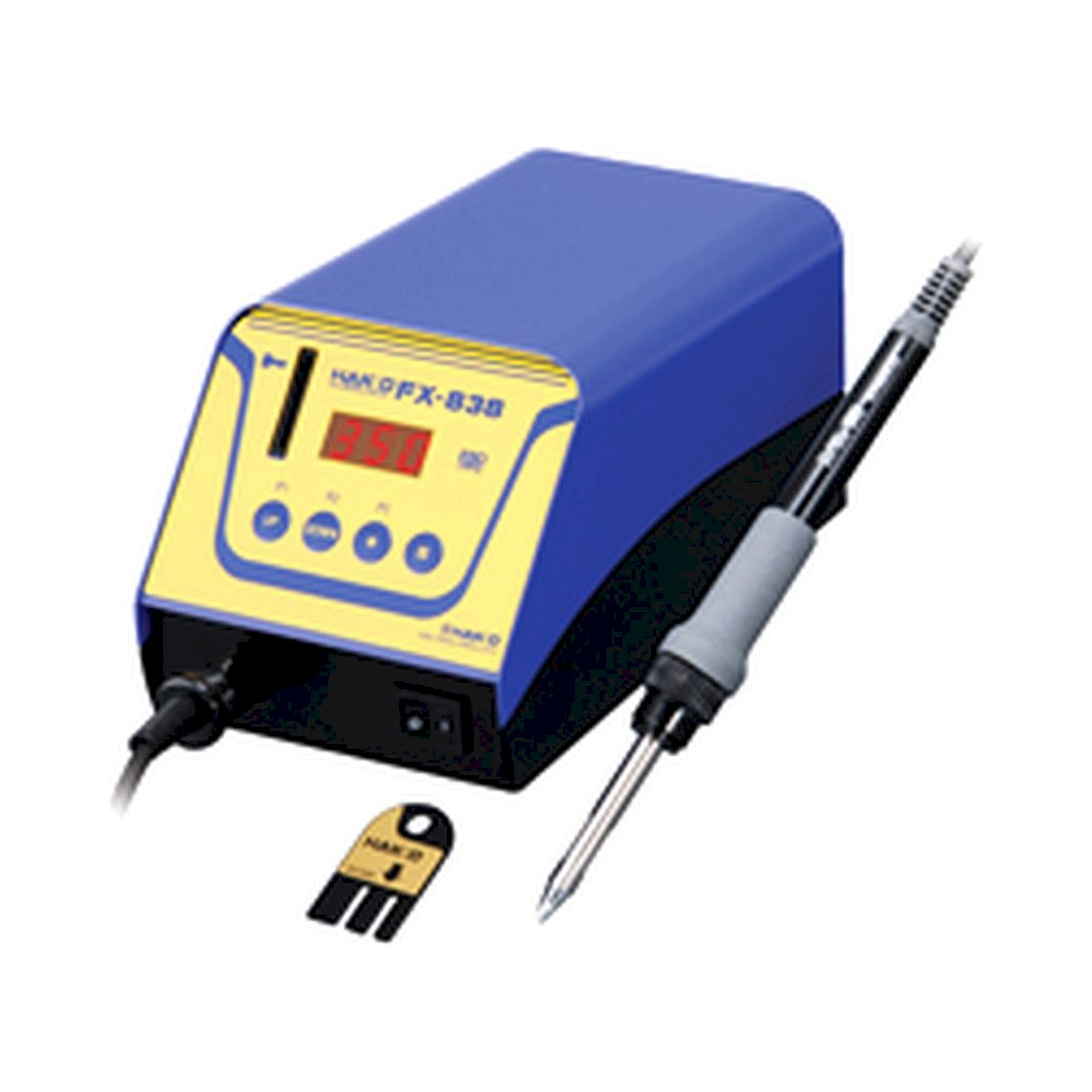

Hakko FX 838-17. Hochleistungs-Lötstation 158 W/27V 3.4A, ESD
774,39 €
650,75 €
exkl. Versandkosten
Artikel
HK-FX-838-17
Hersteller-Nr.
FX 838-17
Hochleistungs-Lötstation 158 W/27 V 3.4A, ESD Temperaturbereich 200 - 500 °C inklusive: FX 8301-01 Lötkolben FX 8301, 150 Watt FH 200-01 Schaltköcher mit 599B-02 Lötspitzenreiniger
Bilder dienen als Referenz und sind möglicherweise nicht genau, das tatsächliche Produkt kann abweichen.
Häufig zusammen gekauft
-
Dieser Artikel:
774,39 € 650,75 €exkl. Versandkosten
-
Hakko T20-D24. Composit Lötspitze Format 2.4D für Lötkolben FX 8301-01 und N2-Lötkolben FX 8302-01 (Düse D - B 3124)
54,04 € 45,41 €exkl. Versandkosten
-
Hakko T20-D16. Composit Lötspitze Format 1.6D für Lötkolben FX 8301-01 und N2-Lötkolben FX 8302-01 (Düse C - B 3123)
54,04 € 45,41 €exkl. Versandkosten
| High Power 150W Soldering Station enjoys the various applications from large to fine components. |
 | Great thermal recovery improves the soldering environment.(Refer to the graph bellow.) | ||||||
| · It allows soldering at lower set temperatures. · It can shorten the soldering working time, which minimize concern about the influence of heat on components and tip life.(Refer to the graph bellow.) It is suitable not only for high-power required working condition such as soldering multilayer boards or shield cases but for microsoldering. | |||||||
| |||||||
 | Operate at Maximum Temperature of 500 Degrees. | ||||||
| · It enables soldering power-supply boards easily because high power 150W hand piece can provide great thermal recovery. | |||||||
 | High Power but Safety design of low voltage. | ||||||
| · This unit has not only high power but also low output voltage (27V) , which is lower than the world safety output voltage of 30V. | |||||||
 | Easy to replace tips. | ||||||
 · Cartridge style Integrated heater makes thermal conductivity improve.· Available 20 different shape as replacement, some of which are suitable for fine components. | |||||||
HAKKO FX-838 replacement Tip List (T20 series) | |||||||
 | Temperature preset mode saves time and effort. | ||||||
| · It allows you to input three frequently-used temperatures in advance and recall them with one push of a button. · It saves the troublesome setting condition, tailored to the tip-shape, component and work. | |||||||
 Combination of optional handpiece allows use of N2 system. N2 system |
 | Great thermal recovery | ||
| 150W hand piece provides great thermal recovery, which allows soldering at lower set temperatures to!!minimize concern about the influence of heat on components and tip life. | |||
 | |||
 | High power saves the working time. | ||||||||||||||
| The high power shortens the working time. | |||||||||||||||
 | |||||||||||||||
- Test Condition
| |||||||||||||||
 Combination Example |
| Name | Figure | Remarks | |
| 1 | HAKKO FX-838 |  | With Control card, Heat resistant pad, Power cord, Connecting cable and Instruction manual.(Not necessary to purchase this unit if you have it.) |
| Station | |||
| 2 | Iron holder |  | With HAKKO 599B |
| 3 |  | With cleaning sponge | |
| 4 | HAKKO FX-8302 |  | |
| N2 Soldering Iron | |||
| 5 | T20 Series |  | Select the tip appropriate for work. |
| Tip | |||
| 6 | Nozzle assembly | Select the nozzle assembly applicable to the tip. | |
| 7 | N2 Generator |  FX-780: Small-capacity type FX-781: Large-capacity type, accepts 2 irons HAKKO FX-780/FX-781 | With Racks for Station Air tube Outer diameter: 6mm It can be placed perpendicularly or horizontally. |
| 8 | HAKKO FX-791 |  | |
| N2 Flow Meter | |||
| 9 | The others |  Air tube Outer diameter: 6mm | * The others are not provided by HAKKO |
Packing List
| Model No. | Packing List |
| FX-838 | Soldering station (HAKKO FX-838), Soldering iron (HAKKO FX-8301), Control card, Power cord, Iron holder (With cleaning sponge and 599B), Connecting cable, Heat resistant pad, Instruction Manual |
| NOTE: | A soldering tip is not included in this product. The tips (T20 series) of desired shape should be purchased separately. |
Specifications
| Model No. | FX-838 |
|---|---|
| Power consumption | 158W |
| Temperature range | 200 to 500ºC |
| Temperature stability | ±5ºC at idle temperature |

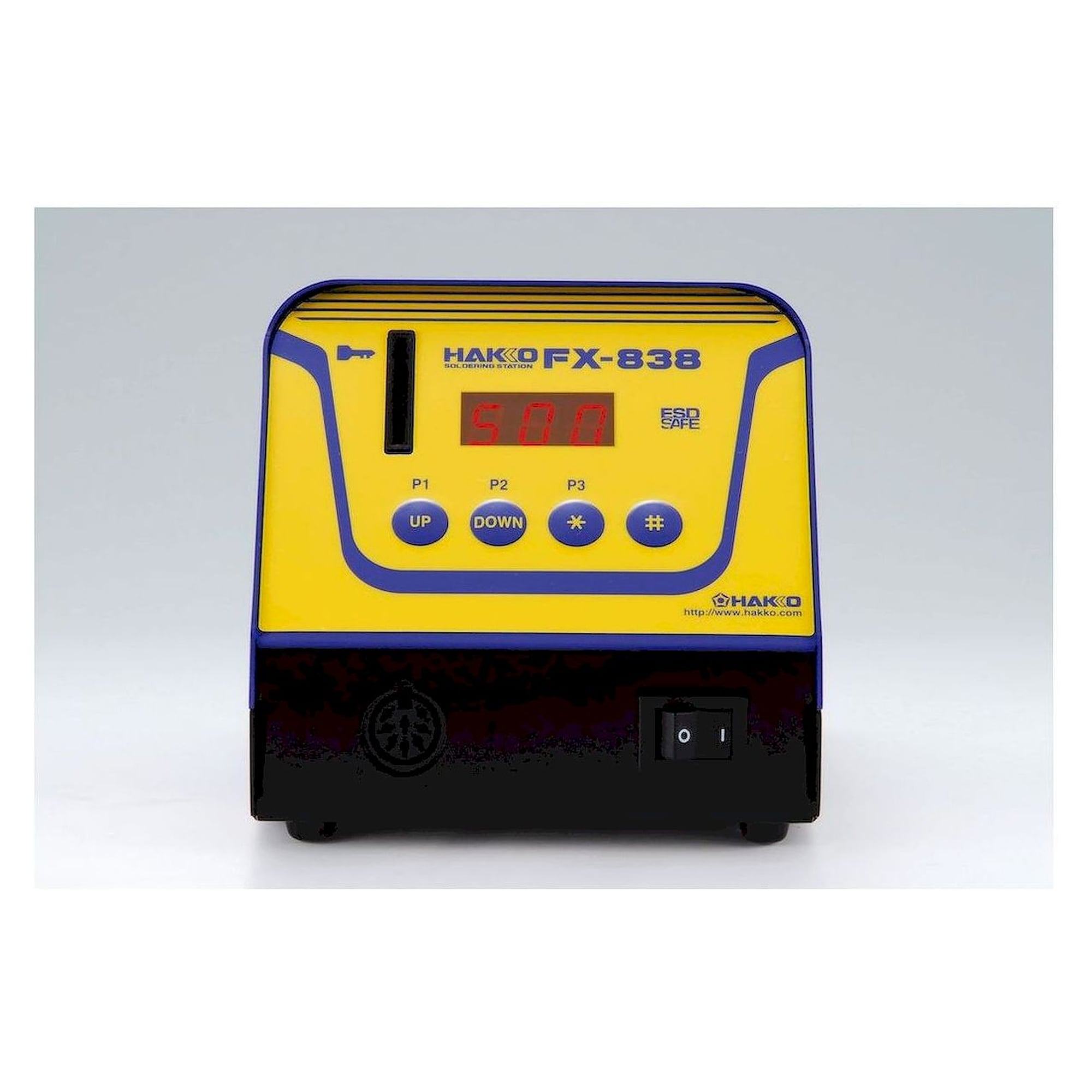

・Station
| Output voltage | AC 27V |
|---|---|
| Dimensions | 110(W)×110(H)×205(D)mm |
| Weight | 3.2kg |

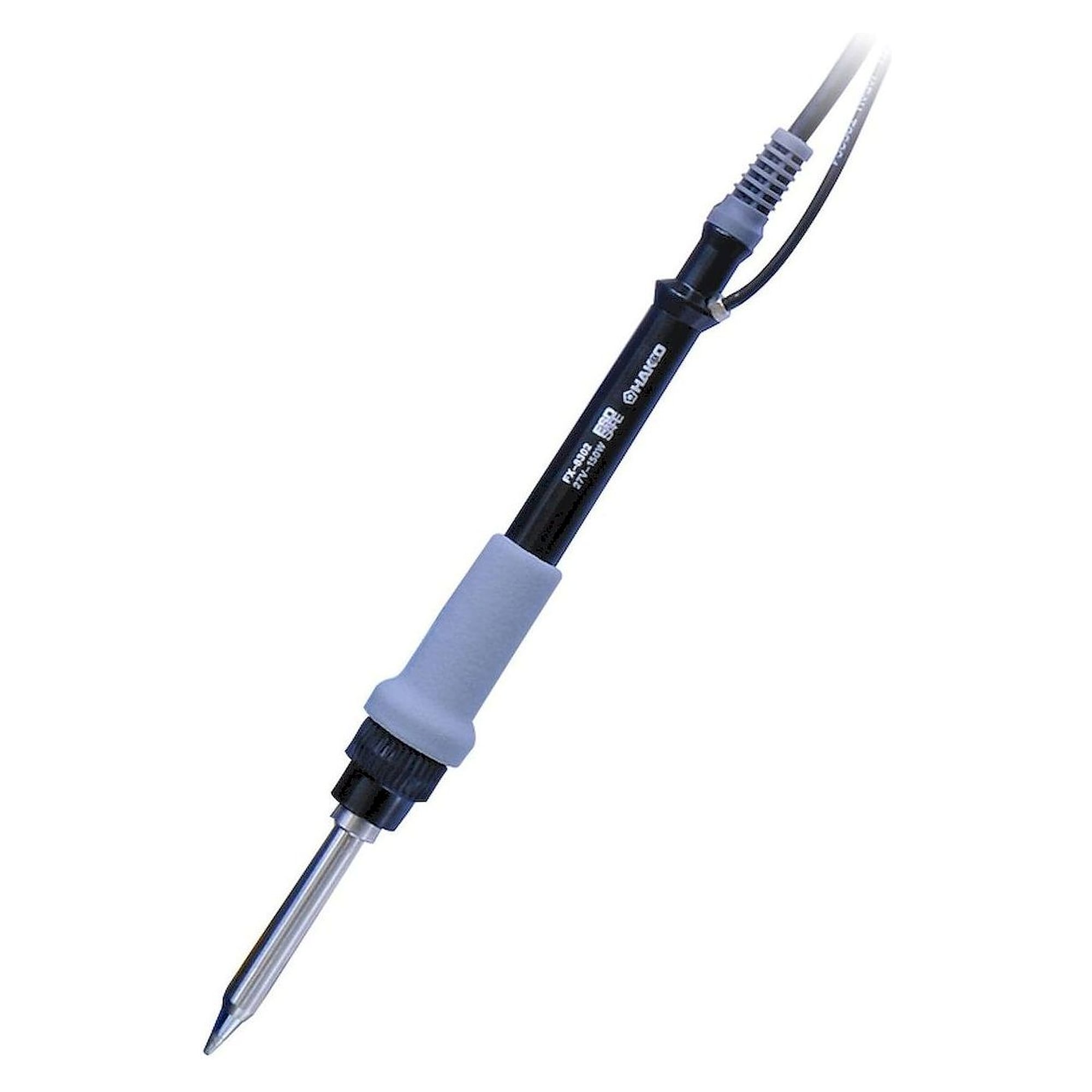

・Soldering Iron
| Power consumption | 150W (27V) |
|---|---|
| Tip to ground resistance | <2Ω |
| Tip to ground potential | <2mV |
| Heating element | Ceramic heater |
| Cord length | 1.2m |
| Total length | 175mm (with 2.4D tip) |
| Weight | 31g (with 2.4D tip) |
* Total length and weight (w/o cord)
Replacement parts
| Part No. | Name | Specifications | |
|---|---|---|---|
 | 599B | HAKKO 599B tip cleaner | |
 | FH200-02 | Iron holder <w/ cleaning sponge> | with power-save function |
 | FX8301-01 | Soldering iron FX-8301 | 150W (27V) |
 | B3253 | Connecting cable | |
 | B2388 | Control card | |
 | B2300 | Heat resistant pad | |
 | FH200-01 | Iron holder <w/ cleaning wire> | with power-save function |
 | A1519 | Cleaning sponge | yellow |
 | A1536 | Cleaning sponge * Discontinued. The replacement is "A1519". | green |
 | B3524 | Nipple | |
 | 599-029 | Cleaning wire |
Options
| Part No. | Name | Specifications | |
|---|---|---|---|
 | FX8302-01 | Soldering iron FX-8302 | 150W (27V) |
Maintenance
| Category | Title |
|---|---|
| How to use | Select Tip Shape |
| How to use | Difference between BC/C type and BCF/CF type |
| How to use | HAKKO N2 system |
| How to use | Offset value input method (How to adjust the temperature on station-type units) |
| Maintenance | Why doesn't solder flow evenly onto a tip though it is brand-new? |
| Maintenance | If solder does not flow onto the tip... |
| Maintenance | Tip life |
| Maintenance | Why do tips oxidize easily when they are used with lead-free solder? |
| Maintenance | Maintenance and inspection of station-type soldering irons |
| Troubleshooting | The display shows only "- - -2", and the soldering tip does not heat up |
| Ausführung | TEC |
|---|---|
| Hersteller-Nr. | FX 838-17 |
| Hersteller | Hakko |
| Ursprungsland | Japan |
| EAN | 4962615033216 |
| Gewicht | 0.009900 |
| Hinweis | Es gibt keine Lieferung von Hakko Produkten in die Schweiz |
| Zolltarifnummer | 85151990 |
| GPSR Herstellerdaten | TBK - Technisches Büro Kullik GmbH Industriestrasse 27 DE-56276 Großmaischeid www.kullik.com |
| Artikel-Authentizität | Originalprodukt |
| Artikelzustand | Neu |
