Proxxon 23933 Combination spanner, 34 mm

Name: Proxxon 23933 Combination spanner, 34 mm
Brand: Proxxon
SKU: PX-23933
Price: 24.79 EUR
Availability: InStock

€24.79

Excl. 19% VAT , excl. Shipping Cost

Article

PX-23933

Manufacturer Nr.

23933

Ring-Maulschlüssel, 34 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Proxxon 23933 Combination spanner, 34 mm
€24.79

Excl. 19% VAT , excl. Shipping Cost
Proxxon 23921 Combination spanner, 21 mm
€7.77

Excl. 19% VAT , excl. Shipping Cost
Proxxon 23816 SlimLine-combination spanner set for imperial sizes (12-piece)
€46.22

Excl. 19% VAT , excl. Shipping Cost

Total price

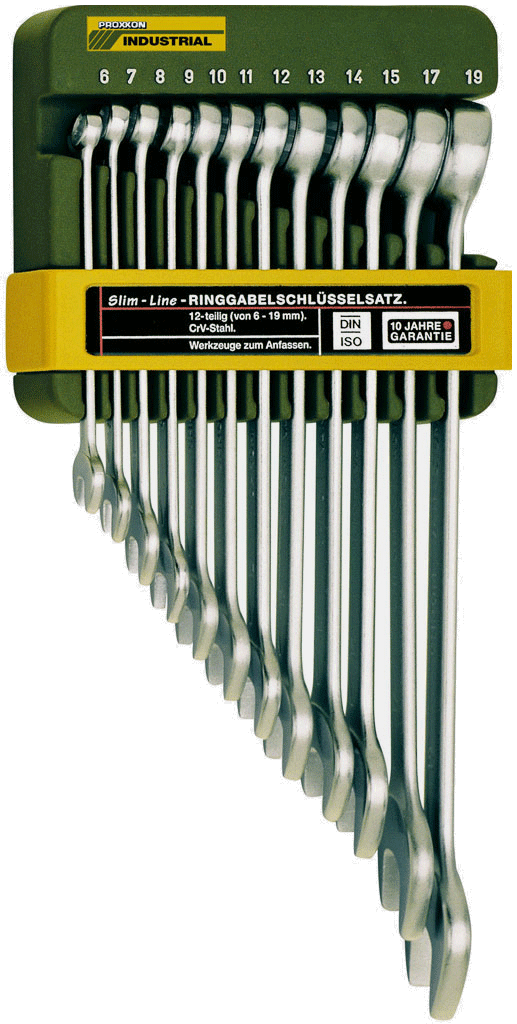

12-piece SlimLine ring-combination spanner set. Including holder. To DIN 3113 and ISO 3318.

Carefully hardened and plated. With clearly readable sizes. Ring head offset 15°.

Sizes 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 17 and 19mm. Each spanner has a clearly marked place for storage. The plastic holder also offers fixing holes.

NO 23 820set

Optimal surface protection by means of double nickel-plating and single chrome-plating. With easy to hold, smooth finish.
With durable laser inscribed and clearly readable sizes in mm.
Polished heads: slim and thin walled. Torque characteristics still exceed DIN/ISO requirements.
Dimensional tolerances are better than those required by DIN/ISO. Each piece is calibrated and checked.

For full
professional use!

SlimLine combination spanners, individually

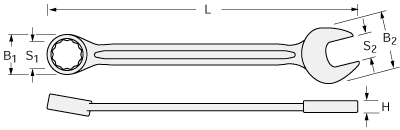

NO	S1	B1	B2	L	H
23 905	5.5mm	9	14	93	3.0
23 906	6mm	10	16	100	3.4
23 907	7mm	12	18	110	3.4
23 908	8mm	13	20	120	3.5
23 909	9mm	15	22	130	3.5
23 910	10mm	16	24	140	4.5
23 911	11mm	17	26	150	4.5
23 912	12mm	19	28	160	4.7
23 913	13mm	20	29	170	4.7
23 914	14mm	22	32	180	5.5
23 915	15mm	24	34	190	5.5
23 916	16mm	25	36	195	6.0
23 917	17mm	25	38	210	6.0
23 918	18mm	28	38	216	6.5
23 919	19mm	28	42	230	6.5
23 920	20mm	30	46	250	7.5
23 921	21mm	32	45	245	7.5
23 922	22mm	33	46	270	7.5
23 924	24mm	36	49	280	8.5
23 927	27mm	39	55	310	8.5
23 930	30mm	44	59	340	9.5
23 932	32mm	46	64	360	9.5
23 933	34mm	50	70	380	15
23 935	36mm	54	74	410	18
23 937	41mm	61	84	460	21

Weitere SlimLine-Schraubenschlüsselsätze:
Doppelmaulschlüssel, 8-teiliger Satz mit Halter
Ring-Maulschlüsselsatz, 15-teiliger Satz mit Halter
Doppelringschlüssel, 8-teiliger Satz mit Halter
Komplettsätze für Industrie und Gewerbe
