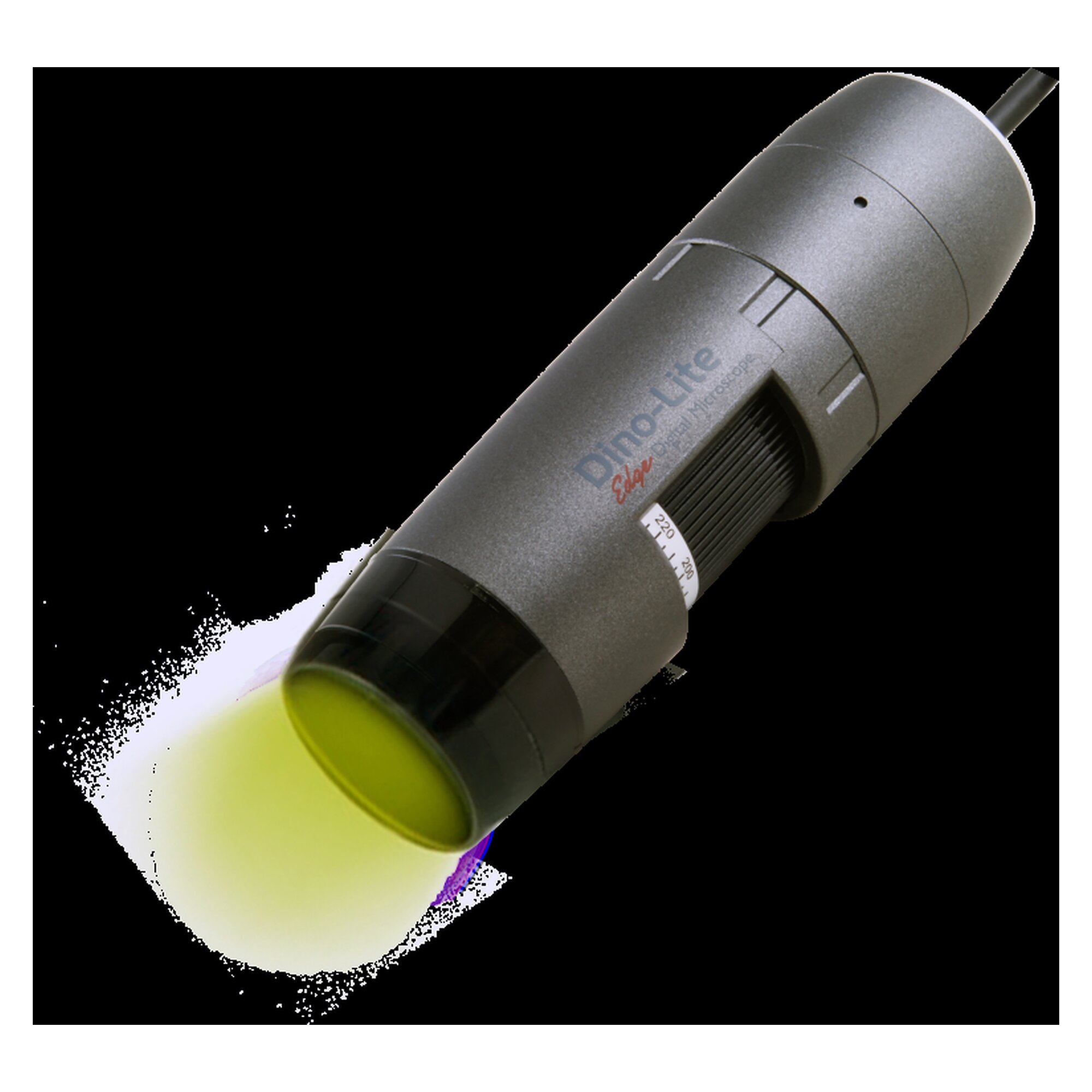

The Dino-Lite AM4115T-GFBW digital microscope is optimized for research and viewing fluorescent objects by using 480nm LEDs. It has a 510nm emission filter that is designed to observe including but not limited to GFP (green fluorescent protein). Compared to the traditional fluorescence microscope's band-pass type of emission filters, the Dino-Lite's long-pass type emission filter provides visibility and sensitivity over a larger range of the fluorescence wavelength. Green fluorescent objects pop out under the microscope and you can clearly see its green glow. The AM4115T-GFBW has the capability of switching the light source from the 480nm excitation LED's to the white LED which is convenient for locating the object and obtaining an easy focus. » Special models available on request.
- This Item: €759.00Excl. 19% VAT , excl. Shipping Cost
- Dino-Lite MSAA502 €21.95Excl. 19% VAT , excl. Shipping Cost
- Dino-Lite SL-ZW1 €42.50Excl. 19% VAT , excl. Shipping Cost
Dino-Lite range: | Dino-Lite Special lighting |
---|
Light/ LED type: | 480nm excitation + white |
---|---|
Number of LEDs: | 7 FL + 1 White |
LED on/off switchable: | Yes |
Infrared filter: | No |
Diffuser available: | No |
Emission filter: | 510nm, LP |
Fluorophores: | GFP, FITC |
Polarizer: | No |
Magnification: | 20-220x |
---|---|
Macro zoom: | No |
Working distance: | Standard |
Lens type: | Glass with anti-reflection coating |
Sensor type: | CMOS |
---|---|
Resolution: | 1.3 Megapixel (1280x1024) |
Maximum frame rate: | 30 fps |
Interface: | USB 2.0 |
---|---|
Operating system: | Windows XP, Vista, 7, 8 & 10, MacOS 10.9 and up |
Included software: | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
Supported image formats (Windows): | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
Supported video formats (Windows): | WMV, FLV, SWF |
Supported image formats (MacOS): | JPEG, PNG |
Supported video formats (MacOS): | MOV |
Imaging standards: | DirectShow, UVC |
Housing material: | Composite/ plastic housing |
---|---|
Magnification lock: | Yes |
Dimensions: | 10.5cm (L) x 3.2cm (D) |
Weight: | 105g |
Cable length: | 1.8m |
Special feature: | No |
---|---|
Measurement: | Yes |
Calibration: | Yes |
Microtouch sensor: | Yes |
ESD safe: | No |
Package contents: | Microscope, Carry pouch, Software CD, Calibration target, User manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Warranty information: | 2 years European warranty | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Regulatory approval: | CE, FCC, ROHS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Price range: | €550,00 - €750,00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working distance/ field of view/ depth of field: |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Special Light: |
Execution | TEC |
---|---|
Manufacturer Nr. | AM4115T-GFBW |
Manufacturer | Dino-Lite |
Country of Manufacture | Taiwan, Province of China |
EAN | 4712805475032 |
ESD equipment | USB Mikroskop |
Lead time | 1 week |
Weight | 0.009900 |
HS-Code | 90119090 |
