What are Karl Basic ESD workbenches and what industrial applications require them?

Karl Basic ESD workbenches are specialised industrial workstations designed to prevent electrostatic discharge damage to sensitive electronic components during assembly, testing, and repair operations. These workbenches serve critical applications in electronics manufacturing, semiconductor production, medical device assembly, and aerospace component handling where static electricity can destroy circuits or cause component failures. The Karl Basic series provides controlled static dissipation through specially designed worksurfaces and grounding systems, ensuring that accumulated static charges are safely discharged rather than damaging sensitive equipment. Industries requiring these workstations include PCB assembly facilities, clean room manufacturing environments, quality control laboratories, and any workspace handling CMOS circuits, microprocessors, or other static-sensitive devices.

What are the key technical specifications for selecting Karl Basic ESD workbenches?

Karl Basic ESD workbenches are available in standardised dimensions of 1200x800mm and 1600x800mm, providing optimal workspace sizing for different operational requirements and facility layouts. The product line includes both standard Basisausstattung configurations and verstärkte Ausführung reinforced versions like the Karl 30.105.31 model, which offers enhanced load capacity for heavy equipment or intensive use applications. Selection criteria focus on workspace dimensions, with the 1200mm width suitable for individual operator stations and the 1600mm width accommodating larger assemblies or multiple concurrent tasks. The reinforced versions provide increased structural stability and weight capacity, making them appropriate for applications involving heavy test equipment, multiple monitors, or substantial component inventories that require robust support infrastructure.

Which international standards and certifications apply to Karl Basic ESD workbenches?

Karl Basic ESD workbenches comply with IEC 61340 series standards for electrostatic discharge control, which define the fundamental requirements for ESD protective workstations in industrial environments. These workbenches meet DIN EN 61340-5-1 specifications for ESD control programmes, ensuring proper static dissipation characteristics and grounding system performance. The worksurfaces maintain surface resistance values within the 10^6 to 10^9 ohm range as specified by international ESD standards, providing controlled static discharge without creating isolated conductors. Additionally, these workstations conform to ergonomic workplace standards including DIN EN ISO 14738 for anthropometric requirements, ensuring that the adjustable height mechanisms and workspace dimensions support safe and comfortable operation during extended work periods.

What are the main differences between Karl Basic workbench product variants?

The Karl Basic product line differentiates between standard Basisausstattung models and verstärkte Ausführung reinforced configurations, with the latter providing enhanced structural support for demanding applications. Model numbering systems like 30.005.xx versus 30.105.xx indicate standard versus reinforced construction, while the final two digits specify surface finishes and ESD properties. The 1200x800mm models such as Karl 30.005.31 serve individual workstations, whereas 1600x800mm variants like Karl 30.025.31 accommodate larger projects or multi-operator configurations. ESD-specific models designated with ESD-Arbeitstisch in their descriptions feature specialised conductive worksurfaces and integrated grounding systems, while standard Arbeitstisch models may require additional ESD accessories to achieve full static control compliance.

What installation requirements and system compatibility considerations apply to Karl Basic ESD workbenches?

Karl Basic ESD workbenches require proper electrical grounding connections to facility ground systems, typically through dedicated ESD grounding points that maintain less than 1 ohm resistance to earth ground. Installation demands adequate floor space for the specified dimensions plus operator movement clearances, with 1200mm models requiring approximately 2000x1500mm floor allocation and 1600mm versions needing 2400x1500mm areas. The workbenches integrate with standard ESD floor systems, overhead ionisation equipment, and wrist strap monitoring systems commonly found in electronics manufacturing environments. Height adjustment mechanisms accommodate operator anthropometrics from 720mm to 1080mm working surface elevation, ensuring compatibility with both seated and standing work positions while maintaining proper ESD continuity throughout the adjustment range.

What safety ratings and environmental operating parameters apply to Karl Basic ESD workbenches?

Karl Basic ESD workbenches operate reliably within industrial temperature ranges from 15°C to 35°C with relative humidity levels between 45% and 75%, maintaining consistent ESD performance across typical manufacturing environment conditions. The workstations achieve IP20 protection rating for standard industrial applications, providing adequate protection against solid objects larger than 12mm while allowing necessary ventilation for electronic equipment cooling. Surface resistance characteristics remain stable within the 10^6 to 10^9 ohm specification range across the operating temperature and humidity envelope, ensuring consistent static discharge control. Load capacity varies by model configuration, with standard Basisausstattung versions supporting distributed loads up to 150kg and verstärkte Ausführung reinforced models handling up to 300kg, accommodating heavy test equipment, component storage, and multi-monitor setups safely.

What maintenance schedules and inspection requirements ensure optimal performance of Karl Basic ESD workbenches?

Karl Basic ESD workbenches require quarterly surface resistance measurements using calibrated megohmmeters to verify that worksurface conductivity remains within the 10^6 to 10^9 ohm specification range mandated by IEC 61340 standards. Daily visual inspections should verify grounding system integrity, checking for damaged cables, loose connections, or worn wrist strap attachment points that could compromise static discharge protection. Monthly cleaning protocols using approved ESD-safe cleaners maintain surface conductivity while removing contamination that could alter electrical characteristics or create isolated charging areas. The robust construction typically provides 10-15 years of service life under normal industrial use, with periodic replacement of consumable components like grounding straps, surface mats, and height adjustment mechanisms extending operational lifetime and maintaining compliance with evolving ESD control requirements.

ESD Workbenches Karl

Workstations Karl BASIC

Add to Wish List Add to Compare

Karl 31.025.34. ESD-Arbeitstisch Basic 1600 Basisausstattung, 1600x800 mm
€677.60
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Karl 31.025.35. ESD-Arbeitstisch Basic 1600 Basisausstattung, 1600x800 mm
€677.60
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Karl 31.105.63. Arbeitstisch Basic 1200 verstärkte Ausführung, 1200x800 mm
€683.10
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Karl 31.105.47. Arbeitstisch Basic 1200 verstärkte Ausführung, 1200x800 mm
€683.10
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Karl 31.105.35. ESD-Arbeitstisch Basic 1200 verstärkte Ausführung, 1200x800 mm
€702.90
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Karl 31.105.34. ESD-Arbeitstisch Basic 1200 verstärkte Ausführung, 1200x800 mm
€702.90
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Karl 30.125.63. Arbeitstisch Basic 1600 verstärkte Ausführung, 1600x800 mm
€717.20
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Karl 30.125.47. Arbeitstisch Basic 1600 verstärkte Ausführung, 1600x800 mm
€717.20
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Karl 31.025.48. ESD-Arbeitstisch Basic 1600 Basisausstattung, 1600x800 mm
€722.70
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Karl 31.025.66. ESD-Arbeitstisch Basic 1600 Basisausstattung, 1600x800 mm
€722.70
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Karl 31.205.30. Arbeitstisch Basic fahrbar verstärkte Ausführung, 1200x800 mm
€732.60
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Karl 31.205.31. Arbeitstisch Basic fahrbar verstärkte Ausführung, 1200x800 mm
€732.60
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Karl 31.105.66. ESD-Arbeitstisch Basic 1200 verstärkte Ausführung, 1200x800 mm
€732.60
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Karl 31.105.48. ESD-Arbeitstisch Basic 1200 verstärkte Ausführung, 1200x800 mm
€732.60
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Karl 30.125.35. ESD-Arbeitstisch Basic 1600 verstärkte Ausführung, 1600x800 mm
€741.40
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

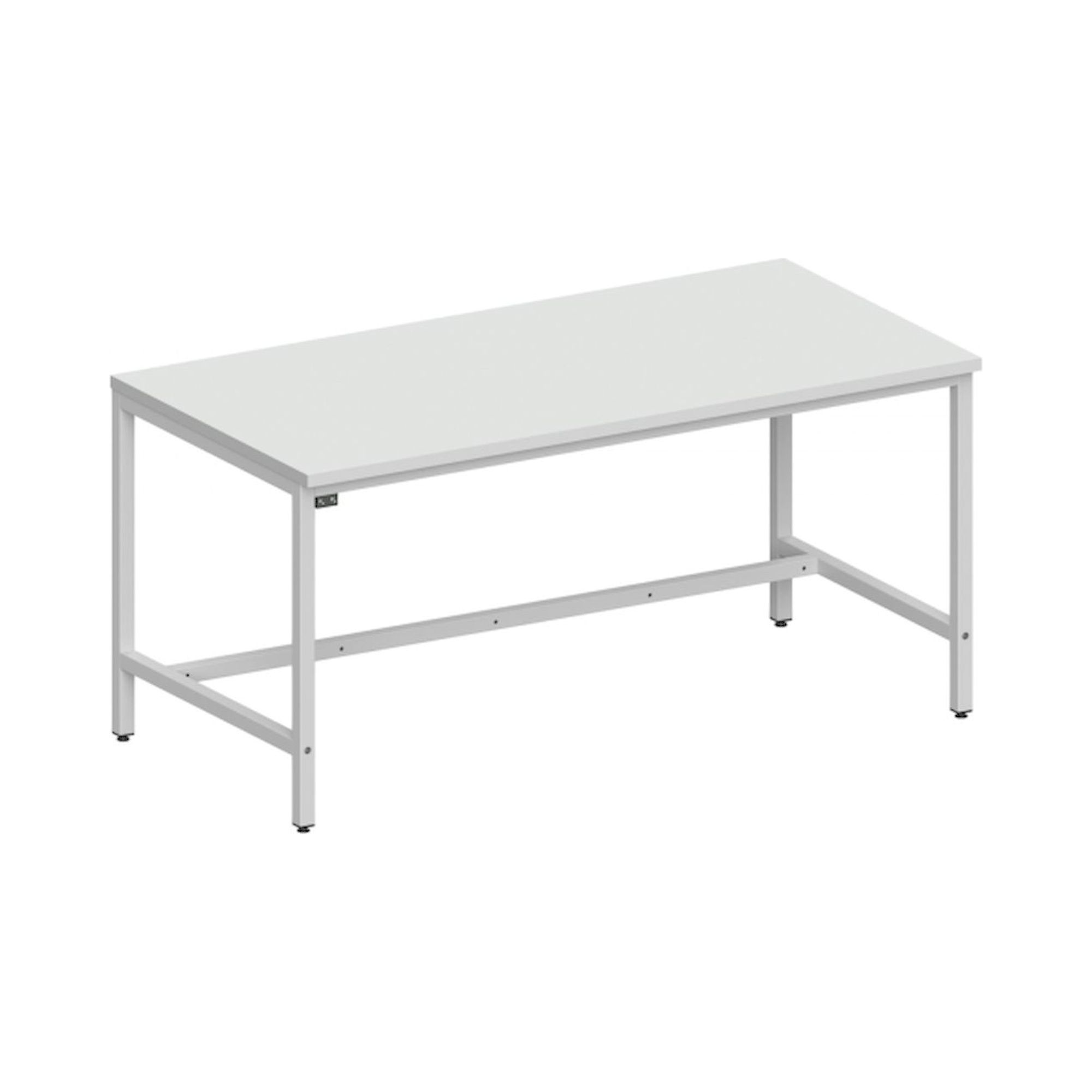

Karl 30.125.34. ESD-Arbeitstisch Basic 1600 verstärkte Ausführung, 1600x800 mm
€741.40
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

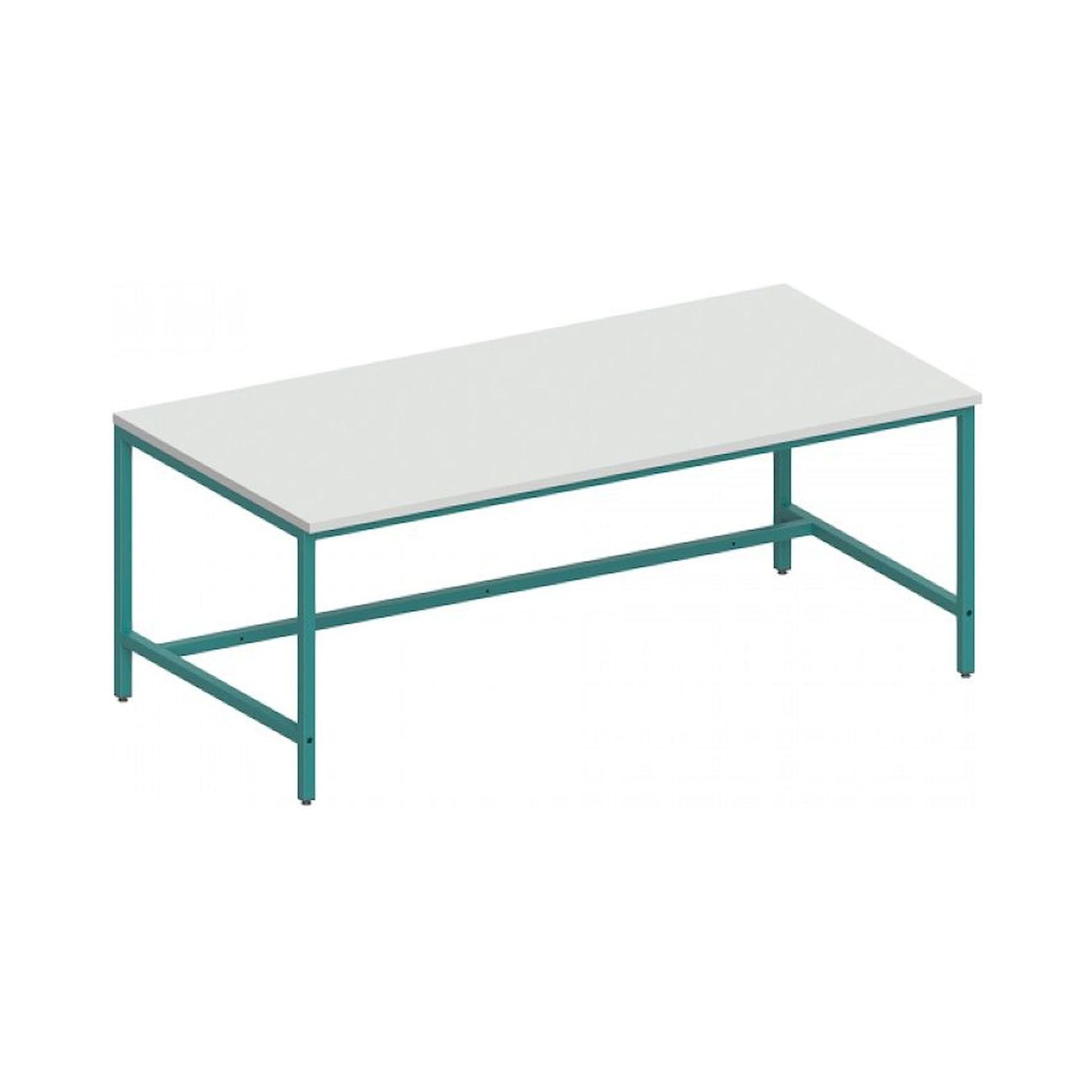

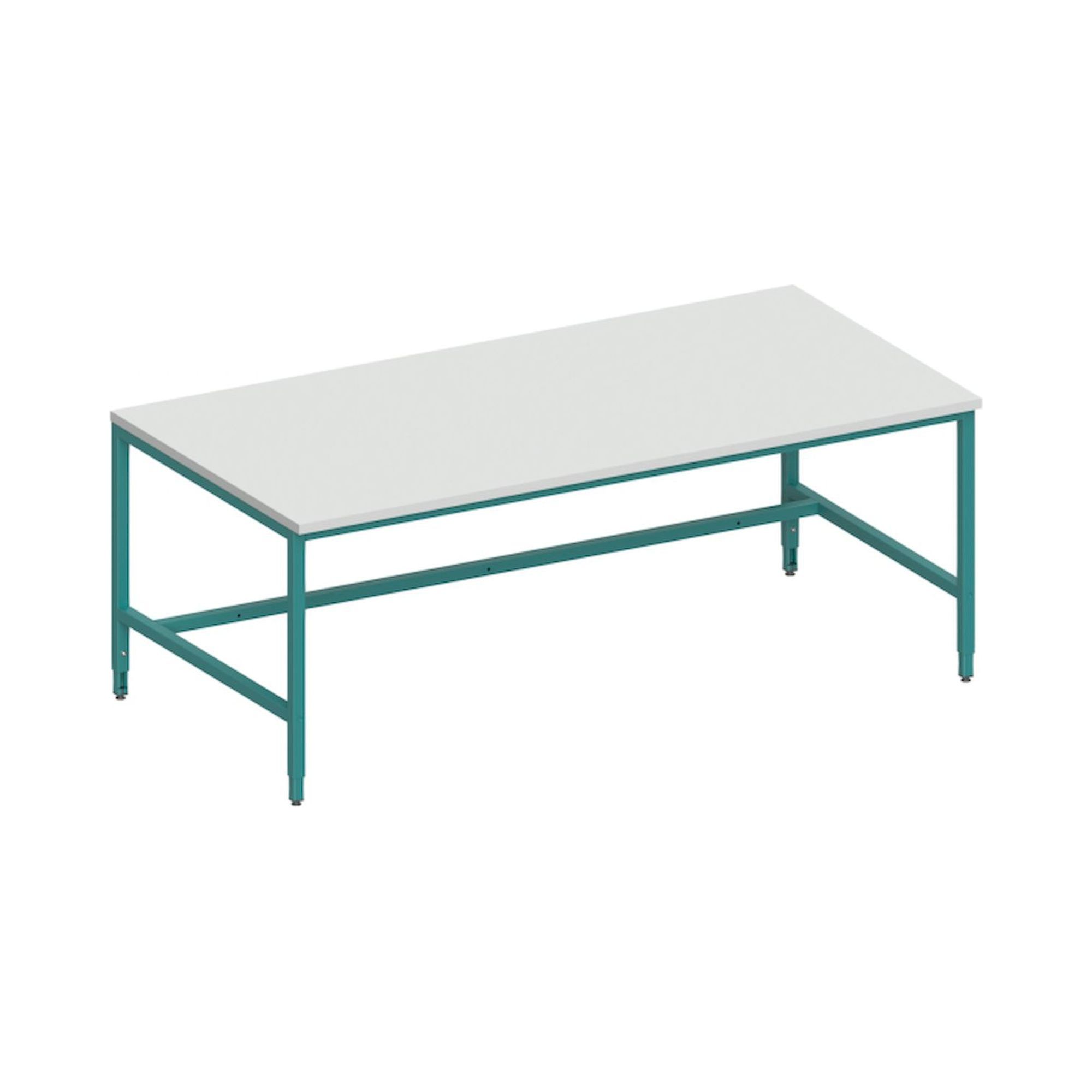

Karl 30.145.31. Arbeitstisch Basic 2000 verstärkte Ausführung, 2000x1000 mm
€741.40
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Karl 30.145.30. Arbeitstisch Basic 2000 verstärkte Ausführung, 2000x1000 mm
€741.40
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

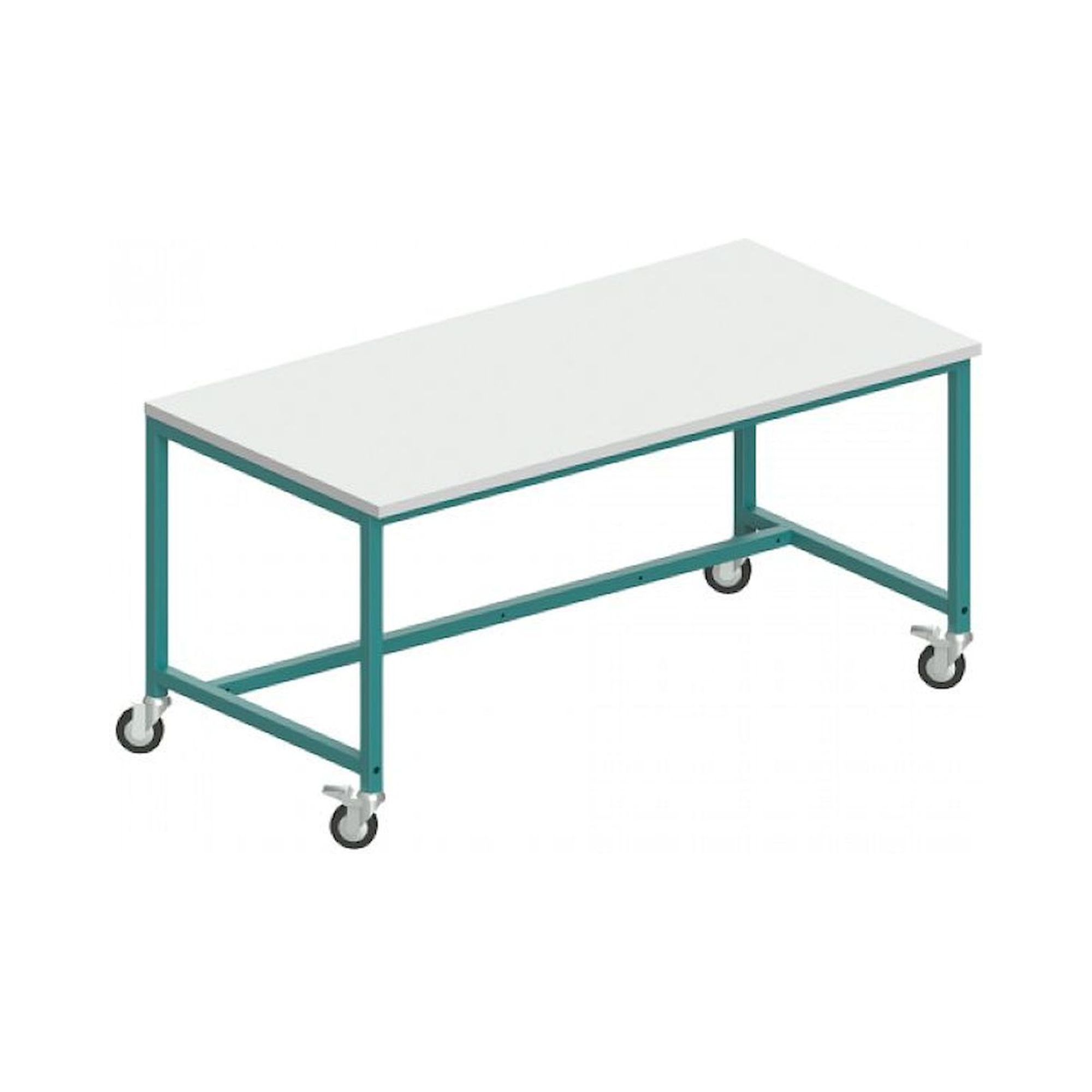

Karl 30.225.31. Arbeitstisch Basic fahrbar verstärkte Ausführung, 1600x800 mm
€744.70
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Karl 30.225.30. Arbeitstisch Basic fahrbar verstärkte Ausführung, 1600x800 mm
€744.70
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Karl 30.205.63. Arbeitstisch Basic fahrbar verstärkte Ausführung, 1200x800 mm
€771.10
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

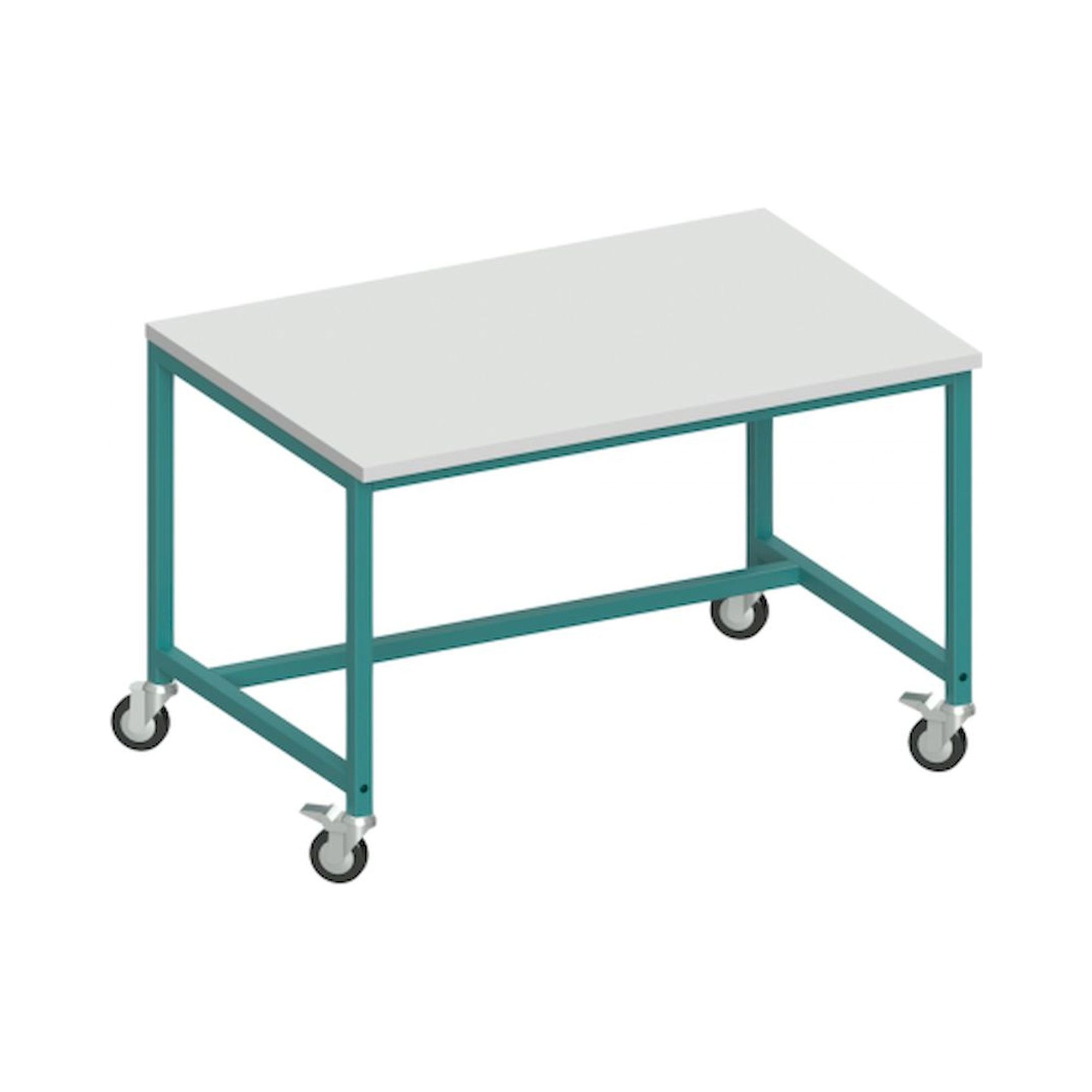

Karl 30.205.47. Arbeitstisch Basic fahrbar verstärkte Ausführung, 1200x800 mm
€771.10
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Karl 31.125.47. Arbeitstisch Basic 1600 verstärkte Ausführung, 1600x800 mm
€775.50
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Karl 31.125.63. Arbeitstisch Basic 1600 verstärkte Ausführung, 1600x800 mm
€775.50
Excl. 19% VAT , excl. Shipping Cost

Karl ESD Arbeitsstische (Basic series) deliver a verified surface resistance of 10⁵ to 10⁹ Ω per IEC 61340-5-1, protecting electrostatic-sensitive assemblies at every workstation. The welded steel frame carries static loads up to 150 kg with a built-in overload guard, while the HPL worktop surface maintains its ESD properties across a service life of 10 to 15 years - tested under DIN EN 61340-5-2. Height adjustment is available in the 720-1,080 mm range, covering seated and standing ergonomic postures in a single unit.

As an authorized Karl distributor, esd.equipment stocks 144 Arbeitsstische Karl models ready for immediate dispatch - from compact single-bay benches to extended multi-operator configurations. Every unit ships with full EPA system-earthing documentation and a total system resistance < 3.5 x 10⁷ Ω, satisfying IEC 61340-5-1 compliance requirements out of the box.

Key technical advantages - Karl ESD Arbeitsstische at a glance

⚡ 10⁵-10⁹ Ω surface resistance - IEC 61340-5-1 compliant, tested per DIN EN 61340-5-2

↕ 720-1,080 mm height range - ergonomic seated and standing postures in one unit

🛠 Up to 150 kg load capacity - welded steel frame with integrated overload protection

⚙ Modular Basic series - single-bay to multi-operator extensions, add-on superstructures available

🛡 Total system resistance < 3.5 x 10⁷ Ω - EPA system-earthing included, full documentation supplied

✓ 10-15 year service life - HPL worktop surface, durability verified under DIN EN 61340-5-2

Karl ESD Arbeitsstische Basic - Product overview

Series / Model type	ESD specification	Load capacity	Height adjustment	Key feature
Karl Basic - fixed height	10⁵-10⁹ Ω	up to 150 kg	Fixed, selectable height	Entry-level ESD bench, steel frame
Karl Basic - manually adjustable	10⁵-10⁹ Ω	up to 150 kg	720-1,080 mm manual	Crank or lever height setting, tool-free
Karl Basic - electrically adjustable	10⁵-10⁹ Ω	up to 150 kg	720-1,080 mm motorized, ca. 25-40 mm/s	One-touch height memory, overload cut-off
Karl Basic - extended worktop	10⁵-10⁹ Ω	up to 150 kg	Fixed or adjustable	Wide HPL surface, multi-operator layout
Karl Basic - with superstructure	10⁵-10⁹ Ω	up to 150 kg	720-1,080 mm	Shelving, monitor arm, tool rail add-ons

Typical application areas: Electronics manufacturing and SMT assembly (IEC 61340-5-1, IPC-A-610), semiconductor production (SEMI S1/S2), medical device assembly (ISO 13485), automotive electronics (VDA 6.3, IATF 16949), aerospace and defense production (AS9100), PCB repair and rework stations, quality inspection and laboratory environments.

✓

144 models in stock Karl Basic series - ready for immediate dispatch, full EPA documentation included

🛡

IEC 61340-5-1 compliant Surface resistance 10⁵-10⁹ Ω, total system resistance < 3.5 x 10⁷ Ω

⚡

Authorized Karl distributor Genuine Karl ESD workbenches - expert technical support and EPA system planning
