Hot air nozzle Quick

Quick hot air nozzles are precision heating components designed for controlled thermal processing in electronics manufacturing and repair applications. These specialized nozzles deliver focused hot air streams for BGA rework, QFP component removal, and surface mount device soldering operations. Electronics manufacturers, repair service providers, and R&D laboratories utilize these tools for temperature-sensitive component handling where localized heating between 200°C to 450°C is required. The nozzles enable precise thermal control during semiconductor packaging, circuit board assembly, and electronic component replacement procedures.

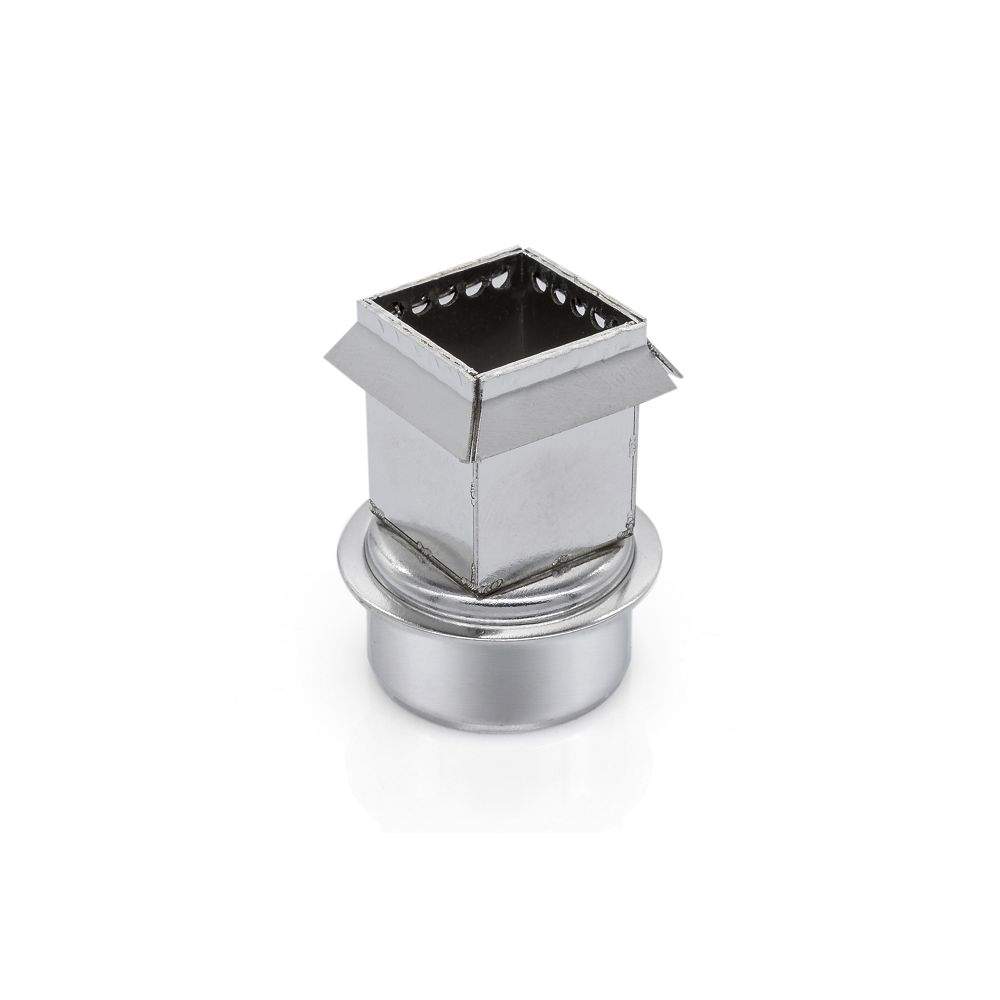

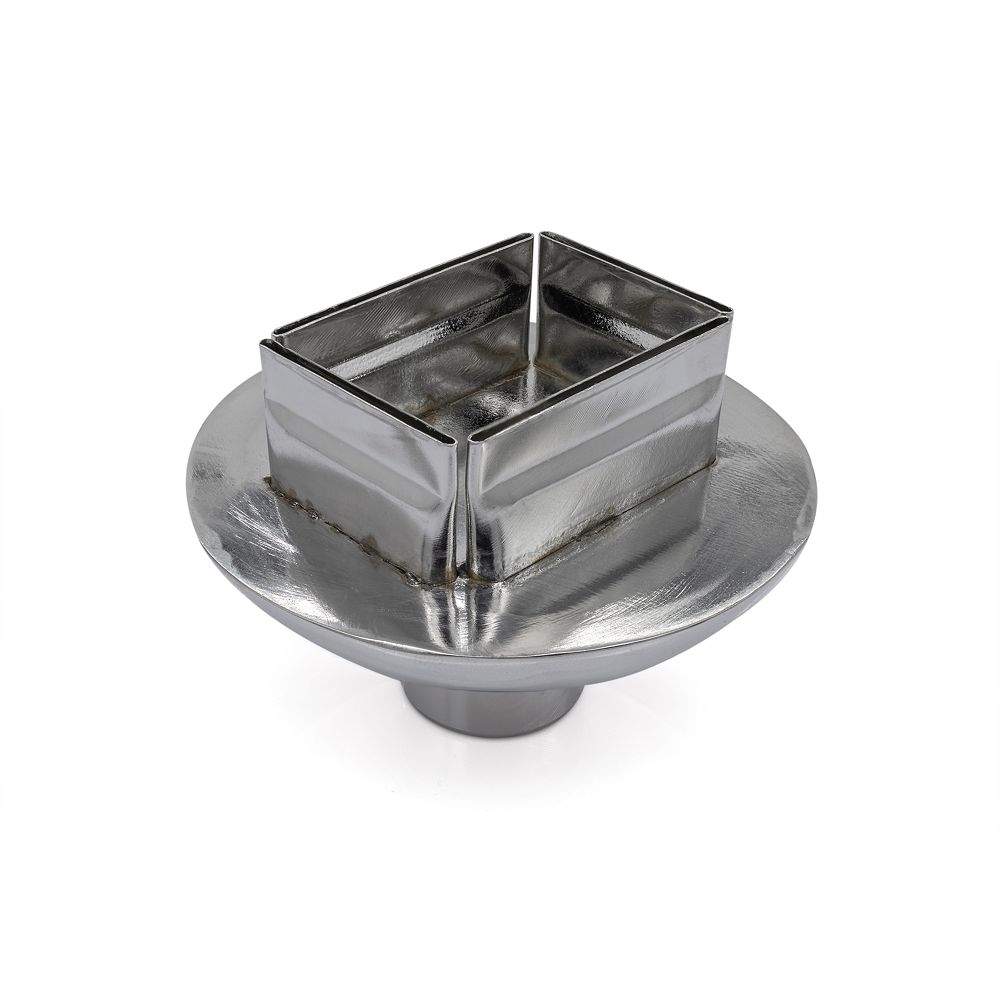

Quick hot air nozzle selection depends on component package dimensions, airflow geometry requirements, and rework station compatibility. BGA nozzles range from 15mm x 15mm for compact integrated circuits to 44mm x 44mm for larger processor packages, while QFP variants span 12mm x 12mm to 42.5mm x 42.5mm configurations. Straight nozzles provide direct heating for standard component removal, whereas 45-degree angled versions like the NK2064W45 enable access to components in confined PCB layouts. Nozzle aperture diameters from 6.4mm to 8.4mm determine heat concentration and airflow velocity for specific thermal profiles.

Quick hot air nozzles must comply with IEC 61010-1 electrical safety standards for measurement and laboratory equipment when integrated into rework stations. ISO 14001 environmental management principles guide manufacturing processes, while RoHS directive compliance ensures lead-free materials in nozzle construction. ESD protection requirements follow IEC 61340-5-1 standards for electrostatic discharge control in electronics manufacturing environments. Additionally, temperature measurement accuracy must align with IEC 60751 RTD standards when integrated with closed-loop thermal control systems in professional soldering applications.

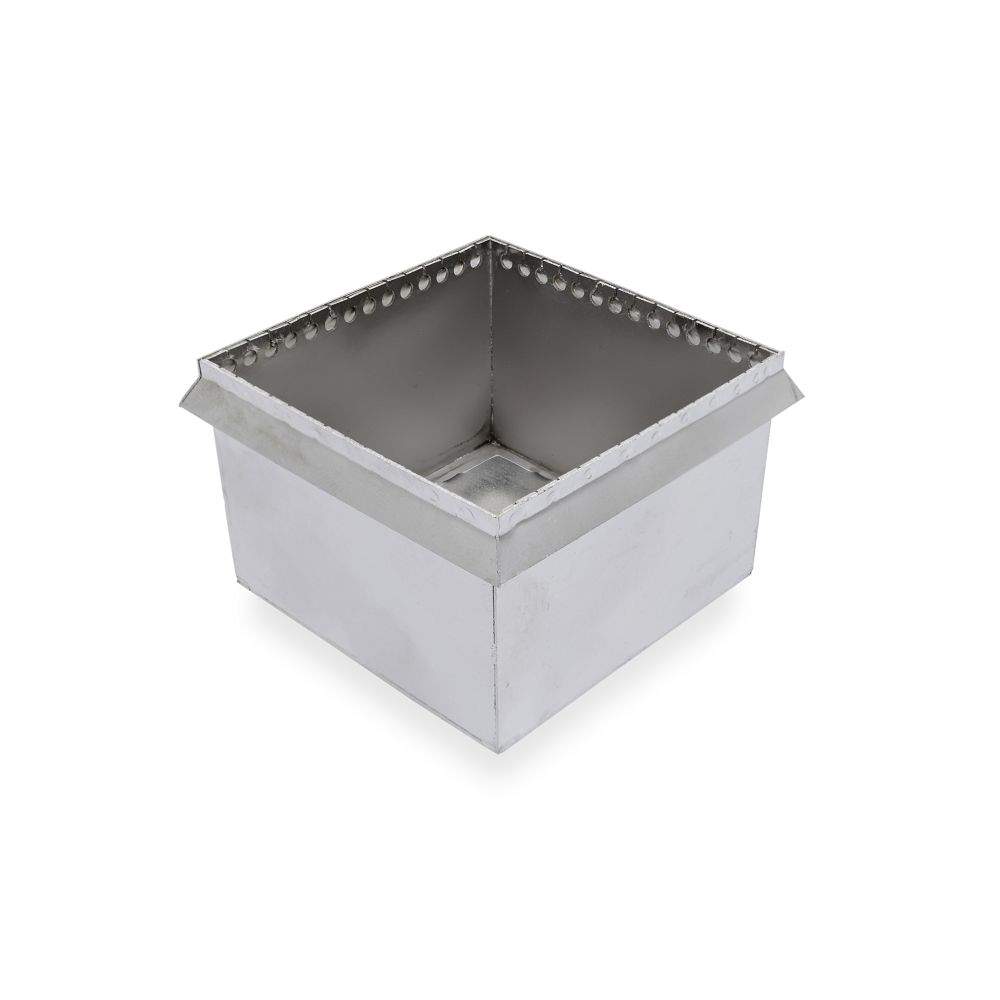

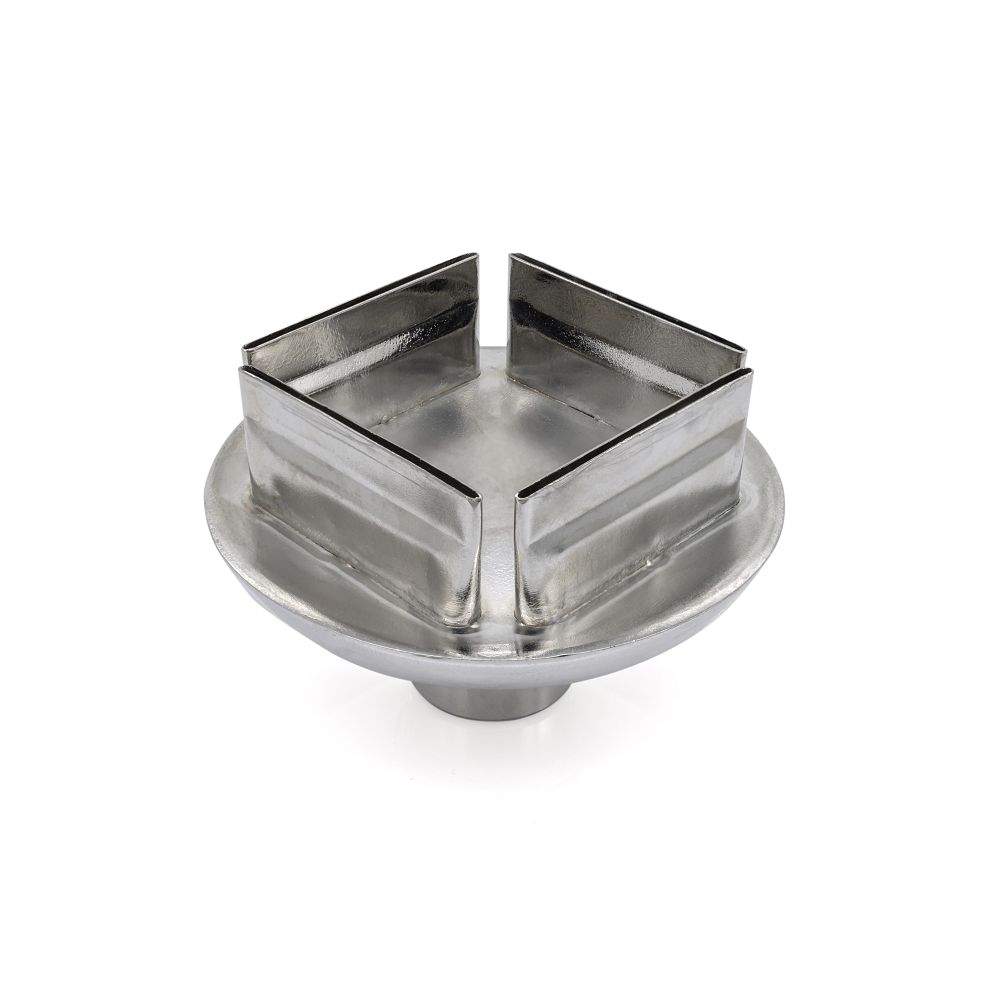

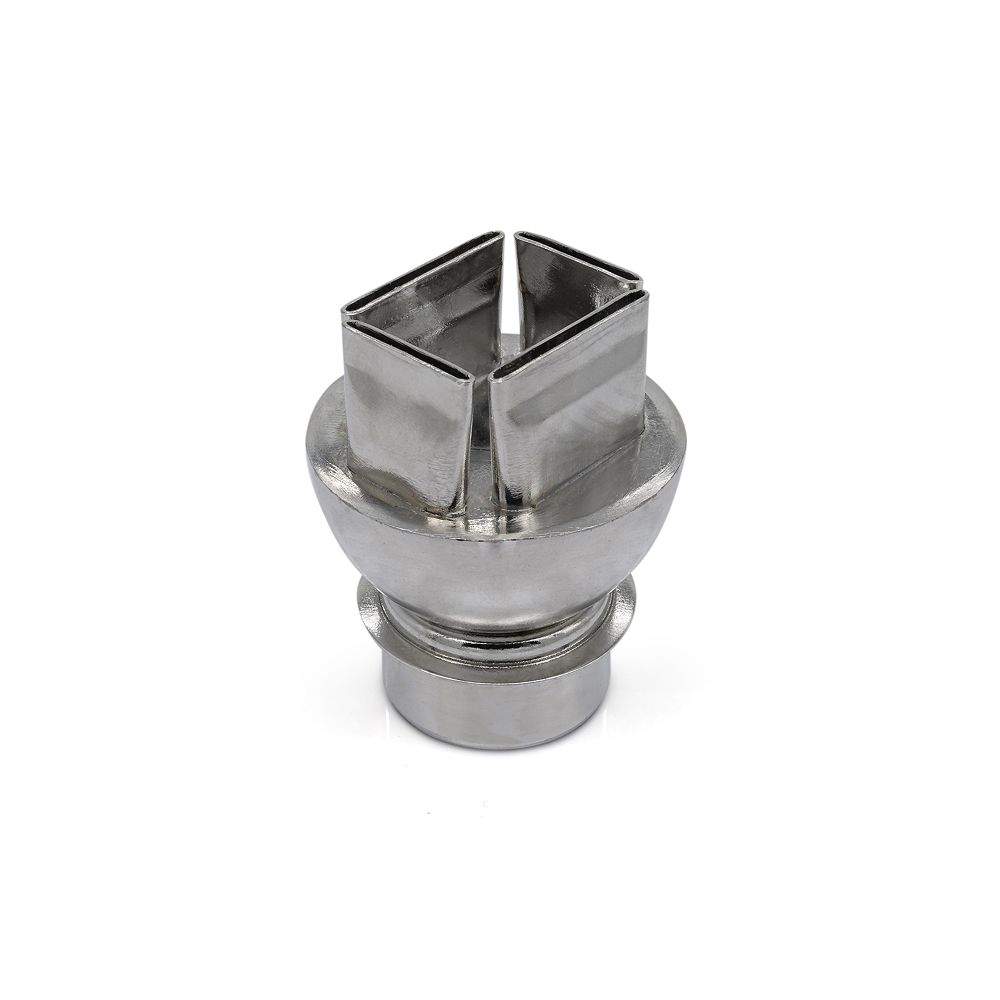

BGA nozzles feature square aperture geometries designed for ball grid array packages, with models like NK2281 (26mm x 26mm) and NK2285 (44mm x 44mm) providing uniform heating across solder ball arrays. QFP nozzles accommodate quad flat pack components with rectangular heating patterns, such as NK3128 (14mm x 20mm) for compact packages and NK3215 (42.5mm x 42.5mm) for large microprocessors. BGA variants typically operate at higher temperatures due to lead-free solder requirements, while QFP nozzles offer more directional airflow control for pin-based component removal without affecting adjacent components.

Quick hot air nozzles require compatible rework stations including 861DW and TR1300A models with matching nozzle mounting interfaces and thermal control capabilities. Installation involves bayonet-lock or threaded connection systems that ensure proper thermal coupling between heating element and nozzle body. The rework station must provide adequate airflow capacity, typically 20-120 liters per minute, and temperature control accuracy within ±5°C for consistent results. Proper nozzle seating requires torque specifications between 2-4 Nm to prevent air leakage while allowing thermal expansion during operation cycles.

Quick hot air nozzles operate within temperature ranges of 100°C to 480°C with thermal accuracy maintained at ±3°C through integrated RTD sensors. These components feature IP20 ingress protection suitable for controlled workshop environments with protection against solid objects larger than 12.5mm diameter. Maximum airflow velocities reach 0.8 m/s at the nozzle outlet, generating working pressures up to 2000 Pa for effective heat transfer. Nozzle materials withstand continuous operation at 450°C ambient temperature with thermal cycling resistance exceeding 10,000 heating-cooling cycles without dimensional degradation.

Quick hot air nozzles require visual inspection every 200 operating hours for signs of thermal distortion, oxidation, or dimensional changes that affect heating uniformity. Cleaning procedures involve ultrasonic baths with isopropyl alcohol every 500 hours to remove flux residue and contamination from internal surfaces. Expected service life ranges from 2000 to 5000 operating hours depending on maximum temperature exposure and thermal cycling frequency. Calibration verification against reference thermocouples should occur every 1000 hours or annually to maintain ±5°C temperature accuracy required for consistent soldering results.
