Did you know?

Bench height follows standing elbow height, not a nominal table height. For fine assembly the surface sits some 5 to 10 cm above it.

Browse industrial chairs

Treston workbenches

Drawer units

Treston drawer units organise tools, small parts, and test equipment at ESD workstations and reduce search time through clearly structured compartments. The programme ranges from compact units 30/15 with one drawer (150 mm) and under-bench ESD units DU35 through mobile pedestals 45/56 (450x520x700 mm) and series 53 (530x640 mm, under-bench, with plinth or with castors) to the workshop drawer units of series 70, 90 and 130 with a height of 1000, 1100 or 1400 mm, up to 1310x715x1400 mm. Series 30, DU35 and 45 are available in ESD finish (RAL 7035 grey), series 53 in grey/blue, series 70, 90 and 130 in blue. Drawers with full extension and a load capacity of up to 60 kg per drawer, heavy-duty versions of series 90/110 up to 200 kg per drawer.

344 items
2 manufacturers
Net prices plus VAT

View as Grid view List view

Show

per page

Buying guide

How to choose Drawer units

What matters when choosing: properties, comparison and typical applications.

Technical features

⚙ Series 30/15 to 130/140 - compact unit and mobile pedestal 450x520x700 mm to workshop drawer unit 1310x715x1400 mm

↕ Combinable drawer heights - e.g. 3x100 mm + 1x200 mm in type 45/56-3

⬡ Load capacity up to 60 kg per drawer - full extension, for heavy test and hand tools; series 90/110 heavy-duty version up to 200 kg per drawer

✓ ESD version - series 30, DU35 and 45 in RAL 7035 grey, antistatic drawers for EPA areas

📦 Castors optional - pedestal 45/56 with 4 swivel castors for flexible positioning; series 53/66 with plinth or castors

Model overview

Model	Dimensions	Drawers	Feature
30/15	Compact	1x 150 mm	Hang-on version for workbench frame
30/22	Compact	2x 110 mm	Two-drawer version

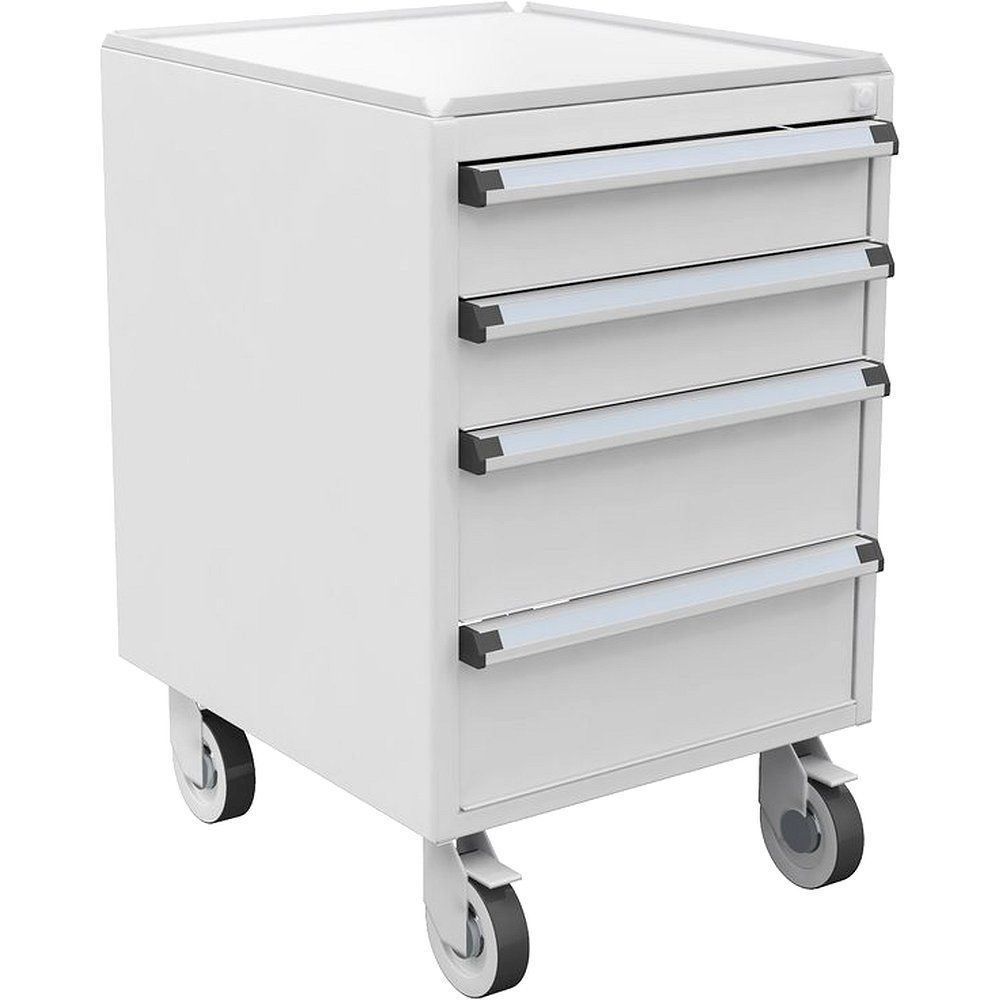

45/56-2	450x520x700 mm	2x100, 2x150 mm	With castors, without cover
45/56-3 Standard	450x520x560 mm	3x100, 1x200 mm	Without castors

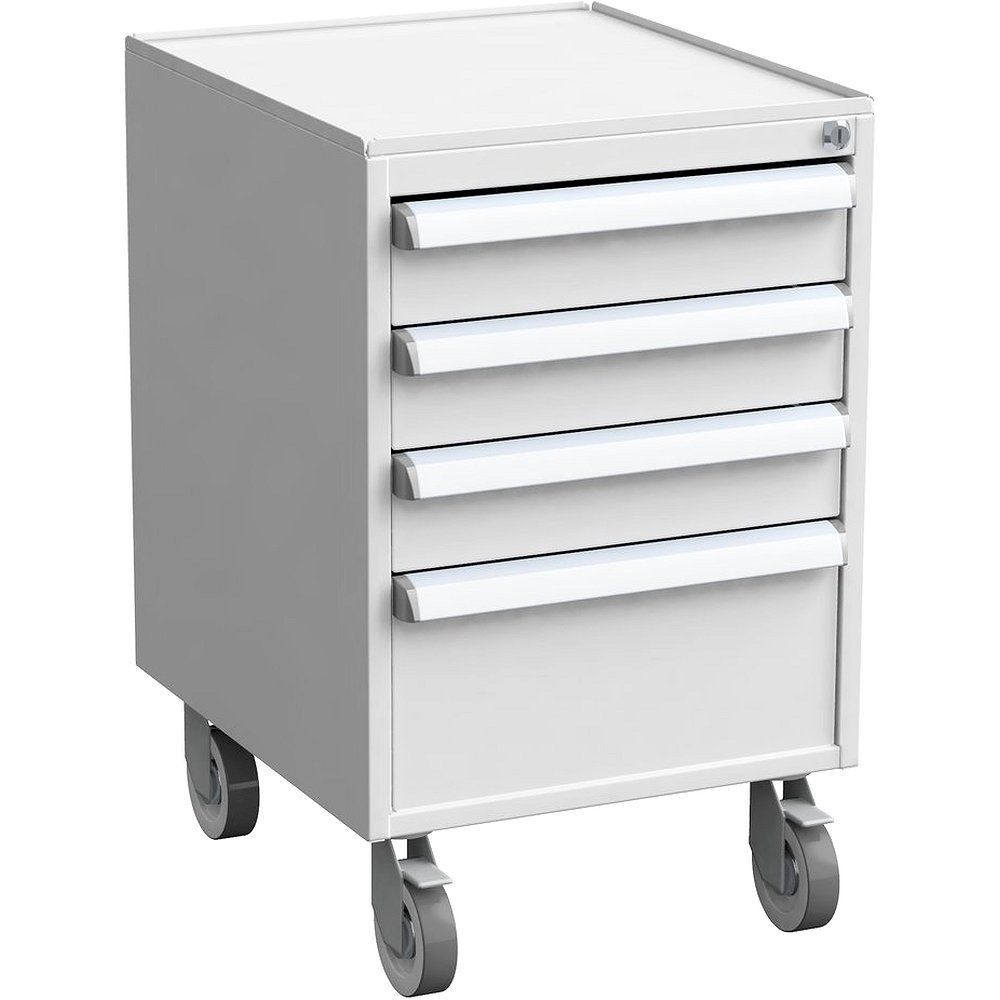

45/56-3	450x520x700 mm	3x100, 1x200 mm	With castors and cover
DU35/10	350x470x105 mm	1x 100 mm	ESD, under-bench mounting
DU35/20	350x470x205 mm	2x 100 mm	ESD, under-bench mounting
53/14	530x640x140 mm	1x 100 mm	Under-bench, grey/blue, 60 kg
53/36-1 to 53/36-4	530x640x360 mm	4x75, 3x100, 2x150 or 75/150 mm	Under-bench
53/66 under-bench	530x640x660 mm	4 to 8 drawers, 75 to 250 mm	Under-bench, also as cabinet with door
53/66 with plinth	530x640x800 mm	4 to 8 drawers, 75 to 250 mm	Plinth, cabinet with lockable door
53/66 with castors	530x640x795 mm	4 to 8 drawers, 75 to 250 mm	Castors, cabinet with lockable door
Combination 53	530x640 mm, H 1155/1170 mm	8 drawers or 3 drawers + cabinet	Castors or plinth; combination 5 with 1200x750 mm worktop
70/110	714x715x1100 mm	4 to 12	Blue, standard or heavy-duty
90/110	910x715x1100 mm	4 to 11	Blue, full extension, up to 200 kg per drawer
90/110 without top	910x715x1000 mm	5 or 7	Full extension, 75 or 200 kg per drawer
130/110	1310x715x1100 mm	4 to 11	Blue, full extension optional
130/110 without top	1330x715x1000 mm	6	Blue, 75 kg
70/140	715x715x1400 mm	6 to 16	Blue, full extension optional
90/140	910x715x1400 mm	6 to 16	Blue, full extension optional
130/140	1310x715x1400 mm	6 to 17	Blue, full extension optional

Typical applications

Typical applications: ESD assembly workstations and test benches where hand tools, measuring instruments, and small parts need to be stored within reach in a structured manner. Mobile pedestals with castors are suited to use at changing stations; compact units hang directly into the Treston workbench frame. Series 53 and DU35 units are mounted under workbenches or free-standing; series 70, 90 and 130 serve as tool and material storage in workshops and maintenance.

FAQ

Frequently asked questions about Drawer units

What are Treston drawer blocks and what industrial applications require these ESD-protected storage systems?

Treston drawer blocks are modular storage cabinets, available in ESD-protected versions for industrial workstations where electrostatic discharge protection is critical. These systems are primarily deployed in electronics manufacturing, semiconductor assembly, precision instrument calibration, and pharmaceutical production environments where sensitive components must be organized and accessed while maintaining EN 61340-5-1 compliance. The ESD blocks of series 45 feature standardized dimensions of 450x520mm footprint with heights ranging from 660mm to 800mm, accommodating drawer configurations from 5 to 6 compartments with individual load capacities up to 60kg per drawer for heavy tooling and component storage. The grey/blue series 53 (530x640mm) and the blue workshop series 70, 90 and 130 extend the range, with heavy-duty 90/110 drawers rated up to 200kg.

What are the key technical selection criteria for choosing between different Treston drawer block configurations?

Selection of Treston drawer blocks depends on drawer height requirements, mobility needs, and load capacity specifications. The 45/56 series offers 700mm total height with 5 drawers at 100mm each, while the 45/66 series provides 800mm height accommodating up to 6 drawers in mixed configurations including 100mm, 150mm, 200mm, and 300mm heights. Mobile versions feature integrated roller systems for repositioning, while stationary models use fixed bases or pedestals. Each drawer supports maximum loads of 50-60kg with 100% extension capability, or up to 200kg in the heavy-duty 90/110 series. The ESD variants of series 30, DU35 and 45 are finished in RAL 7035 gray with integrated ESD protection for surface resistance compliance, while series 53 comes in grey/blue.

Which international standards and certifications apply to Treston ESD drawer blocks for industrial compliance?

Treston drawer blocks comply with EN 61340-5-1 standard for electrostatic discharge protection in electronics handling environments, ensuring surface resistivity values between 10^6 and 10^9 ohms for controlled static dissipation. The ESD coating meets IEC 61340-4-1 requirements for electrostatic protective workplaces, while the mechanical construction adheres to DIN EN ISO 14001 environmental management standards. Load testing follows EN 15372 specifications for industrial furniture, validating the 60kg per drawer capacity rating. The RAL 7035 powder coating system complies with ISO 12944 corrosion protection standards for industrial environments with moderate chemical exposure.

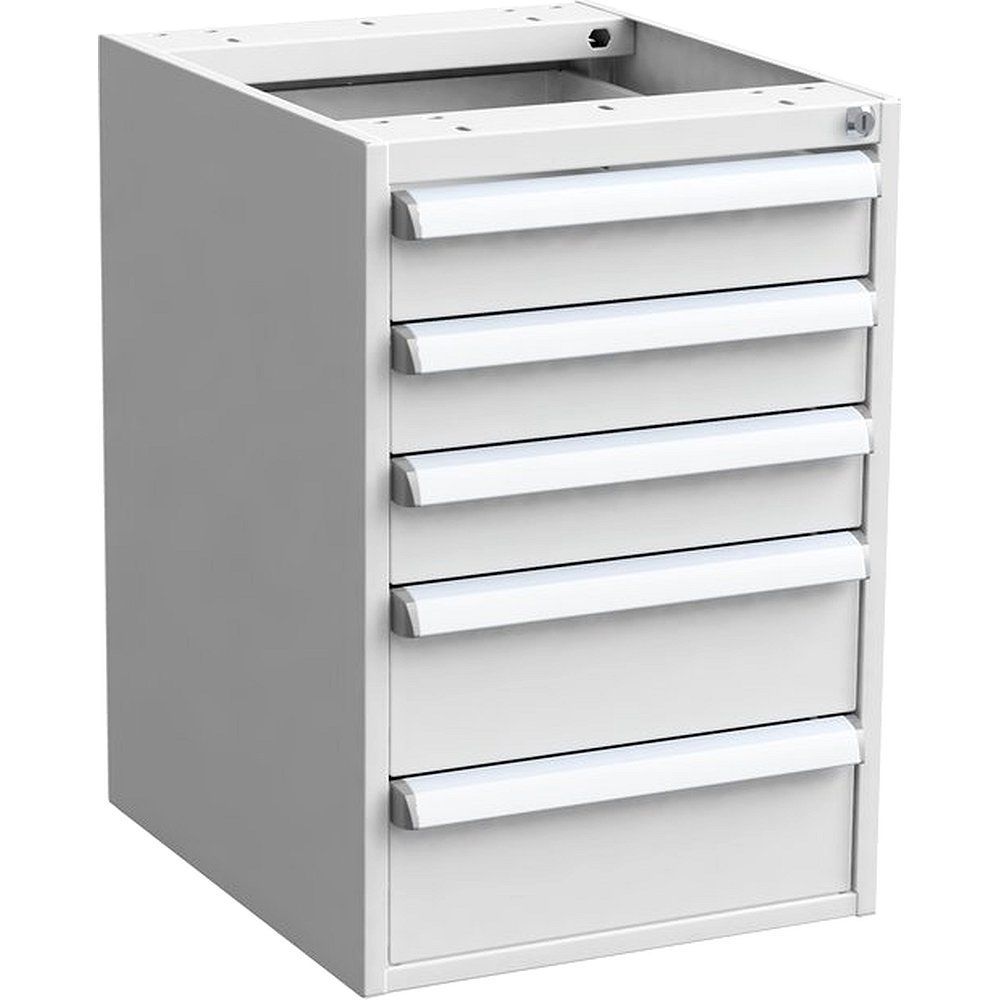

What are the main differences between Treston 45/56 and 45/66 series drawer block variants?

The Treston 45/56 series features 700mm total height with 5-drawer configurations optimized for compact workstations, while the 45/66 series offers 800mm height accommodating 6 drawers for increased storage density. Model 60649301 in the 45/56 series provides five 100mm drawers, whereas the 45/66 equivalent model 60749301 adds a sixth 100mm drawer within the taller frame. Both series maintain identical 450x520mm footprints and 60kg per drawer load ratings, but the 45/66 variants offer more flexible drawer height combinations including 200mm and 300mm deep compartments for larger components. Mobile versions across both series feature integrated roller systems, while pedestal models provide fixed installation stability. Series 53 (530x640mm, grey/blue) is available as under-bench block, on a plinth or on castors, also as cabinet with door, and the ESD blocks DU35 with one or two 100mm drawers mount under the worktop.

What installation requirements and system compatibility considerations apply to Treston drawer blocks?

Treston drawer blocks require level flooring with 50kg/m² load capacity for stationary installation, while mobile versions need smooth surfaces for roller operation and adequate clearance for 450mm width positioning. The units integrate directly with Treston workbench systems through standardized 450mm module widths (530mm for series 53), allowing seamless connection to existing ESD workstation configurations. Electrical ESD grounding connects through integrated grounding points compatible with standard 4mm banana plug earthing systems per EN 61340-5-1 requirements. Mobile variants require 100mm additional clearance behind units for roller access, while pedestal-mounted versions need 40mm floor clearance for cleaning and cable management underneath the base structure.

What safety ratings and operating environment specifications apply to Treston drawer blocks?

Treston drawer blocks operate safely in industrial environments with ambient temperatures from -5°C to +40°C while maintaining ESD surface resistance stability within 10^6 to 10^9 ohm range per EN 61340-5-1. The powder-coated steel construction provides IP20 protection rating against solid objects larger than 12.5mm while the drawer mechanisms feature integrated safety stops preventing complete extraction and potential tipping hazards. Load distribution supports maximum 60kg per drawer (200kg in the heavy-duty 90/110 series) with total unit capacity up to 300kg when fully loaded across all compartments. The ESD coating maintains effectiveness at relative humidity levels between 30-70% typical in electronics manufacturing environments, ensuring consistent static dissipation performance throughout operational temperature ranges.

What maintenance schedule and service life expectations apply to Treston industrial drawer blocks?

Treston drawer blocks require quarterly ESD surface resistance testing using calibrated ohmmeter per EN 61340-5-1 to verify continued compliance within 10^6-10^9 ohm specification range. Drawer slide mechanisms need semi-annual lubrication with silicone-free lubricants to maintain smooth 100% extension operation under full 60kg loading. The powder-coated surfaces should undergo annual inspection for coating integrity, with expected service life exceeding 15 years in standard industrial environments when properly maintained. Monthly cleaning with ESD-safe cleaning solutions preserves surface conductivity while drawer weight distribution should be monitored to prevent exceeding individual 60kg compartment limits that could cause premature slide mechanism wear or structural stress.
