Metcal soldering technology

Metcal soldering and desoldering tips are supplied as plug-in cartridges that snap into MX handpieces without tools. Each series is assigned to a temperature class: series 600 (357 °C), series 700 (412 °C) and series 500 (302 °C for tweezer tips). Geometries range from conical tips (0.13-5 mm) through chisel, blade and hoof forms to tunnel and quad rework tips covering SOIC, PLCC and QFP packages.

Categories

Rework tips SMTCTunnel, quad, blade - for chip up to QFP-144, SOIC, PLCC

Soldering tips SSCSeries 600, conical/chisel/hoof, 0.51-2.5 mm

Soldering tips STDCDesoldering tips and cartridges for MX-DS1, 0.64-1.27 mm

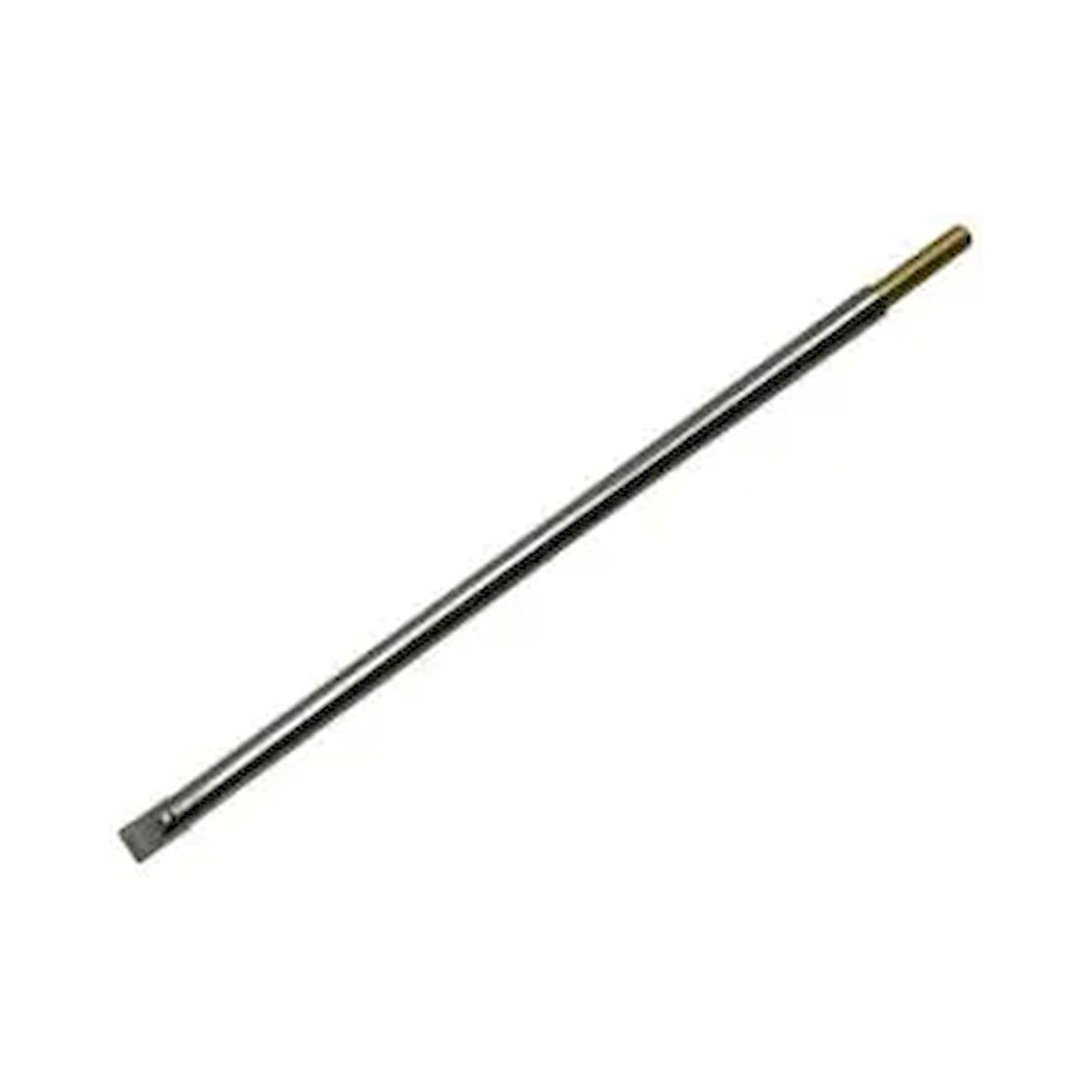

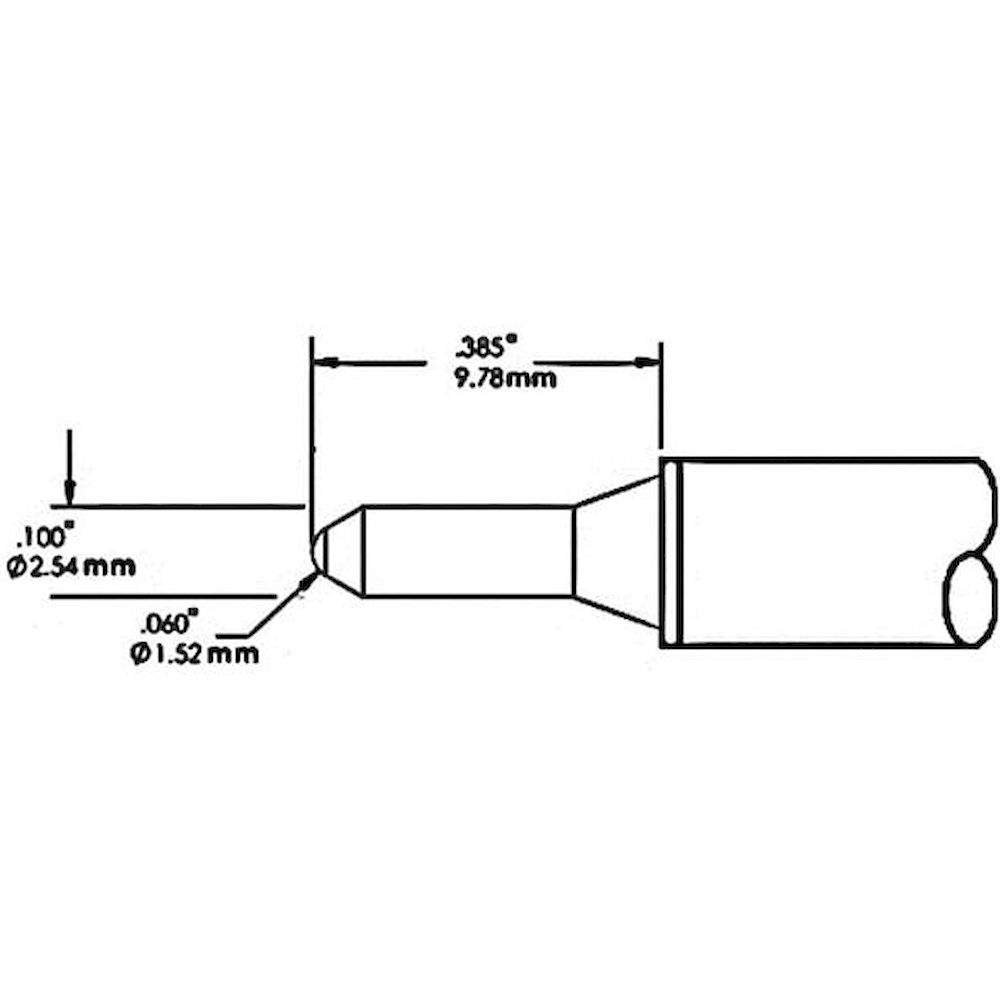

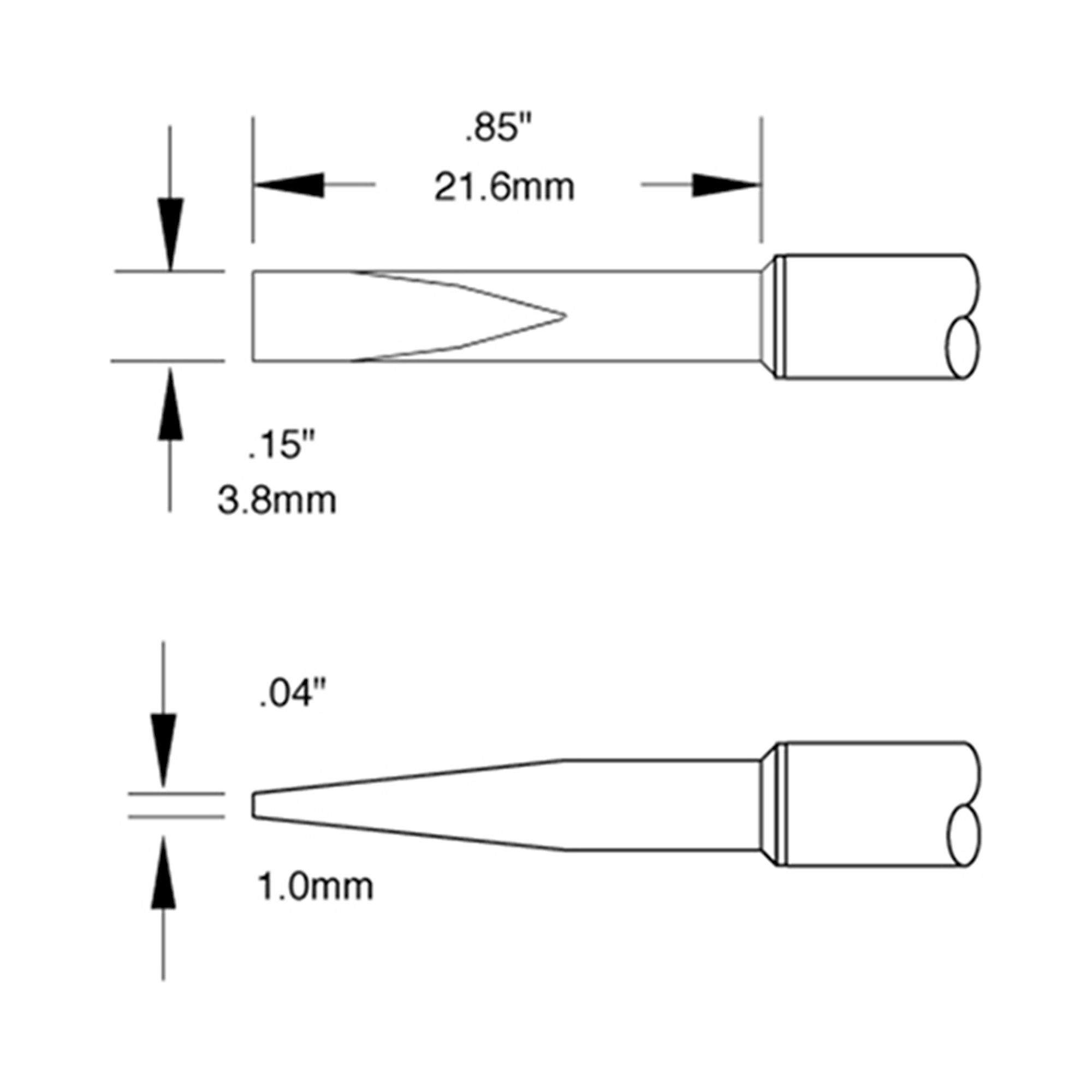

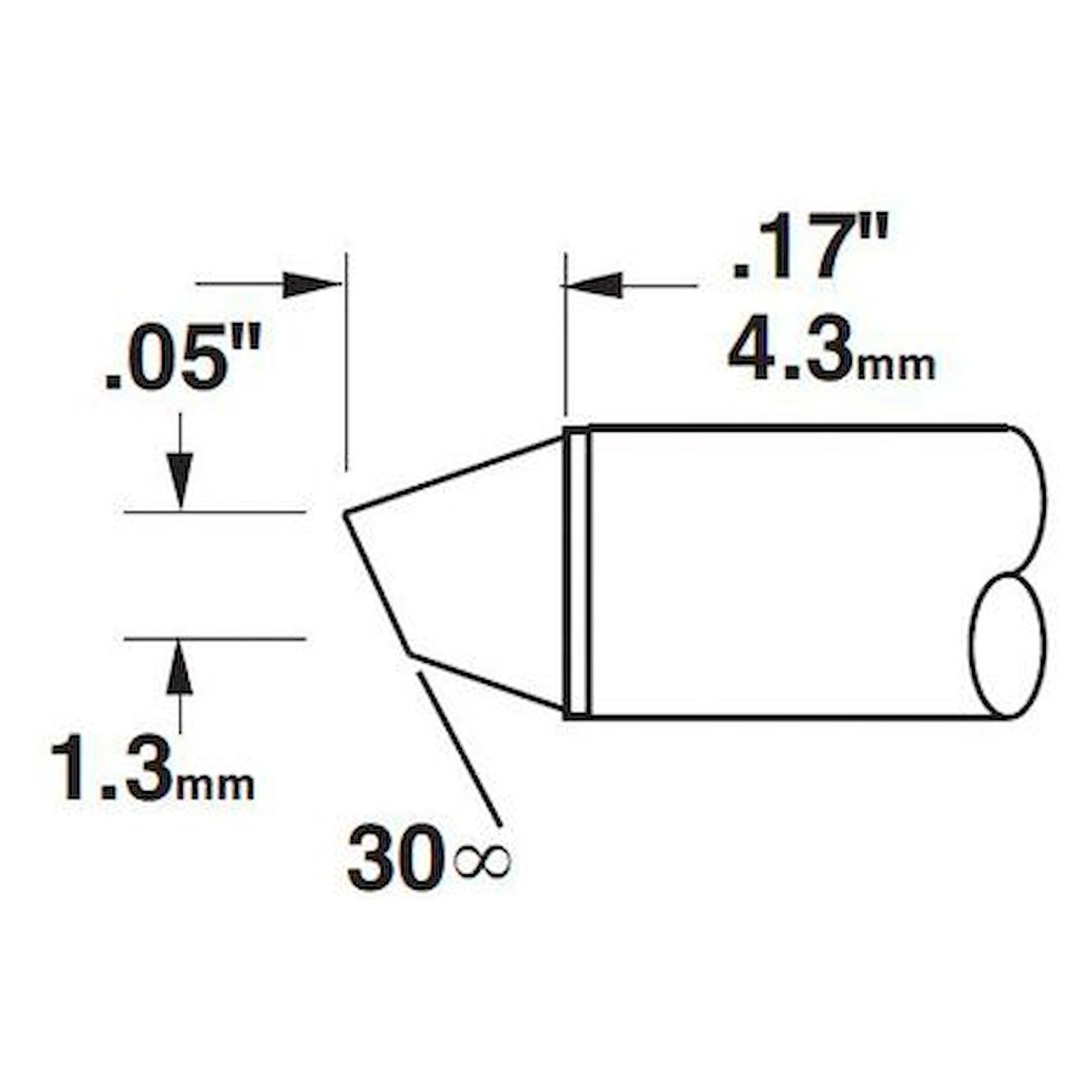

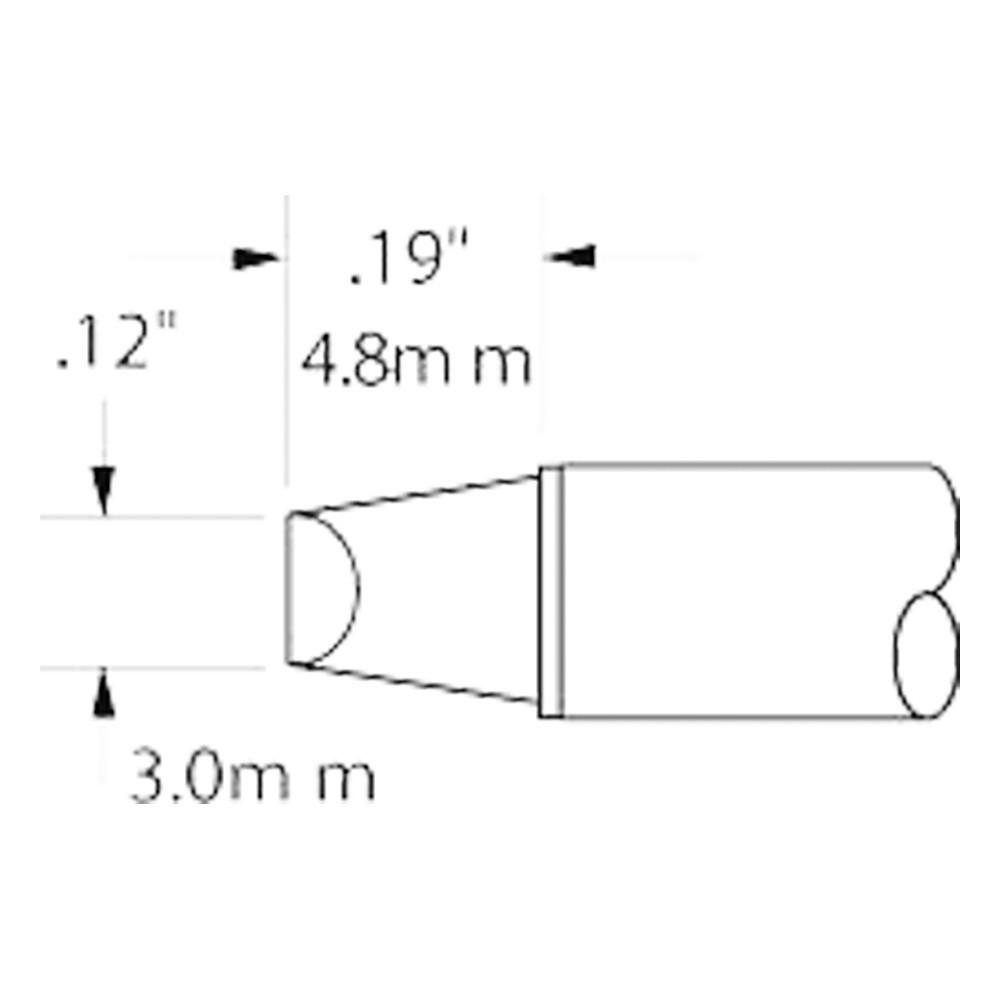

Soldering tips STTCSeries 600, broad geometry range, over 100 variants

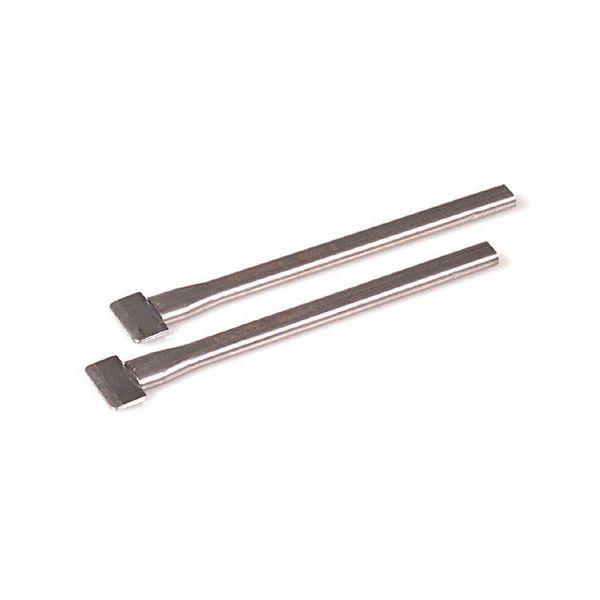

Tweezer tips TATCTalon tweezer tips, series 500/502/600, sold in pairs

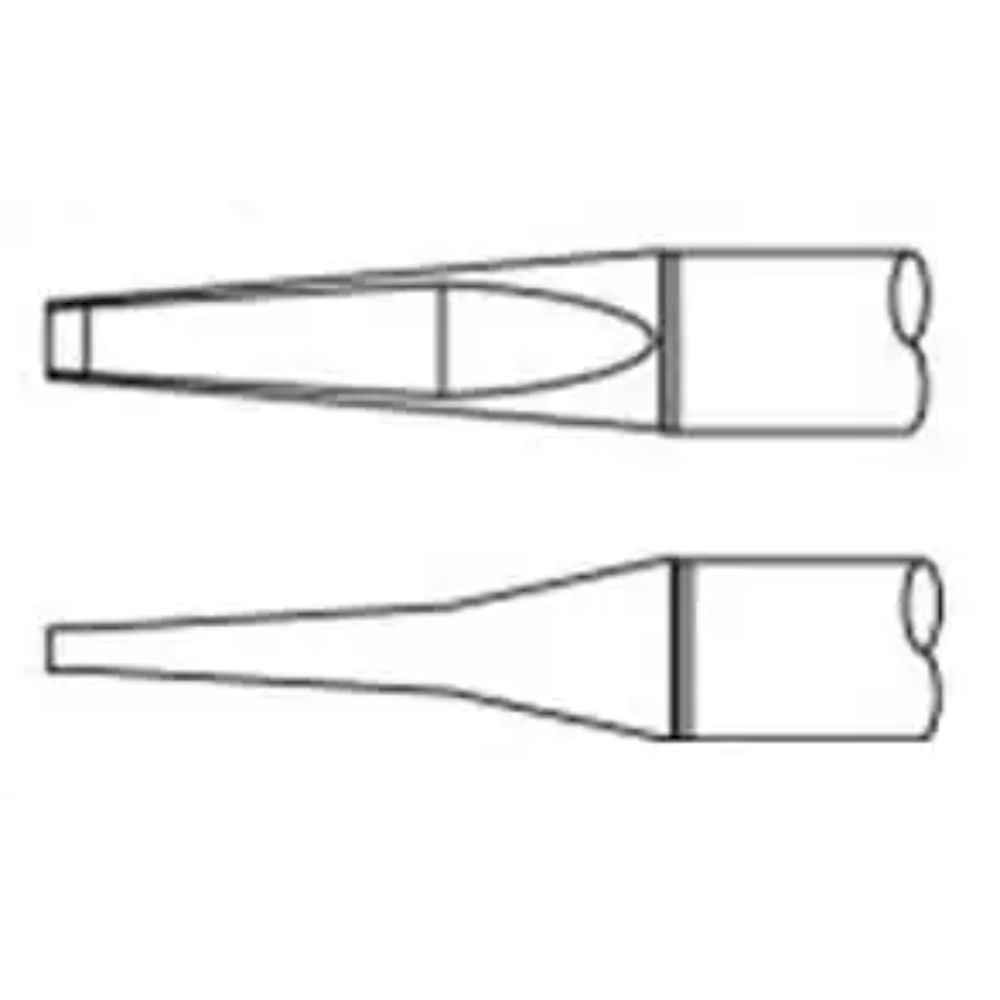

Soldering tips PTTCSeries 700, conical and blade-shaped, 0.4-28 mm

Soldering Tips Ultra Fine UFTCConical 0.13-0.4 mm, chisel 0.6-0.8 mm, for MX-5000/5200

Series	Temperature	Application
SSC	357 °C (series 600)	General soldering, MX handpieces
STTC	357 °C (series 600)	Wide geometry range, over 100 variants
PTTC	412 °C (series 700)	High-power soldering, blade tips up to 28 mm
UFTC	Series 700	Ultra-fine from 0.13 mm, for microelectronics
STDC	357 °C (series 600)	Desoldering tips/cartridges for MX-DS1
SMTC	357/412 °C	Rework: tunnel, quad, blade for SOIC, PLCC, QFP
TATC	302 °C (series 500)	Talon tweezer tips, sold in pairs

⚙ Conical - fine soldering and wire tacking, STTC/SSC/UFTC from 0.13 mm tip diameter

✓ Chisel - pad soldering and through-hole joints, 0.4-5 mm width in STTC/PTTC series

↕ Blade - drag soldering and SOIC pin rows, SMTC blades 10-22 mm wide

⚰ Tunnel (SOIC) - encloses both pin rows, SMTC tunnel tips for SOIC-8 to SOIC-28

⛤ Quad (PLCC/QFP) - all four sides simultaneously, SMTC quad for PLCC-28/44 and QFP up to 144 pins

🔥 Hoof - wire soldering and connection points, STTC/SMTC 1.5-3.3 mm width

Typical applications: SMT volume production with mixed component geometries (STTC/SSC for standard processes), rework and component replacement on SOIC, PLCC and QFP packages (SMTC tunnel and quad tips), microelectronics and sensor soldering with UFTC tips from 0.13 mm, desoldering of through-hole assemblies with STDC cartridges, and double-sided SMD work with Talon tweezer tips (TATC).
