What are ESD storage containers and which industries require them for component protection?

ESD storage containers are conductive or dissipative plastic boxes designed to safely store and transport electronic components sensitive to electrostatic discharge. These containers prevent static charge buildup that can damage semiconductors, PCBs, and integrated circuits during handling and storage. Electronics manufacturing, automotive electronics, aerospace, medical device production, and telecommunications equipment assembly rely on ESD containers to maintain component integrity throughout supply chains and production processes.

What are the key technical specifications when selecting ESD containers for industrial applications?

Critical selection criteria for ESD containers include surface resistance values between 10^4 to 10^11 ohms for conductive types, dimensional compatibility with Euro standard footprints like 400x300mm and 600x400mm sizes, and wall thickness sufficient for mechanical protection. Container heights range from 120mm to 420mm depending on component requirements, while black conductive materials provide both ESD protection and light shielding for UV-sensitive components. Load capacity and stacking strength must match warehouse automation systems and storage density requirements.

Which international standards govern ESD storage container performance and testing requirements?

ESD storage containers must comply with IEC 61340-5-1 standard for electrostatic discharge protection of electronic devices, which defines surface resistance measurement procedures and acceptance criteria. DIN EN 61340-4-1 specifies standard test methods for characterizing the electrostatic properties of packaging materials, while ANSI/ESD S20.20 establishes ESD control program requirements including container qualification procedures. ISO 11607 provides additional guidance for medical device packaging when containers store medical electronics requiring sterile barrier protection.

What are the differences between standard ESD containers and specialized variants like Warmbier 5310.80 models?

Standard ESD containers feature basic conductive plastic construction in common Euro dimensions, while specialized variants like the Warmbier 5310.80 series offer enhanced features such as precision-molded construction with tighter dimensional tolerances and superior surface resistance uniformity. Premium models incorporate reinforced corner designs for heavy-duty industrial use, integrated label areas for inventory management, and optimized stacking geometry for automated handling systems. Container wall thickness and material formulations vary between basic protective storage and high-performance applications requiring extended service life under harsh industrial conditions.

What installation and compatibility requirements must be considered for ESD container systems?

ESD container systems require integration with grounded conveyor systems and automated handling equipment through conductive contact points or ionized air environments to maintain electrical continuity. Container dimensions must match standard Euro pallet footprints and warehouse racking systems, with 400x300mm and 600x400mm formats being most common for industrial applications. Stacking heights are limited by container load ratings and stability requirements, typically supporting 200-500kg distributed loads depending on wall thickness and reinforcement design. Compatibility with barcode scanning systems and RFID inventory tracking requires clear label surfaces and radio-transparent materials.

What are the environmental and safety ratings for industrial ESD storage containers?

Industrial ESD containers typically operate within temperature ranges from -20°C to +60°C for standard applications, with specialized formulations extending to -40°C to +80°C for extreme environments. While most containers lack formal IP protection ratings due to ventilation requirements for component breathing, closed-lid configurations provide IP54 protection against dust and moisture ingress. Material safety includes flame retardant properties meeting UL94-HB or better classifications, with food-grade certifications available for clean room applications. Surface resistance stability must be maintained across the operating temperature range to ensure consistent ESD protection performance.

What maintenance procedures and service life expectations apply to ESD storage containers?

ESD storage containers require surface resistance testing every 6-12 months using calibrated electrometers to verify conductivity within specified ranges of 10^4 to 10^11 ohms per IEC 61340-5-1 requirements. Visual inspection for cracks, wear patterns, and contamination should occur monthly, with immediate replacement required when surface resistance exceeds acceptable limits or mechanical damage compromises structural integrity. Typical service life ranges from 5-10 years under normal industrial conditions, though UV exposure and chemical cleaning can reduce longevity. Cleaning procedures must avoid antistatic treatments or solvents that could alter surface resistance properties or degrade the conductive matrix material.

Conductive storage containers

ESD Boxes

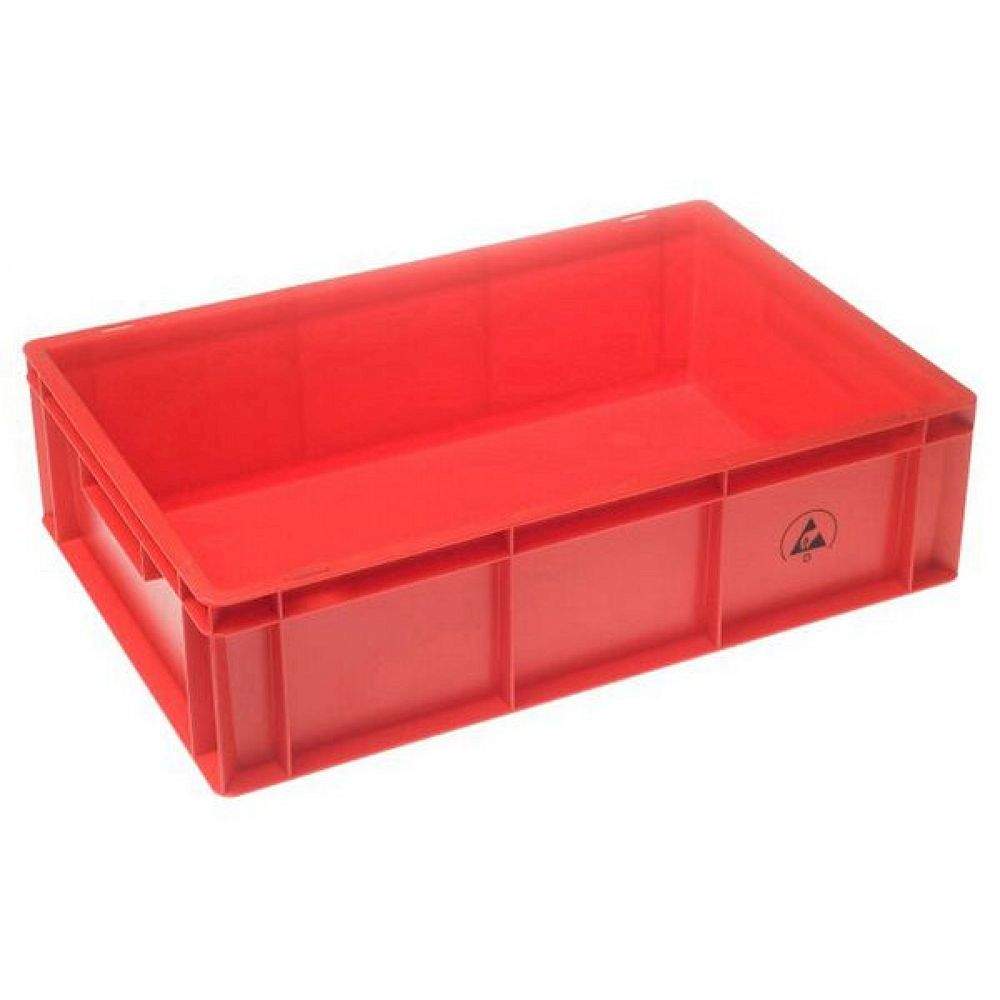

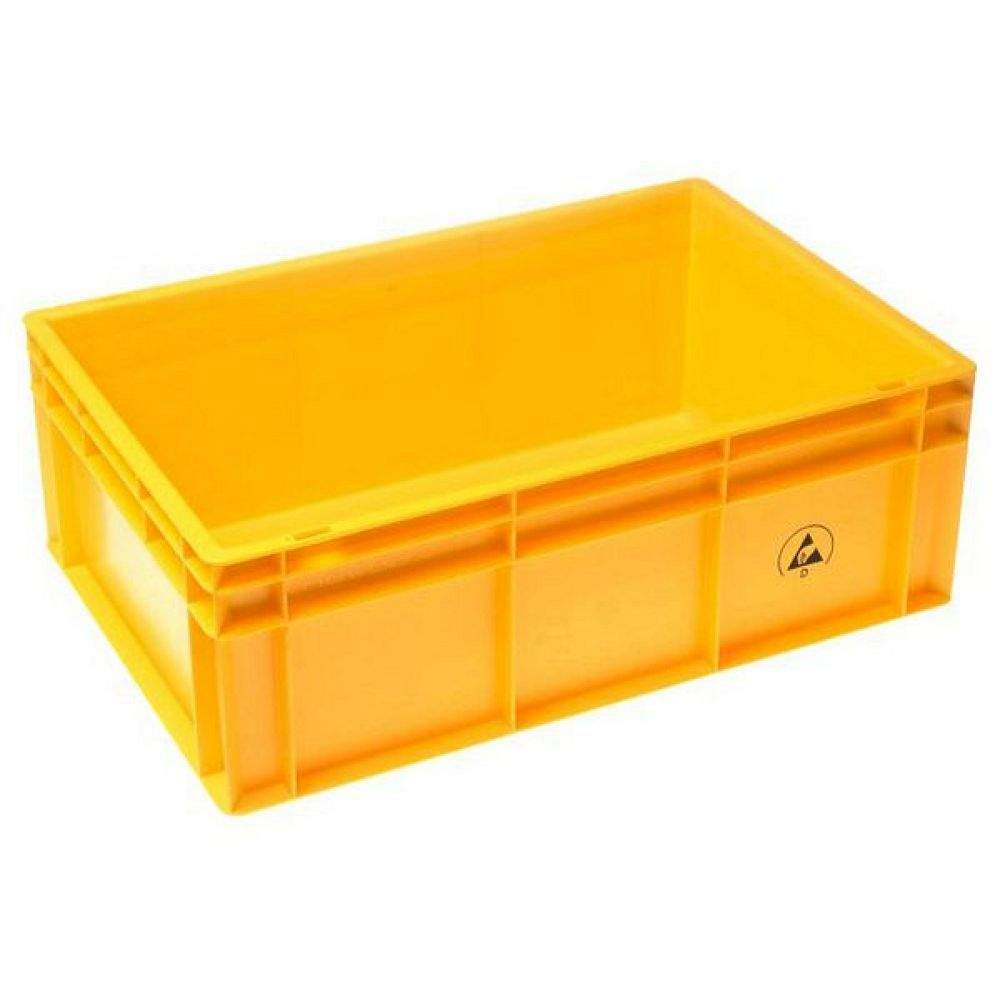

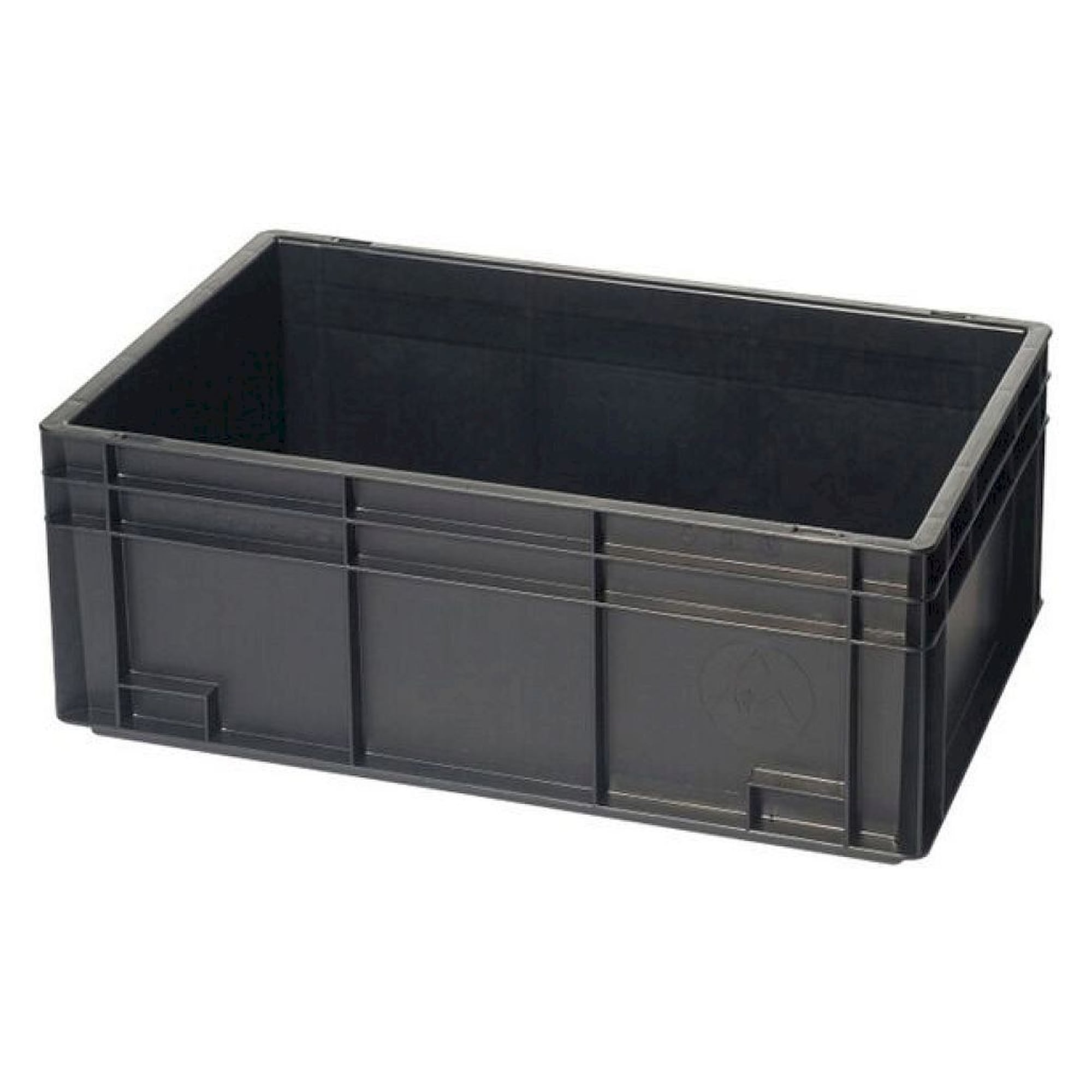

Standard ESD storage containers form the basic equipment of the EPA zone for transporting and storing components, assemblies and PCBs. Conductive Warmbier containers of the 5310 series (dimensions 400 x 300 x 150 mm to 600 x 400 mm) and the colour-coded IDP-STAT containers (series 5311 in red and yellow) for visually differentiated material flow management are available alongside Hans Kolb CORTRONIC cross-bar containers in black. Hook lids and hinged lids complete the range for all common container formats.

⚡ Conductive (black) and dissipative (colour) - Warmbier 5310 conductive, 5311 IDP-STAT dissipative in red / yellow

✓ Formats 400x300 and 600x400 mm - Euro-norm compatible, stackable, fits standard shelving

⚙ CORTRONIC cross-bar containers - Hans Kolb 45-TSC (493 x 390 x 166 mm) and 48-TSC (562 x 355 x 150 mm) without lid

📦 Lid options - hook lids (loose, 400x300 and 600x400 mm), hinged lid as alternative

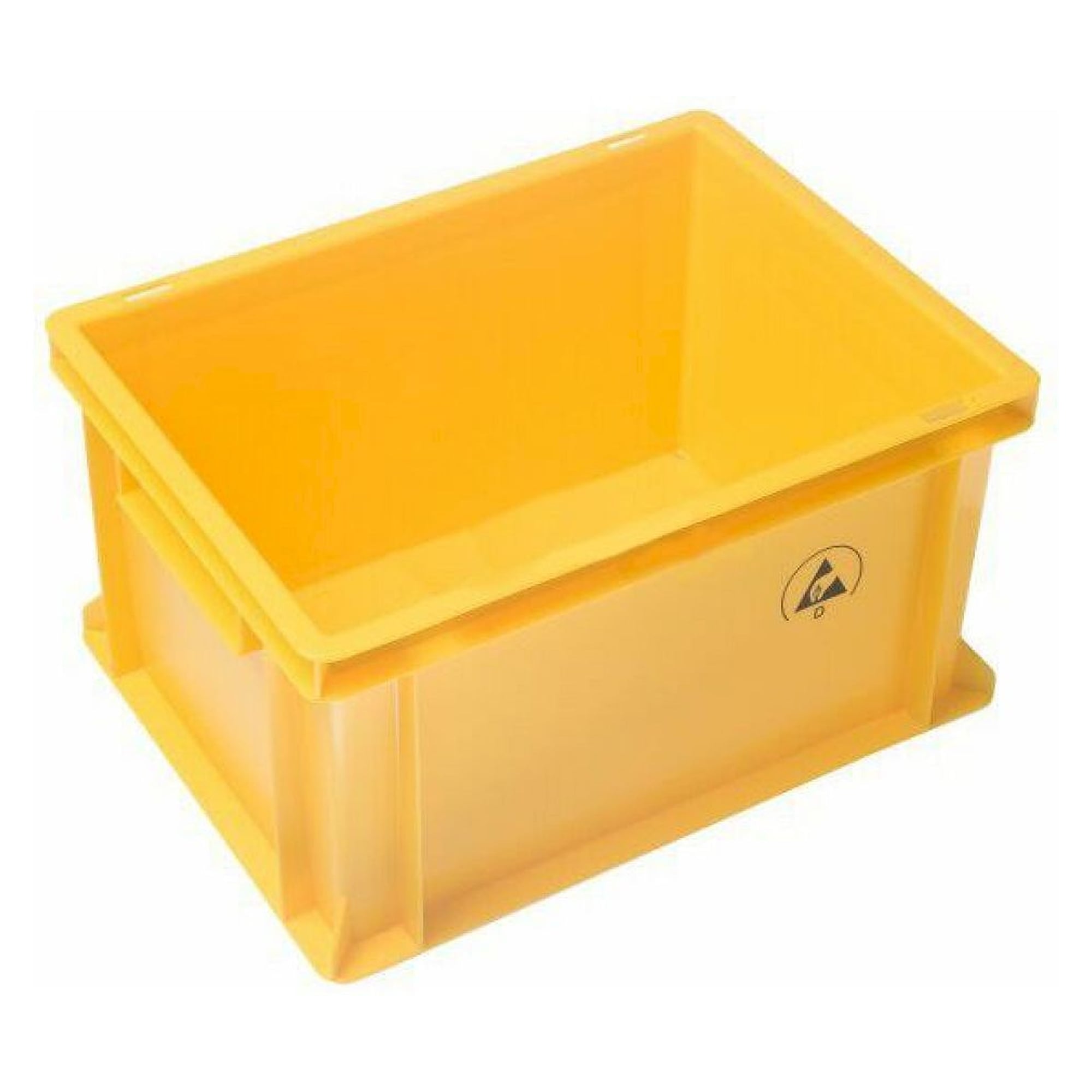

✓ Colour coding for process reliability - IDP-STAT red/yellow enables visual separation of different part types

Series	Material/Colour	Dimensions (mm)	ESD property
Warmbier 5310.31	plastic, black	400x300x320	conductive
Warmbier 5310.33	plastic, black	600x400x150	conductive
Warmbier 5311.R.14	IDP-STAT, red	400x300x170	dissipative
Warmbier 5311.R.24	IDP-STAT, red	600x400x120	dissipative
Warmbier 5311.Y.14	IDP-STAT, yellow	400x300x170	dissipative
Hans Kolb 45-TSC	carbon, black	493x390x166	conductive
Hans Kolb 48-TSC	carbon, black	562x355x150	conductive

Typical applications: Storage and transport of ESD-sensitive components, PCBs and assemblies on shelves and transport trolleys in the EPA zone, colour-coded material flow control in kanban systems, parts staging at SMT lines, and dispatch and return of electronic components in closed-loop container circuits.
