What are the features of Bedrunka+Hirth workbench systems?

Bedrunka+Hirth workbench systems feature ergonomic designs, modularity, and durable construction, suitable for various industrial applications.

Are Bedrunka+Hirth workbenches height-adjustable?

Yes, many Bedrunka+Hirth workbenches are height-adjustable for ergonomic benefits and comfort during use.

Can I customize Bedrunka+Hirth workbench systems?

Bedrunka+Hirth offers modular designs allowing for custom solutions tailored to specific workspace needs.

Where can I purchase Bedrunka+Hirth workbench systems?

Bedrunka+Hirth workbench systems are available at ESD Equipment's online store.

What industries benefit from Bedrunka+Hirth workbench systems?

Industries such as electronics, manufacturing, and laboratories benefit from the ergonomic and efficient designs of these workbench systems.

Are Bedrunka+Hirth workbenches suitable for ESD-sensitive environments?

Yes, the workbench systems are designed for use in ESD-sensitive environments, ensuring safety and protection against static discharge.

Do Bedrunka+Hirth workbenches come with storage options?

Yes, various storage options are available to enhance the functionality of Bedrunka+Hirth workbench systems.

Workbench systems

Workplace Systems Bedrunka+Hirth

Bedrunka+Hirth Werkbanksysteme are engineered for demanding industrial assembly environments, combining steel-welded frames with ESD-compliant worktop surfaces that achieve surface resistances of 10⁶-10¹¹ Ω in accordance with IEC 61340-5-1. Row workbenches and box workbenches are available in two standard depths - 600 mm and 750 mm - allowing precise adaptation to workstation footprints from compact single-operator positions up to continuous group workstation lines. Worktops withstand static loads exceeding 500 kg per running metre and are available in HPL, linoleum, and ESD-laminate finishes with integrated grounding points.

As an authorised distributor for Bedrunka+Hirth, esd.equipment stocks over 1,061 configured workbench variants ready for order - spanning row workbenches, box workbenches with drawer cabinets, group workstations, multi-wall superstructure frames, and individual worktop panels. All systems are type-tested and documented for EPA-compliant workstation integration per DIN EN 61340-5-1 and DIN EN 61340-5-2.

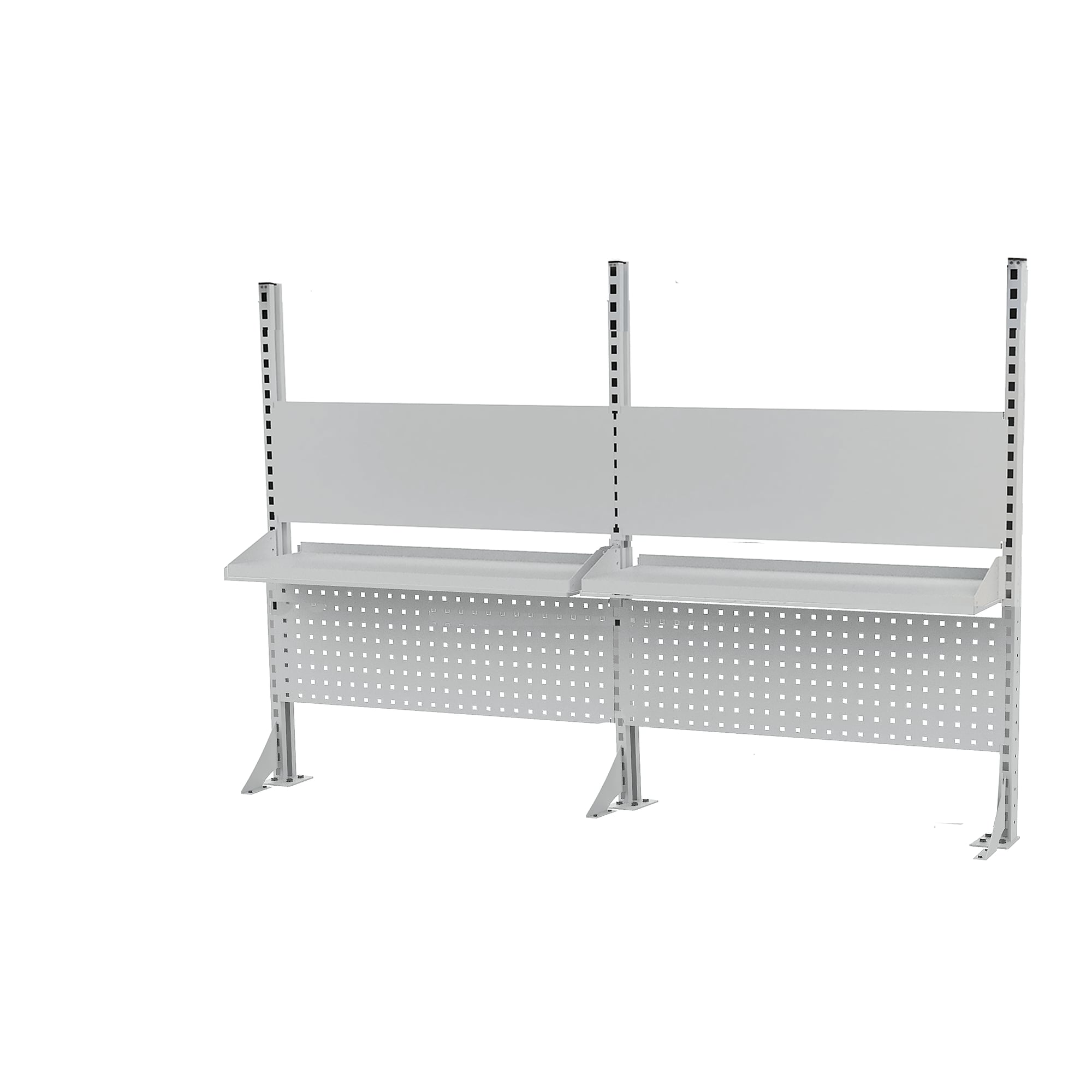

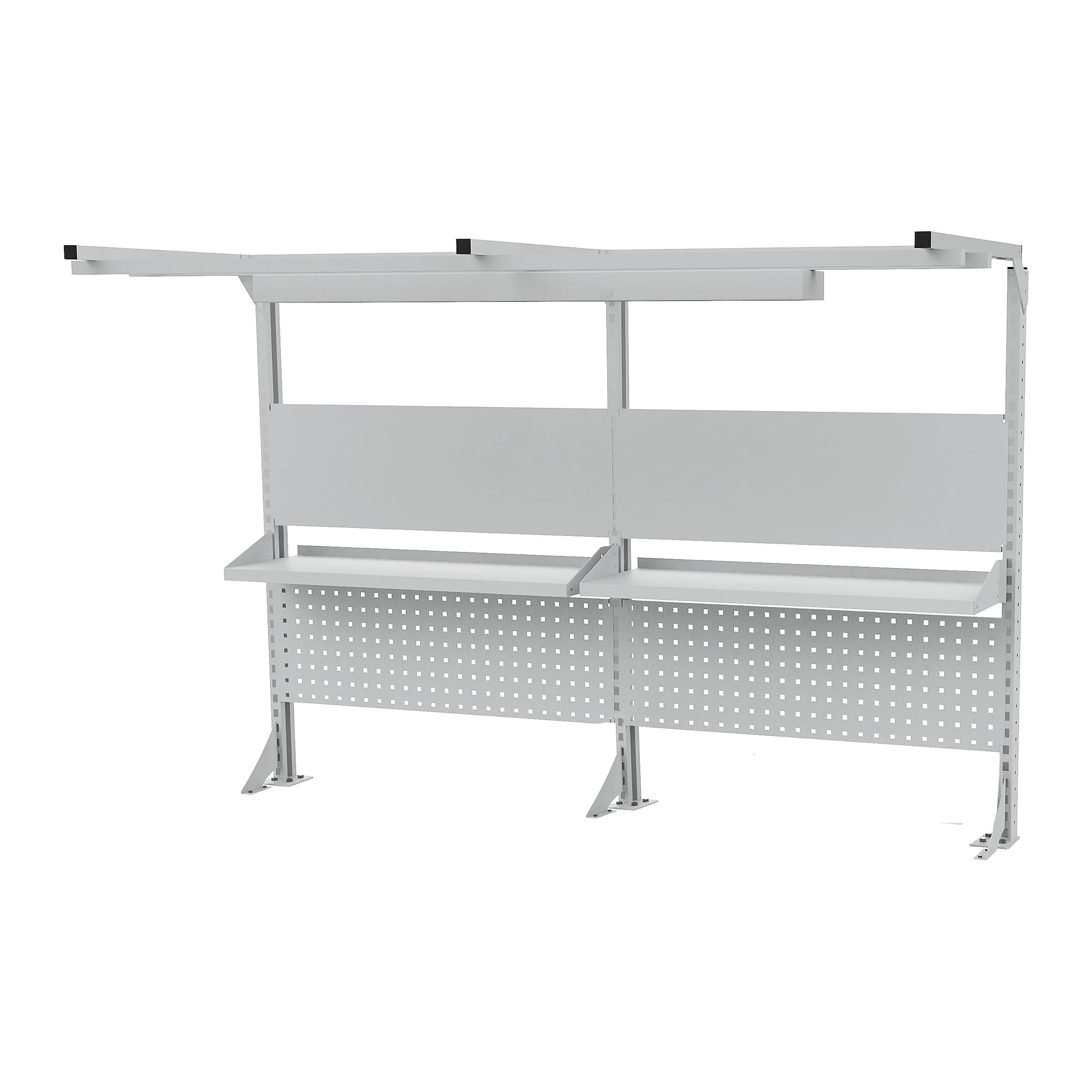

Group workstations Back-to-back and L-linked bench configurations for multi-operator EPA lines Row workbenches 750 mm Open-frame row benches, 750 mm depth, ESD worktop, modular widths 1,000-2,000 mm Box workbenches 600 mm Closed-base cabinets, 600 mm depth, integral drawer units, ESD-grounded steel carcass Row workbenches 600 mm Slim-profile open bench, 600 mm depth, height-adjustable feet, ESD laminate top Box workbenches 750 mm Deep closed-base bench, 750 mm depth, locking drawers, load rating up to 500 kg/m Multi-Wall Structure Perforated superstructure uprights and shelves, tool rails, monitor arms, cable routing Worktops HPL and ESD-laminate panels, R: 10⁶-10¹¹ Ω, IEC 61340-5-1 compliant, cut-to-size

Key technical advantages - Werkbanksysteme at a glance

⚡ 10⁶-10¹¹ Ω surface resistance - ESD worktops tested per IEC 61340-5-1

↕ 600 mm and 750 mm depths - two standard footprints for any workstation layout

🛠 Steel-welded frame construction - powder-coated, load-rated for heavy assembly tasks

⚙ Modular widths 1,000-2,000 mm - row and box benches combine into continuous lines

🛡 EPA-grounded system earthing - integrated grounding studs, <3.5 x 10⁷ Ω total resistance

✓ DIN EN 61340-5-2 documented - type-test certificates included for audit compliance

Bedrunka+Hirth Werkbanksysteme - Product overview

Series	Depth	Base type	ESD worktop	Key feature
Row workbench	600 mm	Open frame	ESD laminate	Space-efficient, adjustable feet
Row workbench	750 mm	Open frame	ESD laminate	Deep work surface, tool overhang clearance

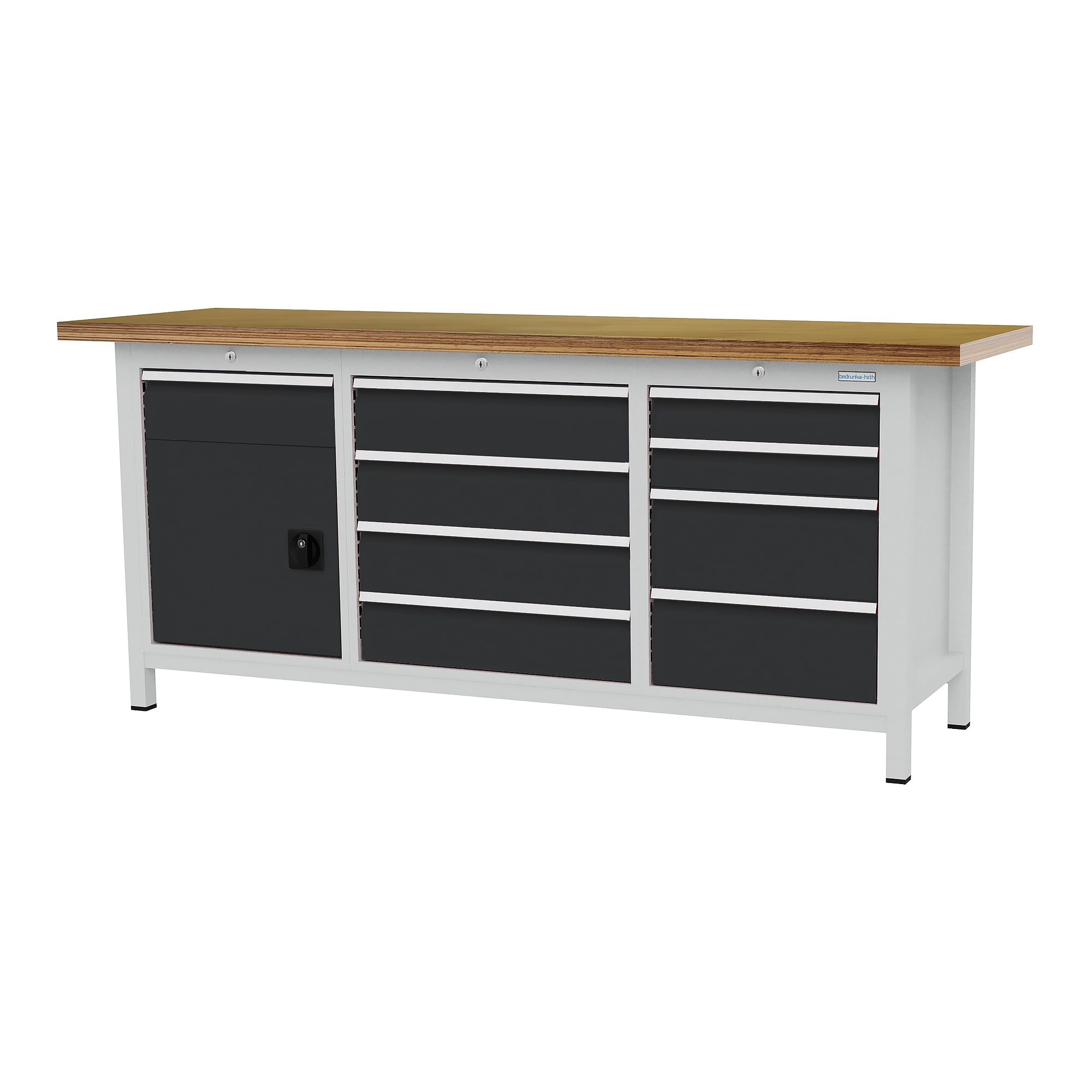

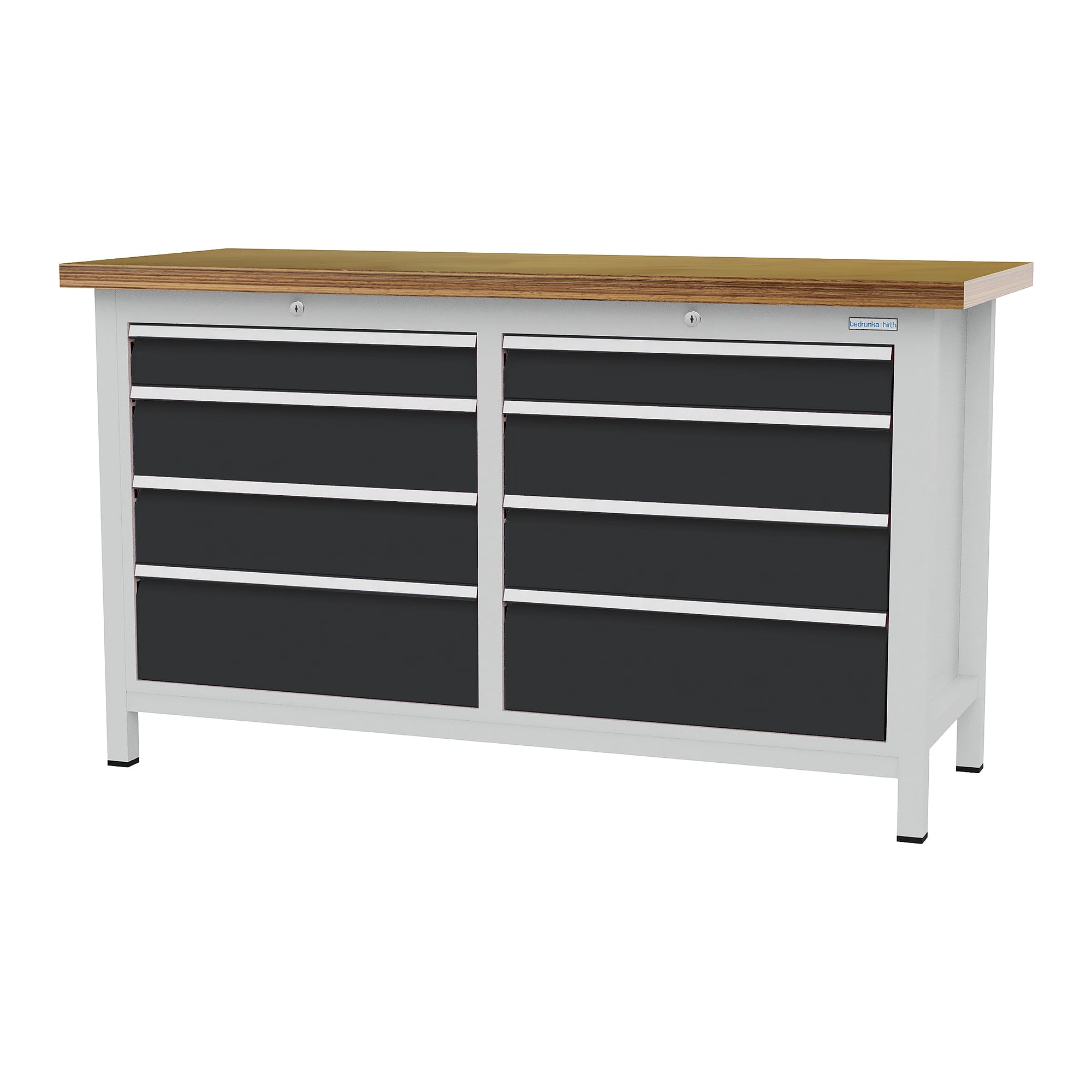

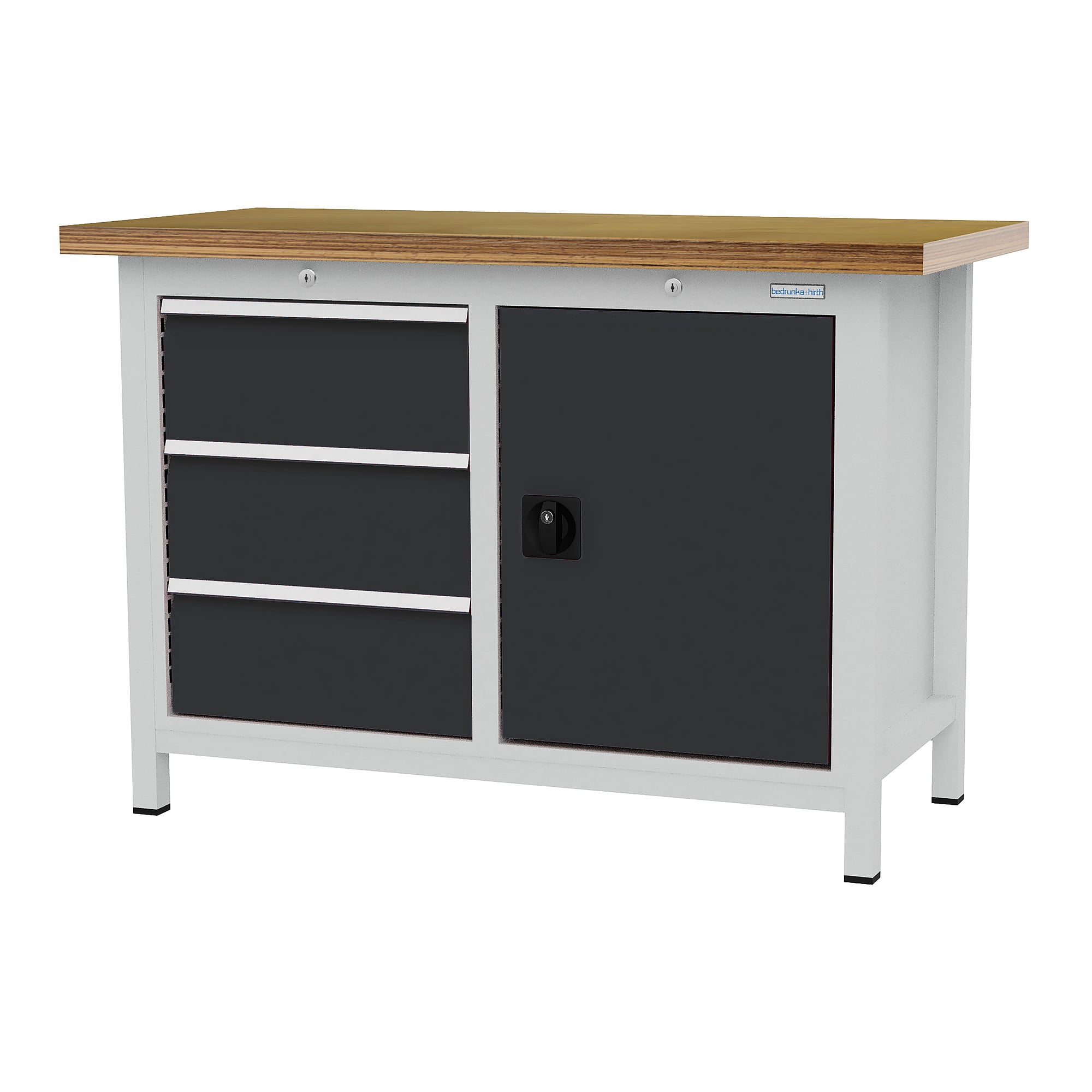

Box workbench	600 mm	Closed cabinet	ESD laminate / HPL	Integrated drawers, locking option
Box workbench	750 mm	Closed cabinet	ESD laminate / HPL	High load rating, up to 500 kg/m
Group workstation	600 / 750 mm	Linked multi-station	ESD laminate	Back-to-back or L-config, shared EPA earthing
Multi-Wall Structure	Any bench	Superstructure upright	N/A - accessory	Perforated rails, shelves, monitor/tool mounts
Worktops	Cut-to-size	Panel only	HPL / ESD laminate	10⁶-10¹¹ Ω, replacement or retro-fit use

Typical application areas: Electronics manufacturing and SMT assembly (IEC 61340-5-1, IPC-A-610), semiconductor back-end and test operations (SEMI S1/S2), medical device manufacturing (ISO 13485), automotive electronics assembly (IATF 16949, VDA 6.3), aerospace and defence MRO (AS9100), precision mechanics and laboratory workstations requiring documented EPA environments.

✓

1,061+ variants in stock Row, box, group workbenches and worktops from Bedrunka+Hirth

📦

Fast delivery across Europe Standard bench configurations dispatched from central warehouse stock

🛡

IEC 61340-5-1 / -5-2 certified Full EPA documentation and type-test certificates supplied with every system
