What is an ESD wrist strap?

An ESD wrist strap is a device worn on the wrist that prevents static electricity buildup by grounding a person.

How do ESD wrist straps work?

ESD wrist straps work by connecting the wearer's skin to ground, safely discharging any static electricity.

Why are ESD wrist straps important?

ESD wrist straps are crucial for preventing damage to sensitive electronic components due to static discharge.

Can ESD wrist straps be adjusted?

Yes, most ESD wrist straps are adjustable to ensure a snug and effective fit for different wrist sizes.

Are ESD wrist straps reusable?

Yes, ESD wrist straps are typically reusable and durable, designed for long-term use.

What materials are ESD wrist straps made of?

ESD wrist straps are commonly made from conductive fibers, elastic bands, and metal grounding components.

Do ESD wrist straps require maintenance?

Regular inspection and cleaning are recommended to ensure ESD wrist straps maintain their effectiveness.

Wrist Straps

Grounding systems

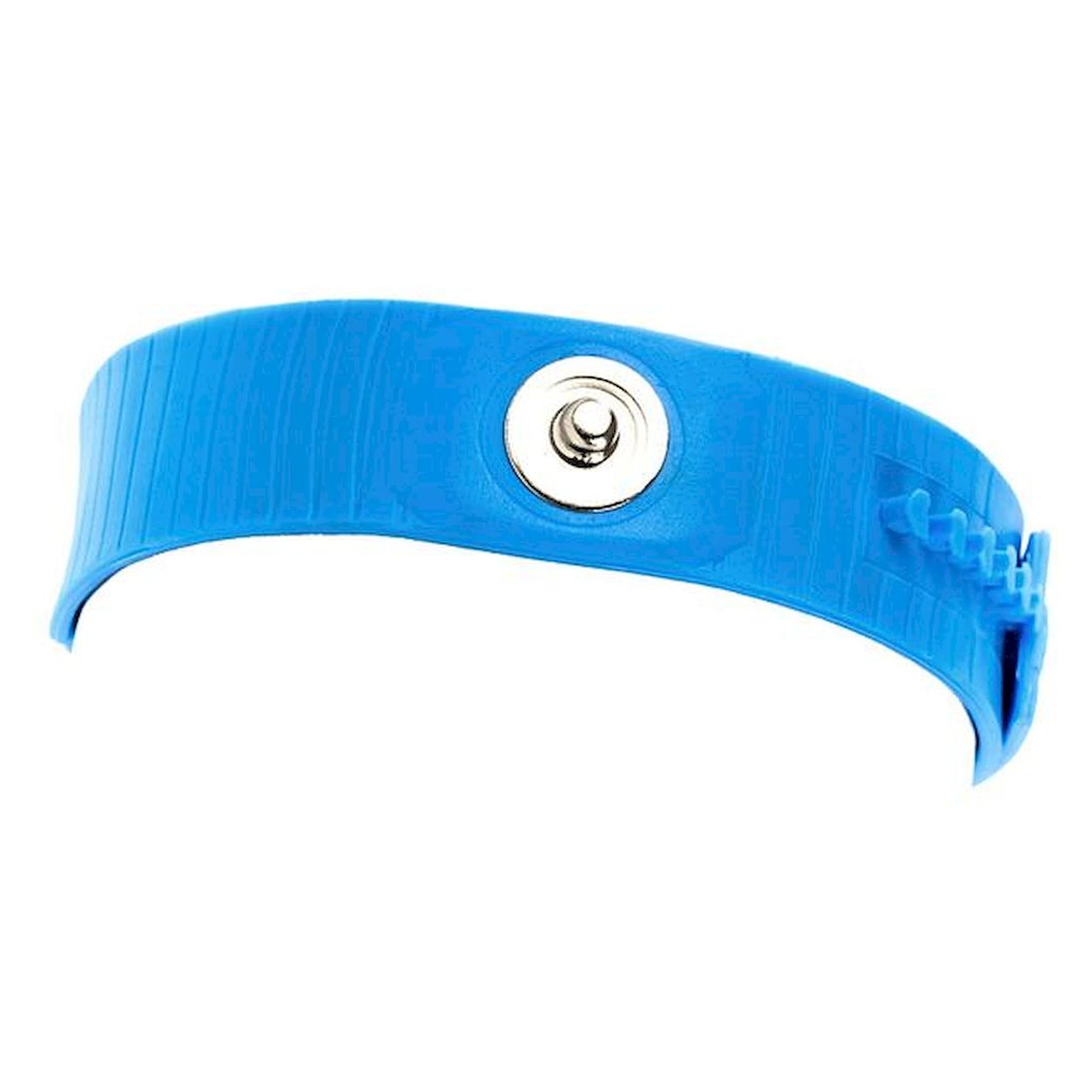

ESD wrist straps provide the direct dissipation path from the wrist to earth and are the most widely used personnel grounding device under DIN EN 61340-5-1. The range includes fabric wrist straps (dual-conductor, adjustable) and metal straps (stainless-steel backing) from DESCO, as well as colour-coded plastic straps with 3-mm, 7-mm, and 10-mm snap connectors in yellow, red, light blue, and dark blue. Anti-allergenic versions with reduced metal content are also available.

Dual-conductor straps such as the DESCO 4720 (thermoplastic) and DESCO 60677 (metal, MagSnap) allow simultaneous monitoring on two channels at the ESD workstation monitor. Coiled cords with 4-mm and 10-mm snap connectors secure the connection to the ground wire.

⚡ Dual-conductor technology - two conductors for redundant monitoring at the ESD monitor

⚙ Snap connector 3/7/10 mm - standardised interfaces, compatible with all grounding cords

↕ Metal and fabric versions - stainless-steel straps (DESCO) and adjustable fabric straps

✓ Anti-allergenic versions - reduced metal content for sensitive skin

✓ DIN EN 61340-5-1 - compliant dissipation resistance, total resistance < 3.5 x 10⁷ Ω

Model	Material	Snap connector	Feature
DESCO 2368	Dual-conductor fabric	Adjustable	Standard fabric strap
DESCO 4720	Thermoplastic, dual-conductor	Adjustable	Robust plastic version
DESCO 60677 MagSnap	Metal, dual-wire	Magnetic closure	Easy on/off
Fabric strap DK10/DK4	Fabric, anti-allergenic	10 mm / 4 mm	Colour: yellow, red, blue
Metal strap stainless	Stainless-steel backing	10 mm / 4 mm	Durable, easy to clean

Typical applications: Electronics and SMT assembly at ESD workstations with continuous monitors; repair and rework of sensitive assemblies; wafer handling and semiconductor fabrication; laboratories and test stations with EPA zoning; training and audit areas where verifiable personnel grounding is mandatory.

✓ Norm-compliantDIN EN 61340-5-1, IEC 61340

⚙ DESCO qualityDual-conductor, thermoplastic & metal
