Adhesive Tape
Marking and labels
ESD adhesive tapes provide controlled static dissipation at joints, transitions, and floor markings within EPA zones. The range covers Kapton (polyimide) tape in widths of 10-25 mm on 33-m rolls, antistatic crepe tape in 12/24/48 mm on 55-m rolls, yellow PVC tape (12.7 mm and 25.4 mm), and transparent ESD tape for unobtrusive bonding. Paper tapes with EPA labelling in German/English and GRID tapes with PP surface complete the assortment.
Floor marking tapes (50 mm wide, PVC or PP film, 25-66 m rolls) permanently delineate ESD-protected areas per DIN EN 61340-5-1. Warmbier products such as the IDP-STAT PVC tape and the GRID series round out the programme. A label dispenser (100 mm) for roll preparation is also available.
| Type | Material | Widths (mm) | Roll length |
|---|---|---|---|
| Kapton tape (polyimide) | Polyimide, heat-resistant | 10/20/25 | 33 m |
| Antistatic crepe tape | Crepe paper, ESD coating | 12/24/48 | 55 m |
| GRID tape (Warmbier) | PP surface, grid pattern | 12/18/24/48 | 36 m |
| PVC IDP-STAT tape | PVC, dissipative | 50 | 66 m |
| Transparent ESD tape | Transparent carrier | 12/24/48 | 66 m |

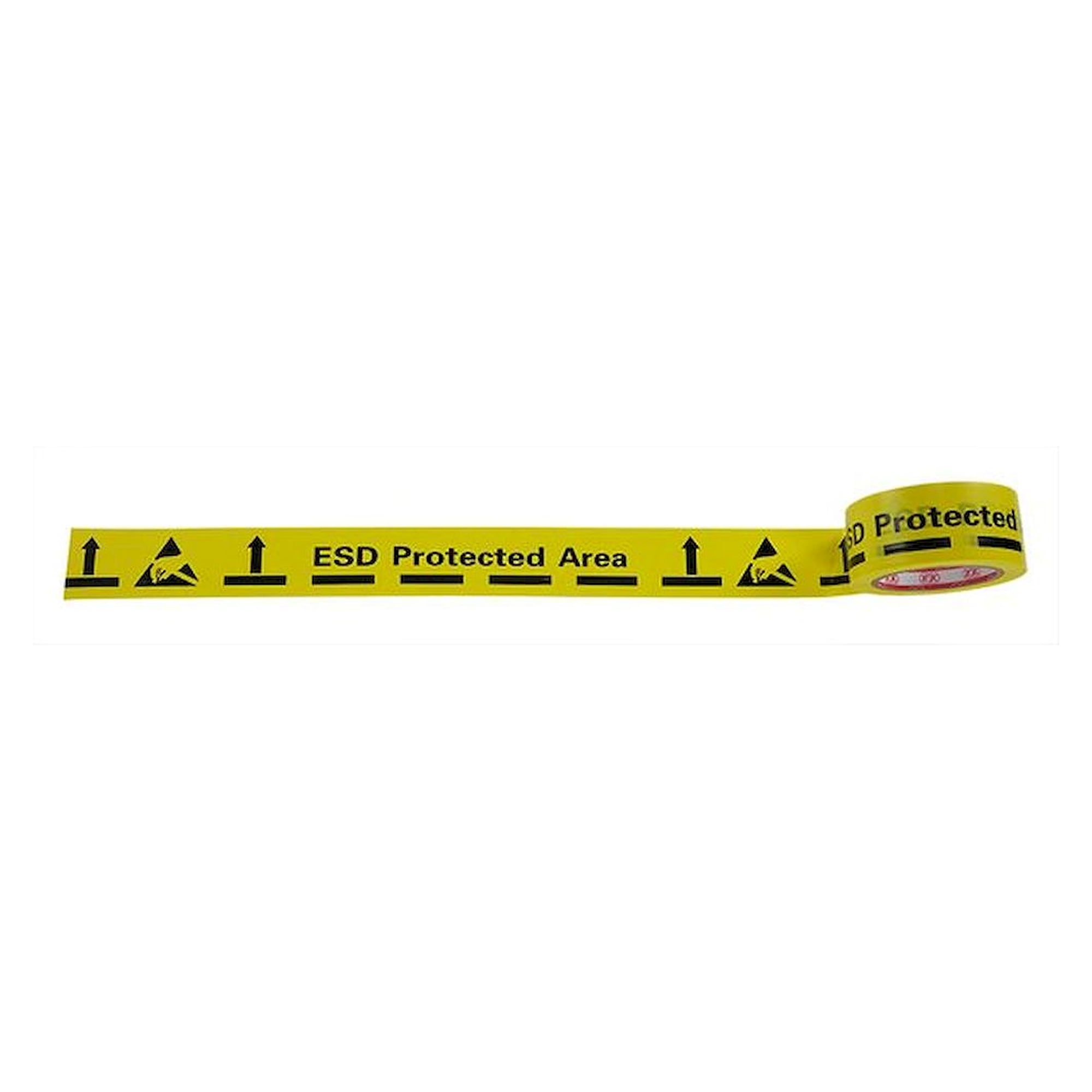

| Floor marking tape EPA | PVC or PP film | 50 | 25/33/66 m |
| Paper tape DE/EN | Paper, yellow, labelled | 38/50 | 66 m |
Typical applications: Sealing and marking EPA zones on floors, shelving, and work surfaces; securing and insulating cable connections in pick-and-place machines; masking during SMT soldering and reflow processes (Kapton); labelling ESD packaging; securing component carriers and magazines.
