Hand magnifiers and optical magnification aids allow rapid visual inspection without a stand or digital infrastructure. The Eschenbach range extends from watchmaker's loupes (plano-convex 3x-10x, aspheric 10x) through folding loupes with metal or plastic housing (aplanatic 6x-12x, achromatic up to 12x) to stand magnifiers and illuminated models for continuous use. For hands-free work, head and clip-on loupes (laboComfort binocular 2x, laboCLIP binocular 2x) and scale loupes with 7x or 10x magnification with calibrated measuring insert are available.

🔍 Plano-convex and aspheric watchmaker's loupes - 3x (12 dpt.), 5x (20 dpt.), 7x (27.7 dpt.), 10x (40 dpt.), aspheric 10x (40 dpt.); diameter 25 mm; for precision engineering and electronics

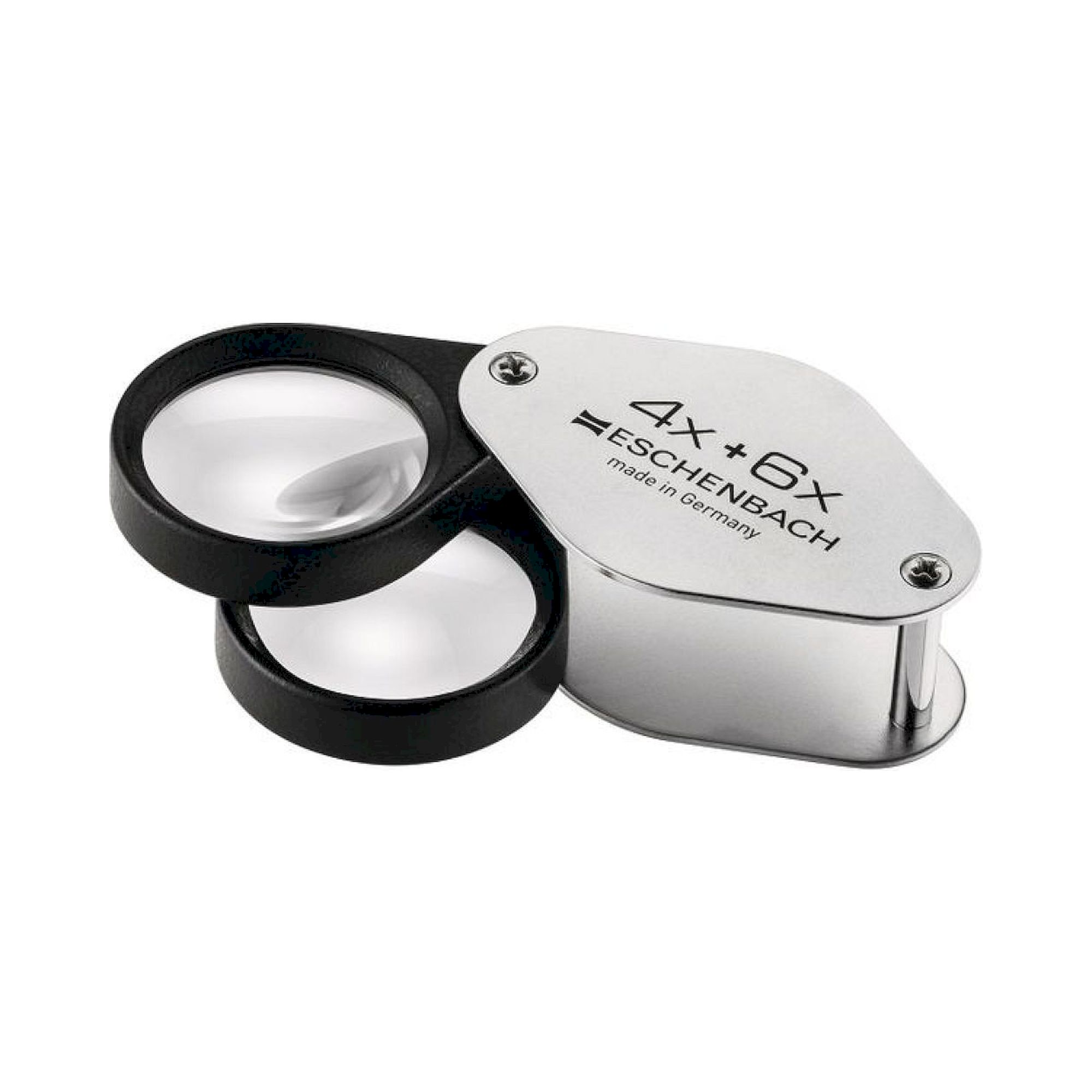

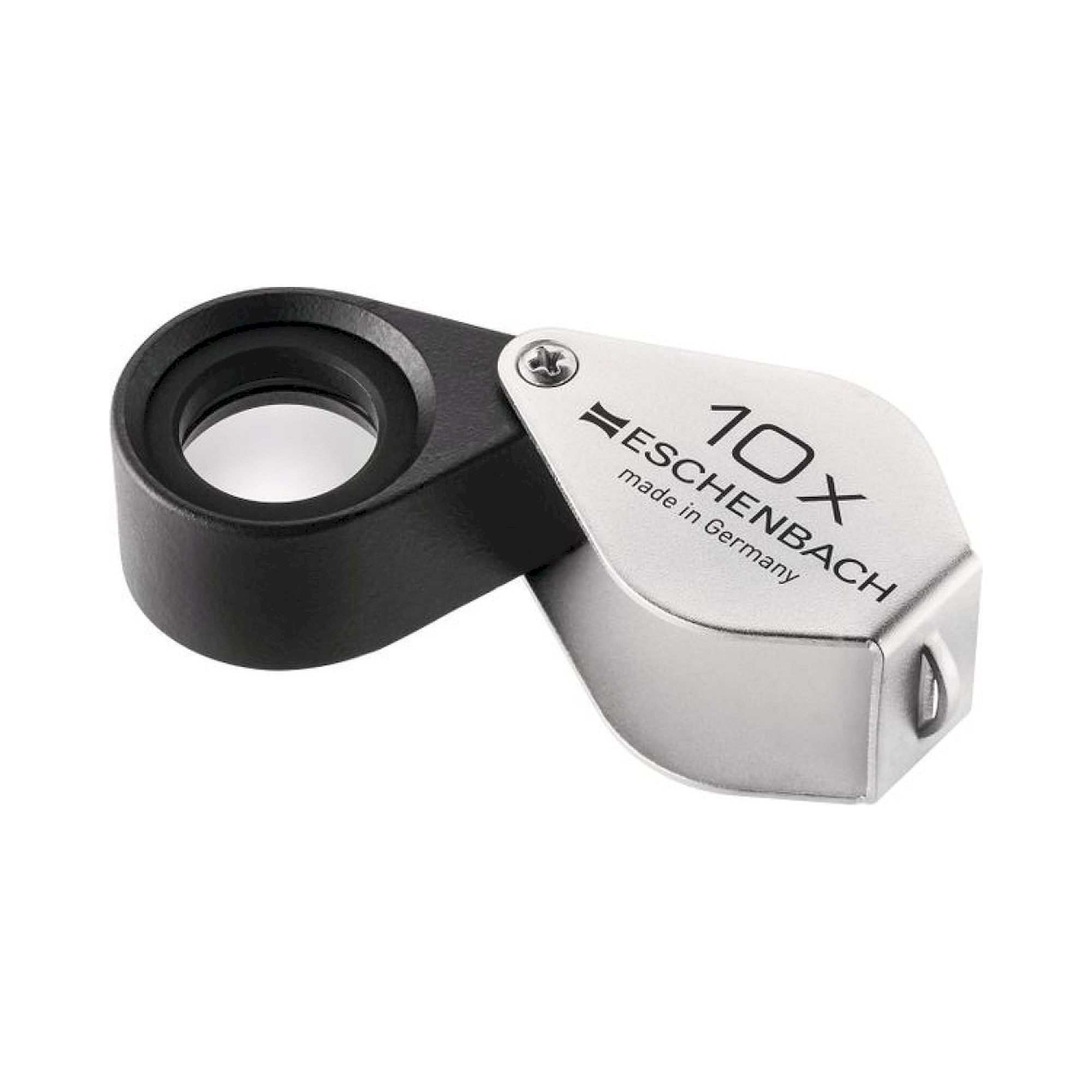

⚙ Aplanatic and achromatic folding loupes - metal: 6x, 8x, 10x (D=21 mm), 12x (D=15 mm); plastic: 10x (D=21 mm); achromat 3x+6x=9x; biconvex 4x+6x=10x; folding design

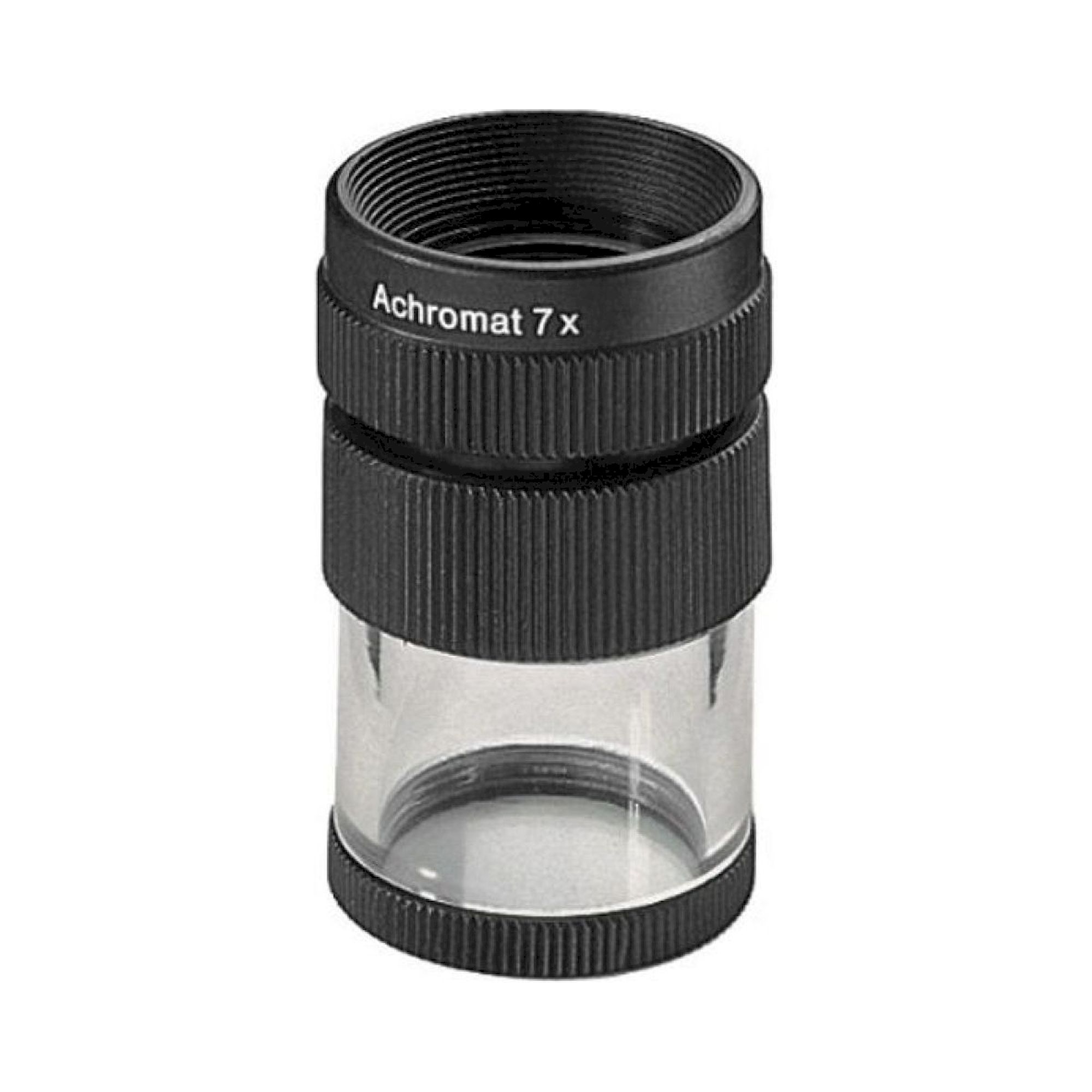

📌 Achromatic scale loupes - 7x (28 dpt.) and 10x (40 dpt.); calibrated measuring insert for length and distance measurement directly in the field of view

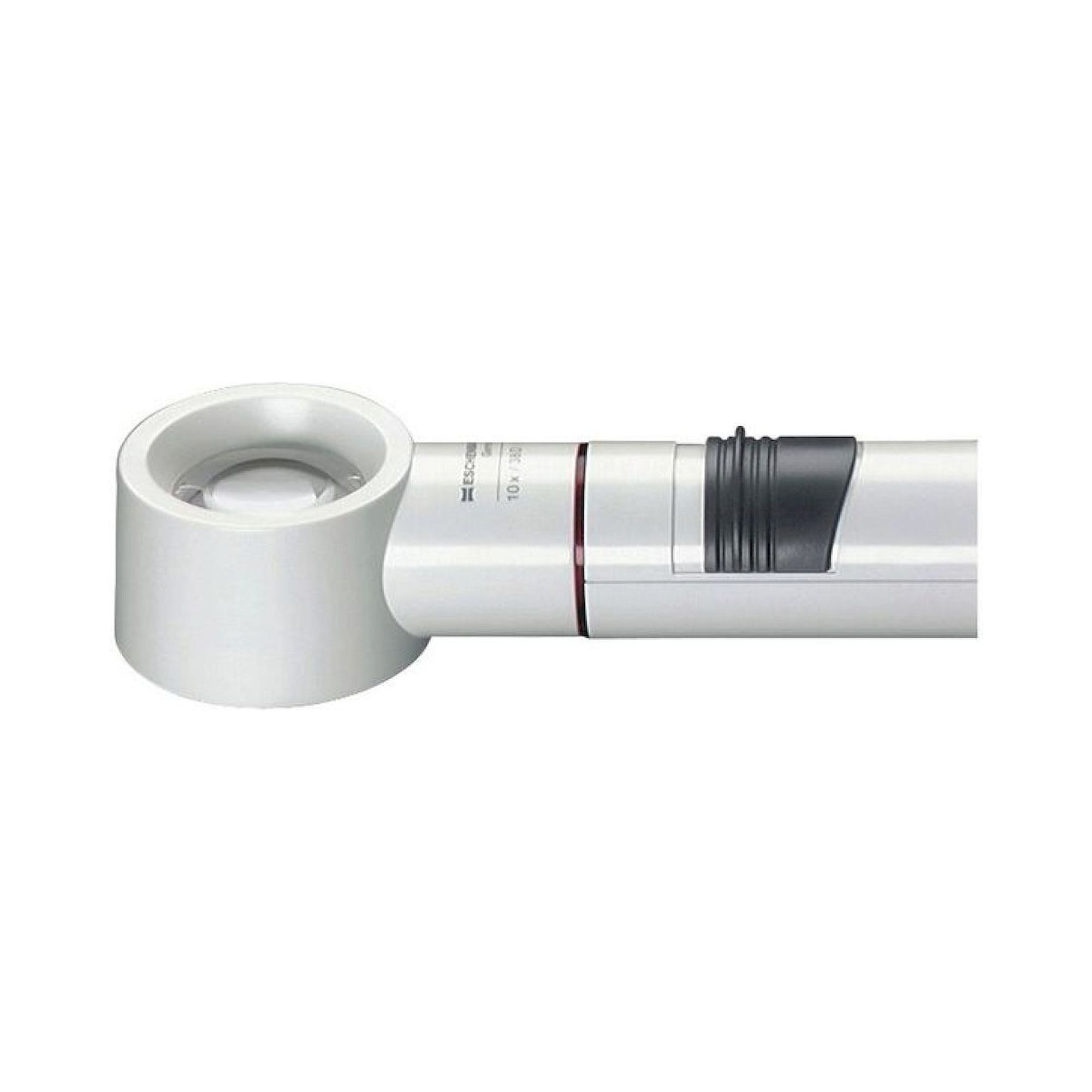

✓ Aspheric stand magnifiers - Eschenbach 2626 (6x, 23 dpt., D=50 mm), 2628 (10x, 38 dpt., D=35 mm), varioPLUS aspheric 10x illuminated; for hands-free work

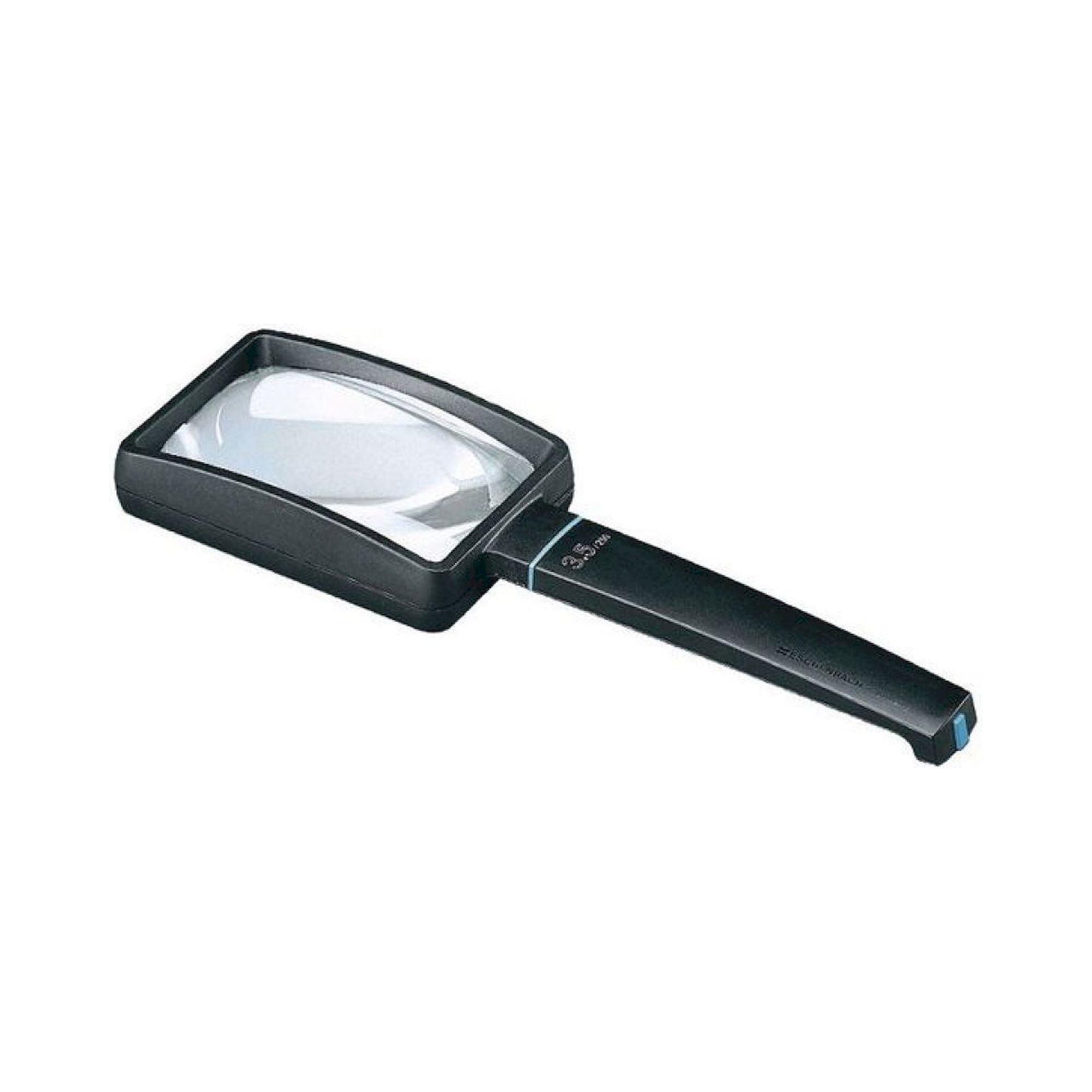

🛠 Aspheric II aplanatic reading glasses - 3.5x (70x50 mm), 4x (D=70 mm), 5x (D=58 mm), 6x (D=50 mm); large illuminated field of view for low magnification

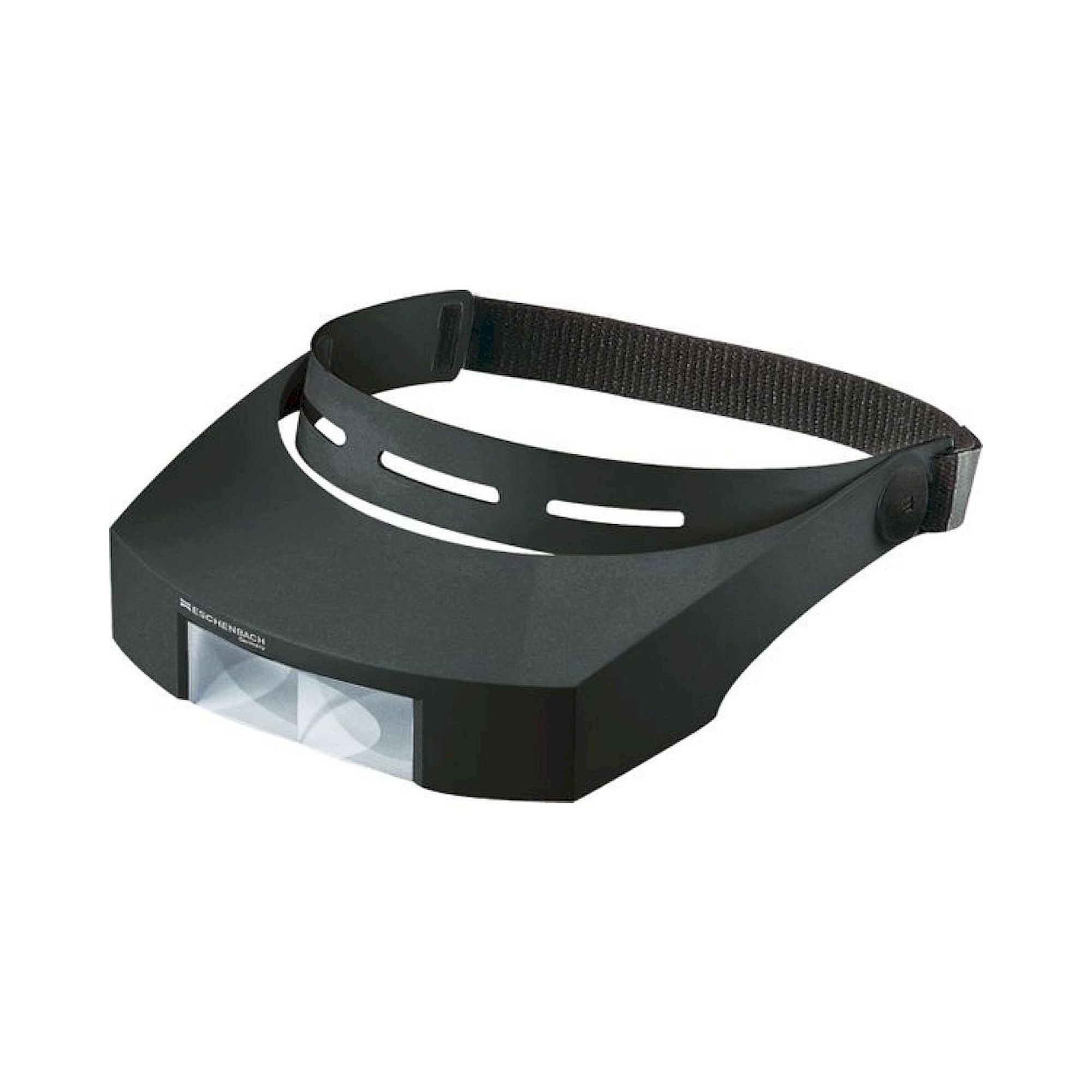

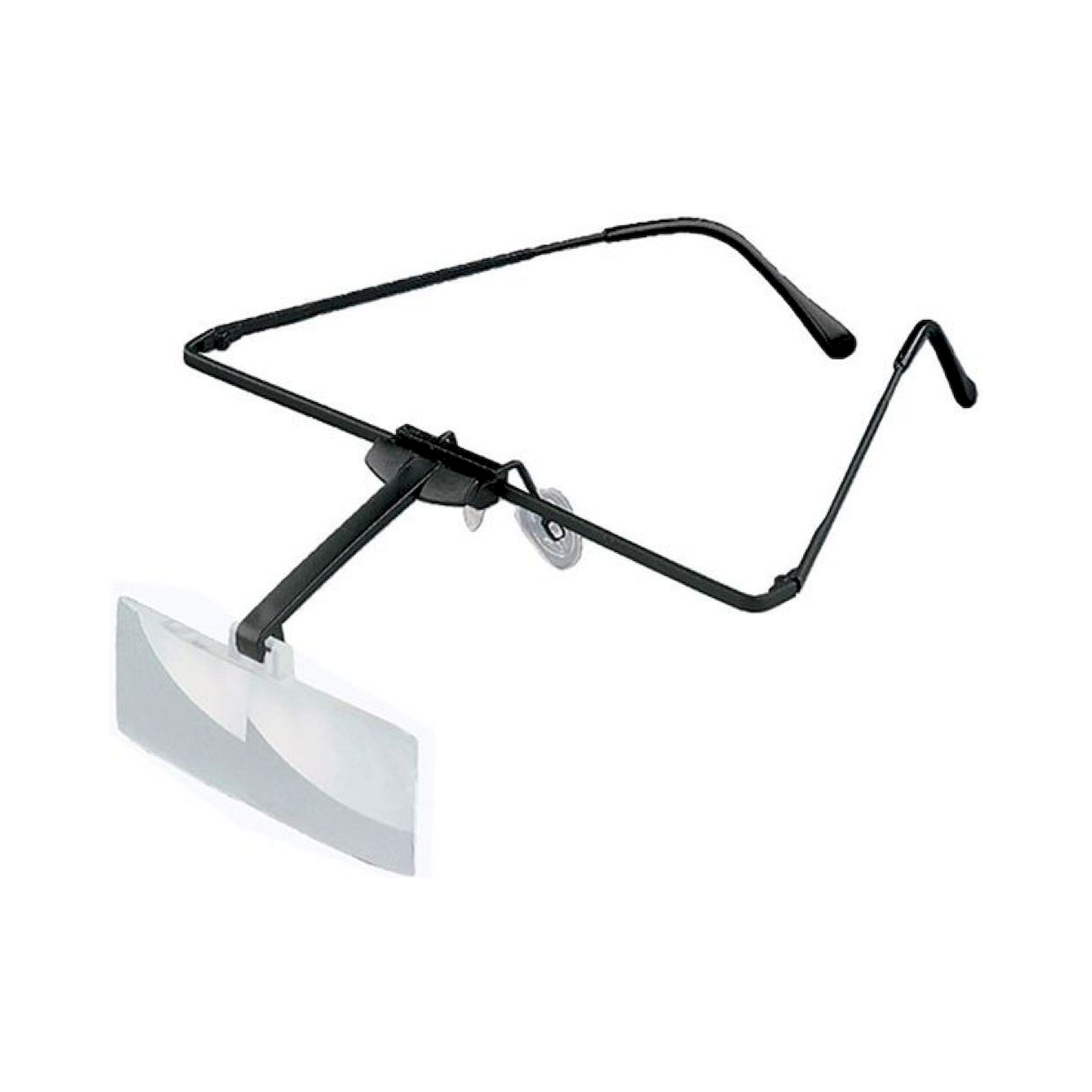

💾 Head and clip-on loupes - laboComfort binocular 2x (164820), laboCLIP binocular 2x (164620); hands-free binocular work for fine soldering and inspection

Model / series	Magnif.	Type	Diameter	Application
Eschenbach 11243-11247	3x-7x	Watchmaker's loupe, plano-convex	25 mm	Precision engineering, watches
Eschenbach 1124110	10x aspheric	Watchmaker's loupe	25 mm	Electronics, SMT
Eschenbach 11766-117612	6x-12x	Folding loupe aplanatic, metal	15-21 mm	General inspection
Eschenbach 11869 / 1187	9x / 10x	Folding loupe achromat / biconvex	21-27 mm	Compact inspection
Eschenbach 115410 / 11547	7x / 10x	Scale loupe achromatic	-	Dimensional check with measuring insert
Eschenbach 164820 / 164620	2x binocular	Head / clip-on loupe	-	Hands-free fine work

Typical applications: Rapid visual inspection of solder joints, labels and component markings in electronics manufacturing, incoming goods inspection without fixed laboratory equipment, watchmaking and precision engineering, precision scale measurement with measuring eyepiece loupes, hands-free binocular inspection and component placement with head loupes, and dimensional control of small parts without calibration equipment.

What are industrial hand magnifiers and mirrors used for in manufacturing and quality control applications?

Industrial hand magnifiers and mirrors are precision optical instruments used for detailed inspection, quality control, and assembly verification in manufacturing environments. These tools enable technicians to examine component defects, verify dimensional tolerances, inspect solder joints on electronic assemblies, and perform detailed surface finish analysis. Primary industries include electronics manufacturing, precision machining, medical device production, and automotive component inspection where magnifications from 1.7x to 25x are required for critical quality assurance tasks.

What are the key technical specifications to consider when selecting industrial hand magnifiers?

Critical selection parameters include magnification power ranging from 1.7x to 25x, diopter strength measured in dpt units, and lens diameter specifications. The Eschenbach 115410 precision scale magnifier provides 10x magnification with 40 dpt strength, while binocular head magnifiers like the labo-MED series offer 2.5 dpt to 7.75 dpt options for extended use. LED illumination systems with 8000K color temperature ensure consistent lighting conditions, and lens material quality determines chromatic aberration correction for accurate color representation during inspection tasks.

Which international standards apply to industrial magnification equipment for quality control applications?

Industrial magnification equipment must comply with ISO 9001 quality management standards for manufacturing environments and IEC 60601 medical device standards when used in healthcare applications. Optical performance follows DIN 58220 standards for magnifying glasses and EN 166 personal protective equipment requirements for head-mounted systems. LED illumination components conform to IEC 62471 photobiological safety standards, ensuring safe exposure levels during extended inspection periods while maintaining consistent color rendering index values above 80 CRI.

What are the differences between handheld, stand-mounted, and head-worn magnifier types?

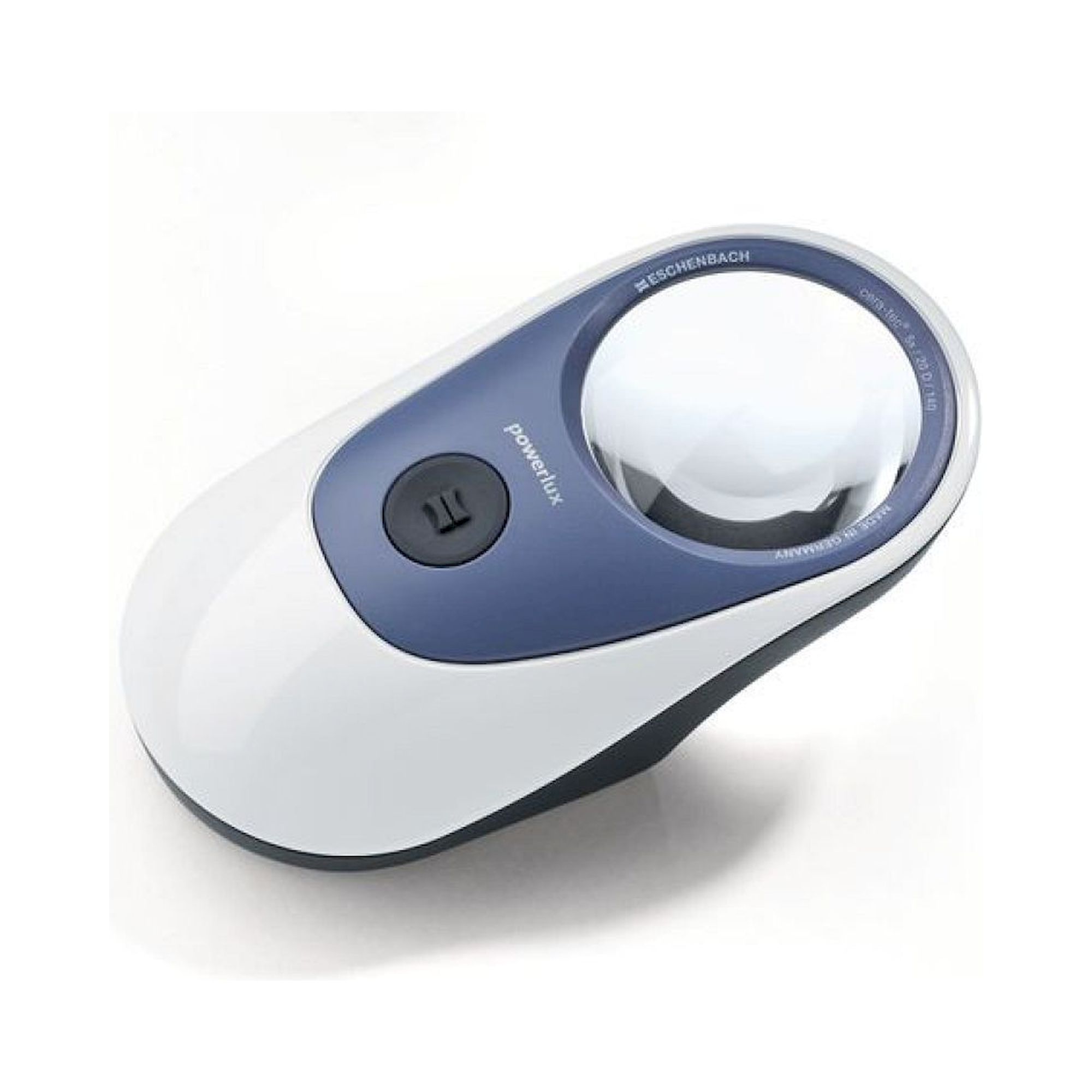

Handheld magnifiers like the Vision CAMZ-001 digital unit with 4.3-inch TFT display offer portability and 6-step magnification adjustment for flexible positioning. Stand magnifiers such as the Eschenbach 158620 powerlux provide stable 5x magnification with 58mm lens diameter for stationary workstation use, while head-worn systems like the labo-MED binocular magnifiers deliver hands-free operation with 1.7x to 3x magnification ranges. Digital models integrate image capture capabilities, while traditional optical systems offer superior resolution and reduced eye strain during extended inspection periods.

What are the installation and compatibility requirements for industrial magnification systems?

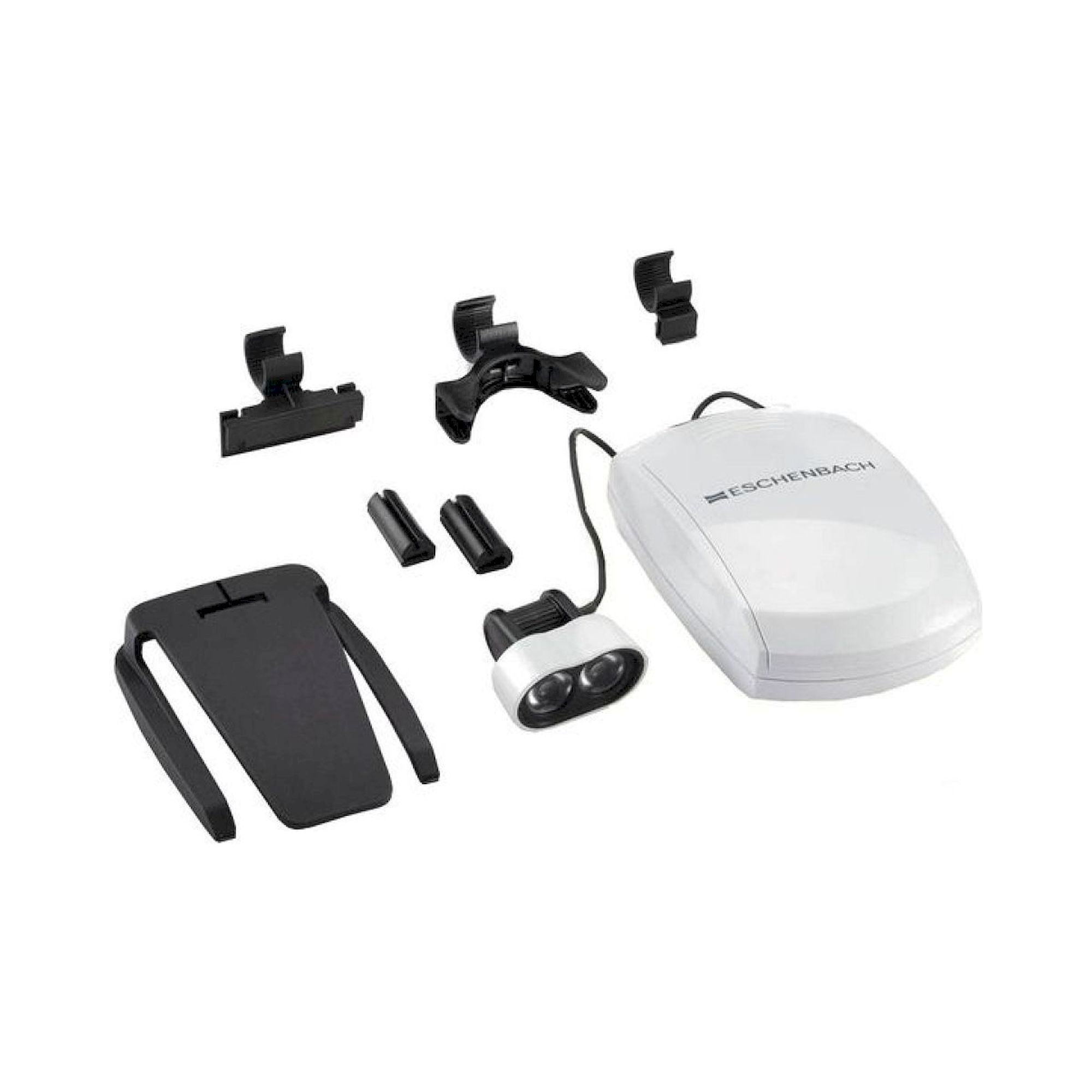

Stand-mounted magnifiers require stable work surfaces with adequate clearance for the support arm and base assembly, typically needing 300mm minimum workspace depth. Head-worn magnifiers feature adjustable headbands with clip-on LED illumination systems like the Eschenbach 16042 maxDETAIL that connect via standard electrical connections. Digital magnifiers require USB connectivity for power and data transfer, while traditional optical systems integrate directly with existing workstation lighting through compatible mounting brackets and positioning arms designed for repetitive adjustment cycles.

What are the operating environment specifications and safety ratings for industrial hand magnifiers?

Industrial magnifiers typically operate within temperature ranges of -10°C to +50°C with relative humidity tolerance up to 85% non-condensing conditions. LED illumination systems provide IP40 protection against dust ingress while maintaining consistent 8000K color temperature output over 50,000-hour service life. Optical components feature anti-reflective coatings resistant to chemical vapors commonly found in manufacturing environments, and binocular systems include adjustable interpupillary distance from 55mm to 75mm to accommodate different users safely during extended inspection tasks.

What maintenance procedures and service intervals are required for industrial magnification equipment?

Optical surfaces require weekly cleaning with lint-free cloths and approved optical cleaning solutions to maintain clarity and prevent coating damage. LED illumination systems should undergo monthly luminosity checks to verify 8000K color temperature consistency and replace units showing greater than 20% output degradation. Mechanical components including adjustment mechanisms and mounting hardware need quarterly lubrication with appropriate grades, while calibration verification against known measurement standards should occur annually to ensure magnification accuracy remains within specified tolerances for quality control applications.
