Optical inspection

Digital microscopes

Digital microscopes and video microscopes relay the magnified image to a monitor, enabling shared viewing, archiving and computer-aided evaluation without eyepieces. The range covers the Vision EVO CAM II series (ECO2501-ECO2513, ECO2CE1/2, with ergonomic stand, column stand, 360-degree optics or articulated arm stand), the Vision VE CAM series with integrated monitor (12-24 inches, optional touch), the Euromex autofocus systems MZ.4700/4705 in 4K/1080p and ultra-HD cameras (VC.3036, VC.3042-HDS, VC.3045) with up to 8.3 MP and 3840x2160 resolution.

227 items
4 manufacturers
Net prices plus VAT

View as Grid view List view

Show

per page

Buying guide

How to choose Digital microscopes

What matters when choosing: properties, comparison and typical applications.

Technical features

📺 Vision EVO CAM II - ECO2501-ECO2513 with stand variants (ergo, column, 360°, articulated arm, double arm), optional focus module; ECO2CE1/2 with articulated arm or column stand

📷 Vision VE CAM with monitor - VCM002 base unit 80x80 mm; VECM001-005 complete systems with 12/22/24-inch monitor (including 22-inch touchscreen VECM004), single and double arm stands

⚙ Euromex MZ.4700/4705 autofocus macro zoom - 4K/1080p; MZ.4705 with digital autofocus; MZ.4700-HDS with 11-inch HD screen; standard and compact stand

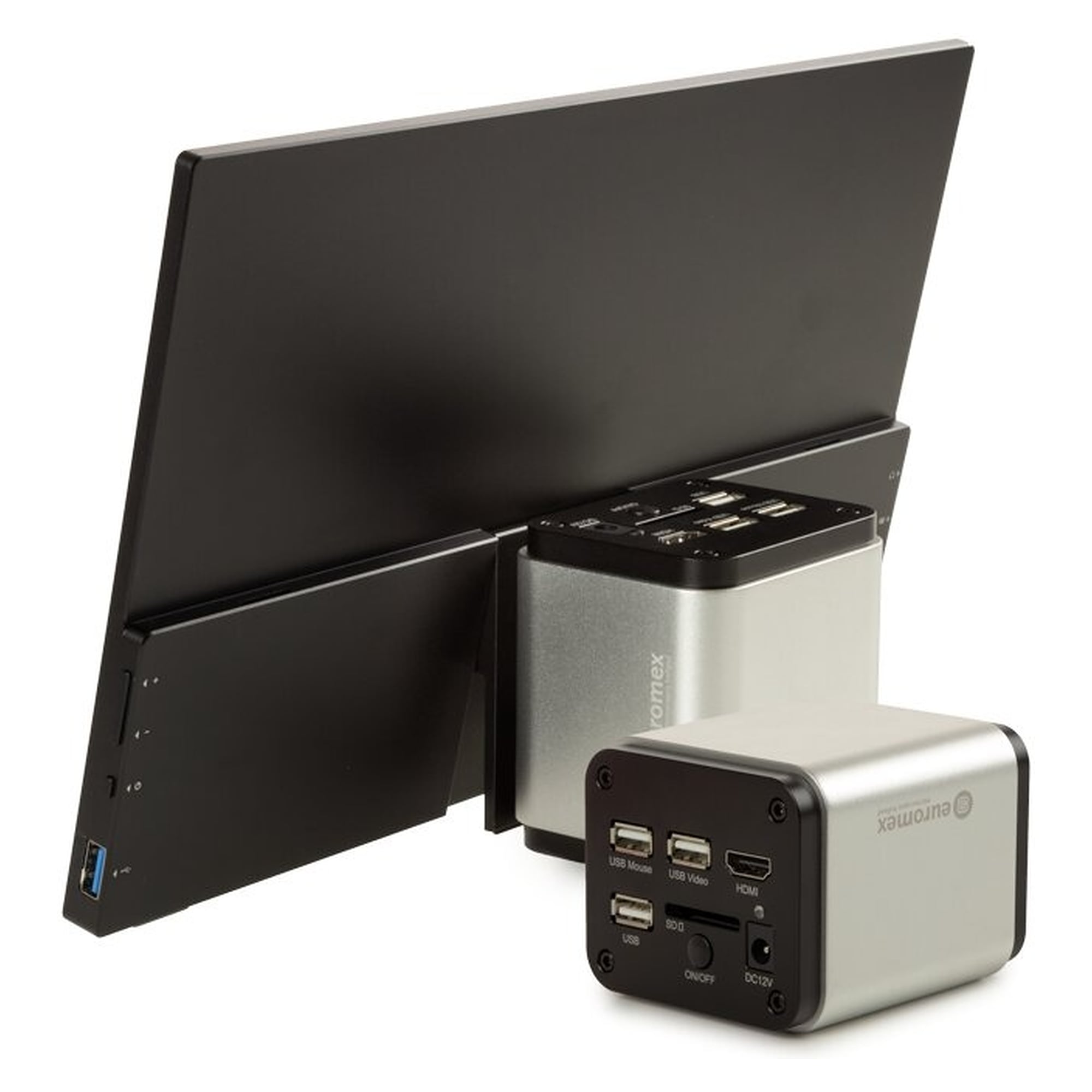

⚡ Euromex Ultra-HD camera VC.3045 - 1/1.8" CMOS 4K sensor, 8.3 MP, 2160p (3840x2160); VC.3042-HDS with 11.6-inch HD screen; VC.3036 high-end CMOS up to 60 fps

🛠 3D video microscope - without stand, with extended cable set; for flexible integration into existing inspection stations

✓ EVOCAM SX45 (Vision S-241EC) - double arm column stand with table clamp and focusing, incl. adapter EVB090; for Vision SX45 cameras

Model comparison EVO CAM II and VE CAM

Model	Stand	Feature	Monitor
Vision ECO2501	Ergonomic stand	Compact, ergonomic arm	External
Vision ECO2502	Multi-axis column stand	High positioning freedom	External
Vision ECO2503	Ergo stand, 360° optics	All-round view without turning specimen	External
Vision ECO2510	Table stand, focus module	Fine-tuning of sharpness	External
Vision ECO2513	Double arm column, focus module	Long reach arm	External
Vision VECM001	Single arm stand	24-inch monitor included	Integrated 24"
Vision VECM004	Arm stand, table clamp	22-inch touchscreen monitor	Integrated 22" touch
Euromex MZ.4705	Standard stand	Digital autofocus, 4K/1080p	Optional HDS 11"

Typical applications

Typical applications: Group inspection and training on shared monitors, image archiving and measurement in quality assurance, continuous operation on the production line without eyepiece fatigue, rework and soldering with 4K recording for documentation requirements, and dimensional gauging with calibration scale and automatic focus tracking (autofocus).

FAQ

Frequently asked questions about Digital microscopes

What are digital microscopes and what industrial applications require them for quality control?

Digital microscopes are advanced optical inspection instruments that combine traditional microscopy with digital imaging sensors to capture high-resolution images and videos of microscopic subjects. These systems are essential in electronics manufacturing for PCB inspection and component analysis, pharmaceutical quality control for tablet coating uniformity and contamination detection, automotive parts inspection for surface defect analysis, and precision machining verification where dimensional tolerances below 10 micrometers must be verified. The Vision EVO CAM II series provides magnifications from 10x to 200x with integrated LED illumination systems optimized for industrial inspection workflows.

What technical specifications should be considered when selecting digital microscopes for industrial inspection?

Key selection criteria for industrial digital microscopes include magnification range typically from 10x to 500x, sensor resolution measured in megapixels with professional systems offering 5MP or higher, working distance between 20mm and 150mm depending on sample accessibility, and illumination systems with adjustable LED intensity control. The Vision EVO CAM II models feature different stand configurations including multi-axis positioning systems, 360-degree rotating optics for complex geometries, and ergonomic designs that reduce operator fatigue during extended inspection sessions. Monitor integration options range from 12-inch portable displays to 24-inch high-resolution screens with touch interface capabilities for streamlined documentation workflows.

Which international standards and certifications apply to digital microscopes used in industrial environments?

Industrial digital microscopes must comply with ISO 9001 quality management standards for manufacturing consistency, IEC 61010-1 safety requirements for electrical test and measurement equipment, and EN 61326-1 electromagnetic compatibility standards for use in industrial environments. Systems deployed in pharmaceutical or medical device manufacturing often require validation according to FDA 21 CFR Part 11 for electronic records and signatures, while automotive applications may demand ISO/TS 16949 certification. The Vision microscope series incorporates CE marking compliance and meets RoHS directive requirements for restricted substances, ensuring regulatory conformance across European industrial markets.

How do the different Vision EVO CAM II digital microscope variants differ in their mechanical configurations?

The Vision EVO CAM II series offers distinct mechanical configurations optimized for specific inspection scenarios. The ECO2501 features an ergonomic stand design for comfortable operator positioning during extended use, while the ECO2502 incorporates a multi-axis positioning system enabling precise sample manipulation in X, Y, and Z directions. The ECO2503 variant includes 360-degree rotating optics for inspecting complex three-dimensional components from multiple angles, and the ECO2504 utilizes a multi-axis column with standard focus module for applications requiring maximum stability and positioning accuracy. Double-arm configurations like the ECO2513 provide enhanced rigidity for heavy sample mounting and vibration isolation.

What installation requirements and system compatibility considerations apply to digital microscope systems?

Digital microscope systems require stable mounting surfaces with vibration isolation capabilities, typically concrete foundations or heavy-duty optical tables for magnifications above 100x. Electrical requirements include 100-240VAC power supply with grounding connections meeting IEC 60320 standards, while data connectivity utilizes USB 3.0 or Ethernet interfaces for high-speed image transfer to analysis software. The Vision systems integrate with Windows-based measurement software platforms and support network connectivity for remote monitoring and documentation workflows. Installation spacing must accommodate monitor positioning with typical workspace requirements of 1.2 meters width by 0.8 meters depth for ergonomic operator access and sample manipulation.

What safety ratings and environmental operating conditions are specified for industrial digital microscopes?

Professional digital microscopes typically operate within temperature ranges of +5°C to +40°C with relative humidity limits of 80% non-condensing according to IEC 60068-2 environmental testing standards. The Vision EVO CAM II series features IP54 protection rating against dust ingress and water splashing, making them suitable for light industrial environments but requiring additional enclosures for harsh manufacturing conditions. LED illumination systems operate at safe voltage levels below 24VDC with current limiting protection, while optical components include UV filtering to prevent eye damage during extended observation periods. Power consumption ranges from 15W to 45W depending on monitor configuration and illumination intensity requirements.

What maintenance schedules and service life expectations apply to digital microscope systems in industrial use?

Industrial digital microscopes require monthly cleaning of optical surfaces using lint-free cloths and appropriate solvents, with quarterly calibration verification using certified reference standards to maintain measurement accuracy within ±2% tolerance. LED illumination systems typically provide 50,000 hours service life before replacement becomes necessary, while mechanical positioning components require annual lubrication and backlash adjustment procedures. The Vision systems incorporate self-diagnostic capabilities that monitor sensor performance and alert operators to calibration drift or component degradation. Complete system recalibration should be performed annually by qualified service technicians using traceable measurement standards to ensure continued compliance with quality management requirements and measurement uncertainty specifications below 5 micrometers for critical dimensional analysis applications.
