Only shielding bags form a Faraday cage. Conductive and dissipative packaging prevents charging inside, but does not protect the contents against an external field.

Browse containers

ESD Boxes

Storage boxes with open front SK

ESD open-front storage bins of the AUER ESD SK series allow visible storage of ESD-sensitive small parts in shelving and warehouse systems. The open front provides fast access to the contents without removing the bin. Nine sizes from ESD SK 1 to ESD SK 5H cover different volume and shelf-width requirements and fit into Euro-norm compatible racking systems.

11 items
2 manufacturers
Net prices plus VAT

View as Grid view List view

Show

per page

Add to Wish List Add to Compare

ESD Stackable Bin Safe-STAT yellow size 3
As low as €1.31
Add to Wish List Add to Compare

ESD Stackable Bin Safe-STAT red size 5
As low as €1.31
Add to Wish List Add to Compare

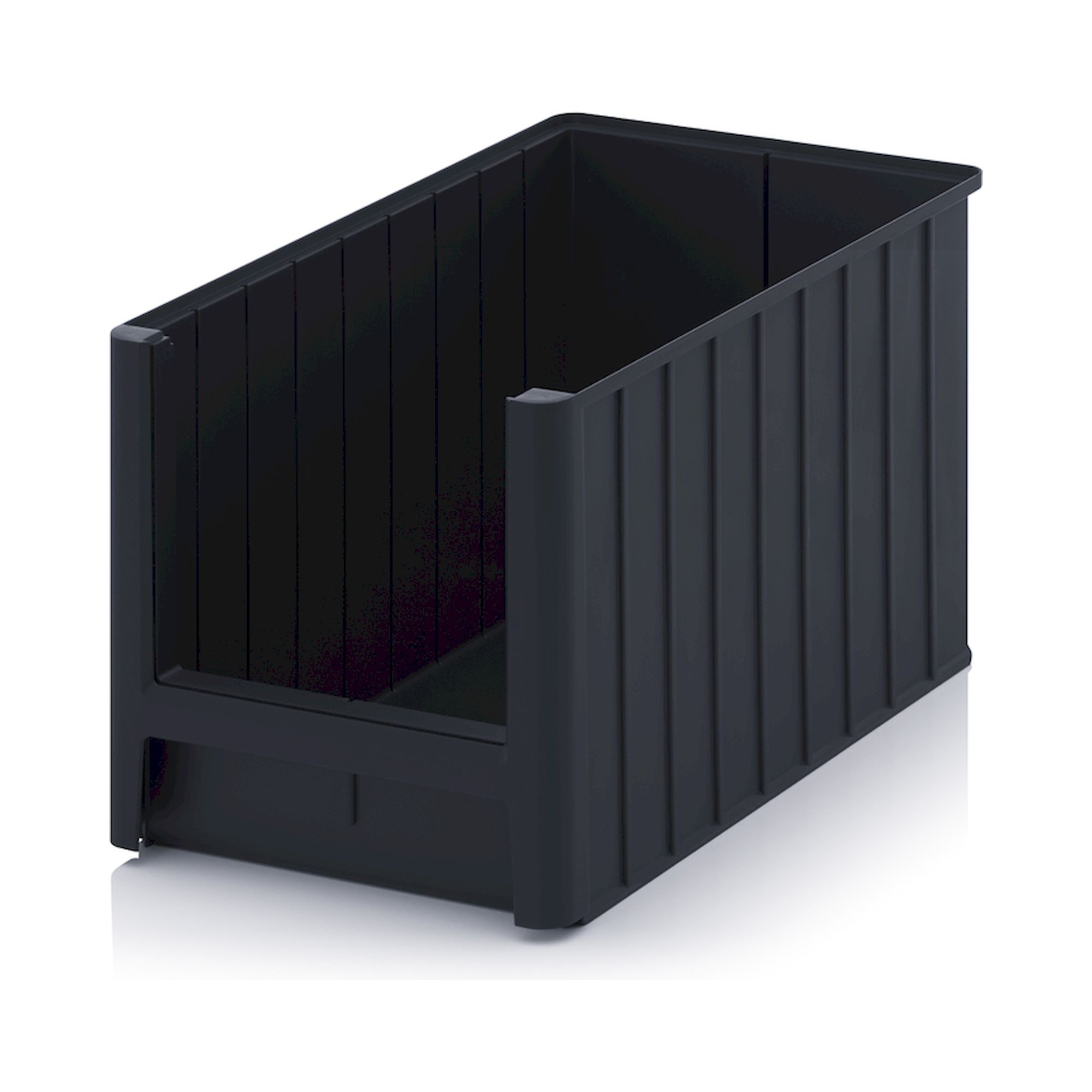

ESD storage box with open front SK 50 x 31 x 30 cm - Auer ESD SK 5H
€15.29
Add to Wish List Add to Compare

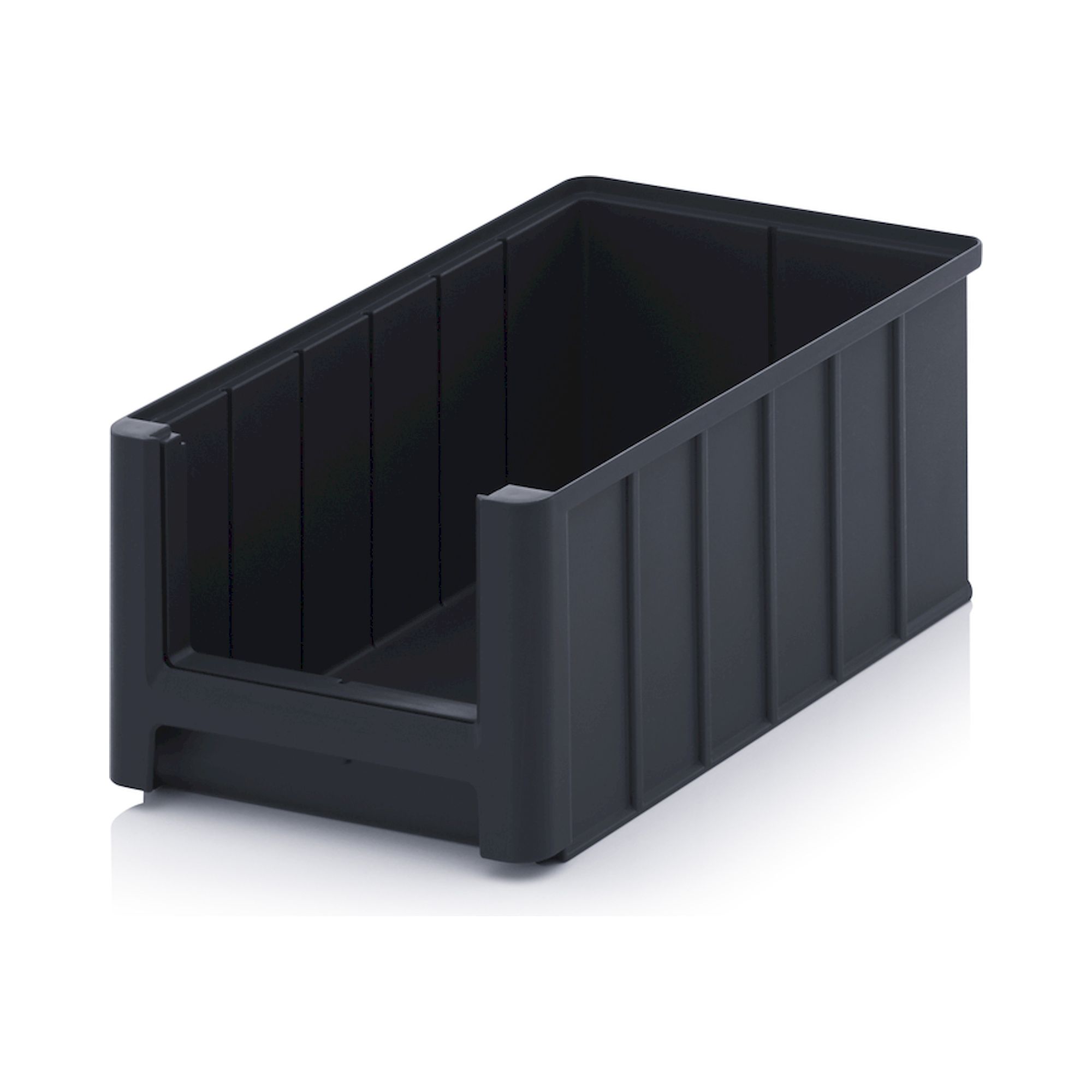

ESD storage box with open front SK 35 x 21 x 15 cm - Auer ESD SK 4
€6.88
Add to Wish List Add to Compare

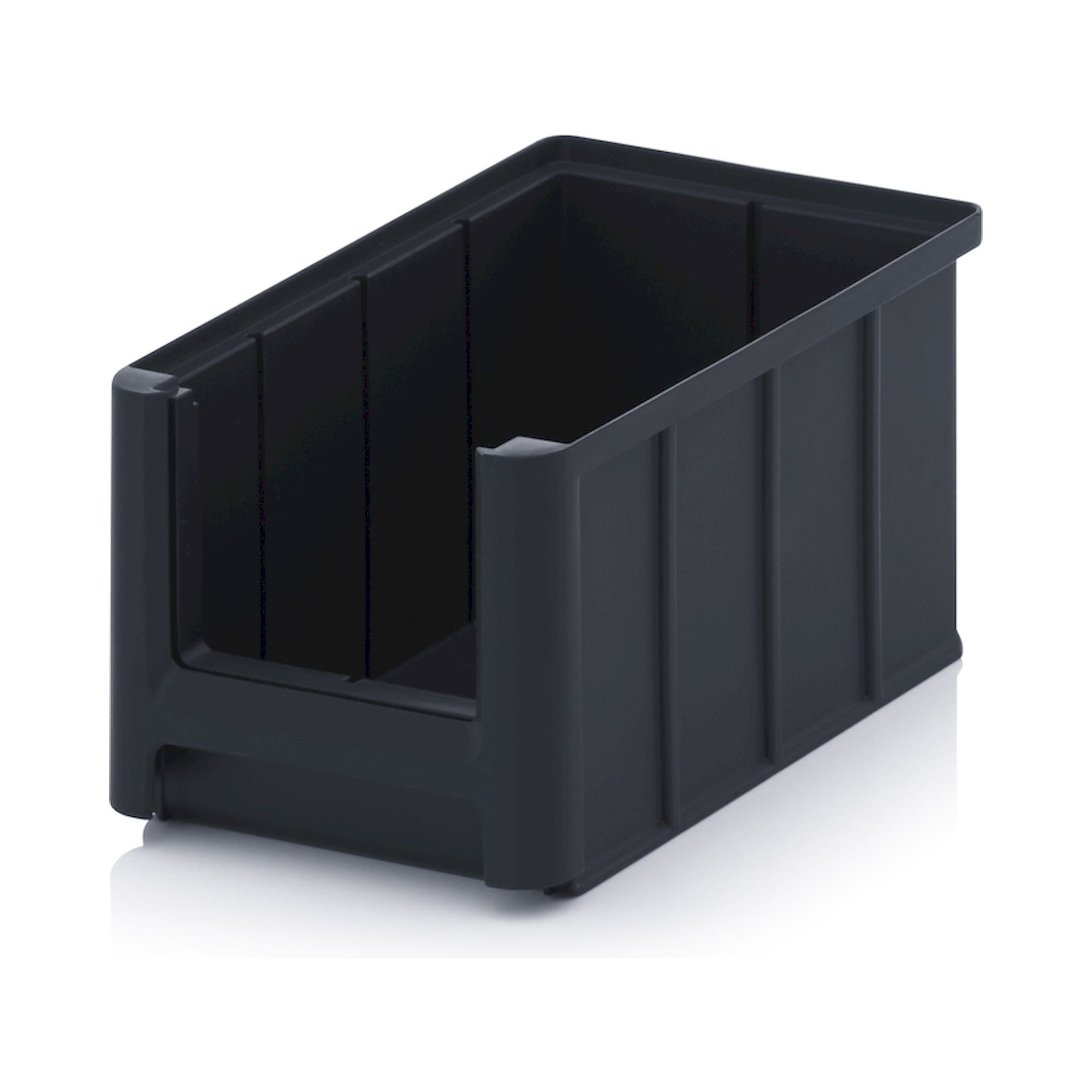

ESD storage box with open front SK 22.5 x 15 x 12.5 cm - Auer ESD SK 3
€4.71
Add to Wish List Add to Compare

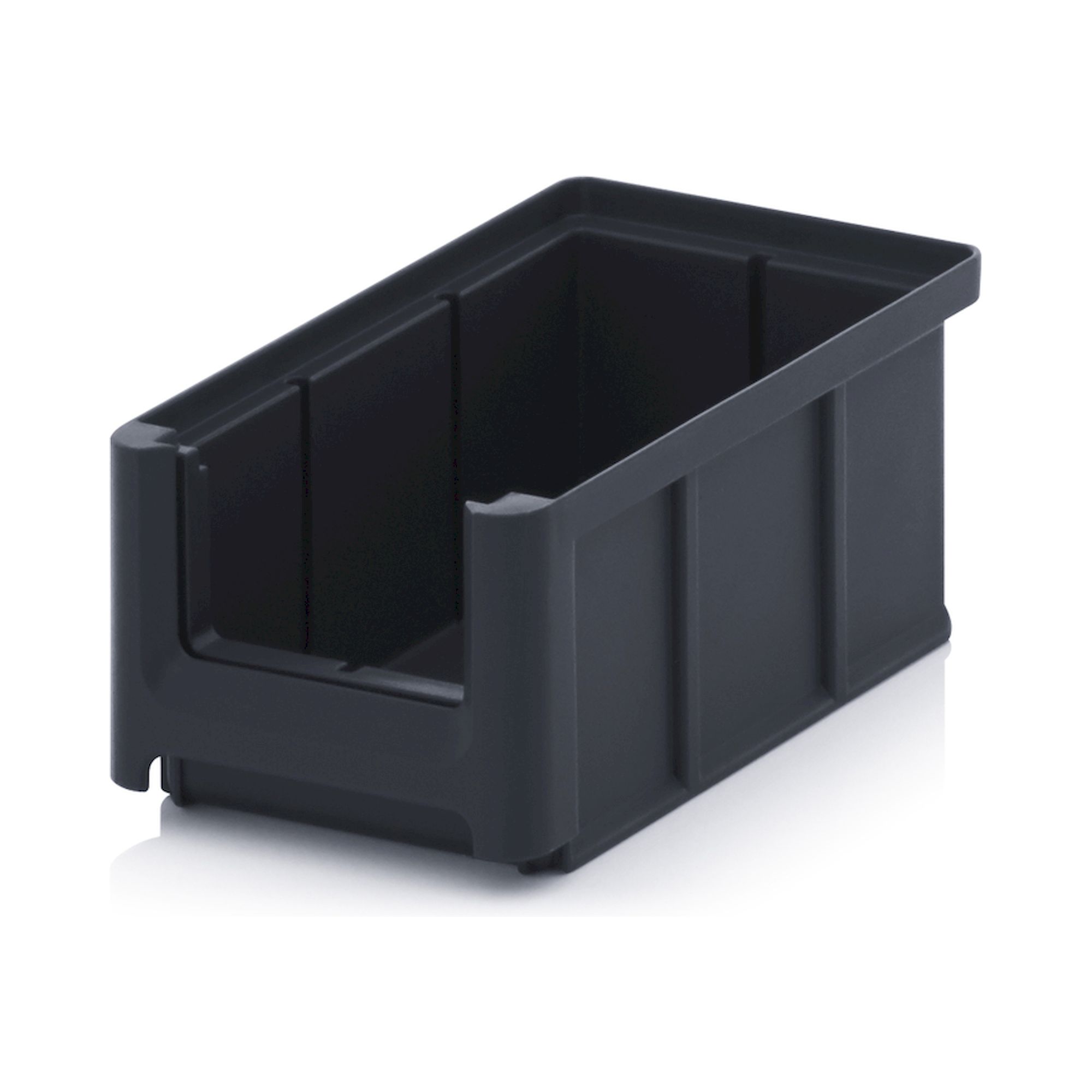

ESD storage box with open front SK 16 x 10.2 x 7.5 cm - Auer ESD SK 2
€3.50
Add to Wish List Add to Compare

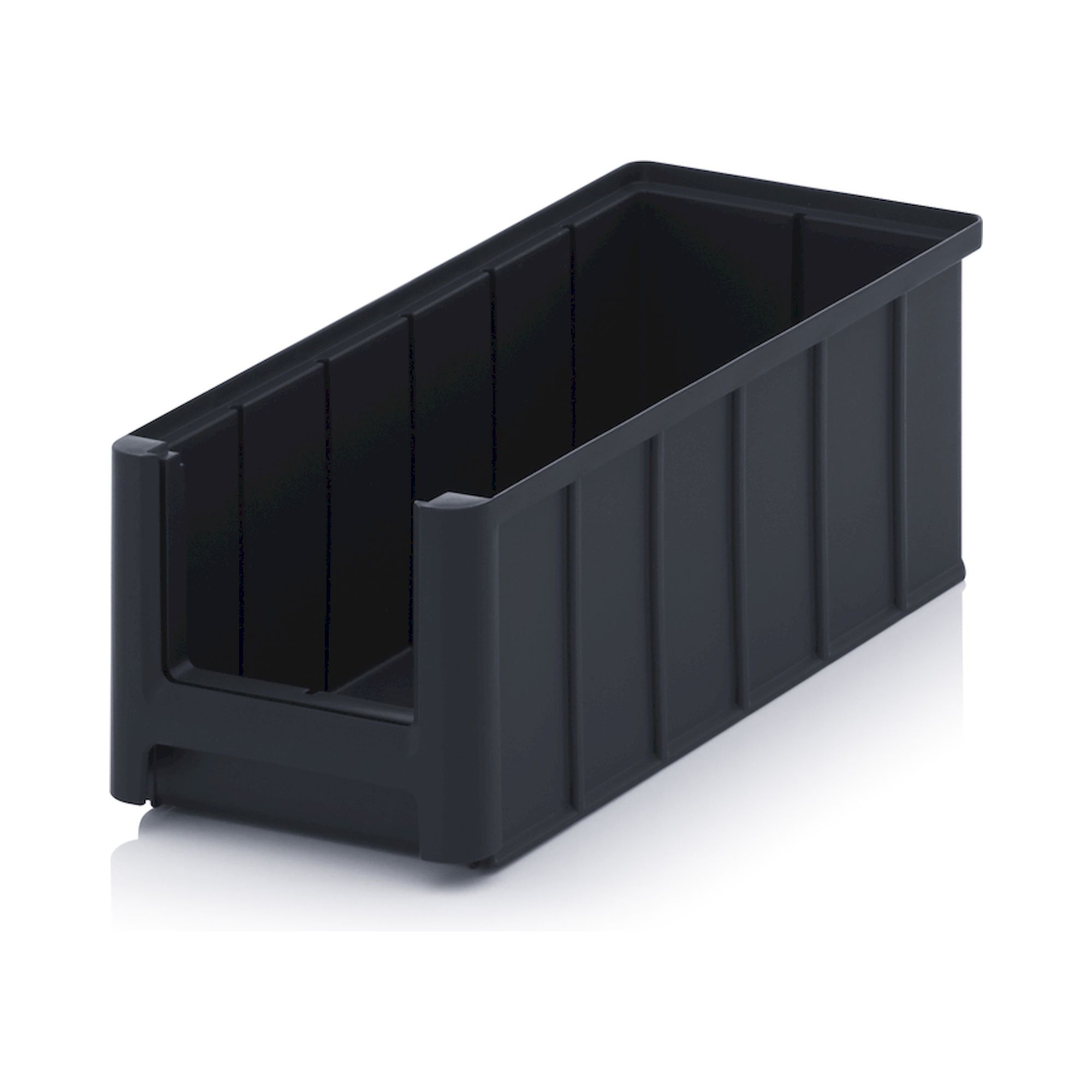

ESD storage box with open front SK 32.5 x 15 x 12.5 cm - Auer ESD SK 3L
€5.41
Add to Wish List Add to Compare

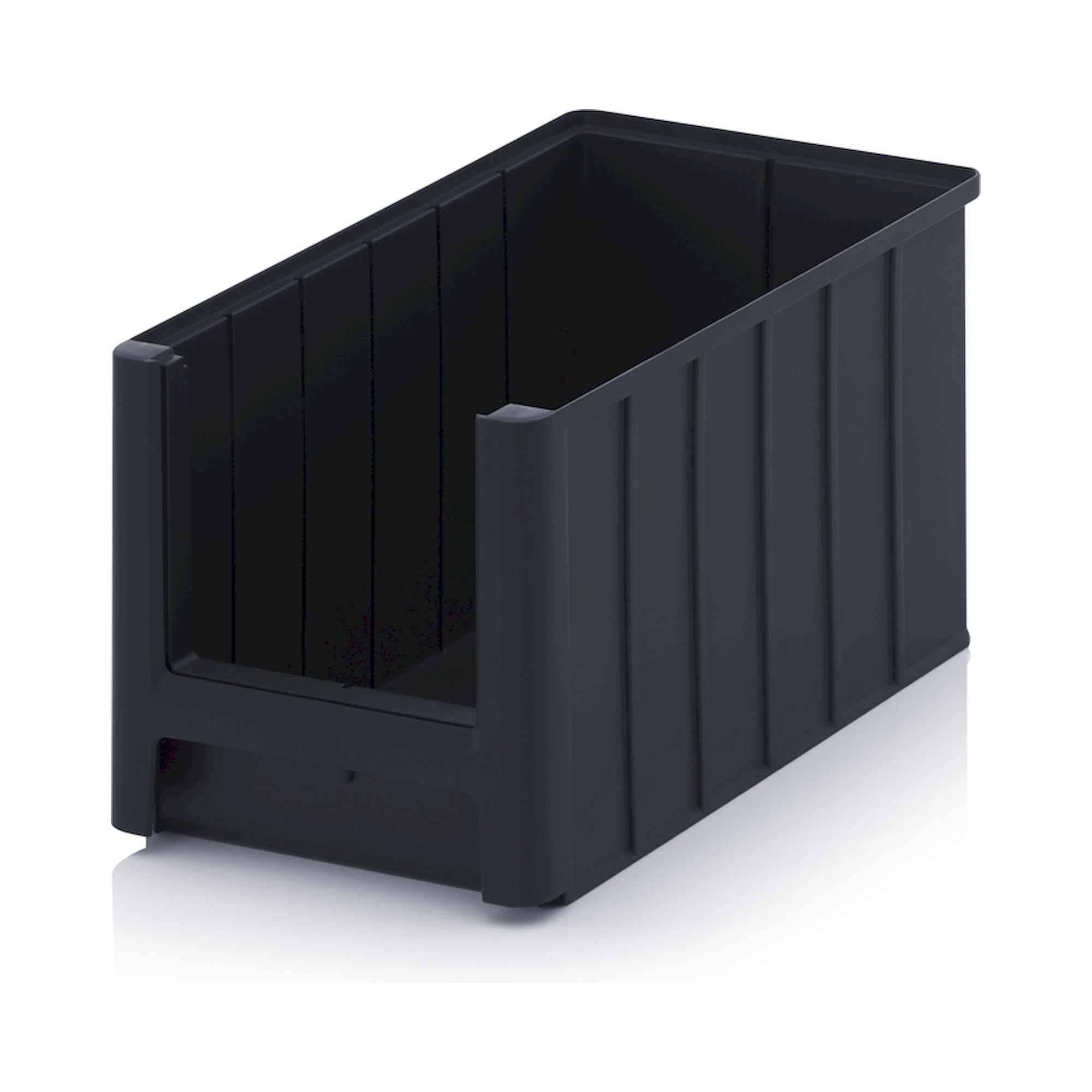

ESD storage box with open front SK 35 x 21 x 20 cm - Auer ESD SK 4H
€7.86
Add to Wish List Add to Compare

ESD storage box with open front SK 8.5 x 10.2 x 5 cm - Auer ESD SK 1
€2.95
Add to Wish List Add to Compare

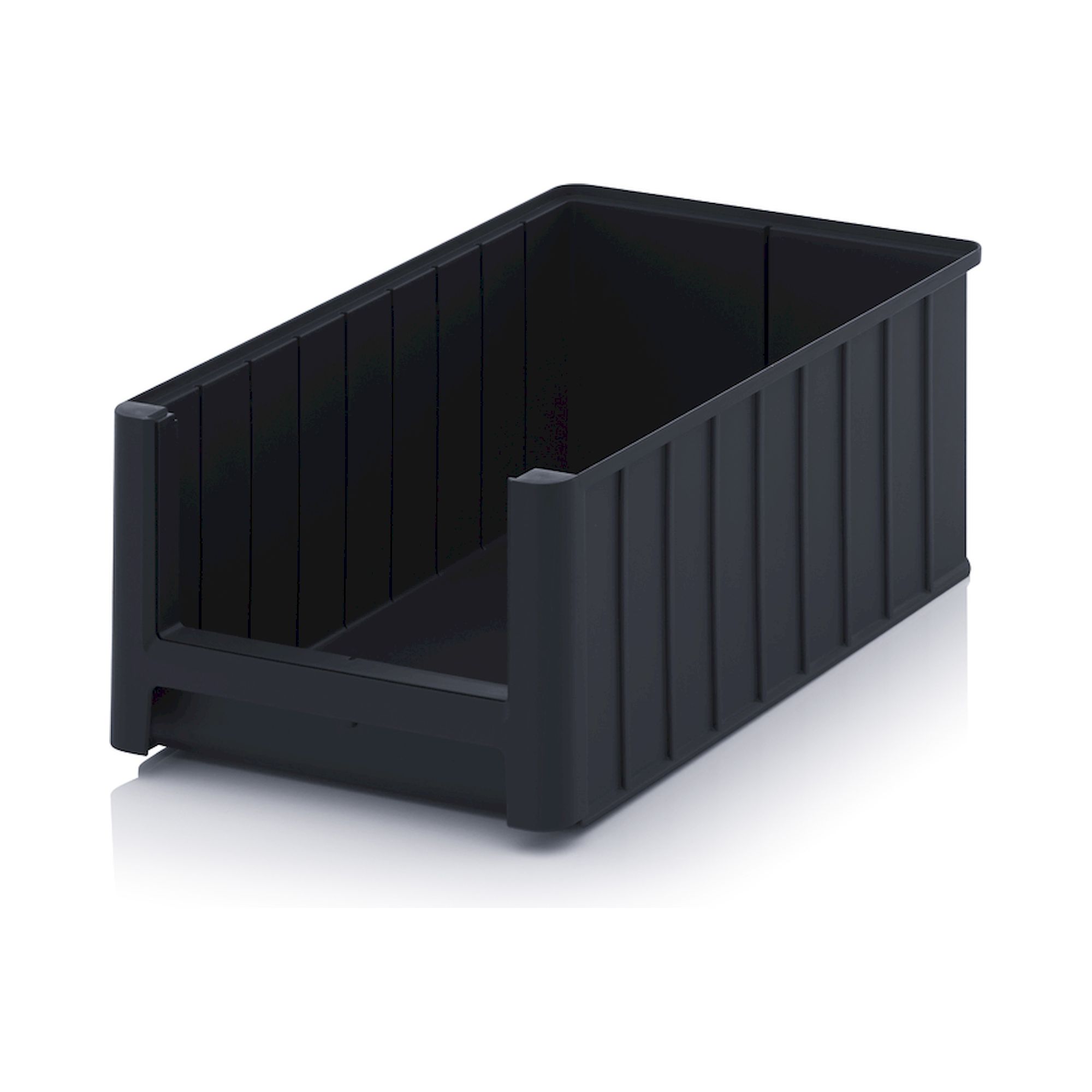

ESD storage box with open front SK 50 x 31 x 20 cm - Auer ESD SK 5
€11.74
Add to Wish List Add to Compare

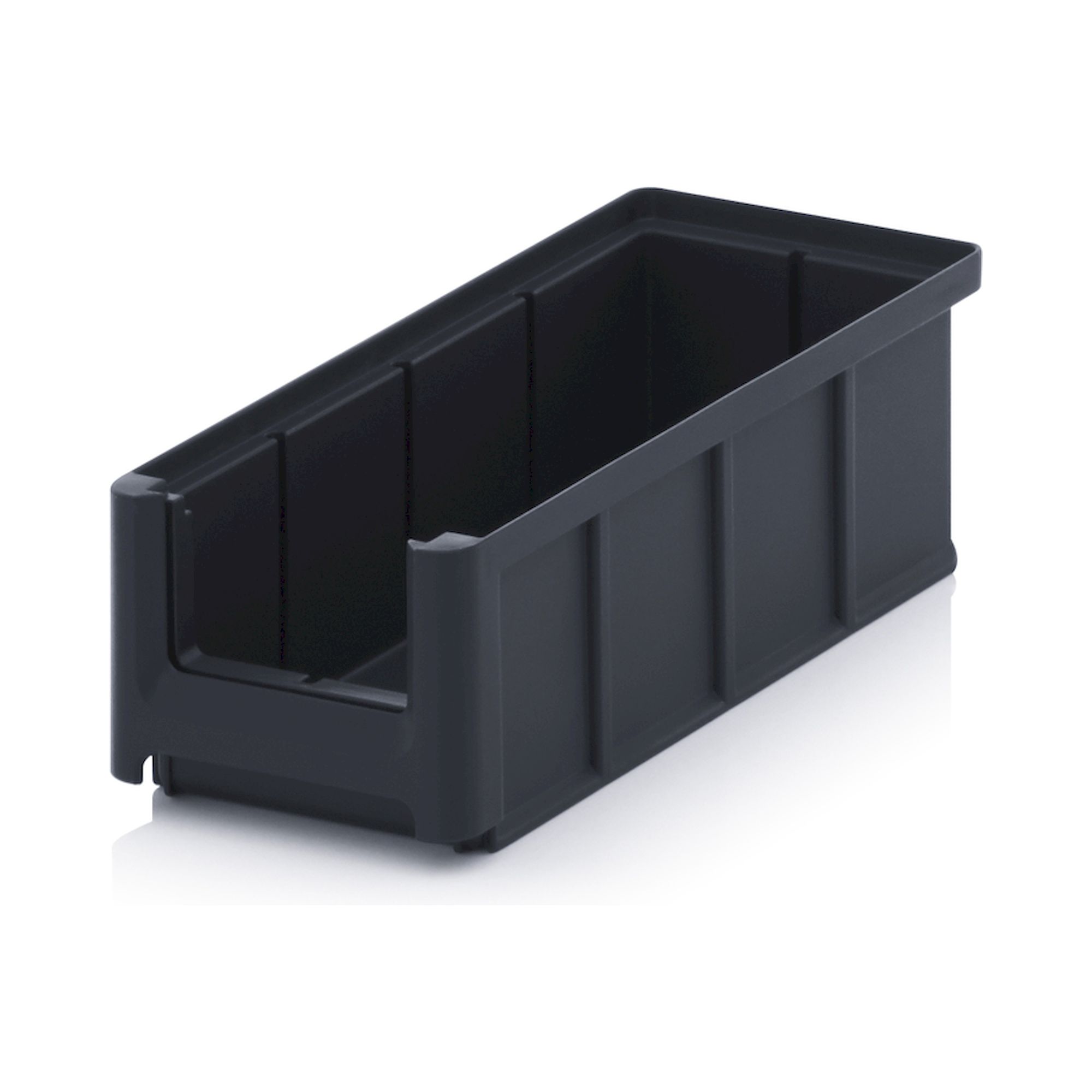

ESD storage box with open front SK 22 x 10.2 x 7.5 cm - Auer ESD SK 2L
€3.72

Buying guide

How to choose Storage boxes with open front SK

What matters when choosing: properties, comparison and typical applications.

Technical features

⚡ ESD-compatible material - conductive or dissipative plastic construction, suitable for EPA zones

✓ 9 sizes in the range - ESD SK 1, 2, 2L, 3, 3L, 4, 4H, 5, 5H for different part dimensions

⚙ Open front - direct access to contents without removing the bin, time-saving picking

📦 Compatible with Euro-norm shelving - stackable and can be lined up in rows for efficient use of space

Size overview

Type	Size class	Note
ESD SK 1	extra small	standard version
ESD SK 2 / 2L	small	2L = extended length
ESD SK 3 / 3L	medium	3L = extended length
ESD SK 4 / 4H	large	4H = increased height
ESD SK 5 / 5H	extra large	5H = increased height

Typical applications

Typical applications: Visible storage of SMD components, ICs and connectors in shelving and warehouse systems within the EPA zone, provision of small parts at ESD assembly stations, picking and material flow in electronics manufacturing, and storage of moisture-sensitive components in MSL pre-staging.

FAQ

Frequently asked questions about Storage boxes with open front SK

What are ESD storage boxes with open front SK and which industries require them for electronic component protection?

ESD storage boxes with open front SK are antistatically conductive plastic containers designed for visible storage and organization of electrostatic discharge-sensitive components in industrial environments. These stackable storage solutions feature an open front design allowing immediate visual access to contents while maintaining ESD protection through conductive materials that safely dissipate static charges. Primary applications include electronics manufacturing facilities, semiconductor assembly lines, PCB production environments, repair workshops, and quality control laboratories where sensitive components like microprocessors, memory modules, and integrated circuits require static-safe storage. The SK designation indicates the specific open-front stackable design optimized for visual inventory management in ESD-protected areas.

What are the key technical selection criteria for choosing the correct ESD SK storage box size for specific component requirements?

Selection criteria for ESD SK storage boxes center on dimensional requirements matching component sizes, with available options ranging from compact ESD SK 1 units at 8.5x10.2x5 cm for small ICs to large ESD SK 5H containers measuring 50x31x30 cm for circuit boards and assemblies. Critical factors include internal volume capacity, stacking height limitations in existing shelving systems, and access frequency requirements where frequent retrieval favors shorter boxes like the 12.5 cm height SK 3L versus taller 20 cm variants. Weight capacity, typically 5-15 kg depending on size, must accommodate stored component mass while maintaining structural integrity. The open front depth should provide adequate component visibility while preventing accidental spillage during transport or shelf vibration.

Which ESD and safety standards apply to ESD storage boxes with open front design for industrial component protection?

ESD storage boxes with open front SK design must comply with IEC 61340-5-1 standard for ESD control programs and DIN EN 100015 requirements for ESD protective packaging and storage systems. The conductive plastic materials typically achieve surface resistance values between 10⁴ and 10¹¹ ohms per square meter as specified in ANSI/ESD S541 for ESD protective packaging. Industrial applications often require additional compliance with ISO 9001 quality management standards for traceability and DIN EN ISO 14040 environmental management where applicable. These boxes must demonstrate consistent static dissipative properties throughout their service life, with periodic resistance testing recommended per ESD Association TR20.20 technical report to maintain certification compliance in regulated manufacturing environments.

What are the main differences between ESD SK storage box variants like SK 3, SK 3L, SK 4, and SK 4H models?

ESD SK storage box variants differ primarily in dimensional specifications and height profiles optimized for different component types and storage density requirements. The SK 3 model measures 23x15x12.5 cm while SK 3L extends to 32.5x15x12.5 cm, providing 40% more length for longer components like connector strips or cable assemblies. Height differentiation appears in models like SK 4 at 35x21x15 cm versus SK 4H at 35x21x20 cm, where the H designation indicates higher capacity for bulkier components requiring vertical clearance. Standard SK models optimize storage density for typical electronic components, while L variants accommodate longer items and H versions provide additional height for transformers, relays, or stacked component assemblies requiring enhanced vertical space.

What installation and compatibility requirements must be considered when integrating ESD SK storage boxes into existing warehouse systems?

ESD SK storage boxes require installation on conductive or static dissipative shelving systems with proper grounding connections to maintain electrical continuity throughout the storage environment. Standard industrial shelving with 19mm or 25mm shelf depths accommodates most SK variants, while larger models like SK 5H may require reinforced shelving rated for distributed loads exceeding 15 kg per linear meter. The stackable design allows vertical integration up to 8-10 units depending on shelf height constraints, with interlocking features preventing lateral movement during transport. Compatibility with existing ESD workstation grounding systems requires verification that shelf-to-ground resistance remains below 10⁹ ohms per IEC 61340-5-1 requirements, often necessitating conductive shelf liner installation or direct grounding strap connections to maintain proper ESD protection continuity.

What safety ratings and environmental operating conditions apply to ESD storage boxes with open front design?

ESD storage boxes with open front SK design typically operate within industrial temperature ranges from -20°C to +60°C while maintaining stable electrostatic dissipative properties throughout this spectrum. The conductive plastic construction provides inherent chemical resistance to most industrial solvents and cleaning agents, with UV stability ratings ensuring minimal degradation under standard fluorescent lighting conditions. While specific IP ratings vary by manufacturer, the open front design inherently limits moisture protection to approximately IP20 classification, requiring covered storage in humid environments exceeding 85% relative humidity. Material specifications often include flame retardancy ratings meeting UL94-V0 standards for enhanced fire safety in electronics manufacturing environments, with mechanical impact resistance sufficient for typical warehouse handling and automated material handling system integration.

What maintenance schedule and inspection requirements ensure long-term ESD protection effectiveness of SK storage boxes?

ESD SK storage boxes require quarterly resistance testing using calibrated electrometers to verify surface resistivity remains within the 10⁴ to 10¹¹ ohm range specified by ESD standards for continued protection effectiveness. Visual inspection schedules should occur monthly to identify crack formation, surface contamination, or physical damage that could compromise electrostatic dissipative properties. Cleaning protocols using approved ESD-safe solvents like isopropyl alcohol maintain surface conductivity while removing contaminants that could insulate against proper static charge dissipation. Expected service life ranges from 5-10 years under normal industrial conditions, with replacement indicators including surface resistance drift beyond specified limits, visible stress fractures, or dimensional deformation affecting stacking integrity. Documentation of resistance measurements and inspection results supports ESD program compliance audits required by automotive, aerospace, and medical device manufacturing quality systems.
