Synthetic-/foam materials

ESD foam materials are specially formulated polyurethane and synthetic foams designed to prevent electrostatic discharge damage during storage and transport of sensitive electronic components. These dissipative foams maintain surface resistivity values between 10^4 to 10^11 ohms per square according to IEC 61340-5-1 standards, providing controlled static elimination. Electronics manufacturing, semiconductor fabrication, automotive electronics assembly, and telecommunications equipment production rely heavily on ESD foam packaging to protect integrated circuits, PCBs, and precision sensors during handling and shipping operations.

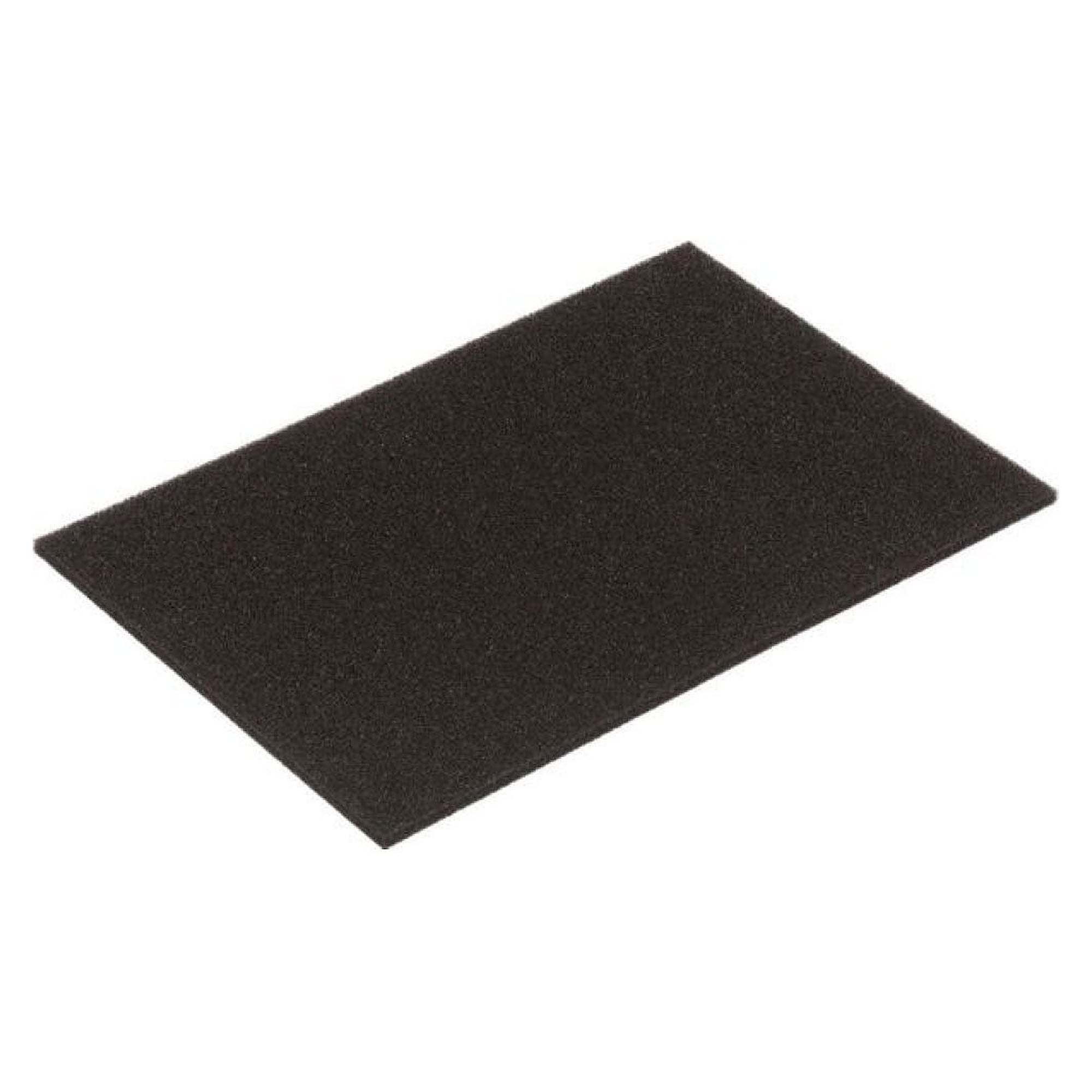

ESD foam selection depends on component fragility, packaging dimensions, and required compression resistance characteristics. Standard thicknesses range from 6mm for lightweight ICs to 40mm convoluted foam for heavy assemblies, with the Warmbier ESD polyurethane foams offering consistent 15mm and 30mm options for most applications. Surface resistivity must remain within 10^6 to 10^9 ohms per square for optimal dissipative performance, while foam density typically ranges from 25-35 kg/m³ for adequate cushioning without excessive compression set under repeated loading cycles.

ESD foam materials must comply with IEC 61340-5-1 for electrostatic discharge control in electronics handling, which defines surface and volume resistivity requirements for dissipative materials. EN 100015-1 establishes packaging standards for electrostatic sensitive devices, while ISO 11607 covers sterile barrier systems where ESD protection intersects with medical device packaging. JEDEC JESD625 provides additional semiconductor-specific requirements for ESD protective packaging materials, mandating triboelectric charge generation limits below 200 volts during normal handling conditions.

Conductive ESD foams exhibit surface resistivity below 10^4 ohms per square and provide rapid charge dissipation but risk direct discharge damage to sensitive components. Dissipative foams like the Warmbier polyurethane series maintain controlled resistivity between 10^4 to 10^11 ohms per square, offering optimal protection through gradual charge removal over 0.1 to 2 seconds. Antistatic foams exceed 10^11 ohms per square and primarily prevent triboelectric charge generation rather than active dissipation, making them suitable for less sensitive electronic assemblies requiring basic static control.

ESD foam integration requires complete static control continuity from foam through packaging materials to grounded handling surfaces. Self-adhesive ESD foams bond directly to conductive container walls maintaining electrical continuity, while loose-laid foams need conductive tapes or grounding straps connecting to container ground points. Standard container dimensions like the 558x358x15mm foam inserts for 600x400mm ESD boxes ensure proper fit with minimal air gaps, and all packaging components must maintain surface resistivity within the 10^4 to 10^11 ohm range to prevent charge accumulation at material interfaces.

Professional-grade ESD polyurethane foams maintain consistent electrical properties across operating temperatures from -40°C to +70°C with relative humidity ranges of 12% to 90% non-condensing conditions. The dissipative carbon loading in quality ESD foams remains stable through thermal cycling per ASTM D1056 compression set testing, ensuring surface resistivity stays within the critical 10^6 to 10^9 ohm range. Extended exposure above 80°C or humidity levels exceeding 95% can degrade the conductive pathways and foam cellular structure, potentially compromising both mechanical cushioning and electrostatic discharge protection performance.

ESD foam requires surface resistivity testing every 12 months using a calibrated megohmmeter per IEC 61340-5-1 protocols, with replacement necessary when readings exceed 10^11 ohms per square or fall below 10^4 ohms. Visual inspection should identify compression set exceeding 50% of original thickness, surface cracking, or contamination that affects electrical properties. Typical service life ranges from 3-5 years for quality polyurethane ESD foams under normal warehouse conditions, though high-use packaging applications may require annual replacement to maintain reliable electrostatic discharge protection for sensitive electronic components.
