Beyond cold light sources and ring lights, there are microscope-specific illumination components that produce special lighting effects or geometrically defined illumination. These include Fresnel lenses for the Tagarno MAGNUS large-screen system (100 mm and 200 mm variants), replaceable LED units for the Mantis Elite (Vision MELED-001 left, MELED-002 right), LED transmitted light modules for EVO CAM (Vision EVS012) and Lynx EVO (EVS011), the LED rotating optic EVR060, transmitted brightfield modules (Pulch & Lorenz 435525-9130-000), diffusers (Zeiss 435507) and a Euromex LED ring light for the MZ.4705/4700 series.
| Component | Compatible with | Illumination type |
|---|---|---|
| Tagarno 108437 (100 mm) / 108587 (200 mm) | Tagarno MAGNUS | Fresnel lens, field of view extension |

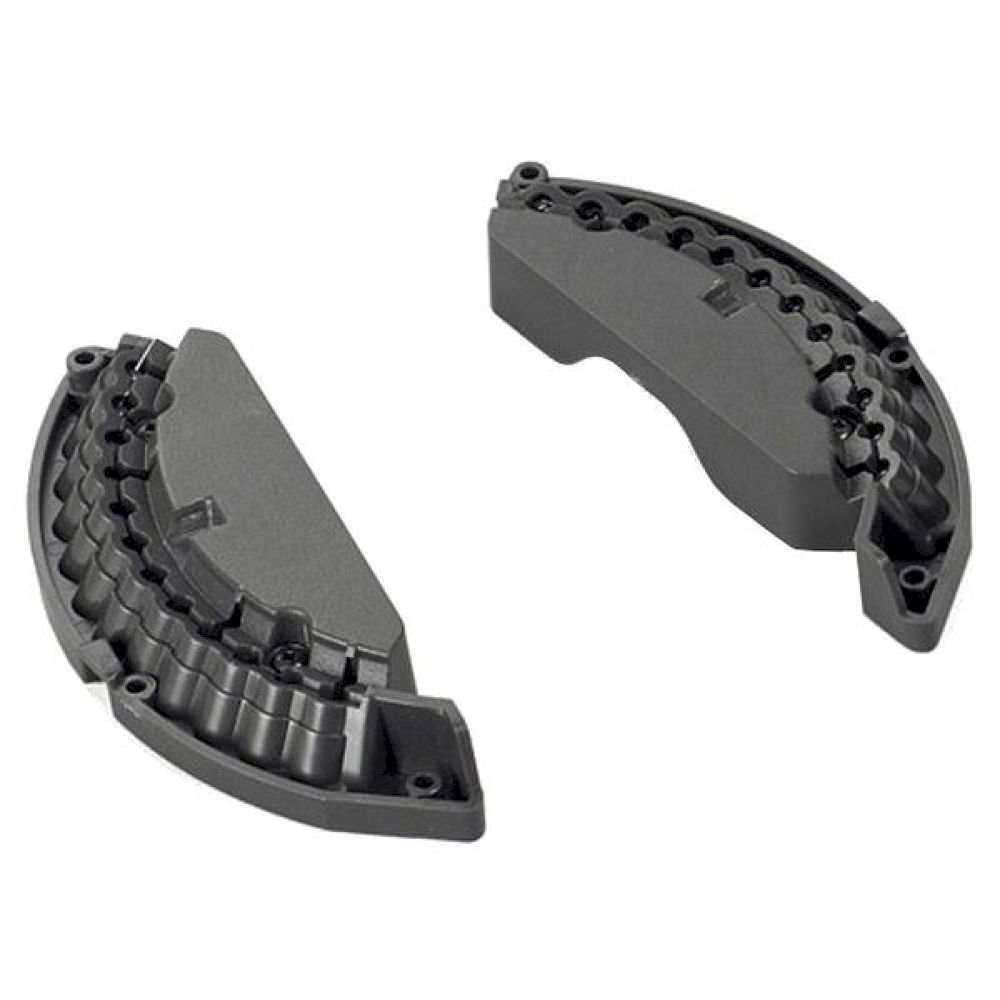

| Vision MELED-001 / MELED-002 | Mantis Elite | Single LED left / right, oblique light |

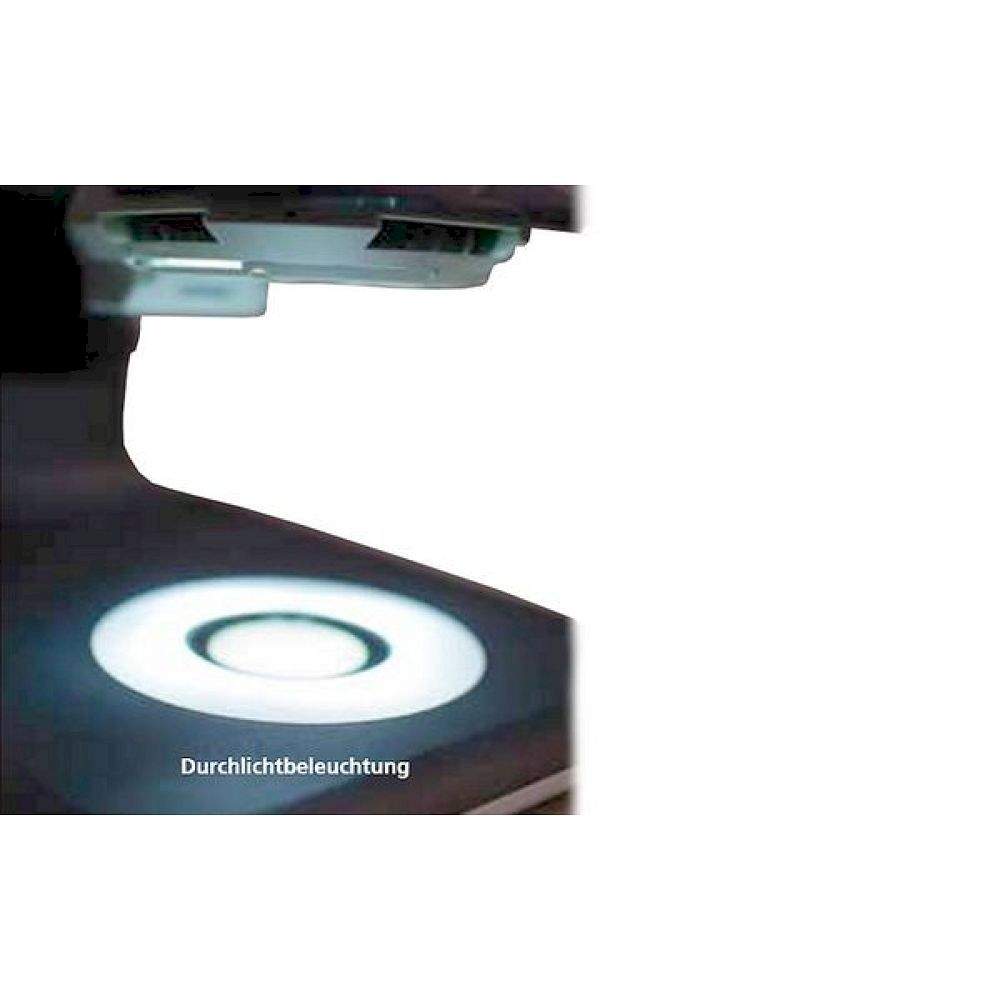

| Vision EVS011 | Lynx EVO (EVB010 base) | LED transmitted light |

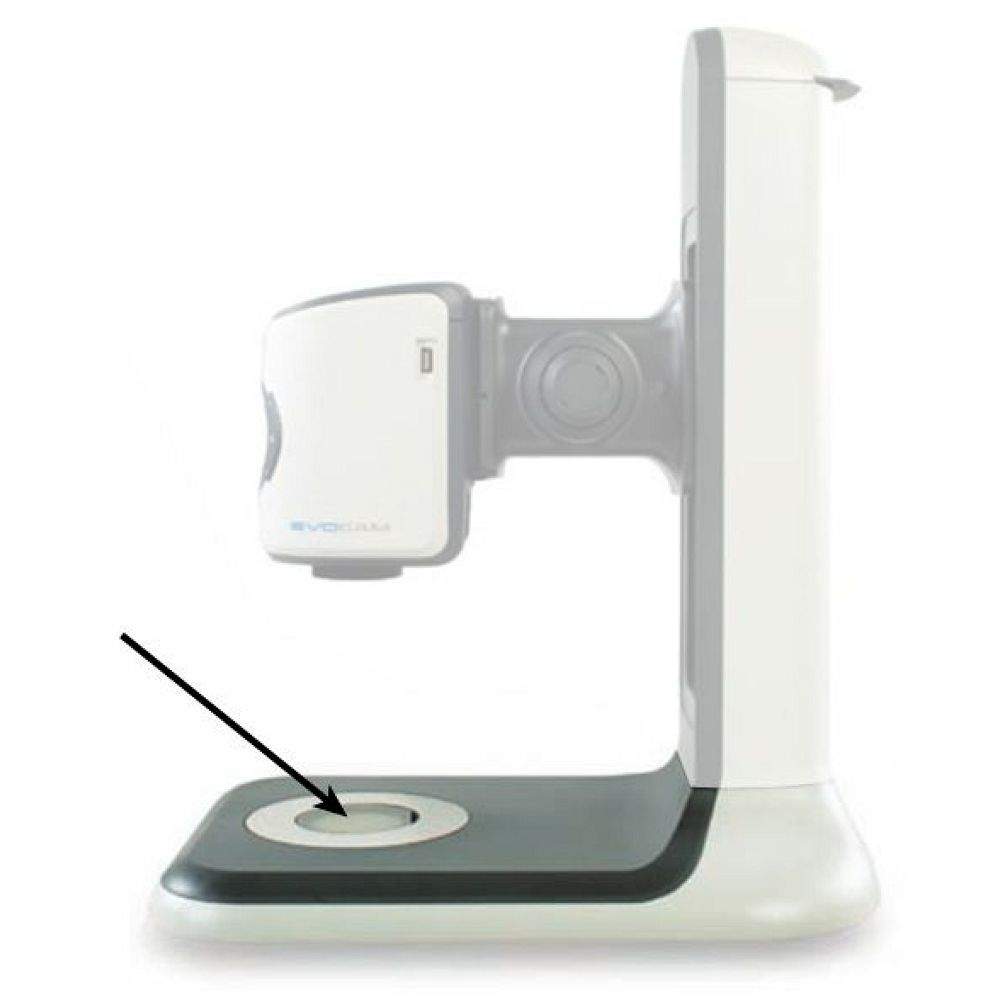

| Vision EVS012 | EVO CAM | LED transmitted light |
| Vision EVR060 | Lynx EVO | LED rotating optic, segmented illumination |

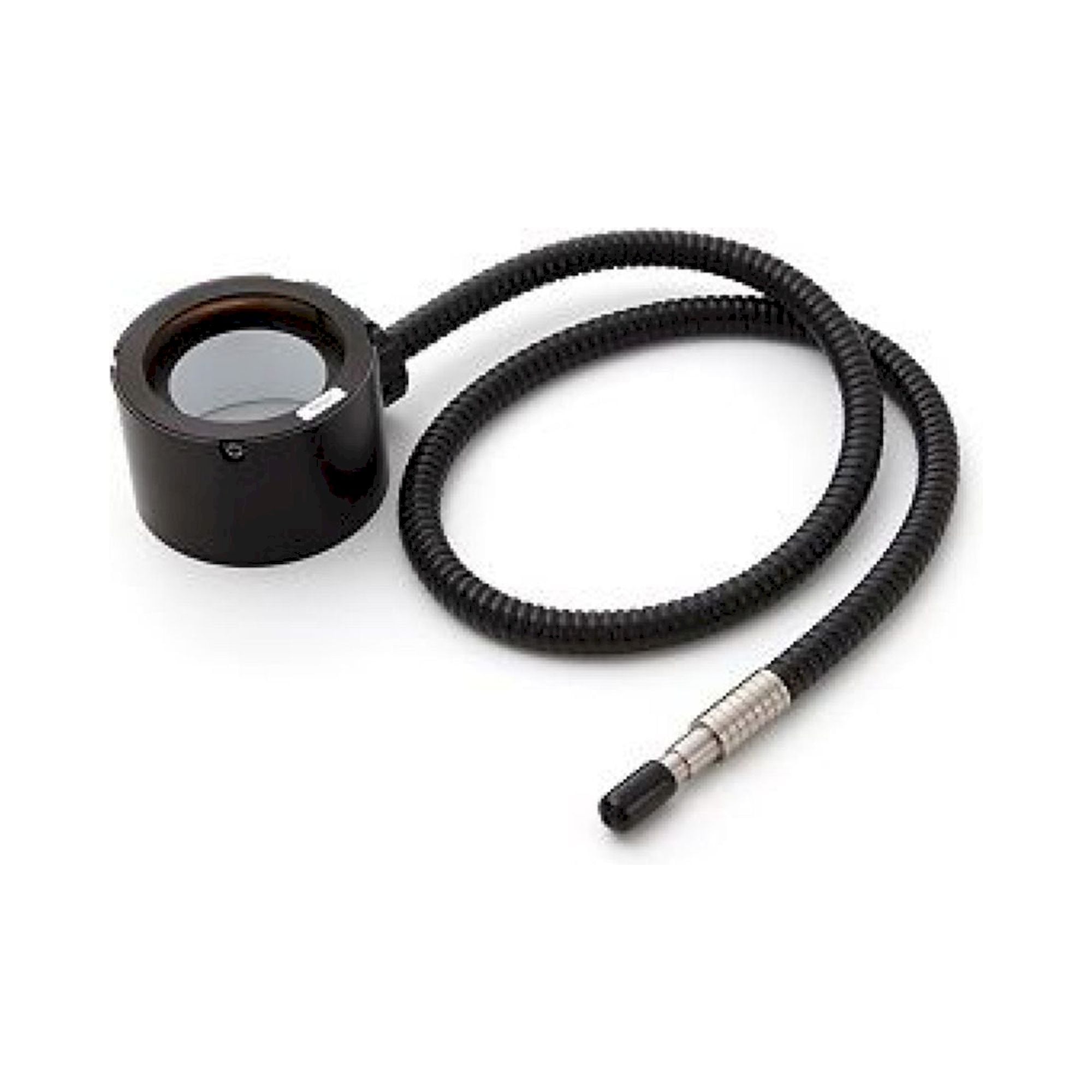

| Zeiss 435507 diffuser S | Zeiss Stemi series | Retractable diffuser; reduces reflections |
| Pulch & Lorenz 435525-9130-000 | Stereo / incident light microscopes | Transmitted brightfield module |

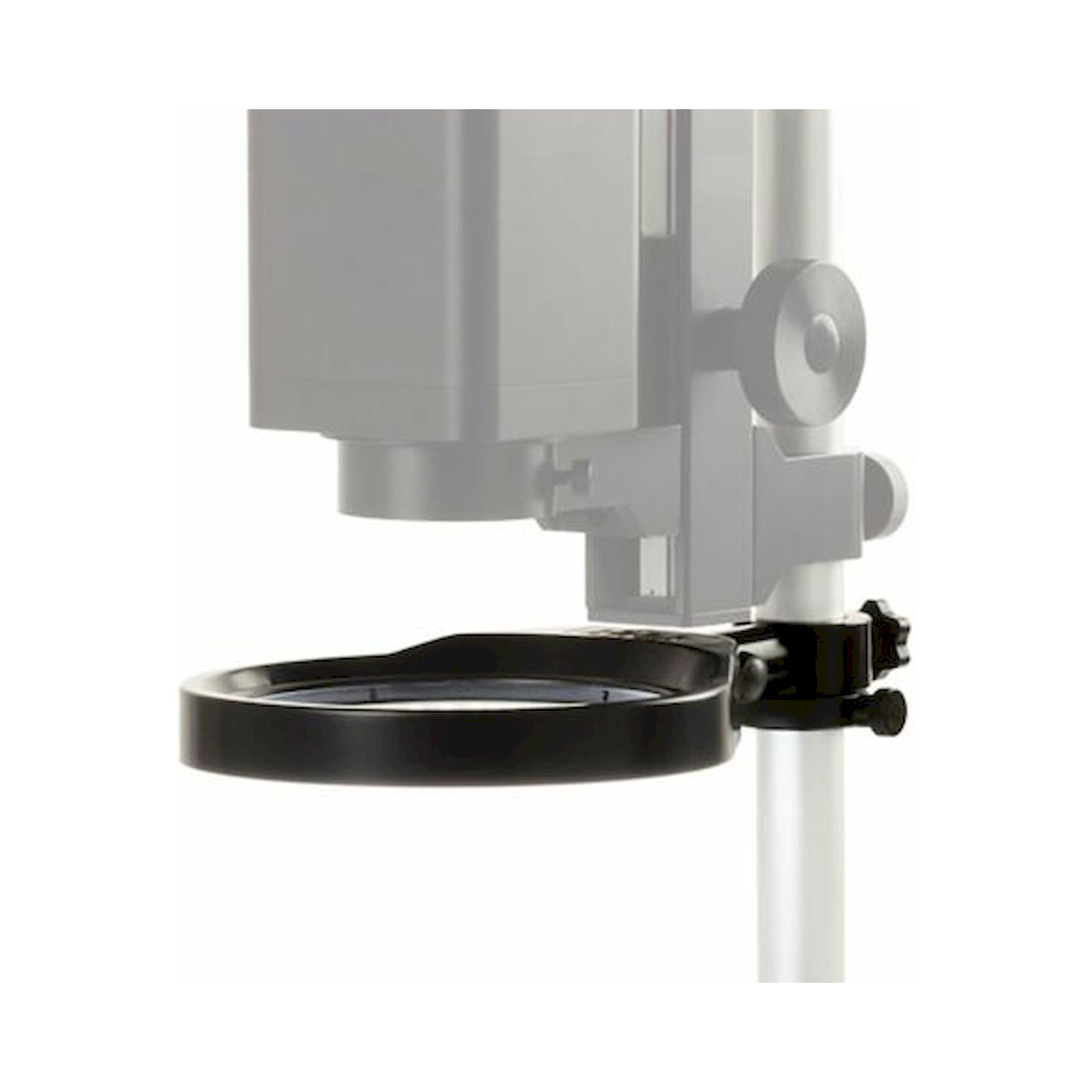

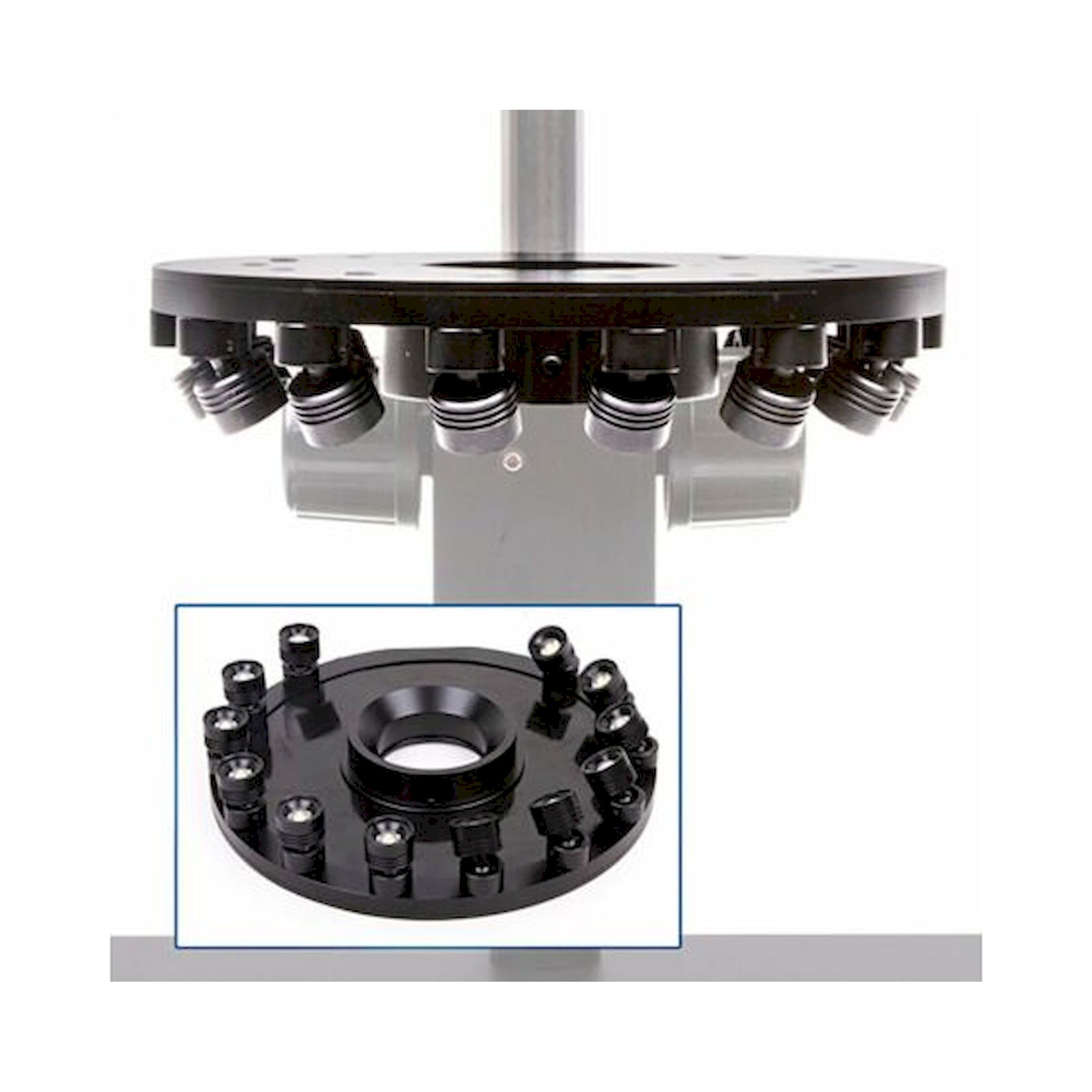

| Euromex MZ.4730 / MZ.4735 | Euromex MZ.4700/4705 | LED ring light standard / directional 12x 1W |

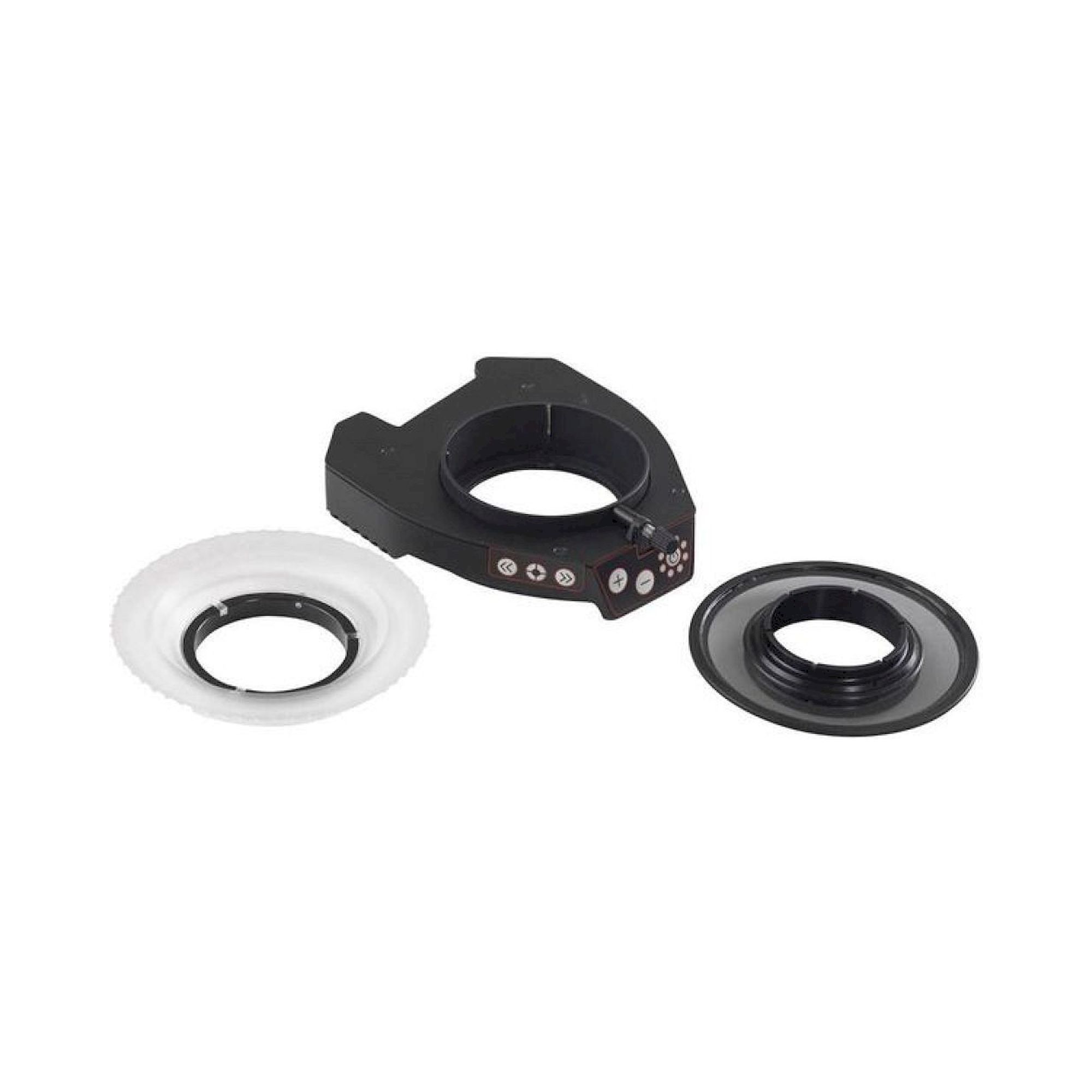

| Leica polarisation set | Leica S / M series | Polarised light for low-reflection analysis |

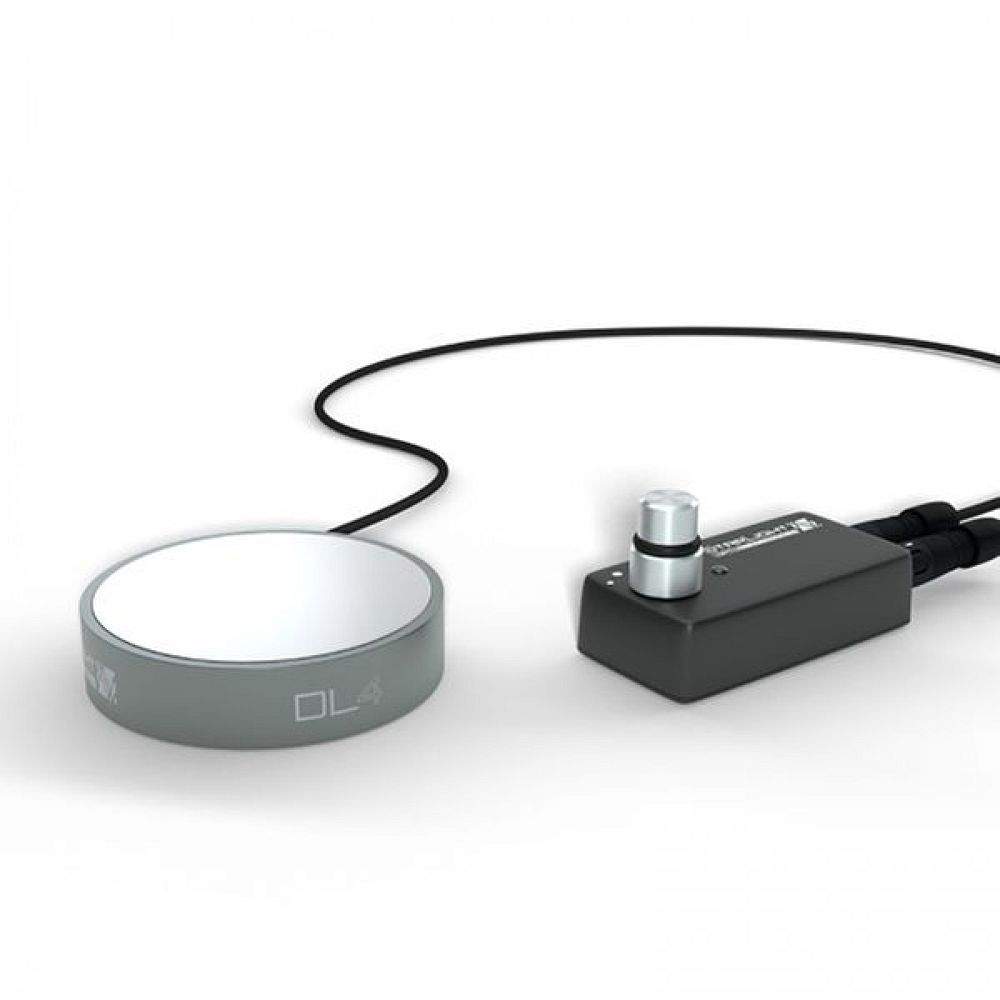

| Starlight DL4 LED transmitted light (100-009593) | General, D 84 mm | LED pure white 5700K, 200 lm, diameter 84 mm |
Typical applications: Oblique light inspection of surface structures and solder paste prints, transmitted light inspection of transparent foils and screens, polarisation analysis of plastic and glass specimens for stress cracks, field of view extension on digital large-screen microscopes (Tagarno MAGNUS), and segmented illumination for edge detection in dimensional gauging.
