Did you know?

A two layer bench mat has a dissipative surface over a conductive core. The hard top resists abrasion while the underside carries charge to the grounding point.

Browse table tops

ESD Workplace Sets

ESD Mats

ESD workplace sets combine worksurface mat, grounding cord, and bonding components into ready-to-use units for quick setup of ESD-protected workstations. Sets range from compact service kits (450x560 mm and 545x590 mm, red or blue) to ProMat Starter Kits in 600x600 mm and 60x90 cm as well as the JBC TMB-KA worksurface mat set (900x600 mm). Several sets additionally include ESD gloves and insulated or standard crocodile clips for direct use at service workstations; the Swiss variant kit is configured for Swiss plugs.

⚙ Complete sets from 450x560 mm - worksurface mat + grounding cord + bonding component, ready to use immediately
✓ ProMat Starter Kit - 600x600 mm and 60x90 cm, matched to standard workstation widths
✦ JBC TMB-KA - 900x600 mm mat set, larger format for extensive soldering workstations
⚡ Service kit with gloves - insulated crocodile clip (red) or standard clip (blue) for field service applications
📦 Swiss variant - Service Kit SWISS with insulated crocodile clip in red and blue, Swiss plug

SetMat sizeContents
Service mat set red450x560 mmMat + grounding cord
Service mat set red545x590 mmMat + grounding cord
ESD service kit, insulated clipServiceGloves + insulated crocodile clip, red

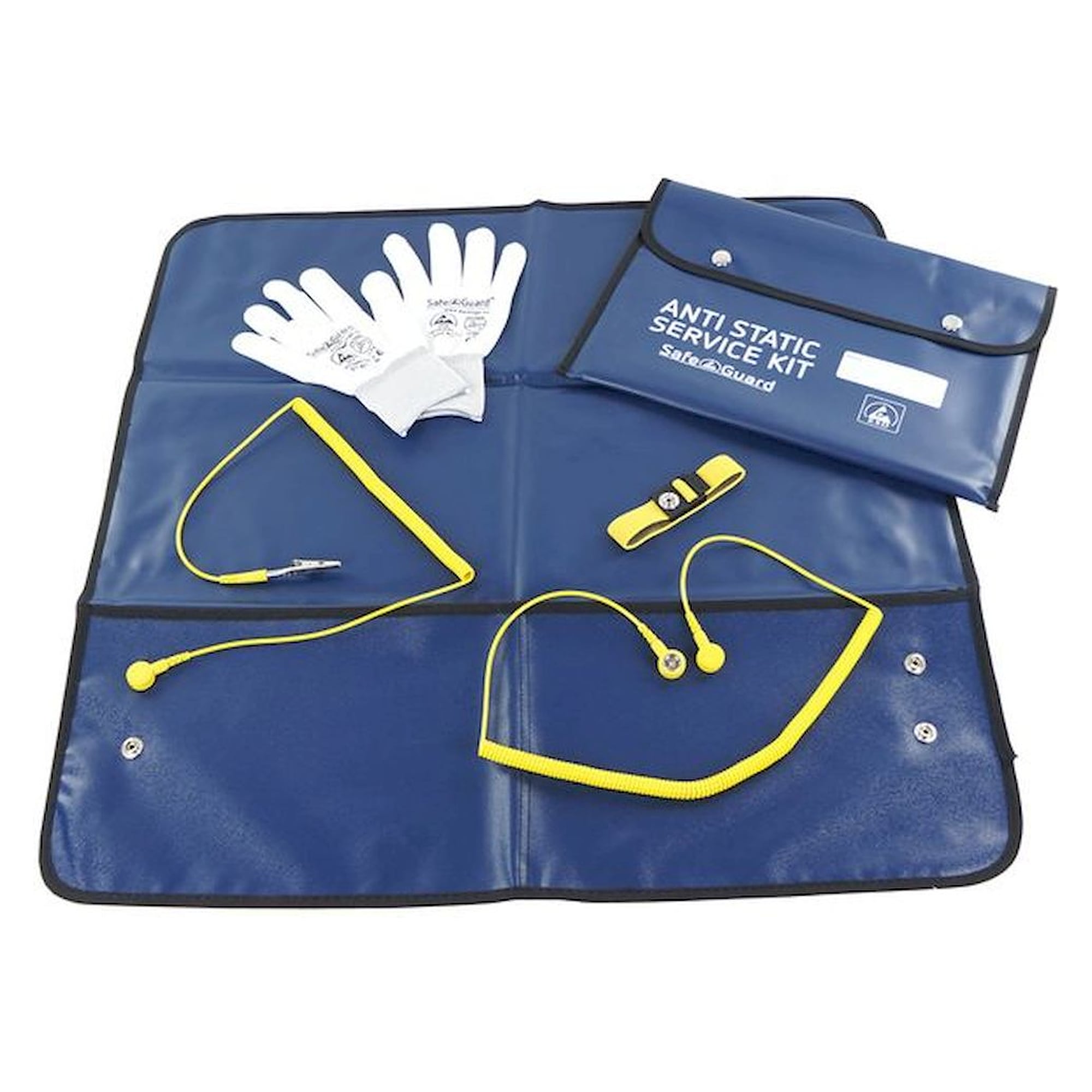

ESD service kit, standard clipServiceGloves + crocodile clip, blue
ESD service kit SWISSServiceGloves + insulated clip, red/blue, Swiss plug
ProMat Starter Kit600x600 mmMat + grounding system
ProMat Starter Kit600x900 mmMat + grounding system
JBC TMB-KA900x600 mmWorksurface mat set

Typical applications: Quick setup of temporary ESD service stations in electronics manufacturing and field service, equipping new workstations in EPA zones without time-consuming individual procurement, rework and hand-soldering stations, and demonstration workstations for training and product presentations.

What are ESD workplace sets and what industrial applications require them?
ESD workplace sets are comprehensive static protection systems combining dissipative table mats, grounding accessories, and connection hardware to create controlled electrostatic discharge environments. These integrated kits serve electronics manufacturing, semiconductor assembly, medical device production, and precision instrumentation repair where components with voltage sensitivities below 100V require protection. Complete workplace sets like the JBC TMB-KA 900x600mm or Safeguard service kits eliminate the need for separate component sourcing while ensuring proper impedance matching between mat surfaces and grounding points.
What technical specifications should I consider when selecting ESD workplace set dimensions and materials?
ESD workplace set selection depends on work surface dimensions, with standard formats ranging from compact 450x560mm ServicetableSet configurations to larger 900x600mm JBC TMB-KA systems for extended work areas. Surface resistance values must fall within the 10^6 to 10^9 ohm range per ANSI/ESD S4.1 standards, while mat thickness typically measures 2-3mm for optimal durability and conductivity. Color coding follows industry conventions with blue-black indicating dissipative properties and red marking high-visibility grounding points, as seen in the ProMat Starter-Kit 60x90 and 600x600 variants.
Which international standards govern ESD workplace set performance and certification?
ESD workplace sets must comply with IEC 61340-5-1 standard defining electrostatic discharge control programs and ANSI/ESD S20.20 establishing comprehensive ESD control requirements for manufacturing environments. Surface resistance measurements follow ANSI/ESD STM4.1 methodology ensuring values between 1x10^6 and 1x10^11 ohms, while grounding system verification adheres to ANSI/ESD S6.1 specifications. European markets additionally reference EN 100015 for ESD protective packaging and DIN EN 61340-4-1 for test methods, ensuring workplace sets like the Safeguard SG-SKIT series meet both regional and international compliance requirements.
How do ESD service kits differ from standard table mat sets in component configuration?
ESD service kits like the Safeguard SG-SKIT-RO-HS-KR include protective gloves, isolated crocodile clips, and specialized grounding accessories for mobile repair applications, while standard table mat sets focus on fixed workstation protection with mats ranging from 450x560mm to 900x600mm dimensions. Service kits feature portable grounding solutions with simple or isolated crocodile clips for equipment connection, whereas table mat sets like the ProMat Starter-Kit provide permanent installation hardware including snap fasteners and continuous grounding strips. The Swiss variants (SG-SKIT-CH series) incorporate region-specific plug configurations and enhanced isolation ratings for medical and precision equipment applications.
What installation requirements and grounding connections do ESD workplace sets require?
ESD workplace sets require direct connection to facility ground through 1-megohm resistor networks to prevent shock hazards while maintaining static dissipation pathways. Installation involves securing dissipative mats to work surfaces using conductive adhesive strips or mechanical fasteners, then connecting integrated grounding points to common ground networks via 10mm snap fasteners or banana plug terminations. Systems like the JBC TMB-KA include pre-installed grounding hardware, while ServicetableSet configurations require field installation of grounding studs at 600mm maximum intervals per IEC 61340-5-1 guidelines for continuous operator contact verification.
What environmental ratings and operating conditions apply to ESD workplace mat systems?
ESD workplace mats operate within temperature ranges of -10°C to +60°C while maintaining surface resistance stability, with humidity tolerance spanning 12% to 95% relative humidity per ANSI/ESD S4.1 test conditions. Material specifications typically feature 2-layer dissipative rubber or vinyl compounds providing mechanical durability against cutting tools and chemical resistance to common solvents including isopropyl alcohol and flux removers. Surface hardness ratings of 65-75 Shore A ensure operator comfort during extended use, while thickness specifications of 2.0-3.2mm provide adequate electrical isolation from conductive substrates without compromising tactile feedback during precision assembly operations.
What maintenance schedules and testing intervals ensure continued ESD workplace set effectiveness?
ESD workplace sets require monthly surface resistance verification using calibrated megohmmeters to confirm values remain within the 10^6 to 10^9 ohm specification range per ANSI/ESD STM4.1 test protocol. Daily visual inspection identifies physical damage, contamination, or wear patterns that compromise conductivity, while quarterly deep cleaning with approved antistatic solutions removes accumulated residues without affecting dissipative properties. Grounding system continuity testing occurs weekly using dedicated ESD testers to verify resistance values below 35 ohms from mat surface to facility ground, with complete workplace audits conducted annually to document compliance with IEC 61340-5-1 control program requirements and justify continued certification validity.
