OKI Solder Fume Extraction

OKI solder fume extraction systems are specialized industrial air filtration units designed to capture and remove hazardous fumes, vapors, and particulates generated during soldering operations in electronics manufacturing, assembly, and repair environments. These systems utilize Pre-HEPA gas filtration technology to protect workers from toxic substances including lead particles, rosin flux vapors, and other harmful compounds that can cause respiratory irritation and long-term health issues. The BTX-208 and BVX series extractors are primarily deployed in ESD-safe electronics manufacturing facilities, circuit board assembly lines, and precision repair workshops where maintaining clean air quality is critical for both worker safety and product quality standards.

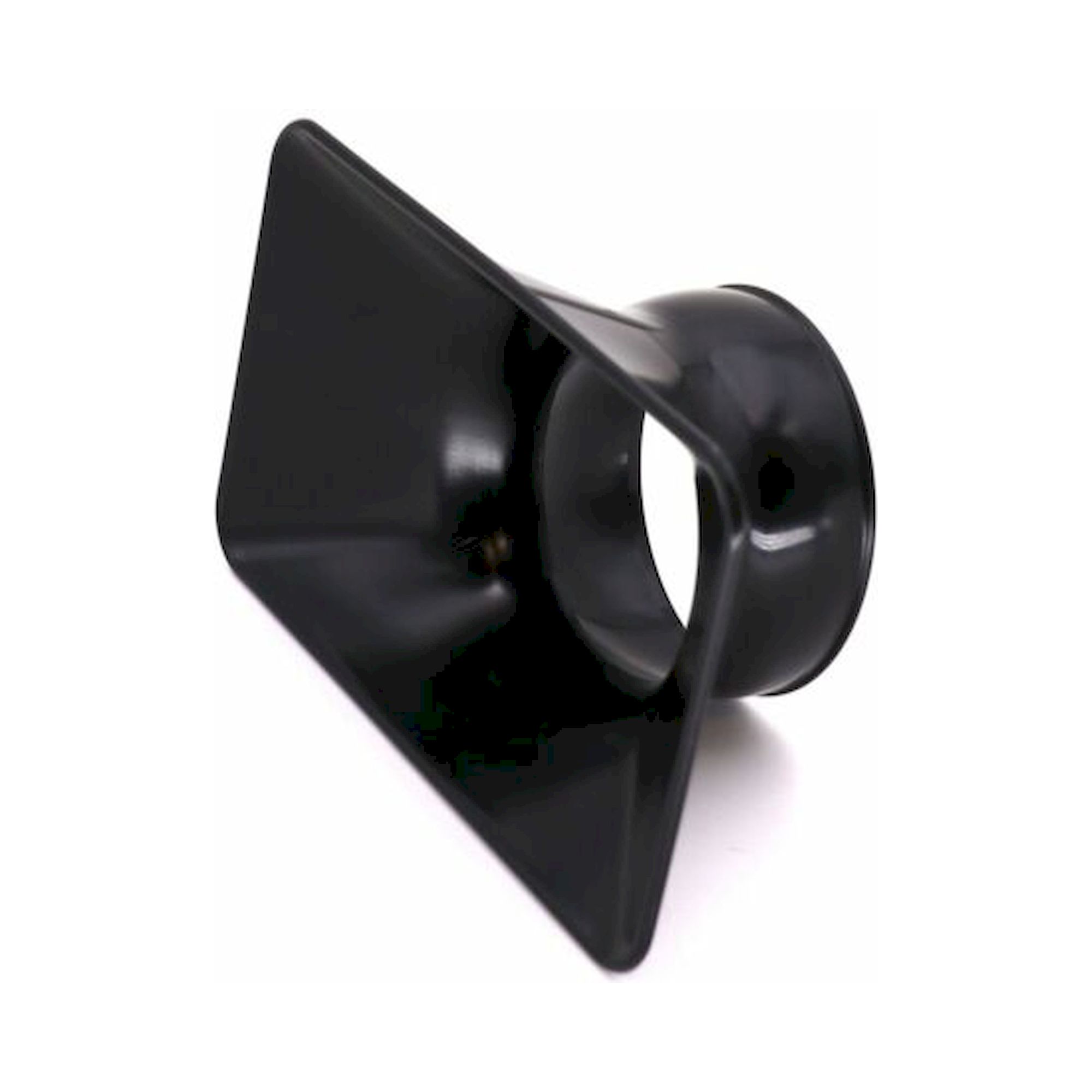

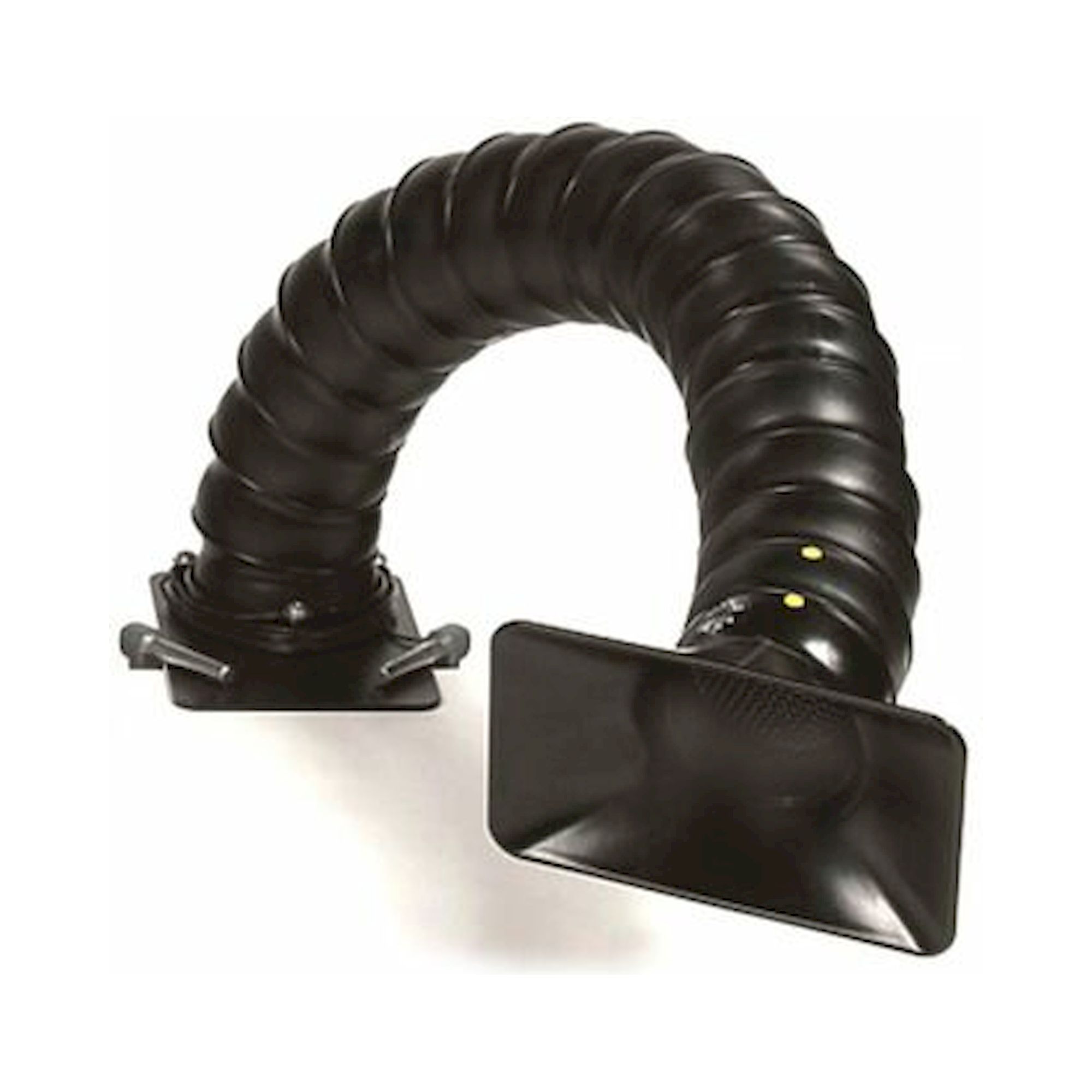

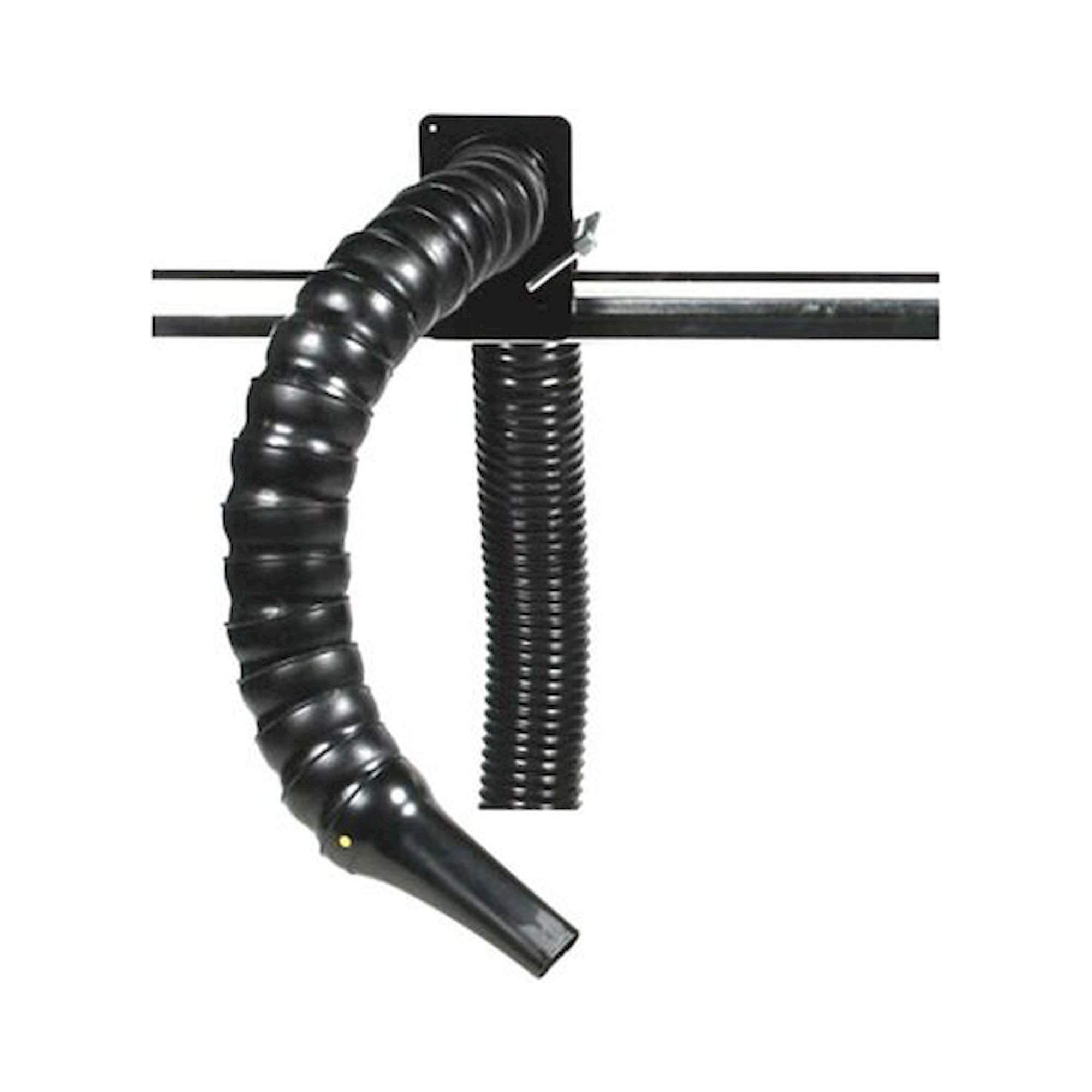

The primary technical selection criteria for OKI solder fume extractors include extraction capacity measured by the number of simultaneous workstations supported, with the BTX-208 accommodating up to 8 point extraction positions while BVX-201-KIT systems support 2 flexible extraction arms for broader coverage areas. Filter technology specification is crucial, with systems featuring Pre-HEPA gas filtration and dual-stage filtering through main filters like the FM-BVX and gas-specific filters such as the FG-BVX series for comprehensive contaminant removal. Arm flexibility and positioning capability must match workstation requirements, with ESD Omniflex arms offering adjustable hoods ranging from 350x212mm large coverage areas to focused conical and rectangular nozzle configurations for precise extraction positioning.

OKI solder fume extraction systems comply with ISO 14040 environmental management standards for industrial air quality control and incorporate ESD-safe design elements meeting IEC 61340 electrostatic discharge protection requirements for electronics manufacturing environments. The systems feature Pre-HEPA filtration technology that aligns with EN 1822 high-efficiency particulate air filter classifications, ensuring capture of submicron particles generated during soldering operations. All ESD Omniflex arms and system components maintain antistatic properties compliant with DIN EN 100015 standards, preventing electrostatic buildup that could damage sensitive electronic components during fume extraction processes in cleanroom and controlled manufacturing environments.

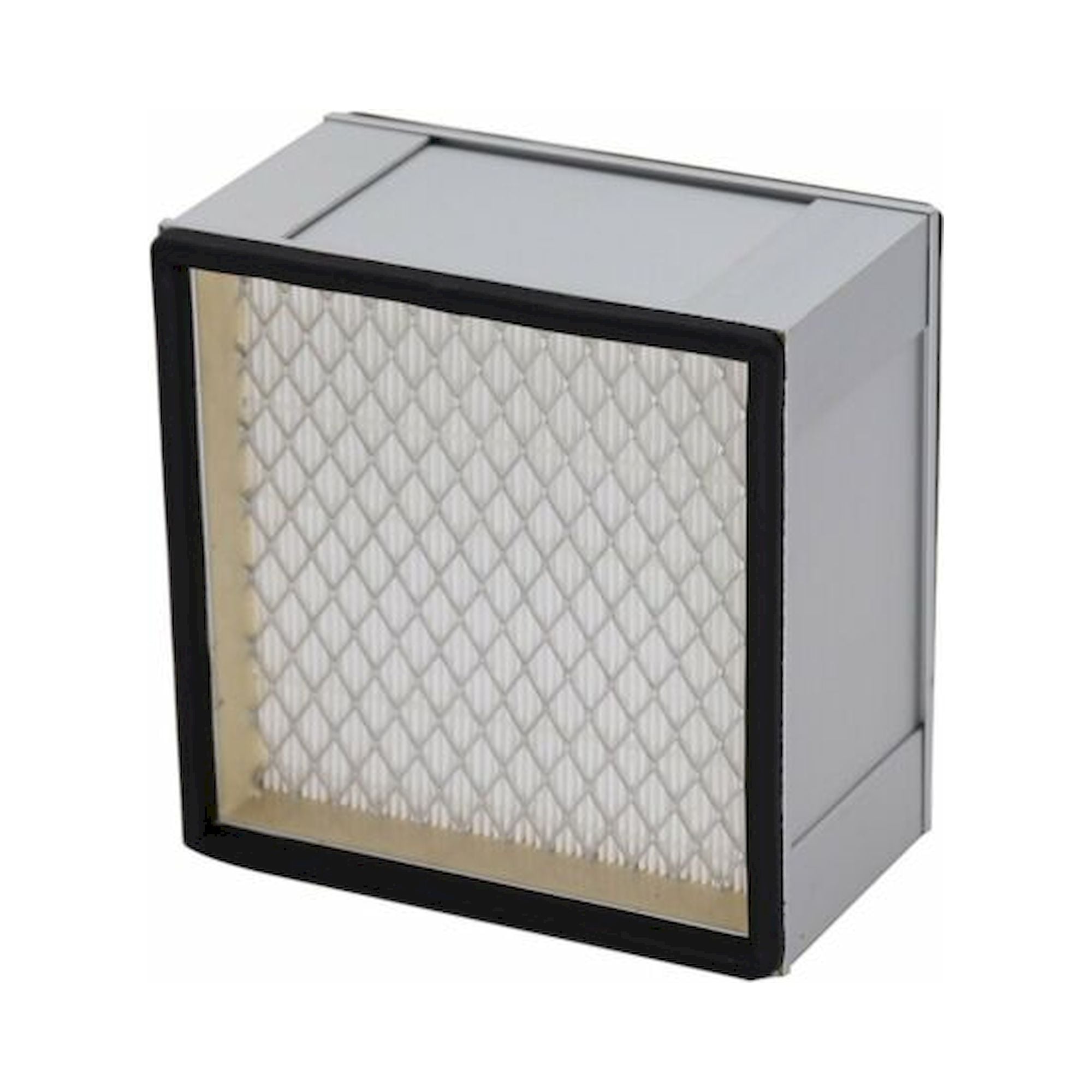

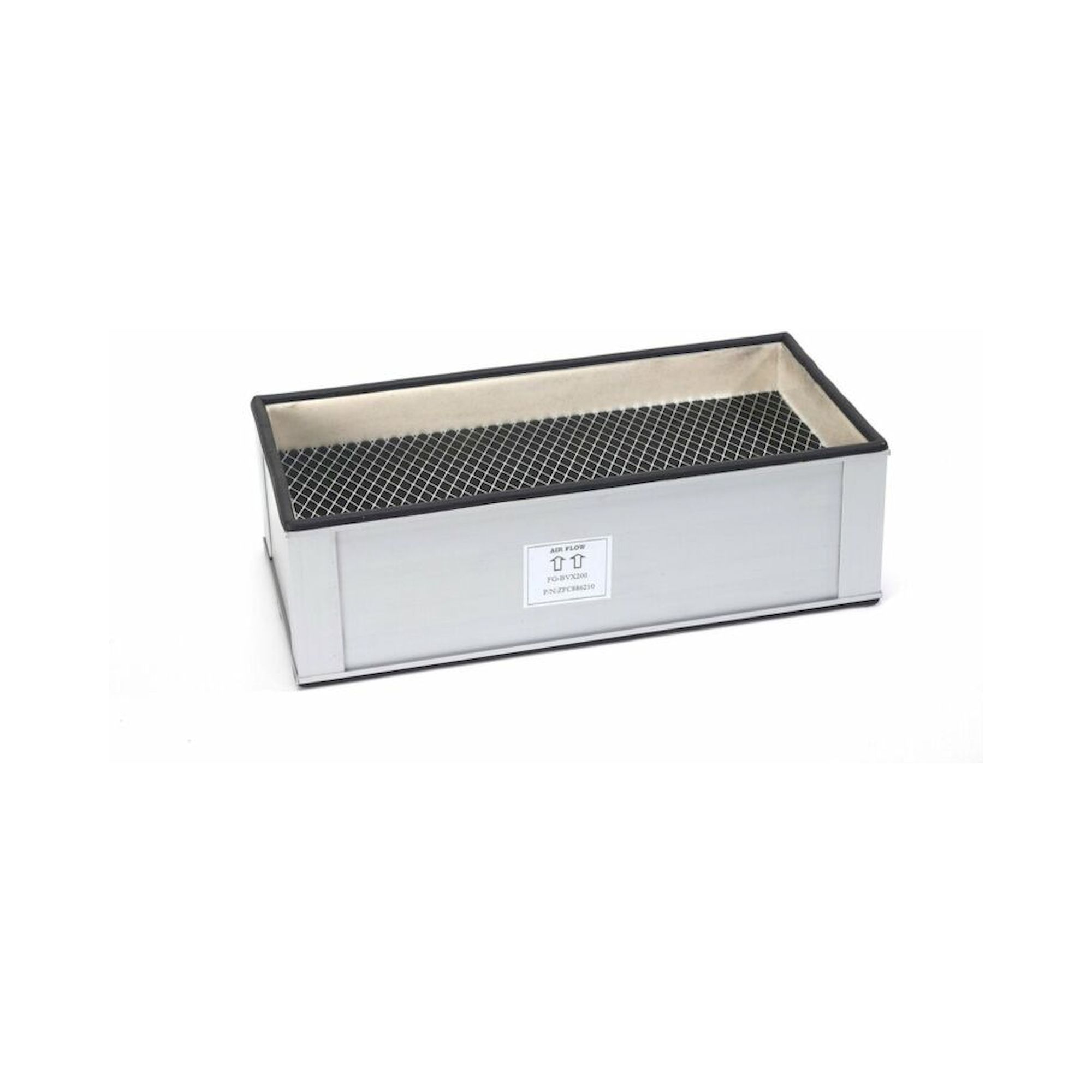

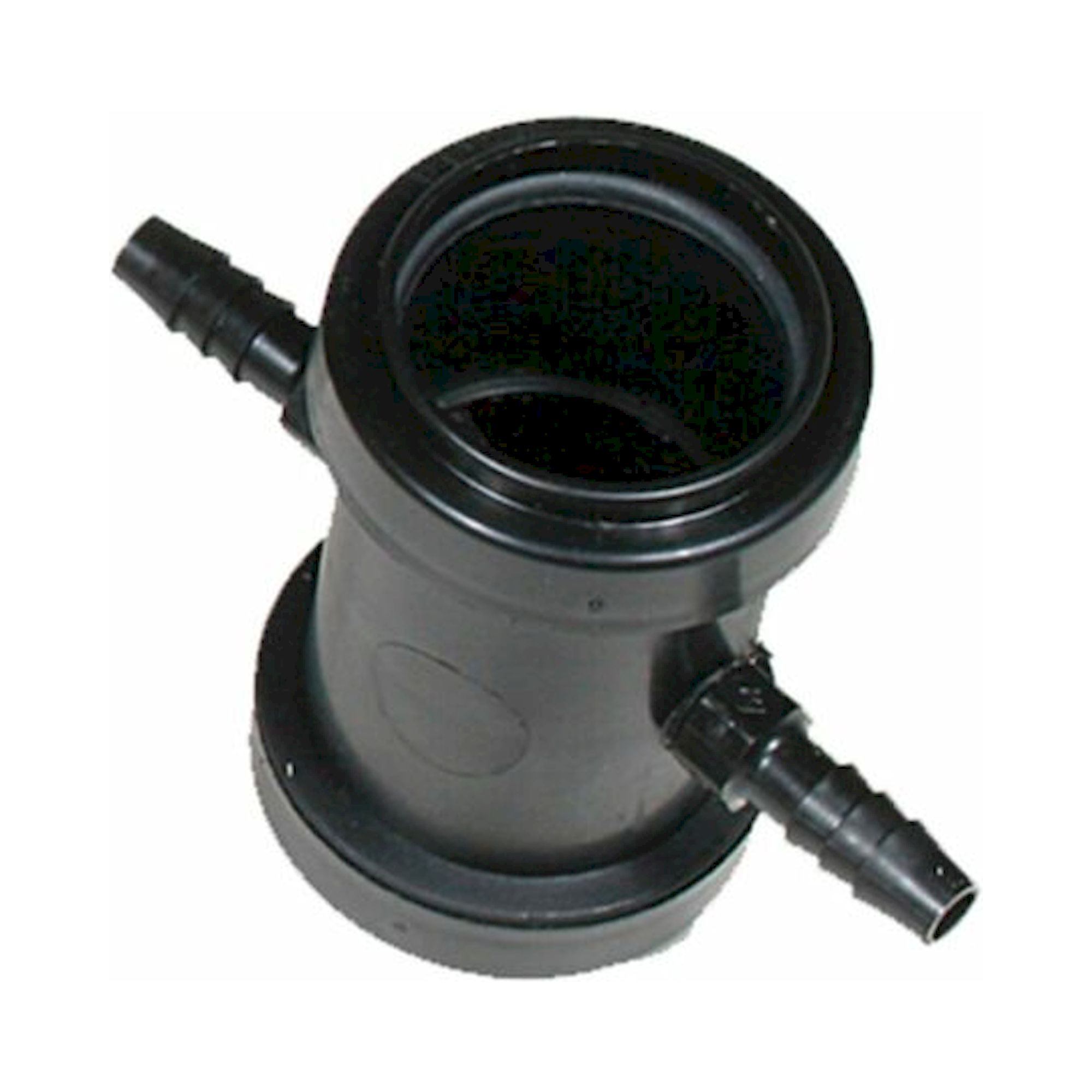

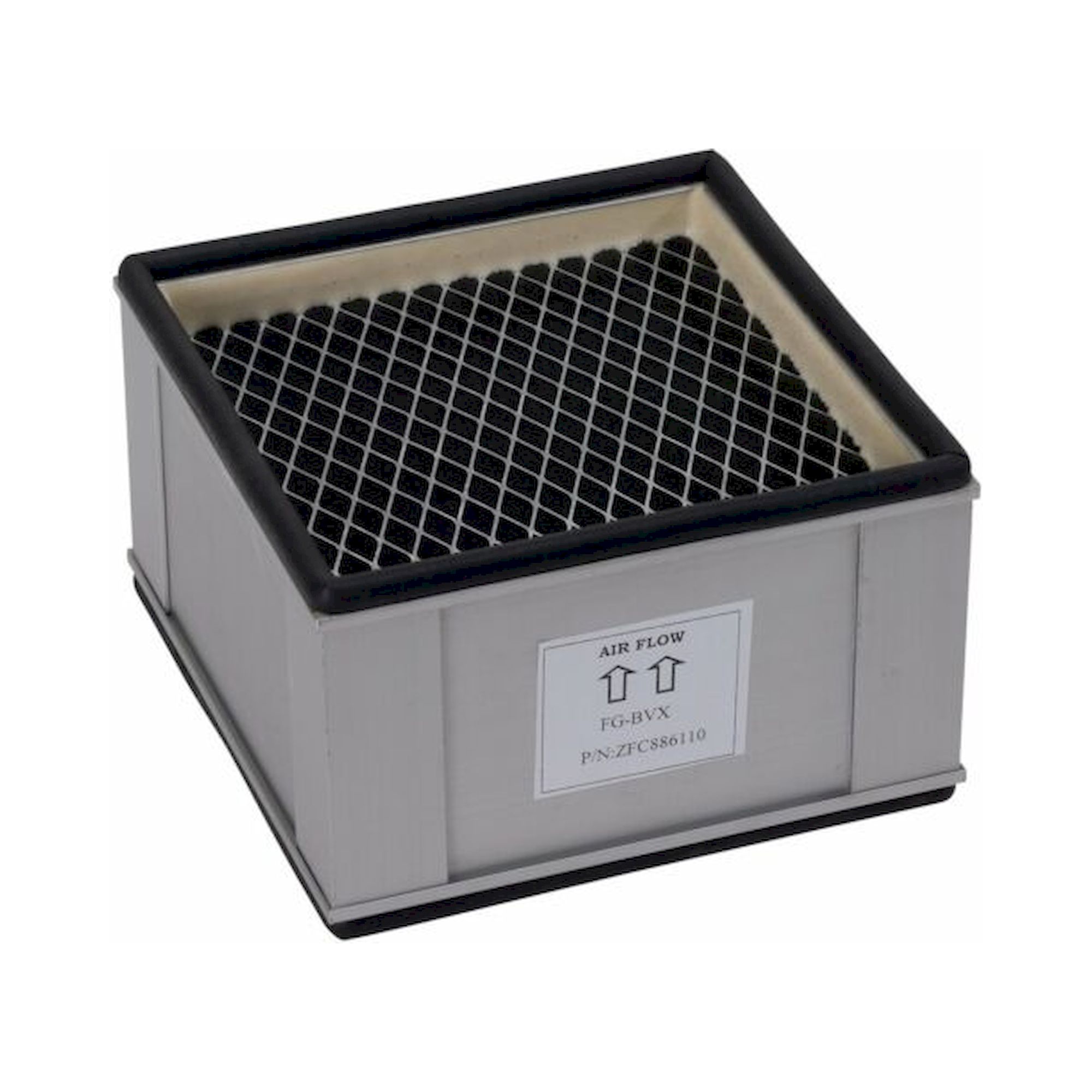

The BTX-208 system is designed for high-density point extraction applications, supporting up to 8 individual soldering stations through dedicated tip extraction connections with AC-TX001-4 coupling assemblies, making it ideal for production line environments with multiple simultaneous operators. BVX series systems like the BVX-201-KIT utilize volume extraction methodology through flexible BVX-ARML arms that provide broader area coverage, suitable for varied workpiece sizes and multi-task soldering operations. The BVX systems feature modular filter configurations with separate main filters (FM-BVX) and dual gas filters (FG-BVX200 for 200 series, FG-BVX for 100 series), while BTX systems integrate filtration specifically optimized for concentrated point source extraction with Pre-HEPA gas filtration technology.

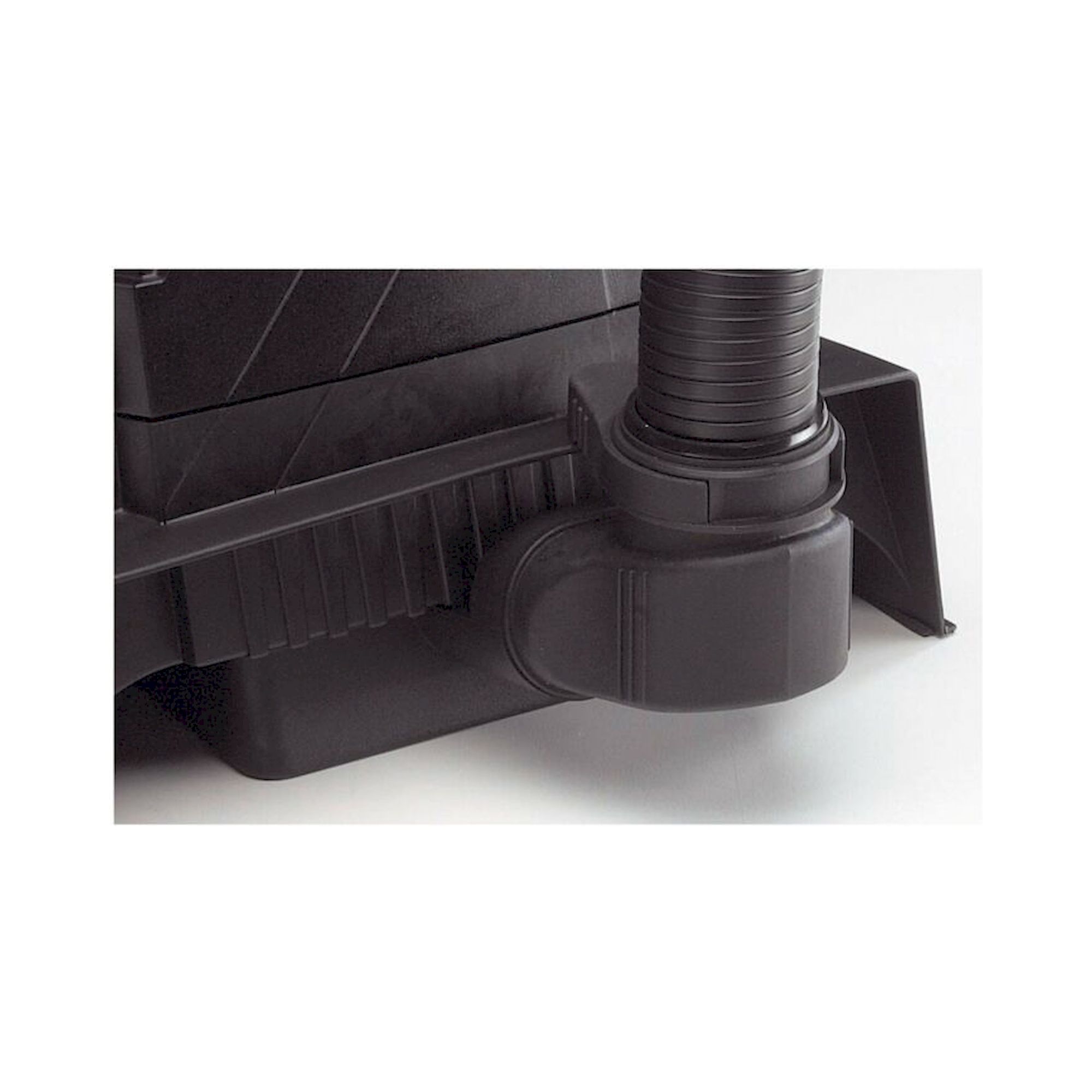

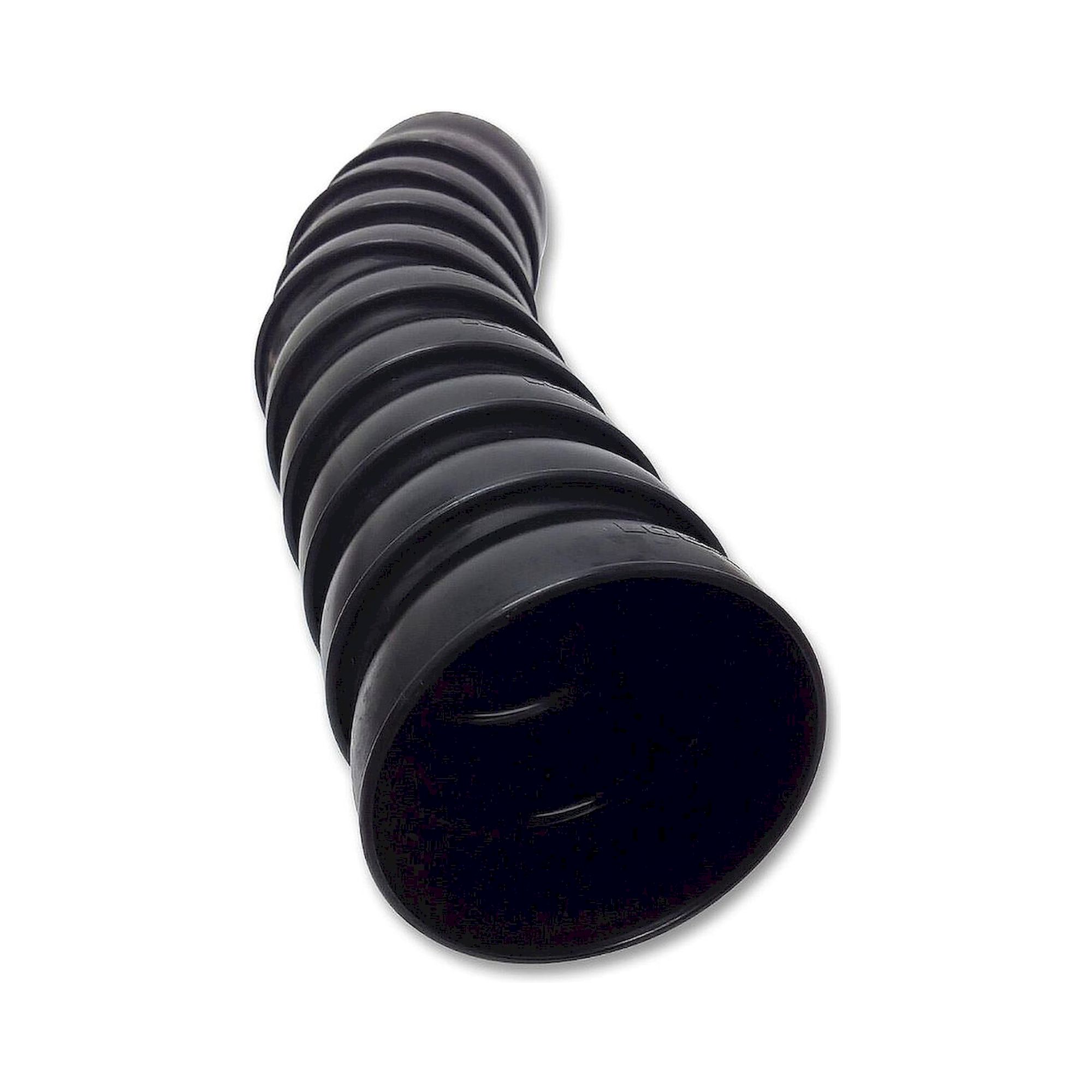

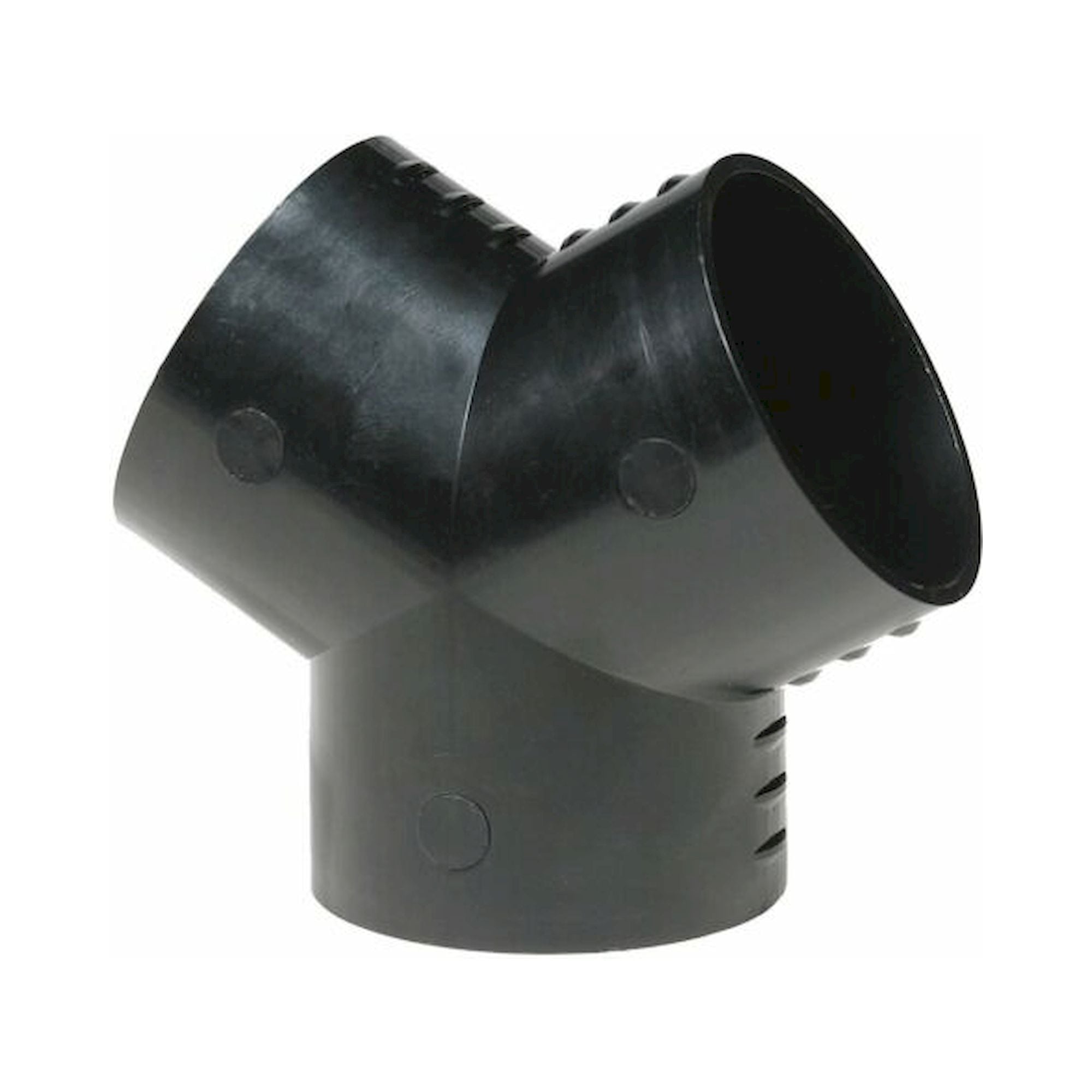

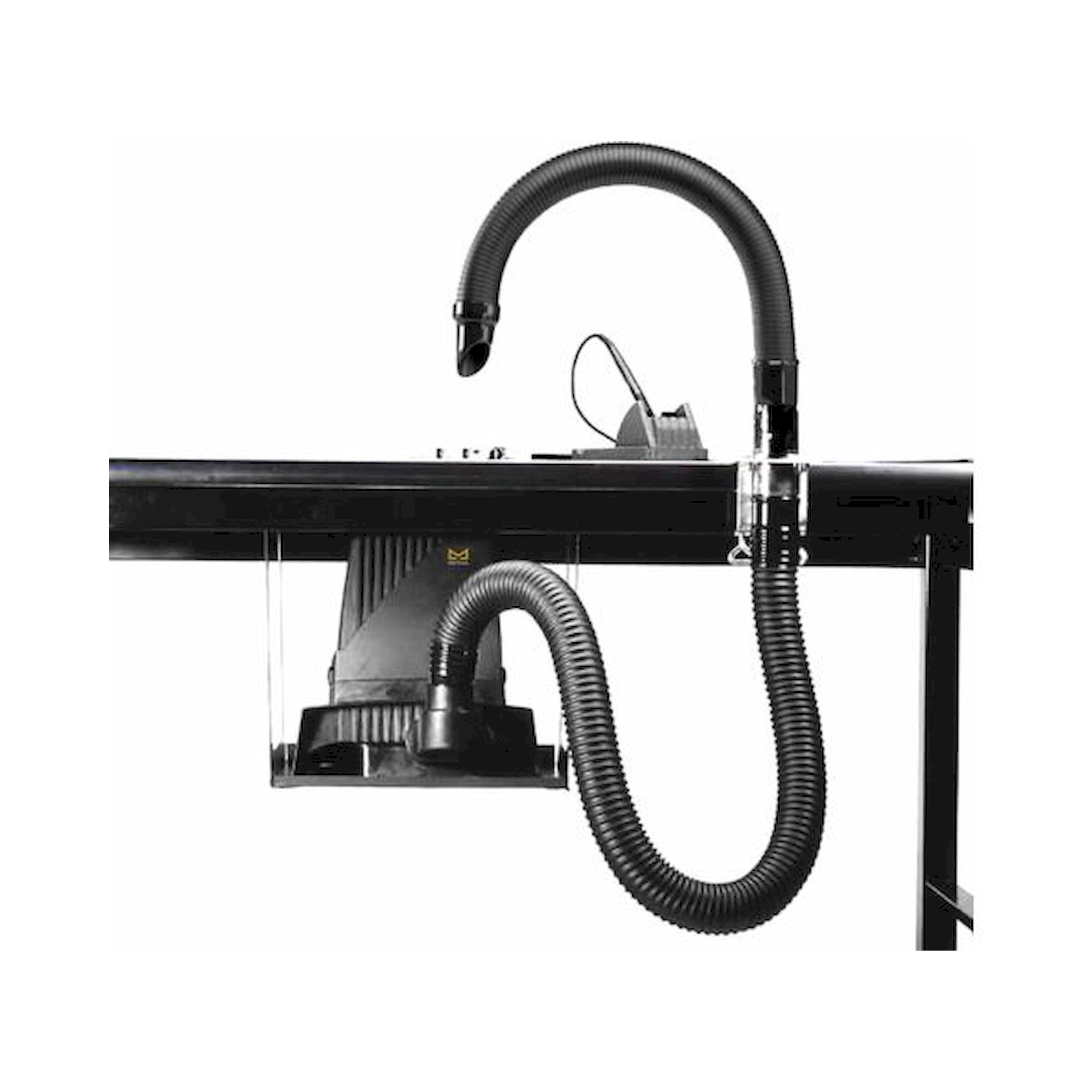

OKI solder fume extraction systems require standard 230V AC power supply and can be installed using benchtop mounting or under-table bracket configurations, with the BVX-BCK under-table mounting system supporting BVX-101 and BVX-103 models for space-efficient integration. The systems utilize 63mm diameter connection tubing with Y-distribution pieces (AC2025) that include integrated clamping mechanisms for secure arm positioning and airflow distribution across multiple extraction points. ESD Omniflex arms feature 300mm extension capabilities through AC1102 components and incorporate shut-off valves (AC1101) for individual zone control, while the BVX-ADT adapter system ensures proper plenum connection between extraction arms and main filtration units for optimal airflow performance.

OKI solder fume extraction systems maintain ESD-safe operation with antistatic components rated below 10^9 ohms surface resistance to prevent electrostatic discharge damage to sensitive electronic assemblies during fume extraction processes. The systems operate effectively in ambient temperatures from 10°C to 40°C with relative humidity levels up to 85% non-condensing, making them suitable for standard electronics manufacturing environment conditions. Pre-HEPA gas filtration technology achieves particulate capture efficiency exceeding 95% for particles down to 0.3 microns, while dual-stage filter configurations provide comprehensive removal of both solid particulates and gaseous contaminants including rosin flux vapors and metallic fumes generated during typical lead-free and leaded soldering operations.

OKI solder fume extraction systems require filter replacement intervals every 6-12 months depending on usage intensity, with main filters (FM-BVX) and gas filters (FG-BVX series) designed as user-replaceable components to minimize maintenance downtime in production environments. Monthly inspection of ESD Omniflex arm joints and AC1101 shut-off valves ensures proper positioning and airflow control, while quarterly cleaning of 63mm diameter tubing connections and AC2025 Y-distributors maintains optimal extraction performance. The BVX-ADT adapter assemblies should be inspected every 3 months for secure plenum connections, and annual electrical safety testing of ESD-safe components verifies continued compliance with IEC 61340 antistatic requirements for electronics manufacturing applications.
