When do I need a footrest?

When the seat height is set to the work surface and the feet no longer rest flat on the floor. The footrest makes up the difference, adjustable models reach up to 410 mm.

Freestanding or mounted on the workstation?

Freestanding models such as those from Treston or Bedrunka+Hirth can be used at any workplace. Mounted solutions from Bosch Rexroth (10 mm slot) or Reeco (Premium crossbar) do not slide, the Bosch Rexroth footrests are 900 mm wide.

Do I need an ESD footrest in the EPA?

Yes, otherwise the person is isolated from the floor. 19 of the 29 models are available in an ESD version.

How much do footrests cost?

Prices range from EUR 47 to EUR 641 net. The lowest-priced model is the Throna ESD footrest at EUR 47, Bosch Rexroth footrests start at EUR 105.

Work chairs

Footrests

Footrests for workplaces where the feet no longer rest securely on the floor once the seat height is set correctly: 29 models from Bosch Rexroth, Treston, meychair, Bedrunka+Hirth, Bimos, Reeco, Warmbier and Throna. 19 of them are available in an ESD version for the EPA. Prices range from EUR 47 to EUR 641 net.

Finder
Selection criteria
Model comparison
ESD
Applications

Finder: the right footrest

Choose by version or move on to the matching chair.

ESD versionConductive footrests for assembly and test stations in the EPA.19 models Plastic surfaceSmooth platform, easy to clean.5 models Wooden surfaceWarm, robust platform for workshop and office.2 models With glidesFreestanding and movable, no mounting on the table.2 models

29 items
8 manufacturers
Net prices plus VAT

View as Grid view List view

Show

per page

Buying guide

How to choose Footrests

What matters when choosing: properties, comparison and typical applications.

Selection criteria for footrests

Freestanding or mounted

Freestanding footrests from Treston or Bedrunka+Hirth can be used at any workplace. The Bosch Rexroth footrests attach to profiles with a 10 mm slot, Reeco mounts on the crossbar of the workstation.

Bosch Rexroth footrests

Height and tilt

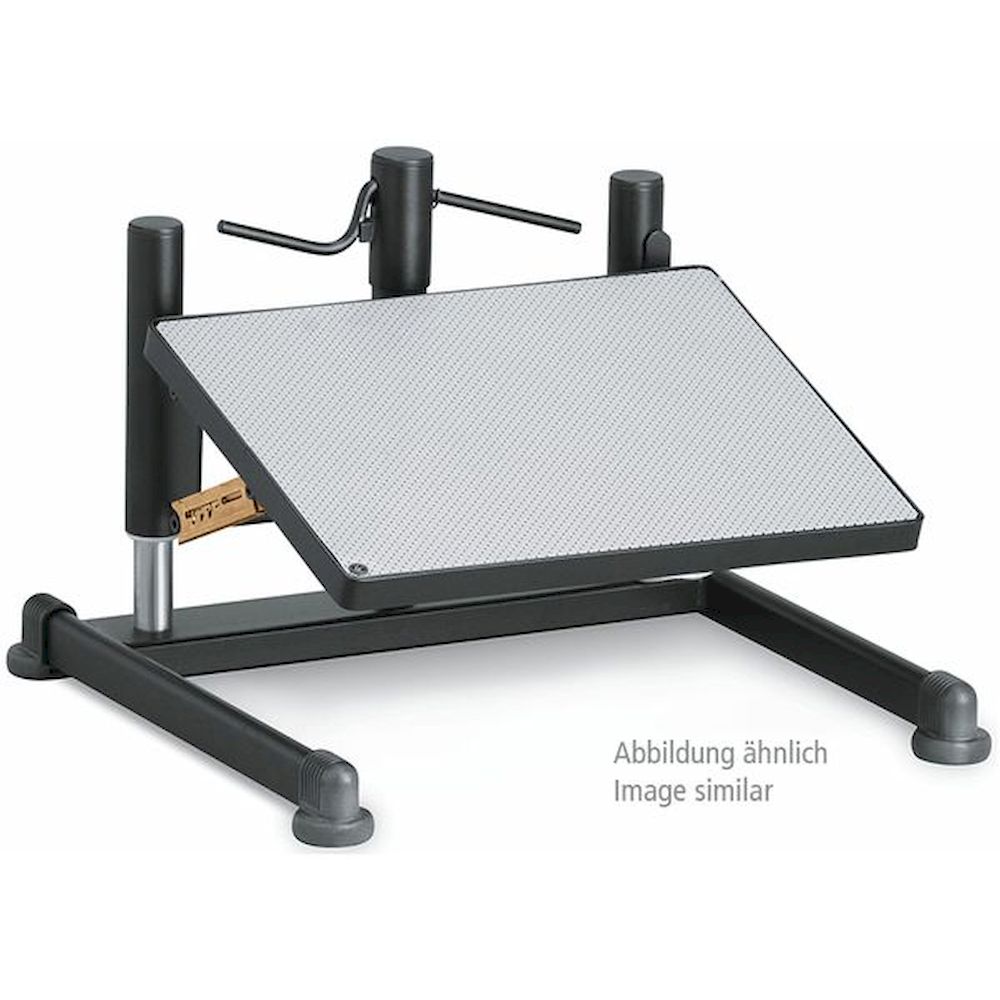

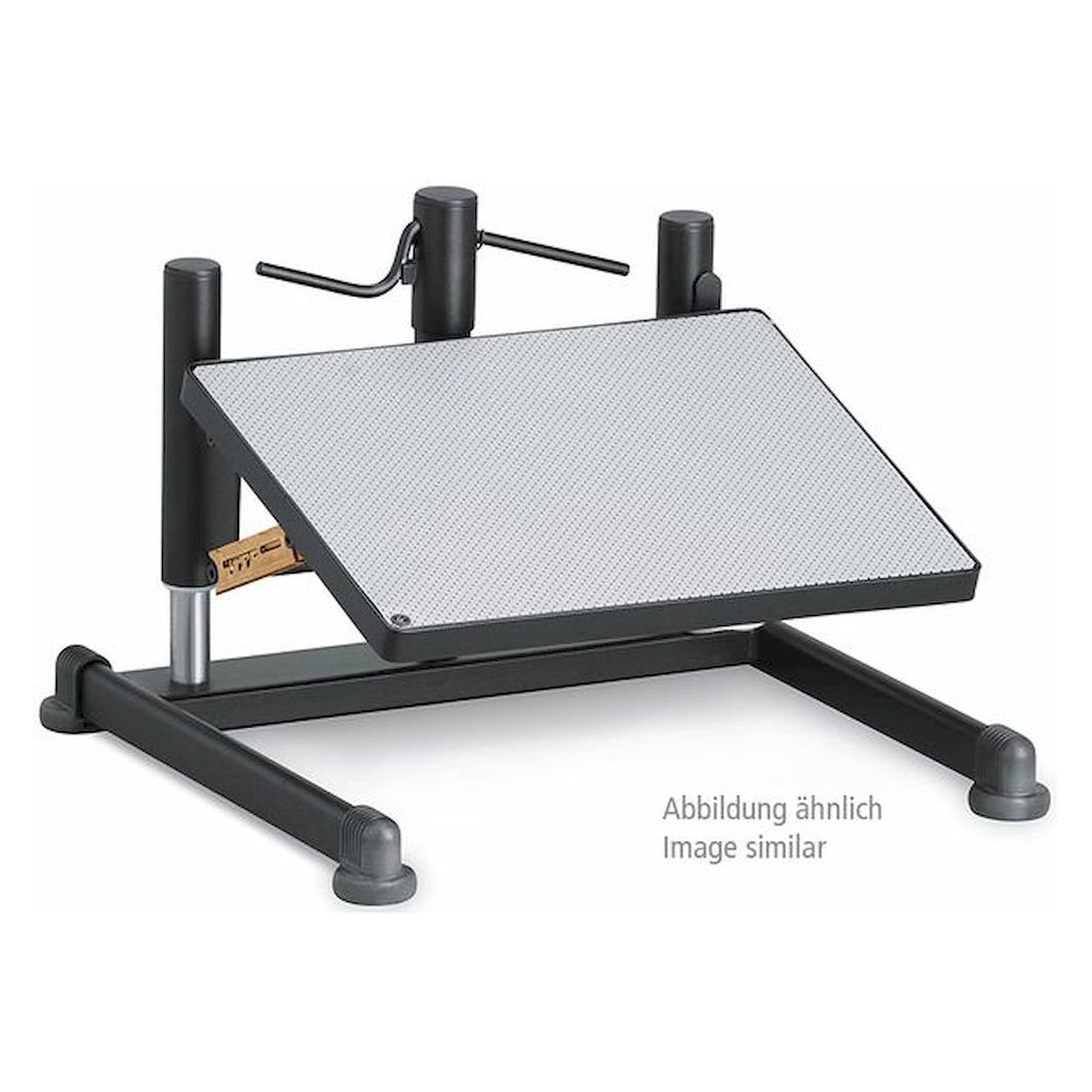

The adjustable models cover heights from 65 to 410 mm. A tilting footplate, 8 to 25 degrees on Bimos models, keeps the ankle in a relaxed position.

Bimos footrests

Platform

Plastic (5 models) is easy to clean, wood (2 models) suits dry environments.

Models with plastic platform

Model comparison

Series	Brand	Height	Design	ESD	Price from (net)

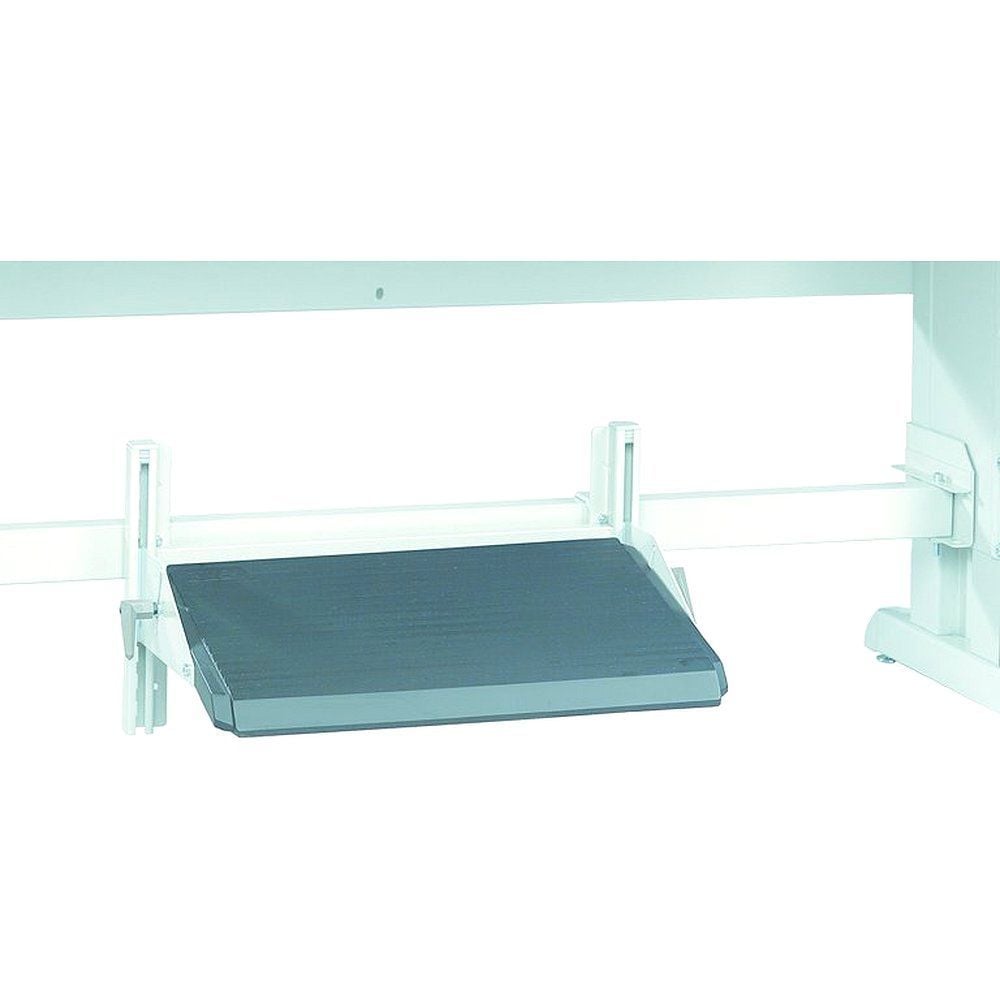

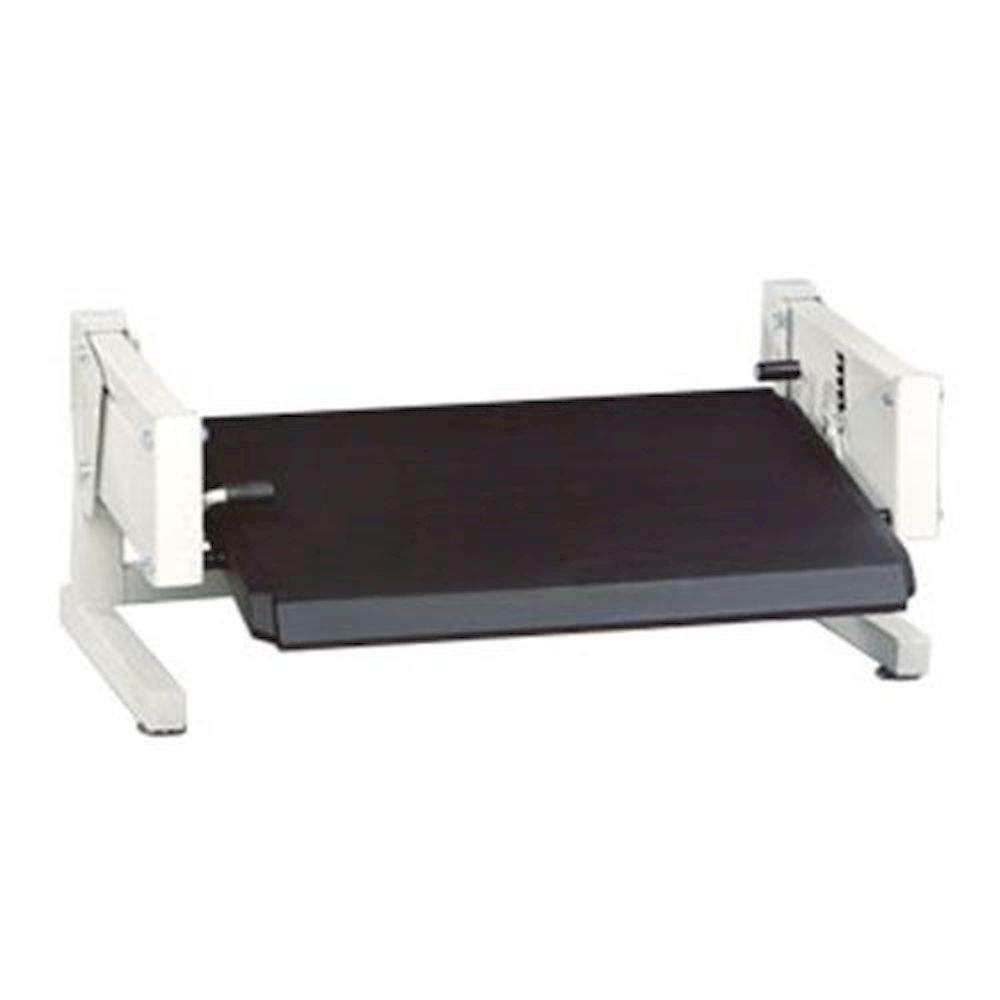

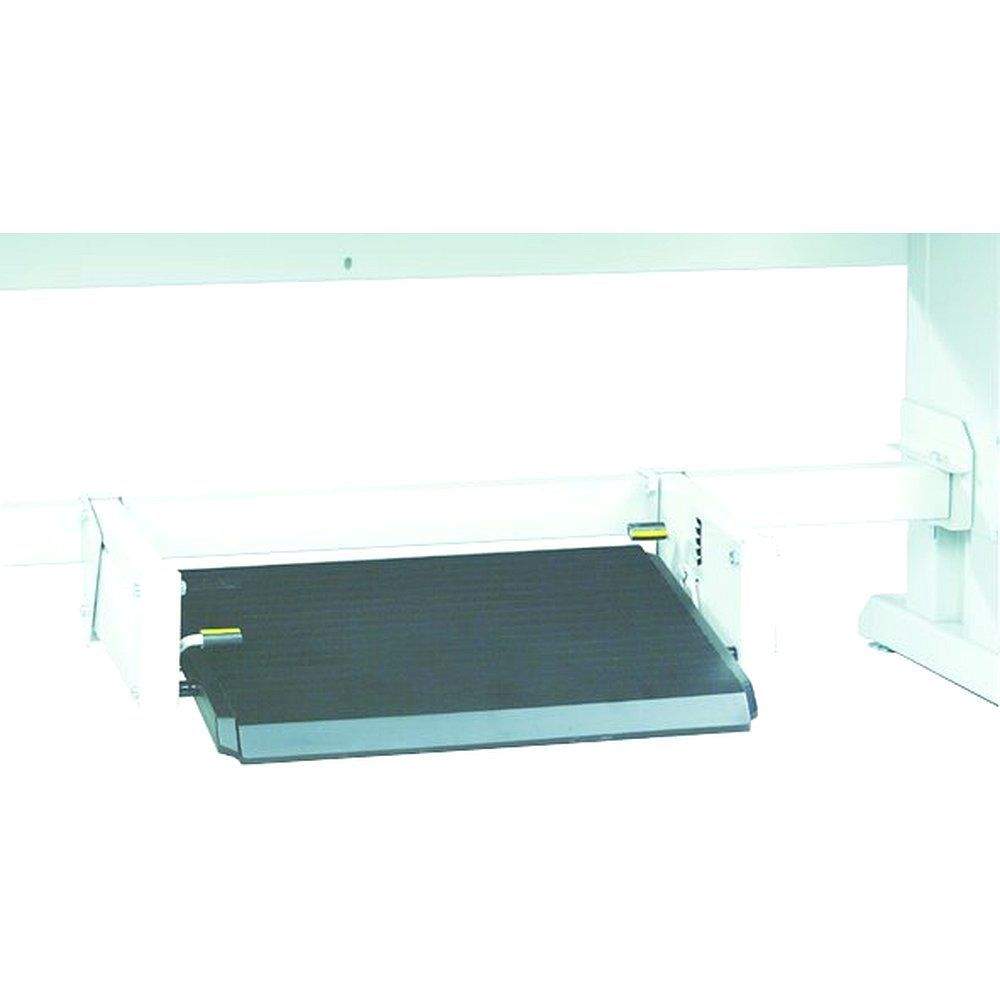

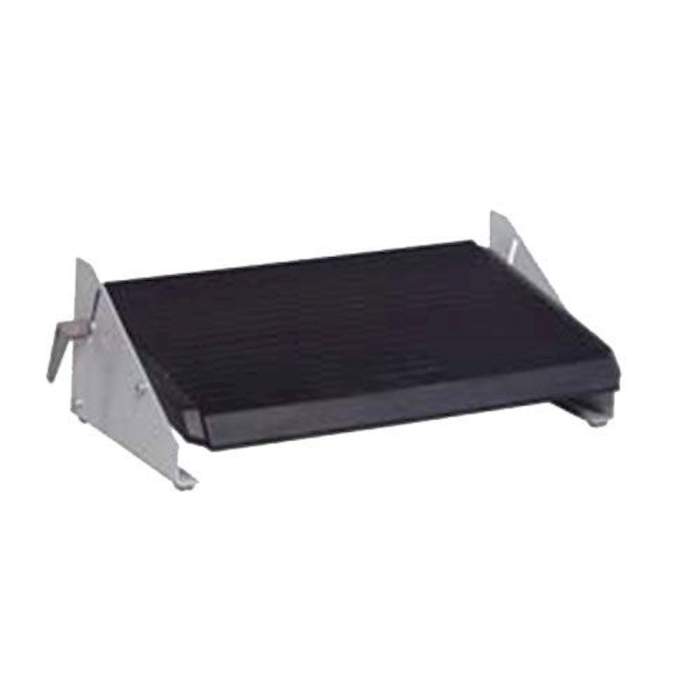

individual models	Treston	-	freestanding, W x D 550 x 350 mm	5 of 5	from EUR 178
individual models	Bosch Rexroth	-	footrest 900 x 530 mm, 10 mm slot	4 of 5	from EUR 410

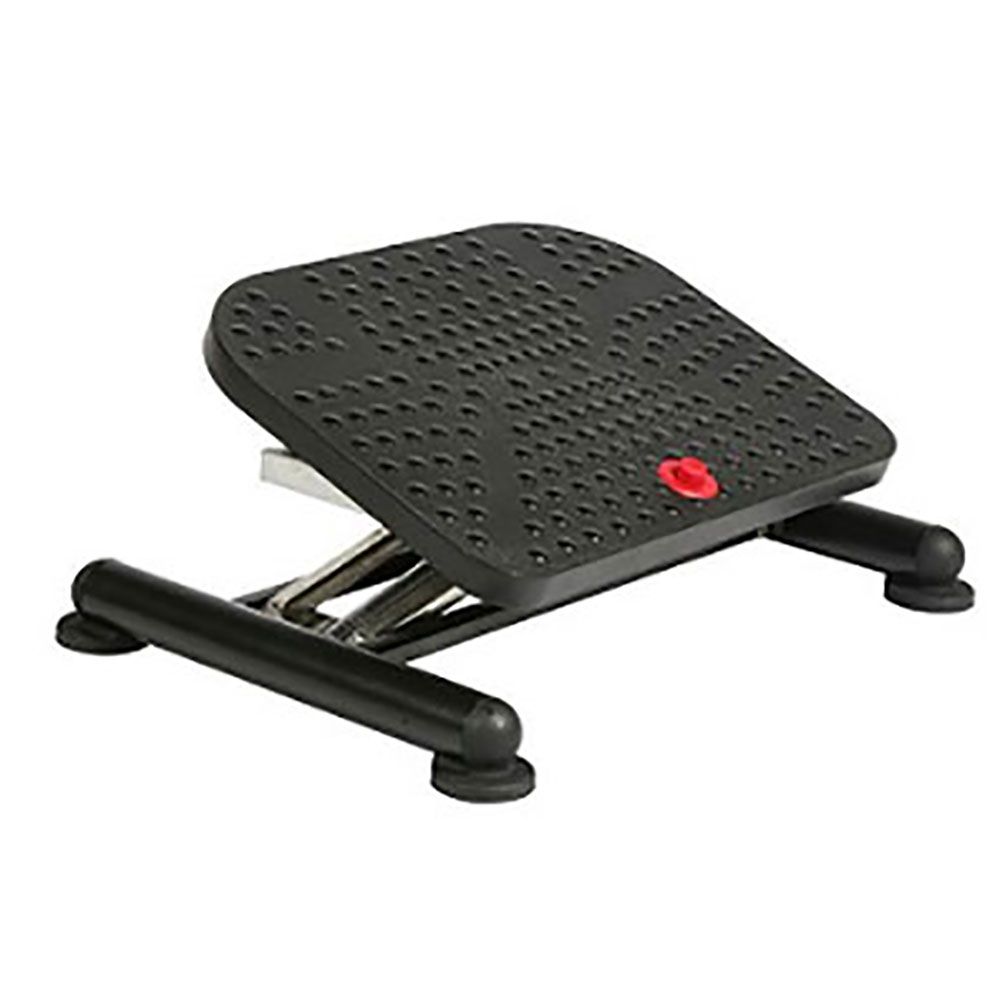

individual models	meychair	110 to 320 mm	steel frame, also with gas spring	1 of 4	from EUR 145
individual models	Bedrunka+Hirth	110 to 320 mm	inclined, freestanding	1 of 4	from EUR 80
individual models	Bimos	65 to 410 mm	tilting footplate, glides	1 of 3	from EUR 226
Premium	Reeco	-	on Premium crossbar	3 of 3	from EUR 169
Economic	Bosch Rexroth	-	footrest 900 x 400 mm, configurable	1 of 2	from EUR 105

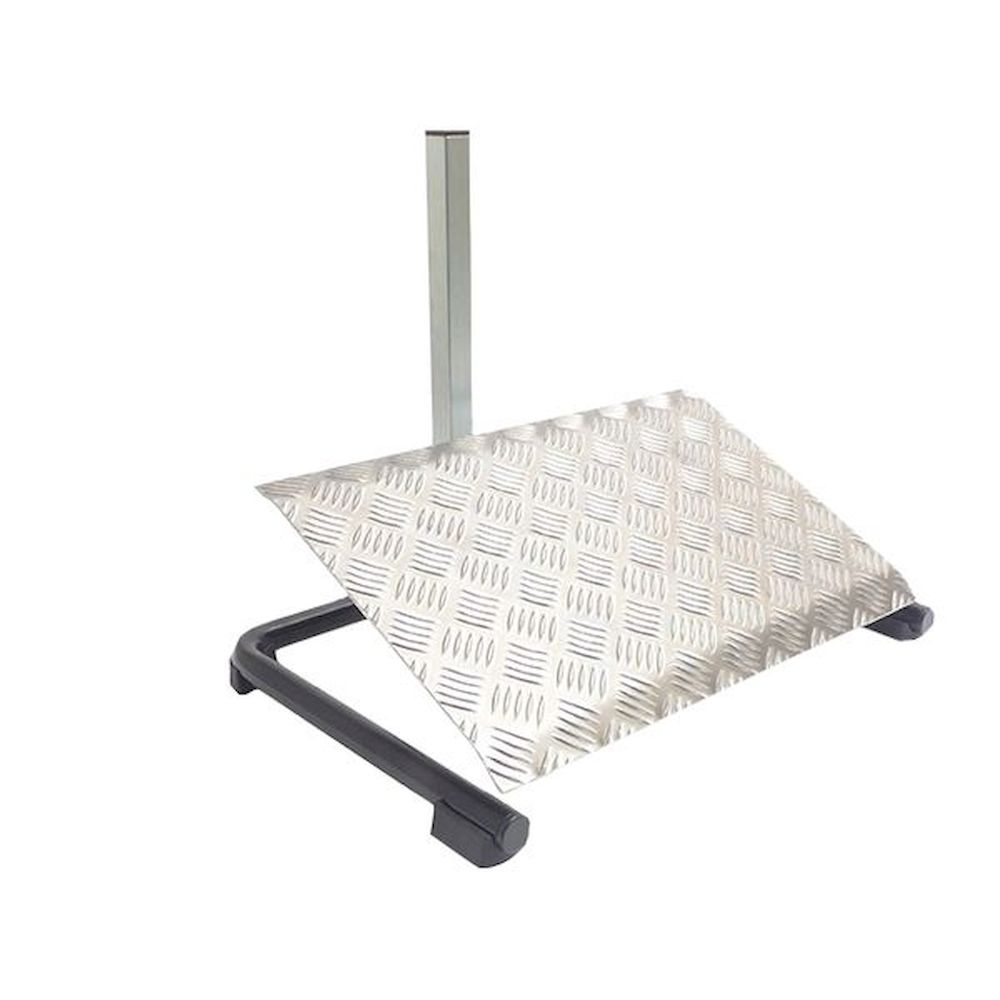

individual models	Warmbier	-	adjustable, with grounding cable	2 of 2	from EUR 175
individual models	Throna	-	round, 460 mm diameter	1 of 1	from EUR 47

Footrests in the EPA

Anyone standing on a footrest has no contact with the dissipative floor. The charge must then drain through the footrest: from the person through the footwear into the conductive platform and from there via the floor or a grounding cable to the ground point. Chairs are tested to DIN EN 61340-5-1 with a resistance from seat surface to ground point below 1 x 10¹⁰ ohms, and the footrest is part of the workstation check.

The floor is a prerequisite - freestanding ESD footrests only dissipate via a conductive floor or floor mat.

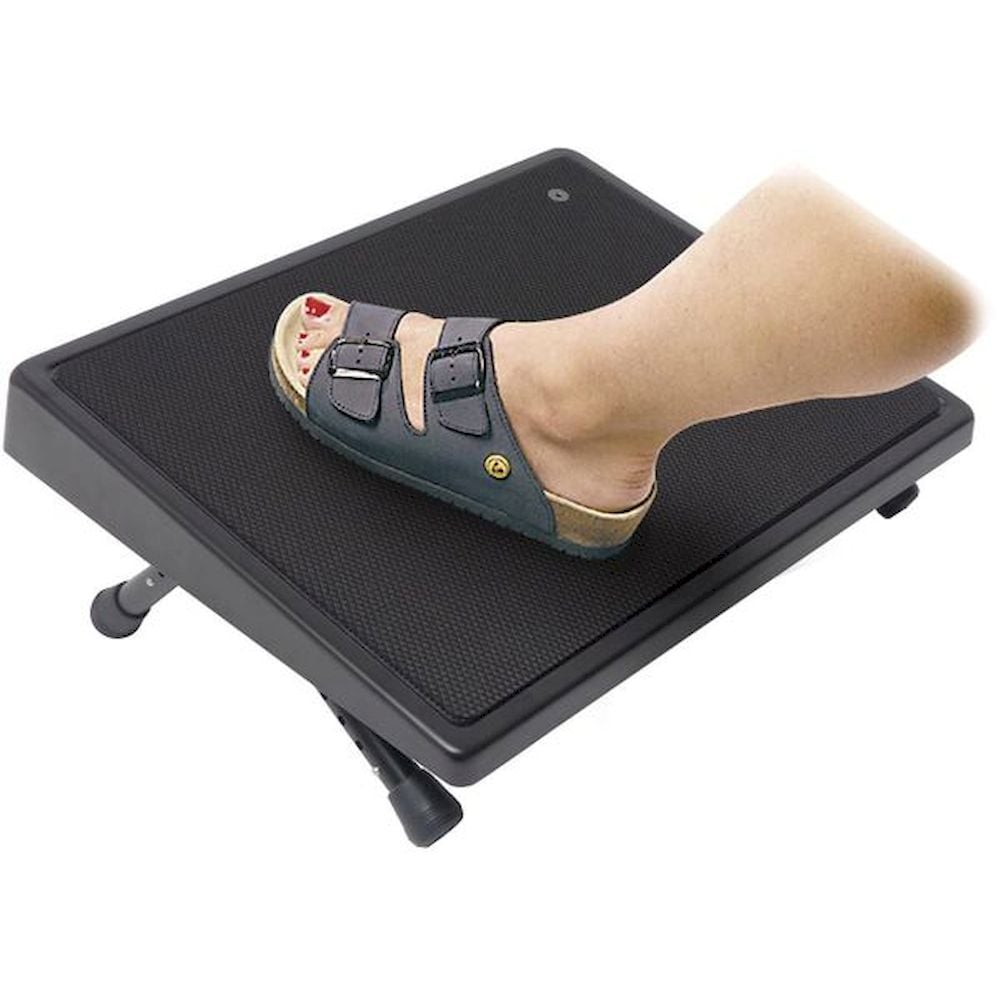

Grounding cable - models such as Warmbier 1740.FS connect directly to the ground point.

View all ESD footrests

Typical applications

The footrests are mainly used at ESD assembly stations (20 models) and industrial workplaces (14), as well as at office and laboratory workplaces.
