Shelving systems

Workplace Systems Bedrunka+Hirth

The Bedrunka+Hirth shelving systems include boltless shelves, lockable units with hinged doors and vertical pull-out systems for industrial and workshop use. The programme ranges from simple bays with 5 height-adjustable shelves (shelf load 230-240 kg, 25 mm pitch) to complete module configurations with drawers, back panels, side closure panels and lockable hinged doors with cylinder locks. Side panels delimit and subdivide shelf levels; load floor sets allow secured access to vertical pull-out systems.

📦 Shelf load 230-240 kg - boltless shelving bays with 5 shelves, height-adjustable at 25 mm intervals

🛡 Hinged doors with cylinder lock - 2 doors, bolt and 2 keys (e.g. SRFLE100/200, SRFLE100/100)

⚙ Vertical pull-out systems - load floor set with cylinder lock for pull-outs 700/1000 to 1000/2800 mm

✓ High-quality steel back panels - two-part back panels (e.g. SRRW100/24, SRRW100/28) for closed rear of shelving

⬡ Side closure panels - available in heights 100, 145, 195, 200, 240, 280 mm for lateral coverage (SRSAW series)

✦ Modular expansion - base bays with 3-5 shelves as foundation, drawers and door sets combinable

Type	Example article	Key feature
Boltless shelving bay	05.1005G, 05.1006G	5 shelves, shelf load 230-240 kg, 25 mm pitch
Lockable unit, hinged doors	SRFLE100/200, SRFLE100/100	2 doors, bolt lock, cylinder lock, 2 keys
Module with drawers	SRK04, SRK06, SRK07	Vertical pull-outs, drawers, shelves and door kit
Side closure panel	SRSAW100-280	Lateral coverage of shelving, various heights
Steel back panel	SRRW100/24, SRRW100/28	Two-part, high-quality sheet steel

Typical applications: workshop and production stores with heavy parts (shelf load up to 240 kg), secured storage areas with lockable shelving, small-parts stores and storage organisation in industrial and trade businesses, and vertical pull-out systems for structured access to tools and equipment.

Add to Wish List Add to Compare

Module 5 | 1400, 3x support frames, 2x rear walls - Bedrunka+Hirth SRK05A
€2,803.84
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

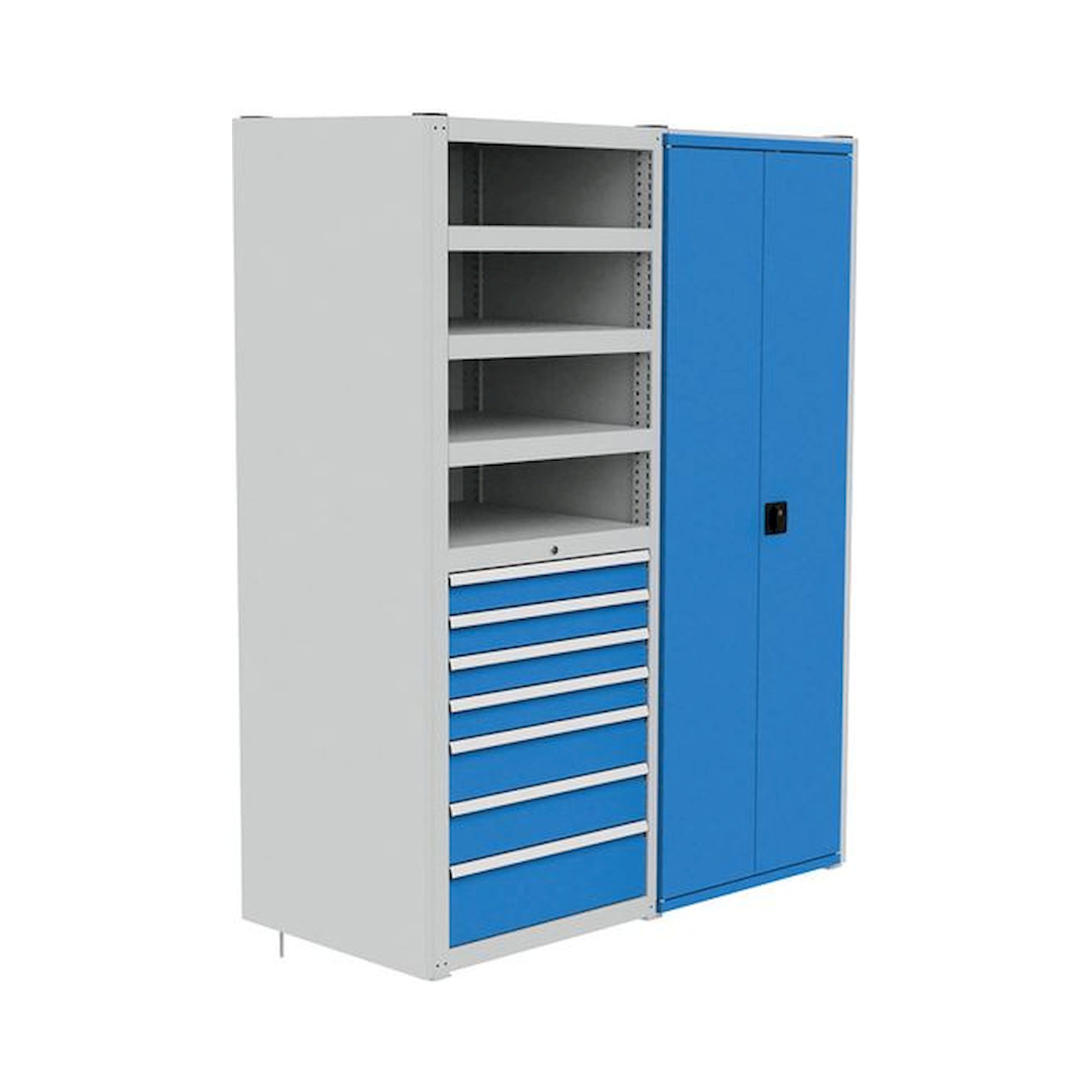

Module 5 | 1400, 3x support frames, 2x rear walls - Bedrunka+Hirth SRK05
€2,803.84
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

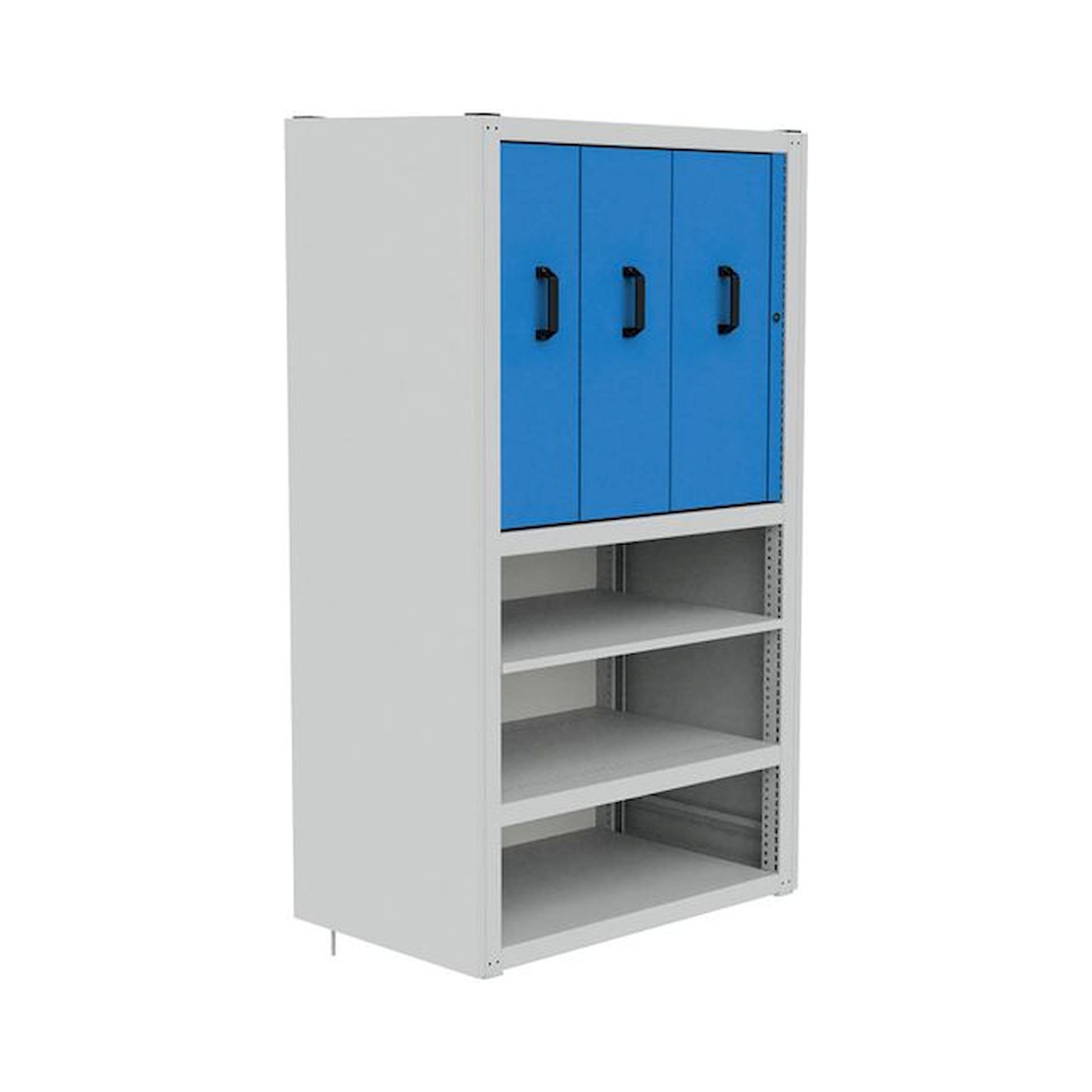

Module 8 | 1000, 2x support frame, 1x rear wall - Bedrunka+Hirth SRK08
€2,431.66
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

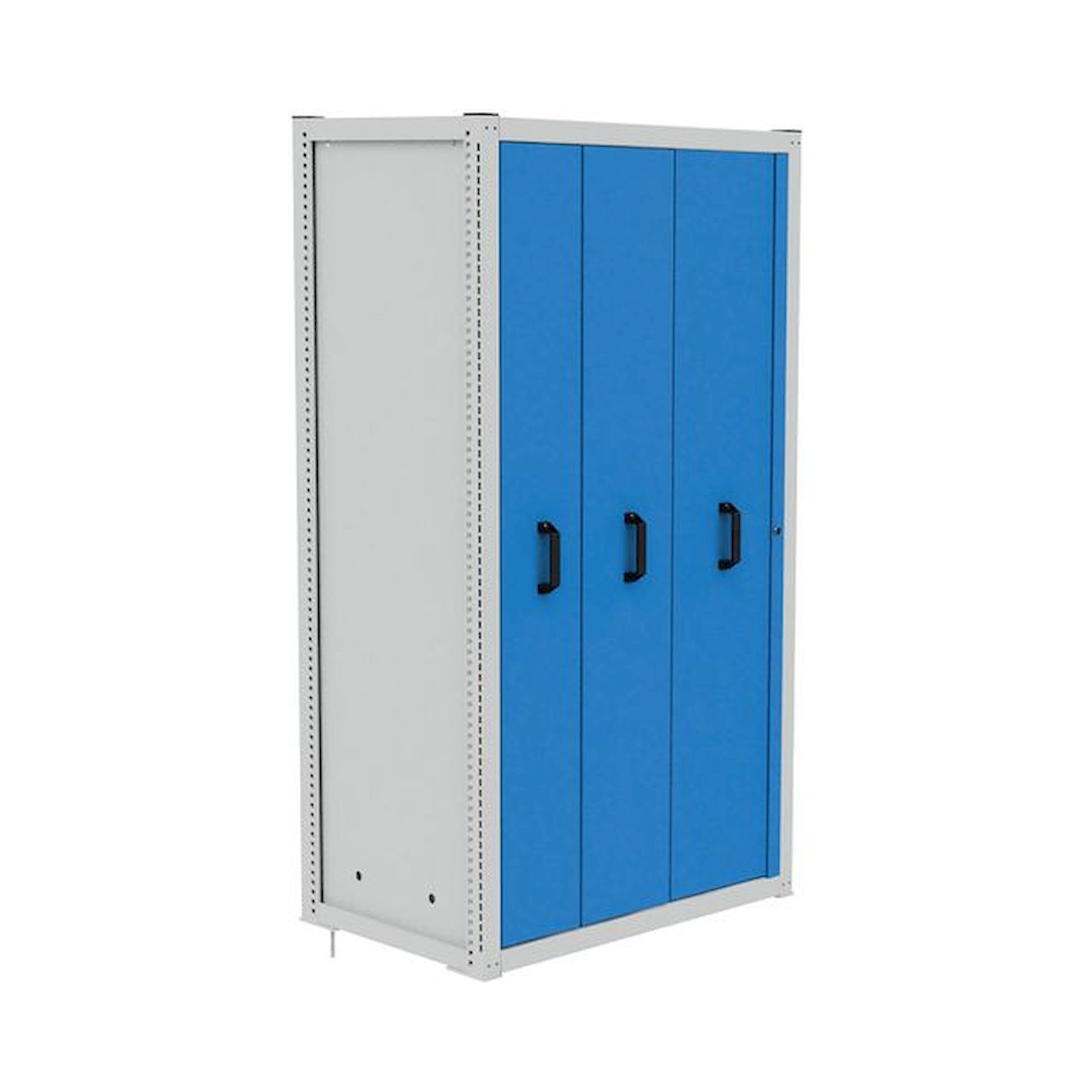

Module 4 | 1000, 2x support frames, 1x rear wall - Bedrunka+Hirth SRK04
€2,150.41
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

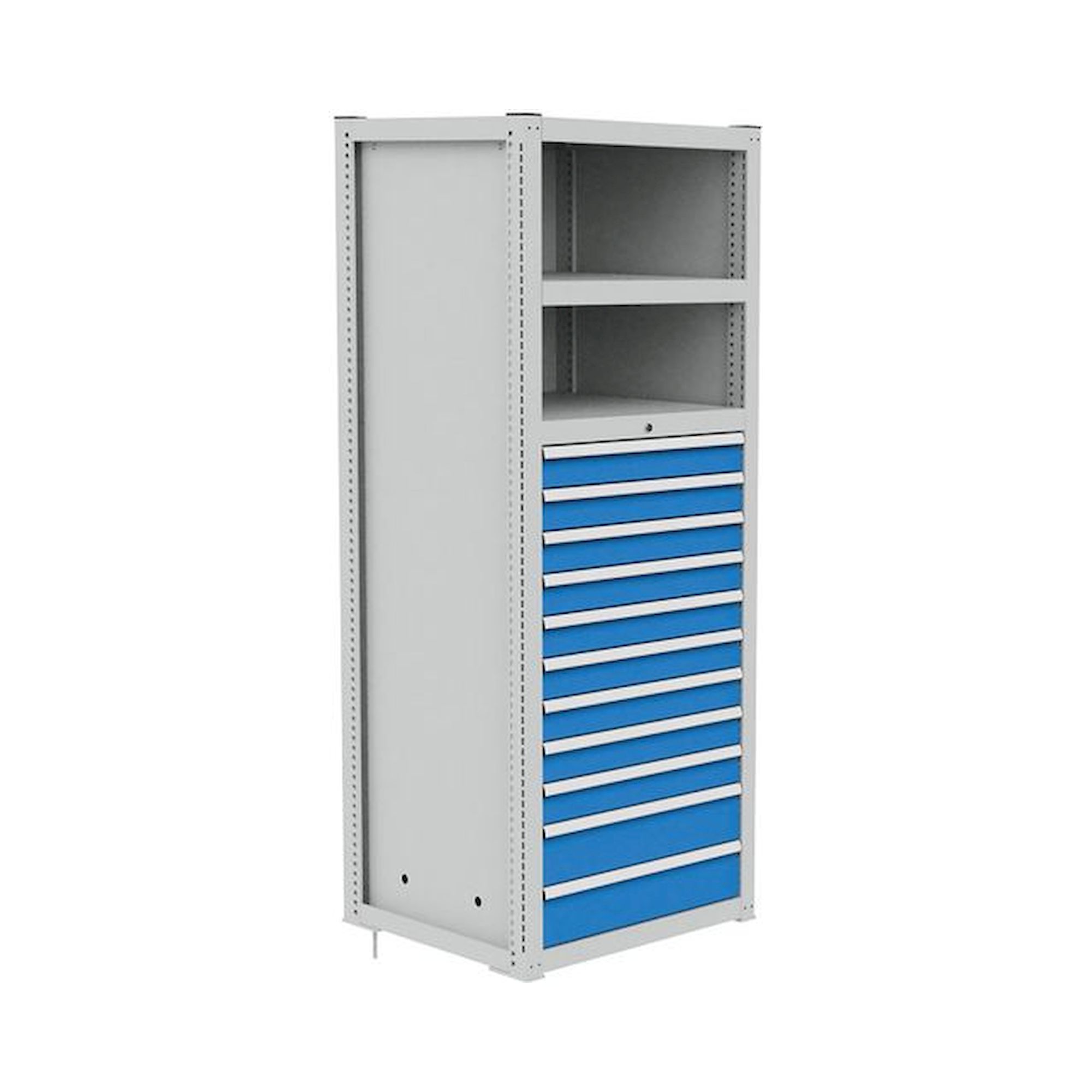

Module 2 | 700 2x support frames, 1x rear wall - Bedrunka+Hirth SRK02
€2,054.93
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

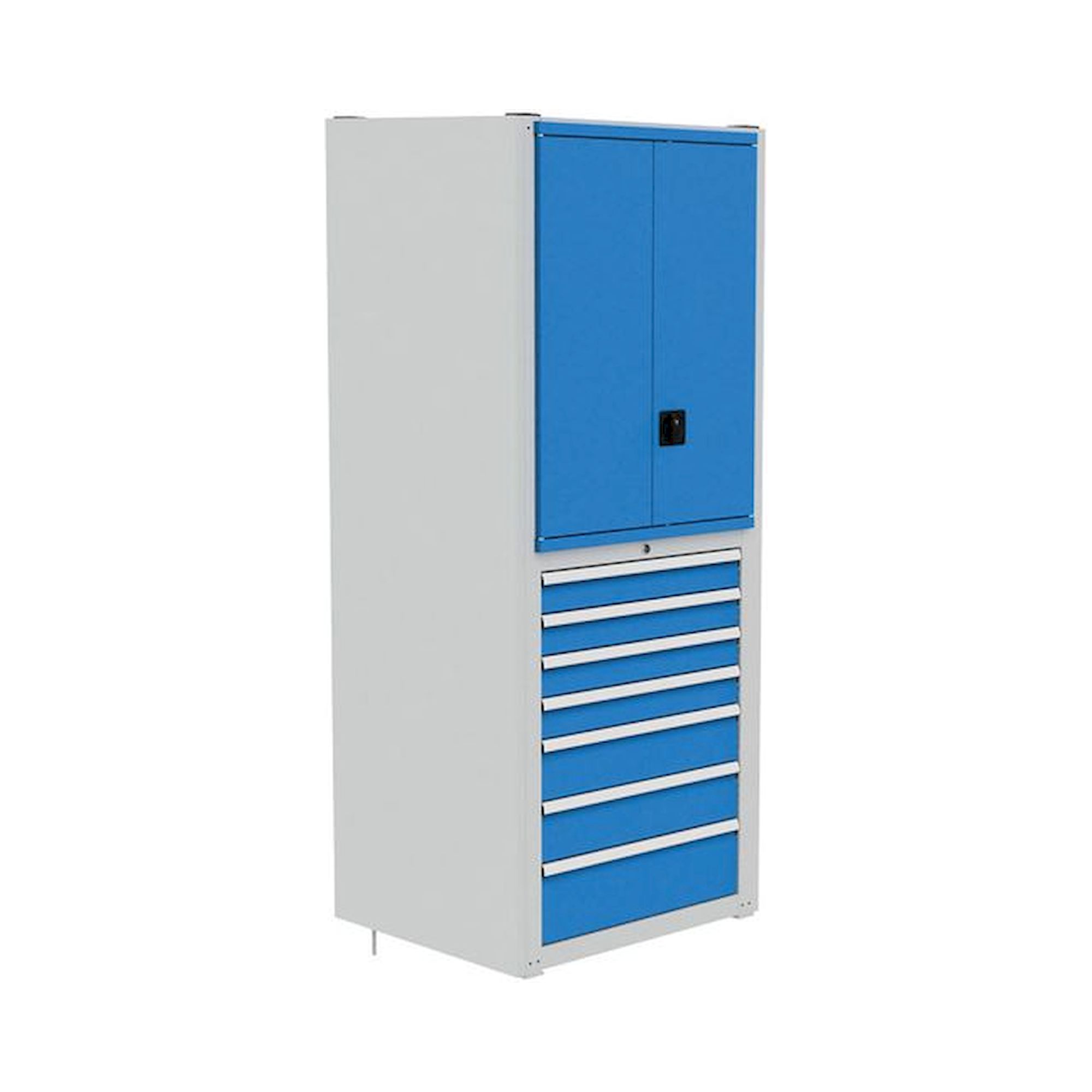

Module 6 | 700, 2x support frames, 1x rear wall - Bedrunka+Hirth SRK06
€1,891.36
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

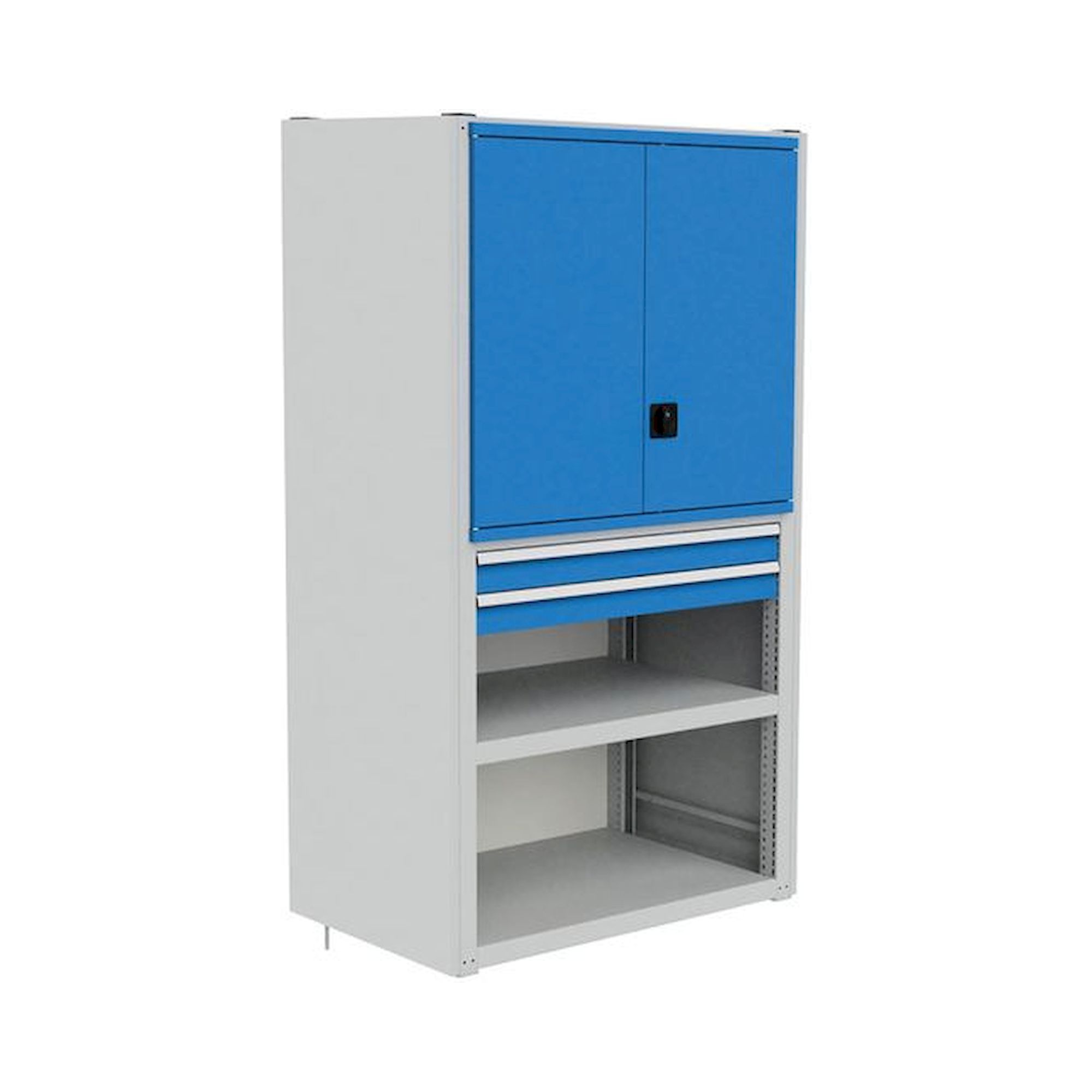

Module 7 | 1000, 2x support frames, 1x rear wall - Bedrunka+Hirth SRK07
€1,529.78
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Cantilever shelving - Bedrunka+Hirth 05.20201-50
€1,496.52
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

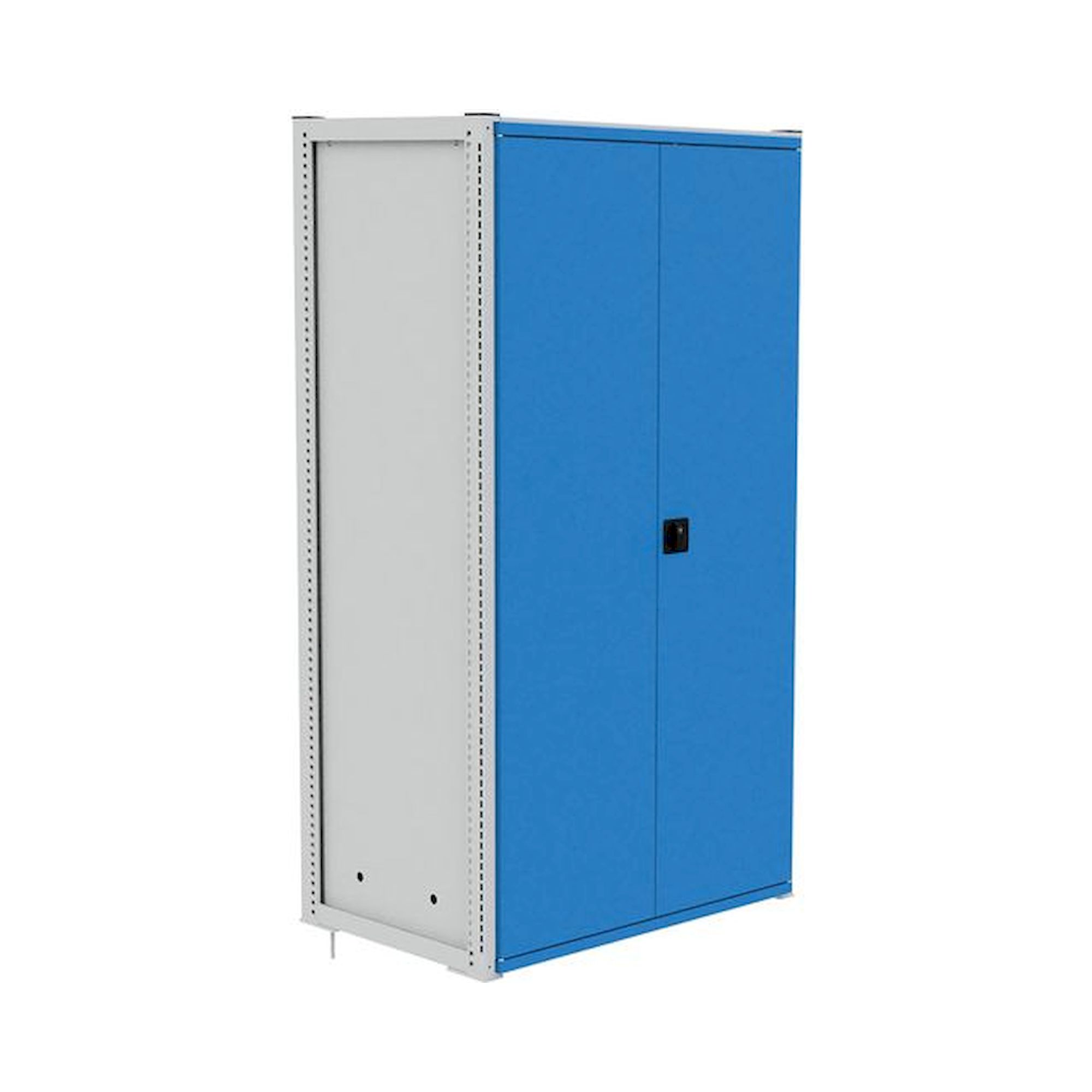

Module 3 | 1000, 2x support frames, 1x rear walls - Bedrunka+Hirth SRK03
€1,244.37
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

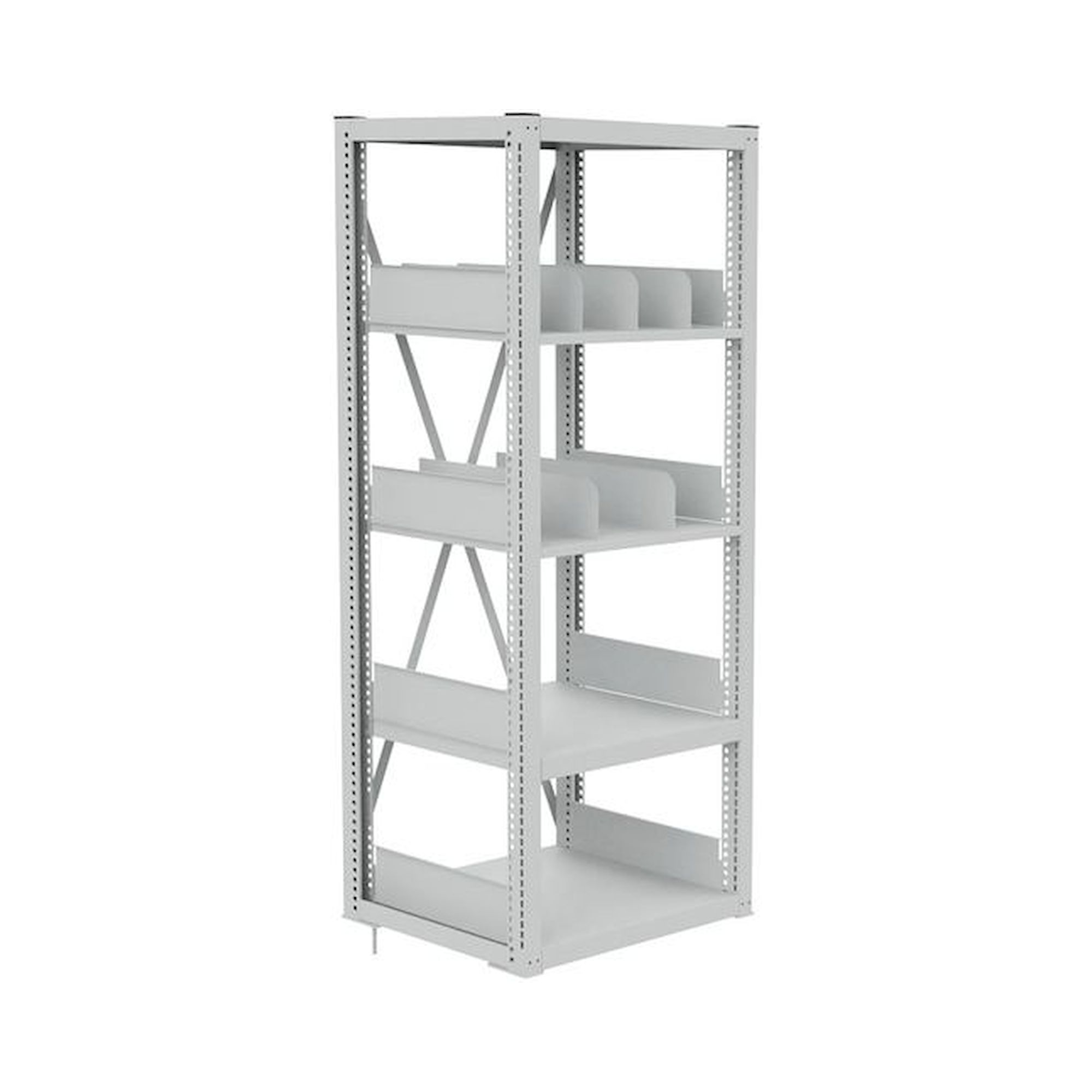

Module 1 | 700, 2x support frames, 1x diagonal cross-brace - Bedrunka+Hirth SRK01
€829.44
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

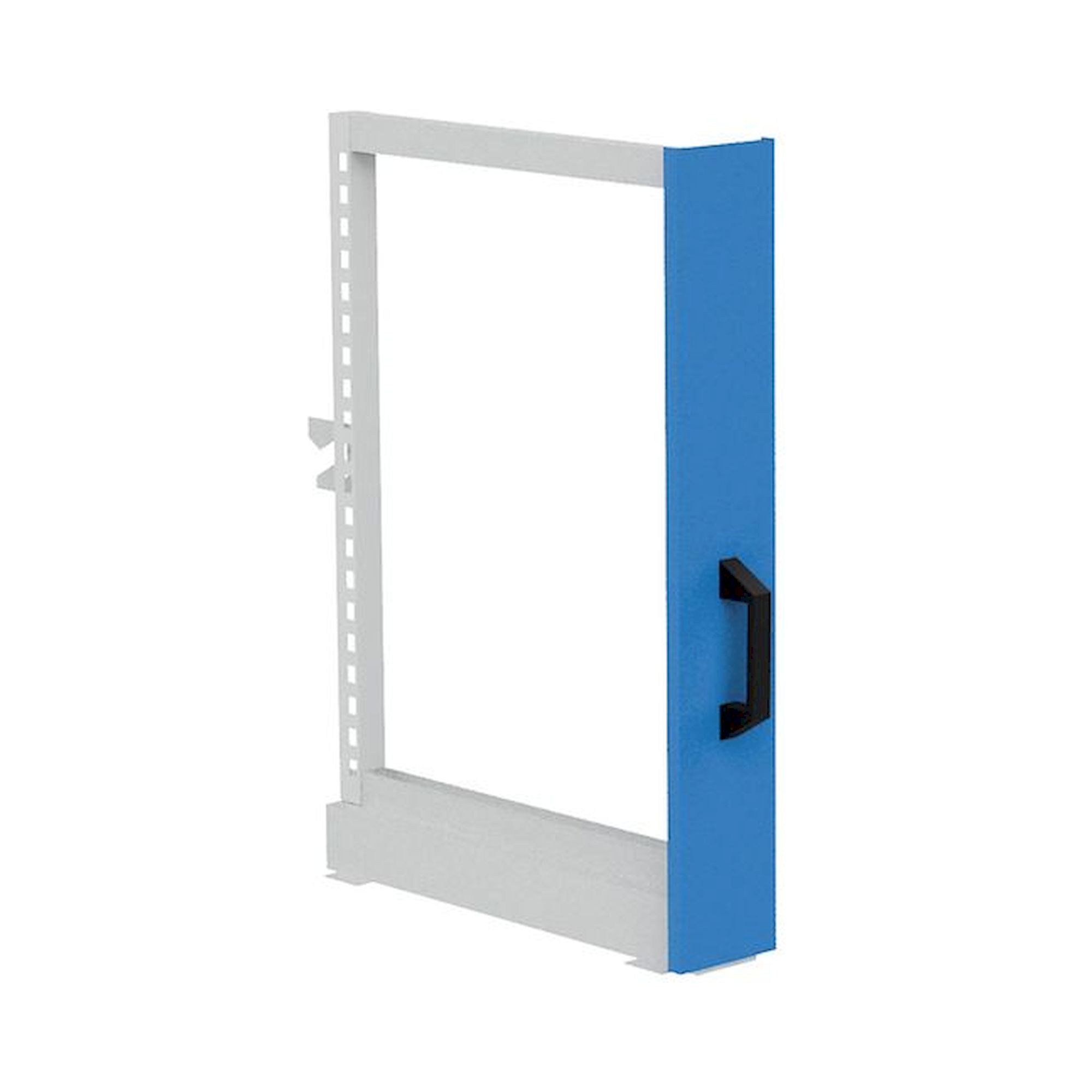

Vertical pull-outs, soft pull-in, full pull-out 100% - Bedrunka+Hirth SRVZ350/280
€486.75
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Vertical pull-outs, soft pull-in, full pull-out 100% - Bedrunka+Hirth SRVZ350/240
€479.48
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

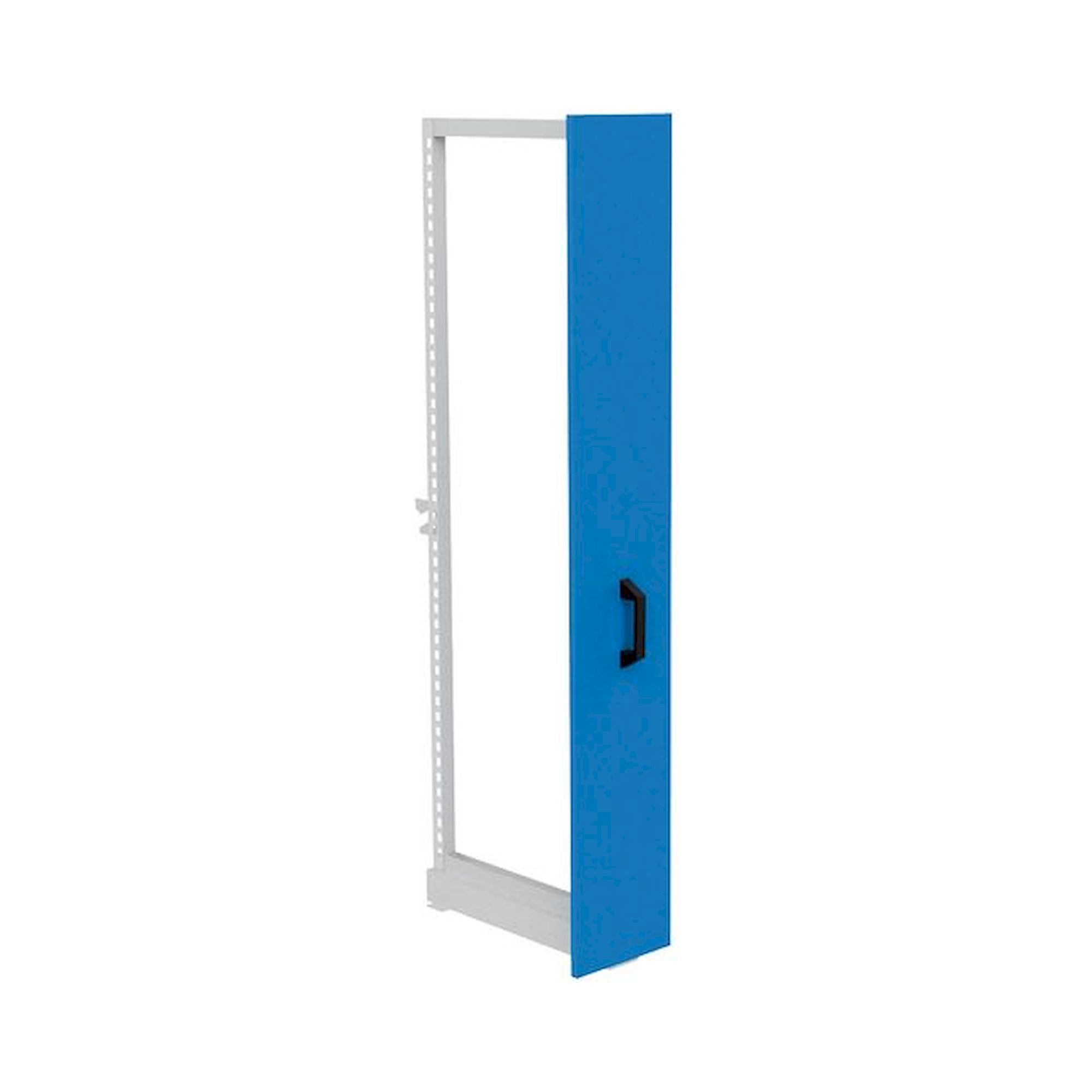

Vertical pull-outs, soft pull-in, full pull-out 100% - Bedrunka+Hirth SRVZ300/280
€477.40
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Vertical pull-outs, soft pull-in, full pull-out 100% - Bedrunka+Hirth SRVZ300/240
€471.18
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

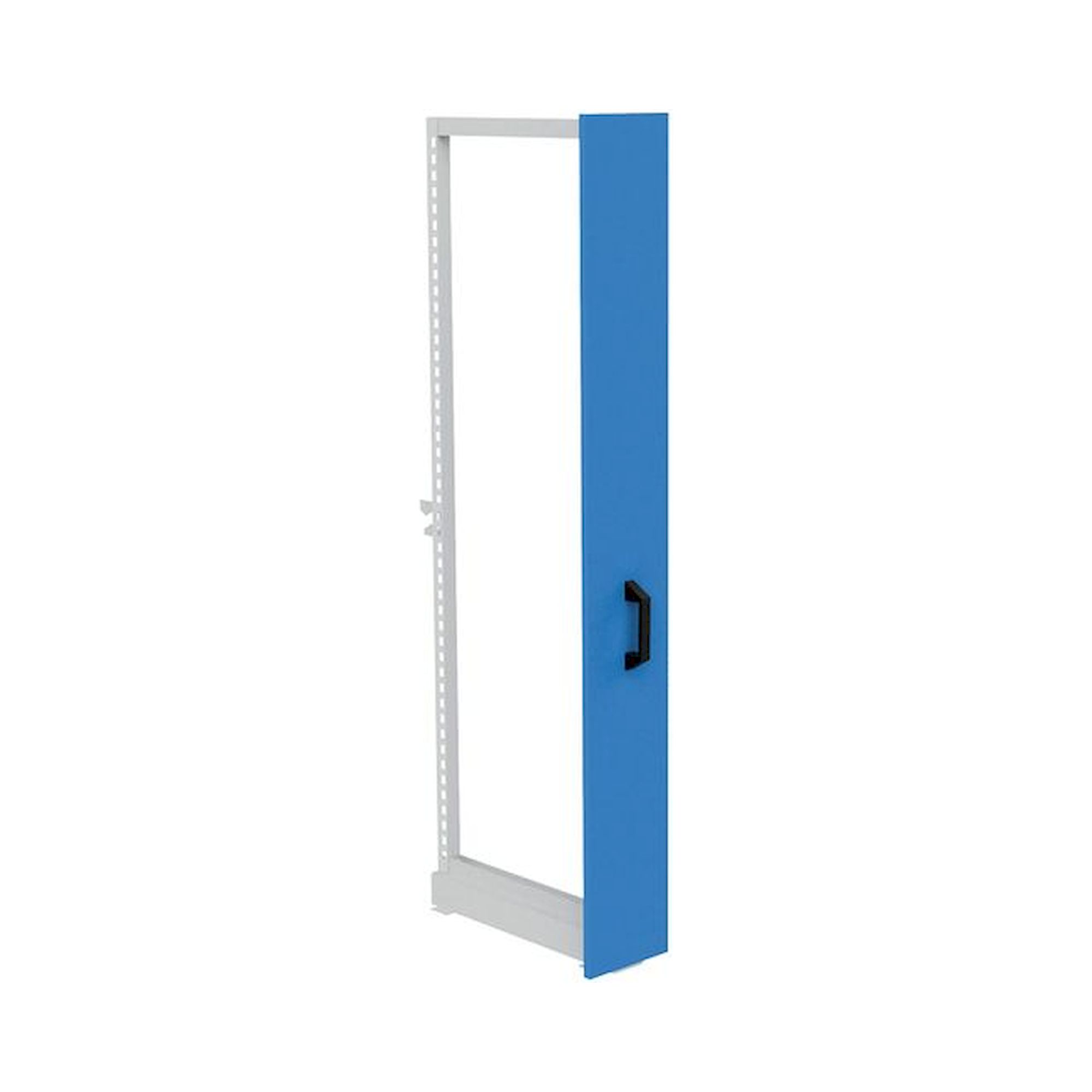

Vertical pull-outs, soft pull-in, full pull-out 100% - Bedrunka+Hirth SRVZ250/280
€468.07
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

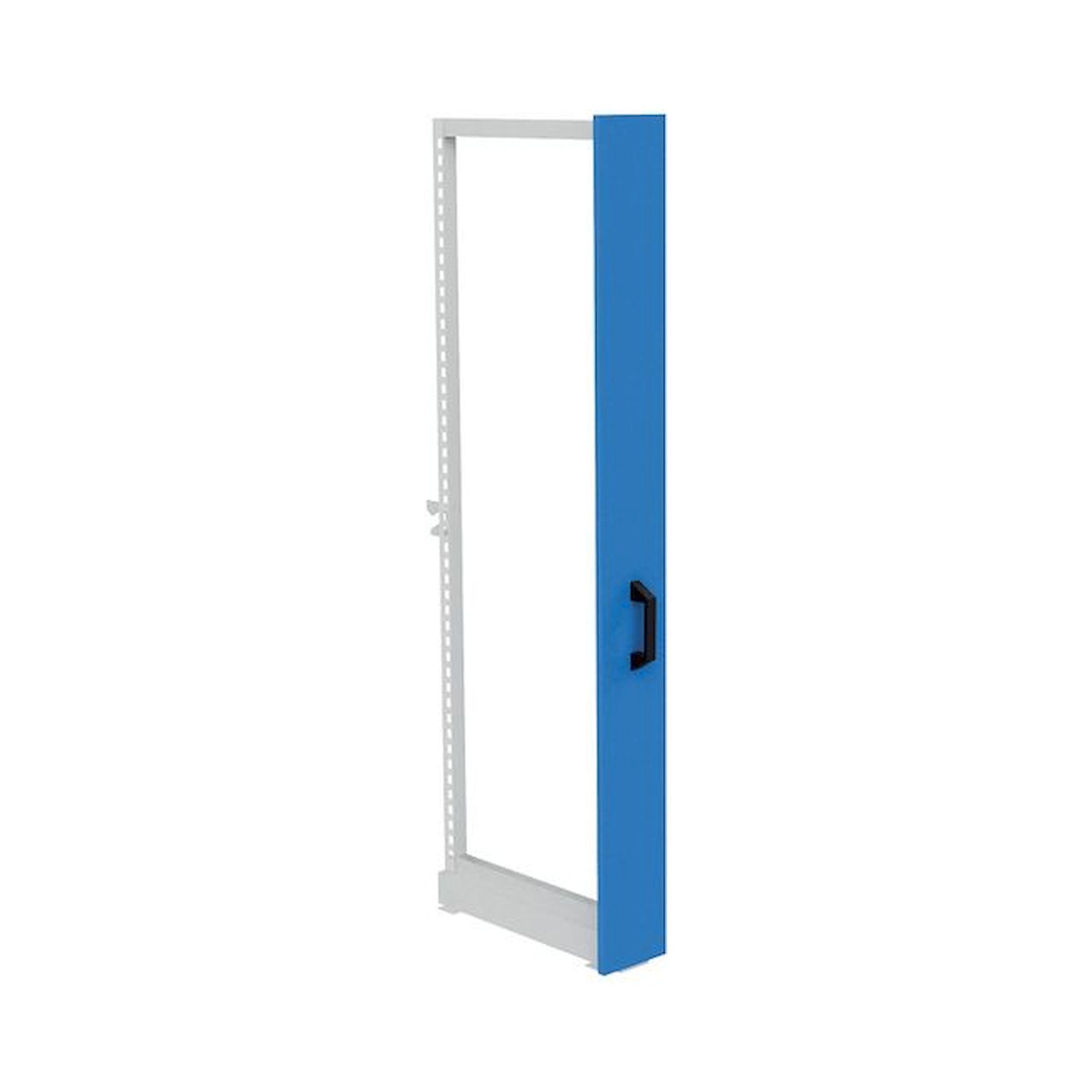

Vertical pull-outs, soft pull-in, full pull-out 100% - Bedrunka+Hirth SRVZ200/280
€465.99
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

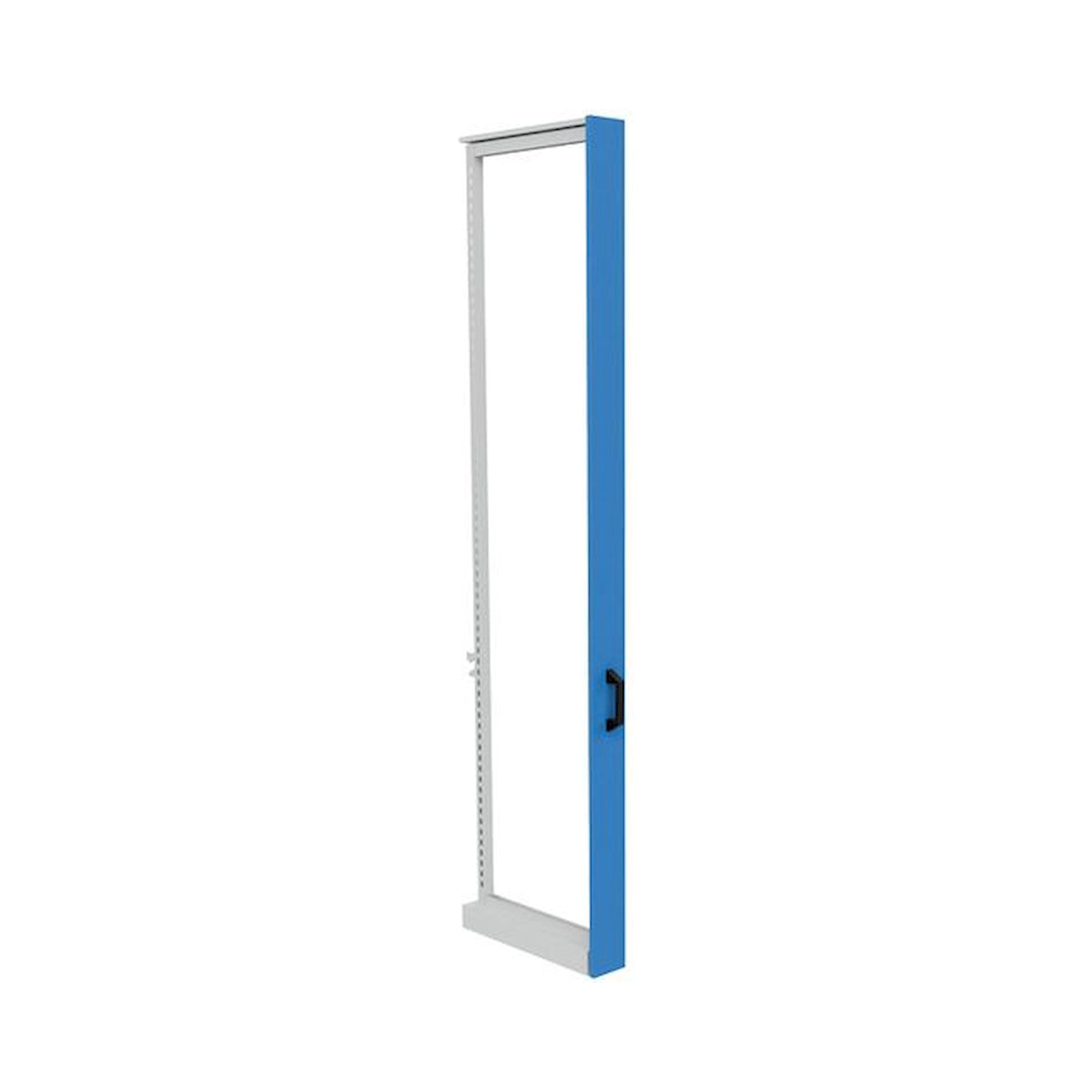

Vertical pull-outs, soft pull-in, full pull-out 100% - Bedrunka+Hirth SRVZ150/280
€463.91
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

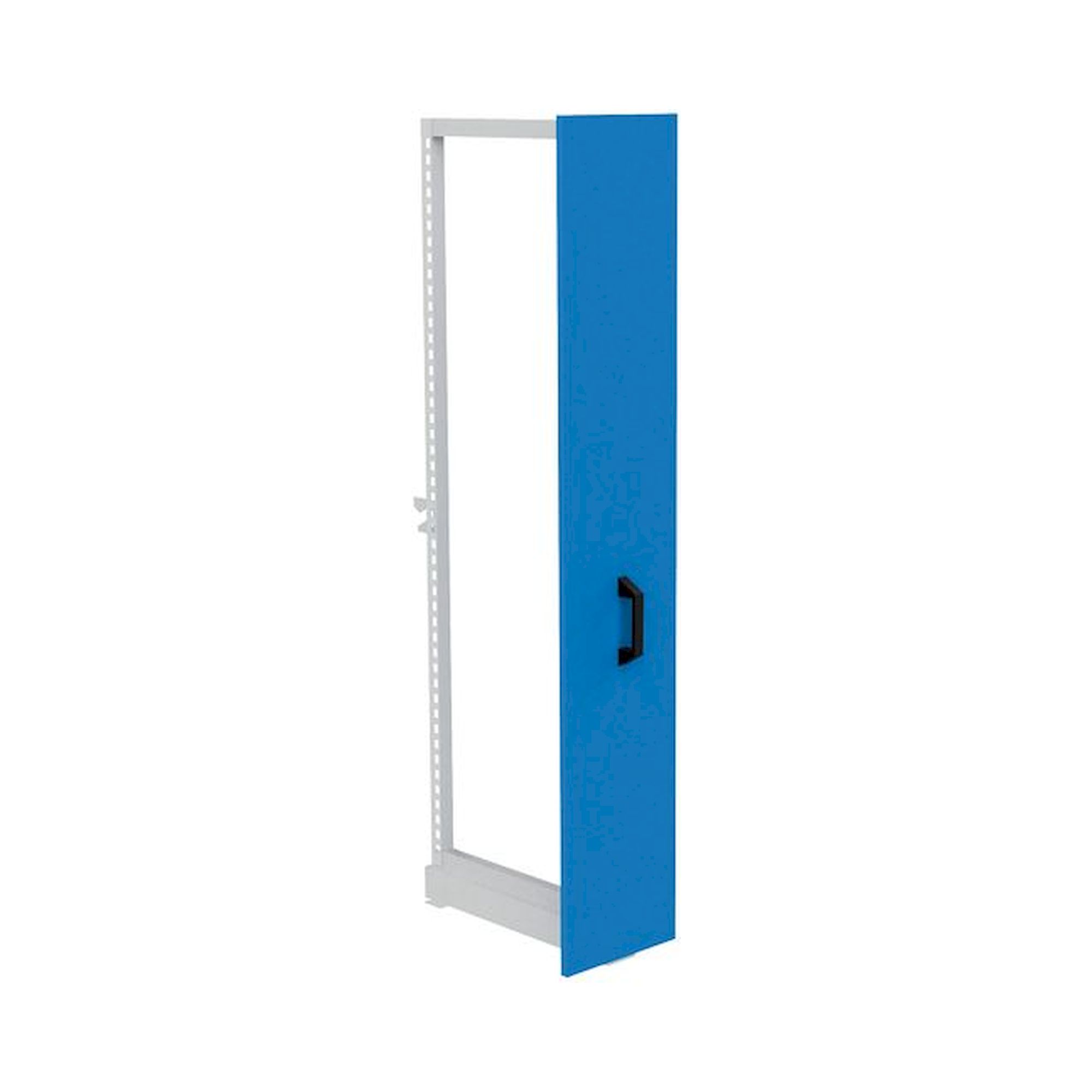

Vertical pull-outs, soft pull-in, full pull-out 100% - Bedrunka+Hirth SRVZ350/200
€460.80
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Vertical pull-outs, soft pull-in, full pull-out 100% - Bedrunka+Hirth SRVZ250/240
€460.80
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Vertical pull-outs, soft pull-in, full pull-out 100% - Bedrunka+Hirth SRVZ200/240
€452.49
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Vertical pull-outs, soft pull-in, full pull-out 100% - Bedrunka+Hirth SRVZ300/200
€451.46
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

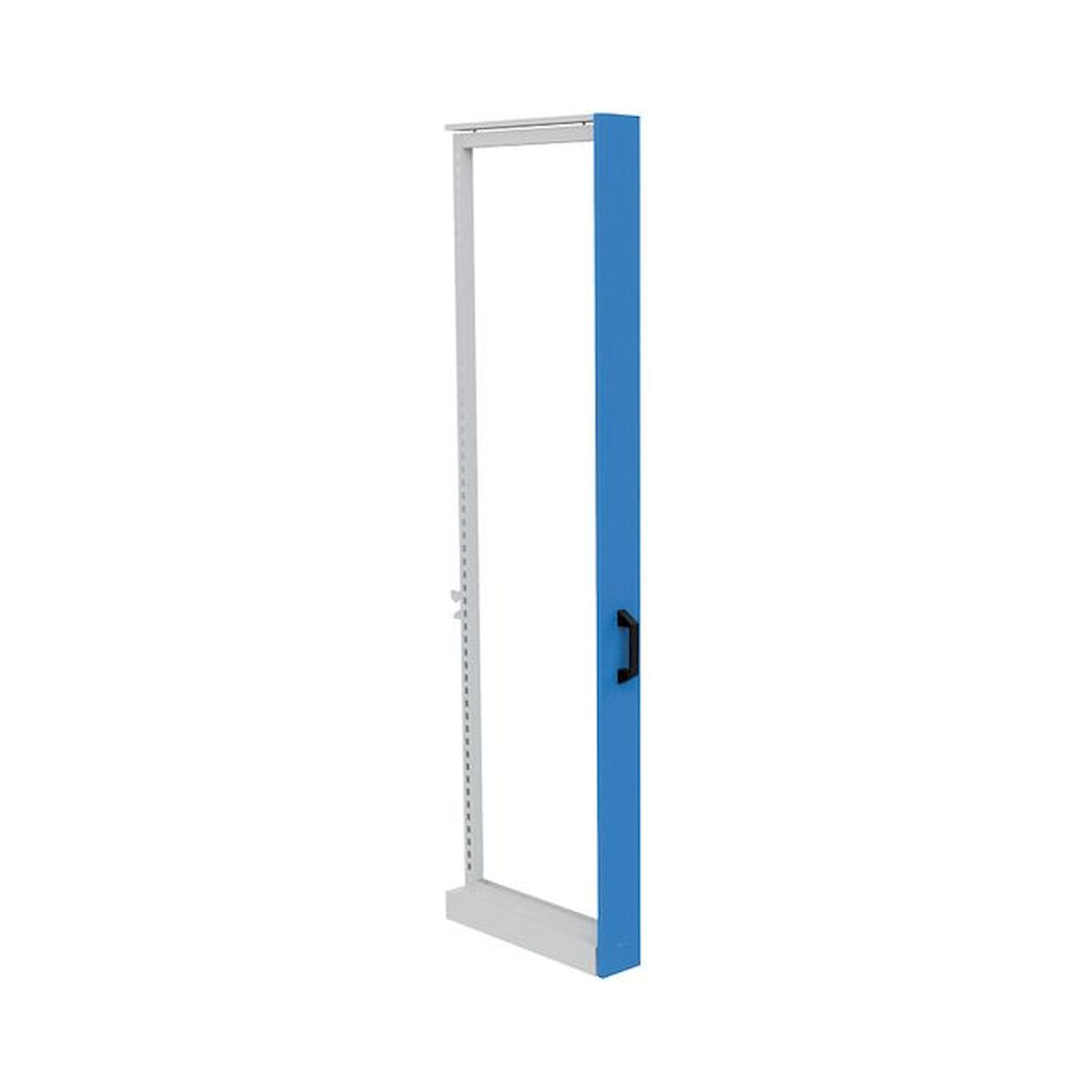

Vertical pull-outs, soft pull-in, full pull-out 100% - Bedrunka+Hirth SRVZ150/240
€444.19
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Vertical pull-outs, soft pull-in, full pull-out 100% - Bedrunka+Hirth SRVZ250/200
€442.12
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Vertical pull-outs, soft pull-in, full pull-out 100% - Bedrunka+Hirth SRVZ350/100
€432.77
Excl. 19% VAT , excl. Shipping Cost

What are modular shelf systems and where are they primarily used in industrial applications?

Modular shelf systems are configurable storage solutions designed for industrial workplaces, featuring interchangeable components like support frames, shelves, drawers, and partition walls. These systems serve manufacturing facilities, assembly lines, tool rooms, and quality control stations where organized storage of components, tools, and work-in-progress materials is critical. The Bedrunka+Hirth modular racking system (MRS) exemplifies this approach with standardized modules ranging from 700mm to 1400mm widths, incorporating features like cylinder locks, wing door assemblies, and vertical pull-out drawers for secure tool and component storage in production environments.

What are the key technical selection criteria for industrial modular shelf systems?

Industrial modular shelf system selection depends on load capacity, dimensional requirements, and storage configuration needs. The Bedrunka+Hirth cantilever rack system demonstrates heavy-duty capability with 2000kg field load capacity and dimensions of 1000x500x2500mm with 12 adjustable arms at 500mm spacing. Module depth variations include 733mm for drawer-intensive configurations and standard depths accommodating different component sizes. Critical factors include the number of support frames required, shelf types (smooth, slotted, or side-panel configurations), locking mechanisms with cylinder locks, and vertical extension capability through adjustable shelf positioning to optimize storage density per square meter of floor space.

Which standards and certifications apply to industrial modular shelf systems?

Industrial modular shelf systems must comply with EN 15512 for static steel storage systems and DIN EN 15635 for steel static storage systems safety requirements. Load calculations follow DIN 4114 structural steel design standards, while workplace safety compliance requires adherence to EN ISO 14122 for permanent access equipment and platforms. ESD-compatible versions must meet IEC 61340-5-1 standards for electrostatic discharge protection in electronics manufacturing environments. The modular racking systems also conform to occupational safety regulations under EN ISO 12100 for machinery safety design principles, ensuring proper load distribution, structural integrity, and safe access for operators during loading and retrieval operations.

What are the main differences between Bedrunka+Hirth modular shelf system variants?

Bedrunka+Hirth modular shelf systems differ primarily in width modules, storage configuration, and access methods. The SRK01 Module 1 at 700mm width features a compact design with diagonal cross bracing, smooth and slotted shelves, plus partition panels for small parts organization. The SRK05 Module 5 at 1400mm width provides maximum storage capacity with multiple support frames, back panels, partition walls, wing door assemblies, and integrated cylinder lock systems. Mid-range options like SRK03 Module 3 at 1000mm combine fixed shelving with wing door access, while drawer-intensive variants like SRK05A incorporate seven vertical pull-out drawers with soft-close mechanisms and 100% extension for complete accessibility to stored items.

What are the installation requirements and system compatibility considerations for modular shelf systems?

Modular shelf system installation requires level concrete floors capable of supporting distributed loads up to 2000kg per field section, with anchor bolt patterns matching the support frame specifications. The Bedrunka+Hirth systems utilize standardized connection interfaces allowing horizontal and vertical expansion through additional modules and diagonal bracing elements. Floor mounting typically requires M12 or M16 anchor bolts spaced according to the support frame dimensions, with leveling adjustments up to ±10mm to accommodate floor irregularities. System compatibility extends to accessories like vertical pull-out drawers with soft-close mechanisms, wing door assemblies, and cylinder lock systems that integrate seamlessly across different module widths while maintaining structural integrity and load-bearing capacity.

What safety ratings and operating parameters apply to industrial modular shelf systems?

Industrial modular shelf systems operate within temperature ranges of -10°C to +40°C for standard environments, with field load capacities clearly marked per section to prevent overloading beyond structural limits. The Bedrunka+Hirth cantilever system specifies 2000kg maximum field load with proper load distribution across the 12 adjustable arms. Safety features include cylinder lock mechanisms for secure storage, rounded edges on shelf panels to prevent injury, and diagonal bracing systems to prevent lateral movement under load. Seismic considerations require additional anchoring in zones with ground acceleration exceeding 0.4g, while fire safety compliance follows building codes for steel storage equipment with appropriate clearances from heat sources and emergency access routes.

What maintenance schedule and service life expectations apply to modular shelf systems?

Modular shelf systems require quarterly inspections of structural connections, annual load capacity verification, and immediate attention to any visible deformation or wear in high-use areas. The steel construction of Bedrunka+Hirth systems provides 15-20 year service life under normal industrial loading conditions with proper maintenance. Critical maintenance points include lubricating vertical pull-out drawer mechanisms every six months, checking cylinder lock operation annually, and verifying anchor bolt torque specifications during yearly safety inspections. Load redistribution may be necessary if maximum field loads of 2000kg are routinely approached, and any modification to the original configuration requires recalculation of structural capacity according to DIN 4114 standards to maintain safety compliance and warranty coverage.
