ULT Solder Fume Extraction
Fume Extractions
ULT supplies stationary and mobile extraction units for solder fume, laser fume, fine dust and gases/vapours. The range spans from compact benchtop units in the LRA series (LRA 400 MD.17) through larger ASD and ACD units (250 m³/h at 2,000 Pa) to laser fume extractors in the LAS series (LAS 200 HD.12, 120 m³/h at 12,000 Pa). Extraction hoses in DN50, DN75, DN150 and DN200, replacement filters, filter mat sets M5/F7 and expanded metal filters complete the system accessories.
Control and monitoring components including SUB-D9 interfaces (ULT 03.1.020), digital filter unit controllers (ULT 03.1.021) and operating hour counters (ULT 03.1.015) allow integration into higher-level production control systems. Replacement frames (ULT 02.0.211, ULT 4-00260) and intake modules (ULT 0200.0-AM002/AM003) simplify filter changes during continuous operation.
| Series | Application | Flow rate / pressure |
|---|---|---|

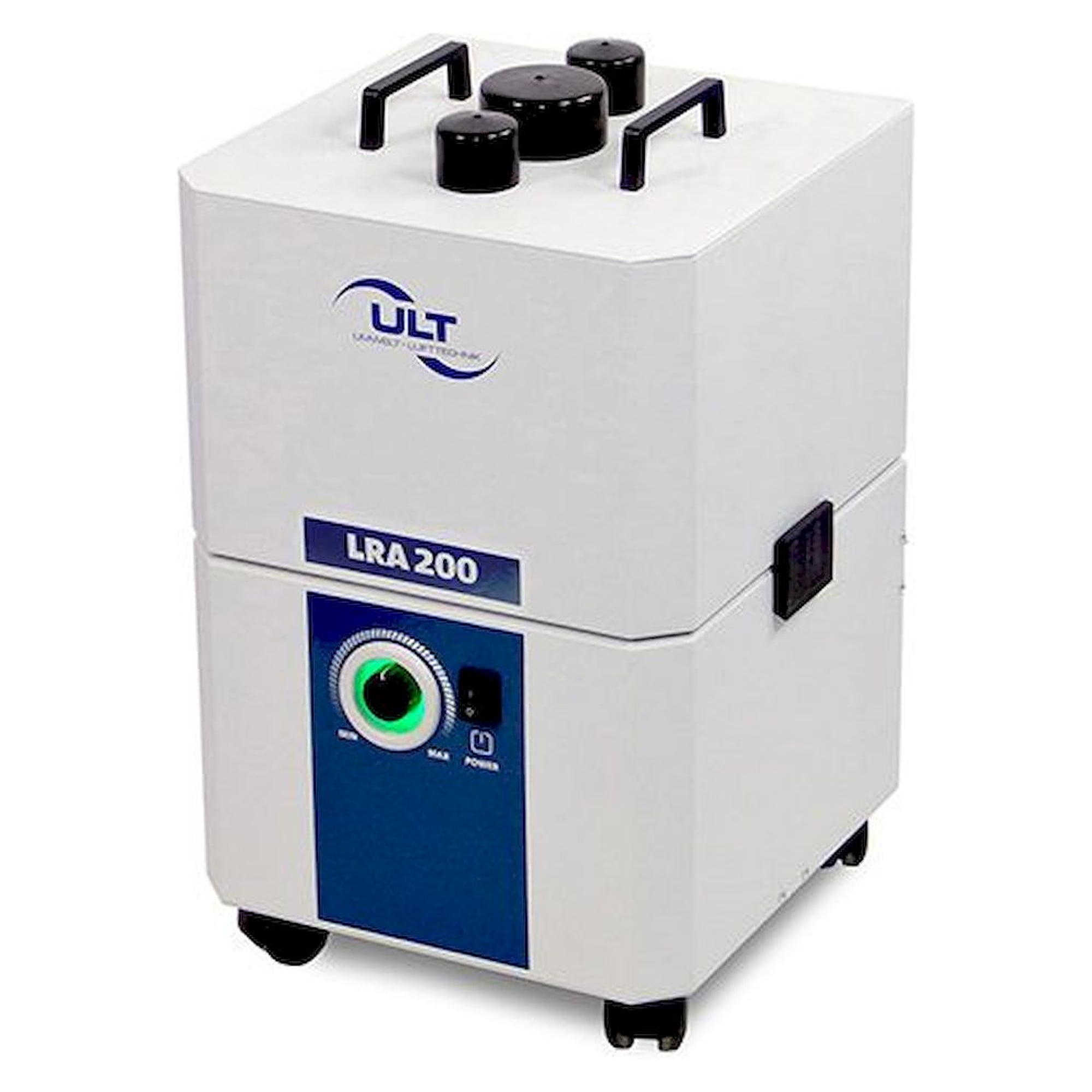

| LRA 400 MD.17 | Solder fume extraction | High-volume, HA14 version |
| ACD 200 MD.14 | Gases, vapours, odours | 250 m³/h at 2,000 Pa |
| ACD 1200 MD.18 | Gases, vapours large installation | High-volume AC version |

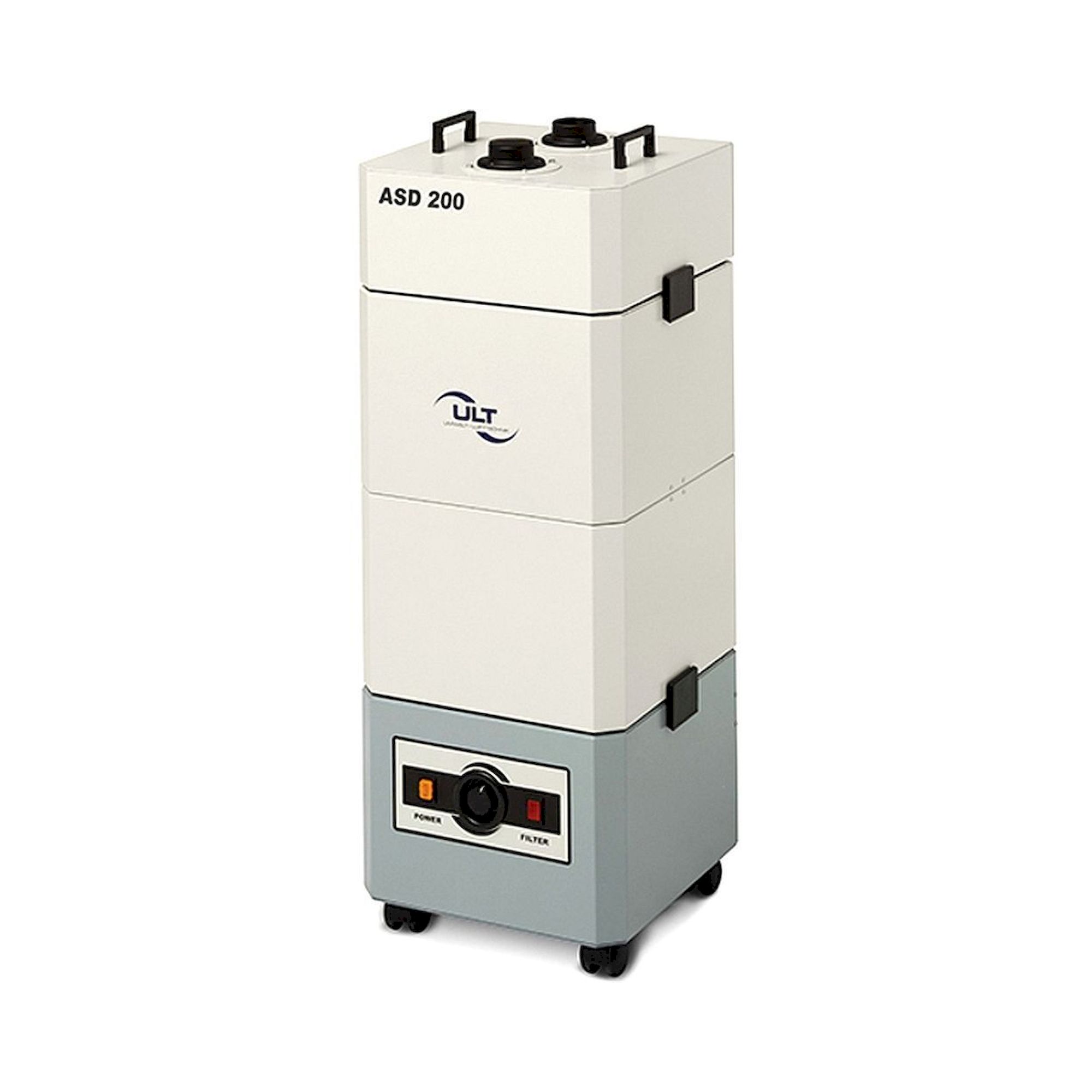

| ASD 200 MD.14 TH | Fine dust | 250 m³/h at 2,000 Pa |
| ASD 300 HD.13 | Fine dust high-pressure | HD version, 2 Pa class |

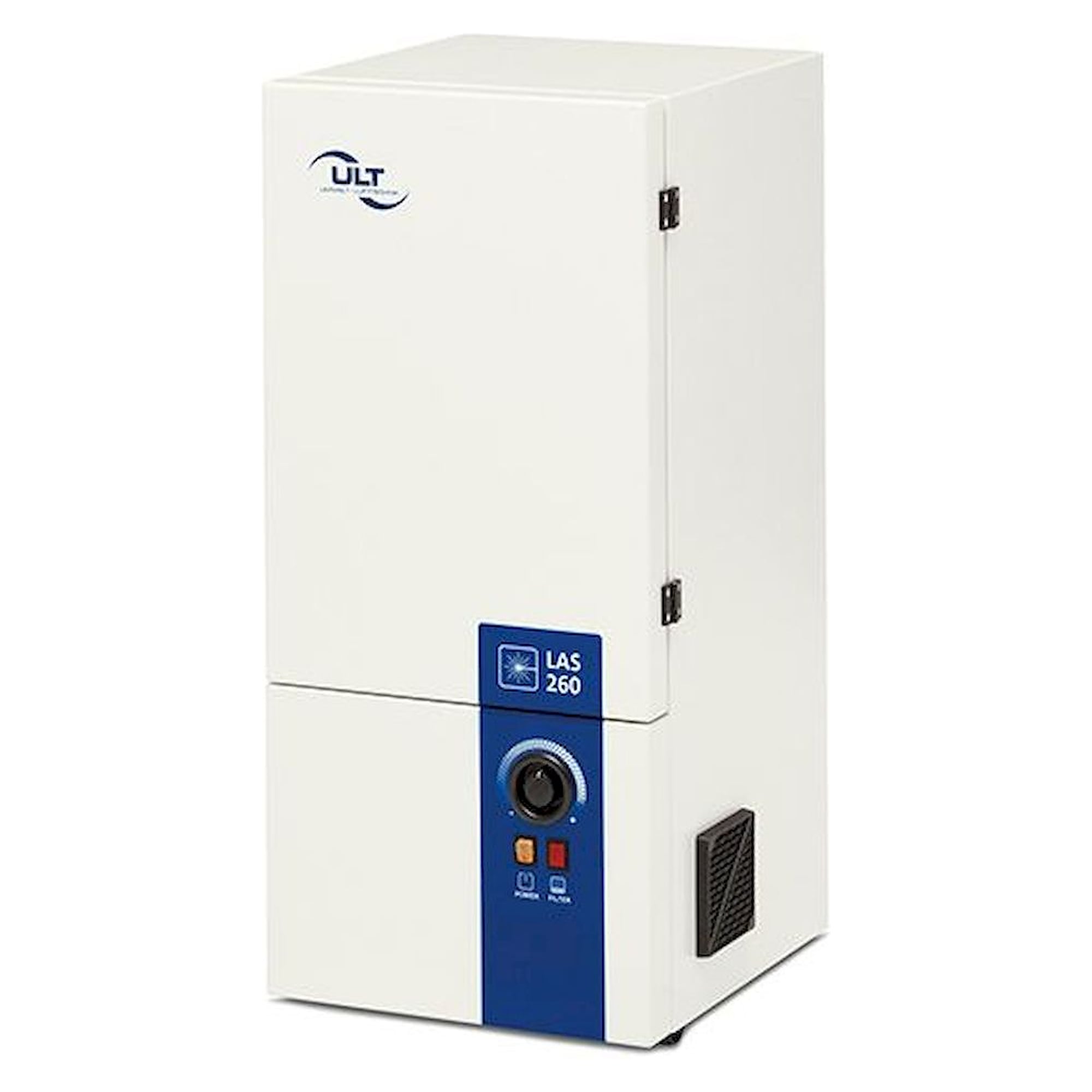

| LAS 160 MD.11 SK | Laser fume | LAS series, SK version |

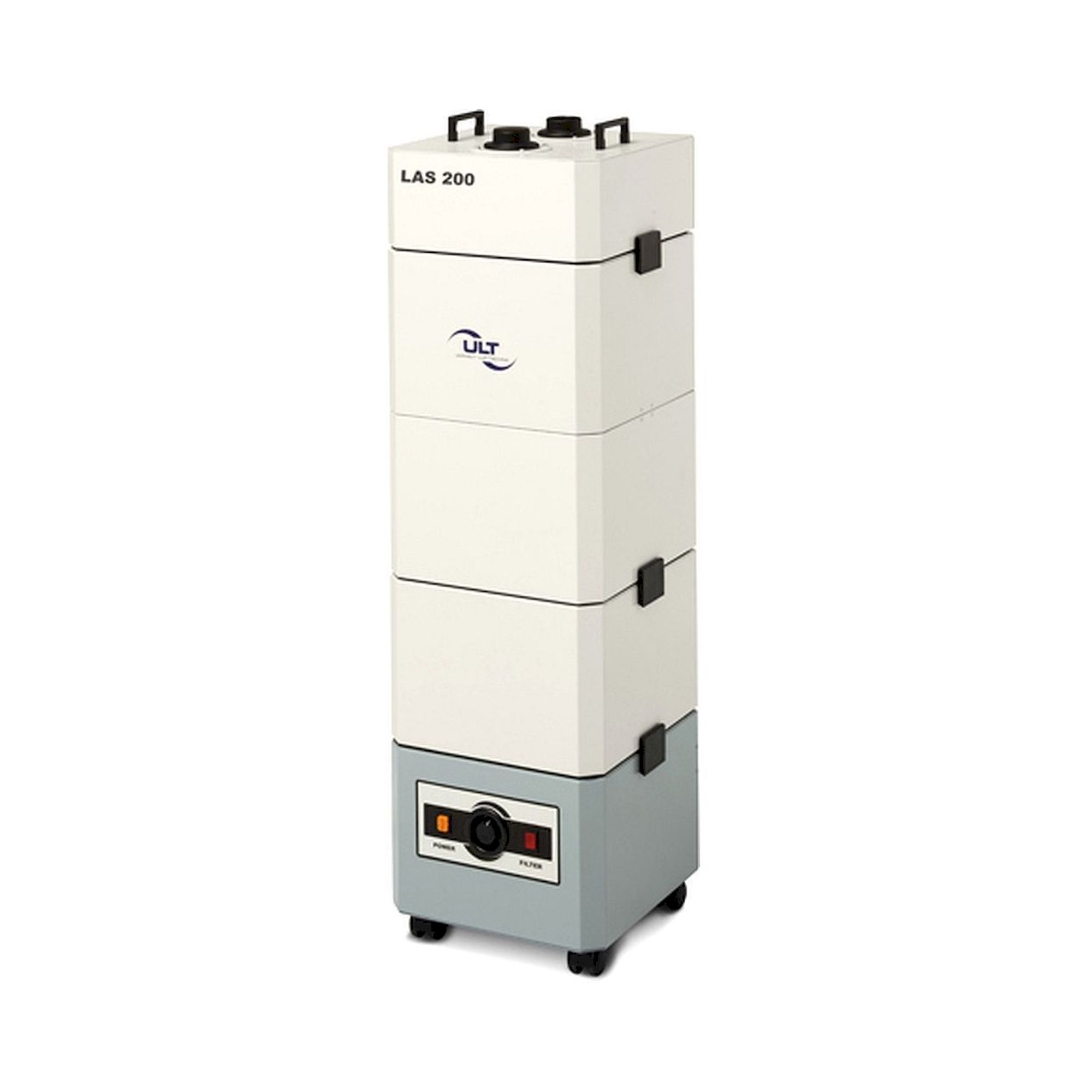

| LAS 200 HD.12 | Laser fume high-pressure | 120 m³/h at 12,000 Pa |

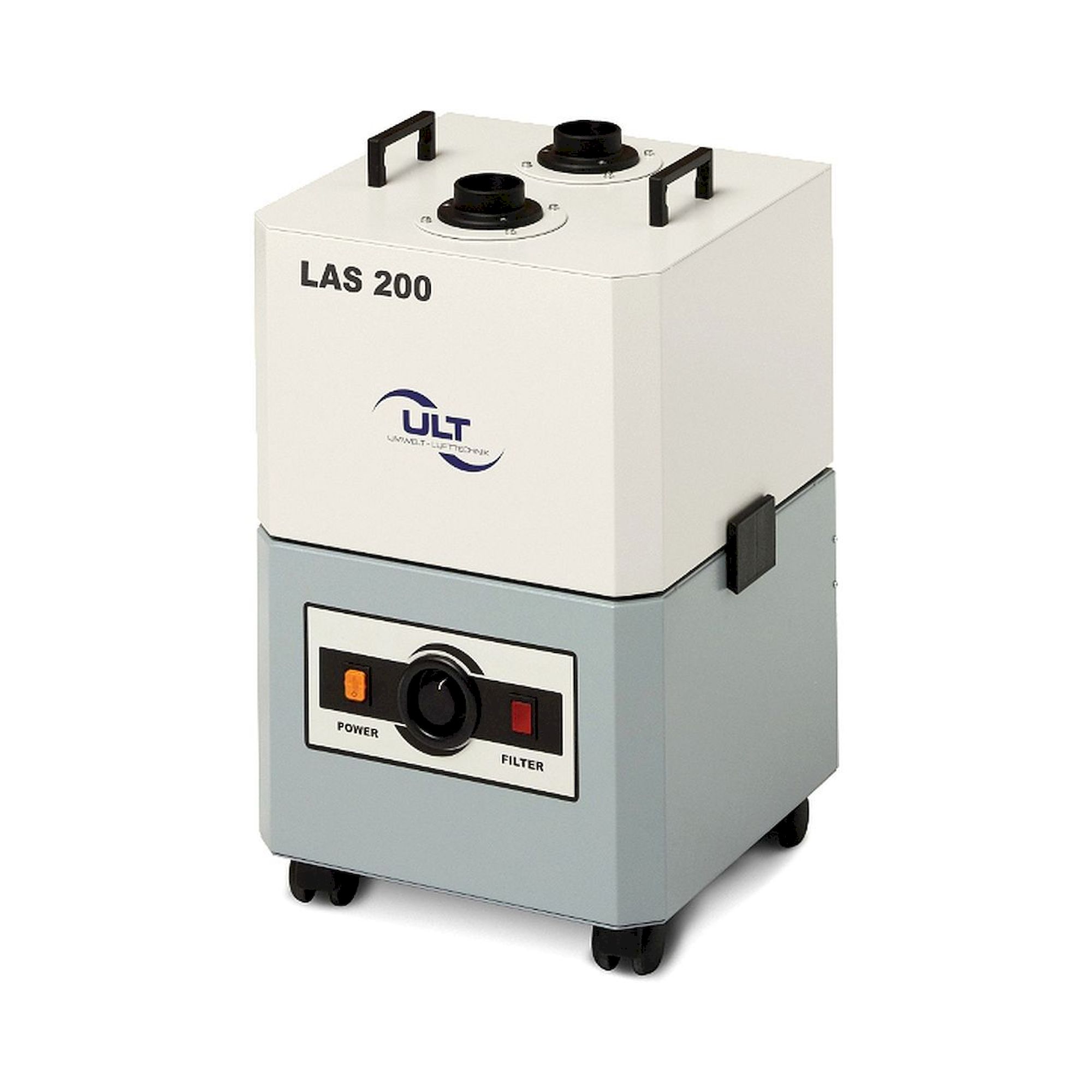

| LAS 200 MD.14 K | Laser fume | 250 m³/h at 2,000 Pa |
Typical applications: Solder fume extraction at hand-soldering workstations and automatic wave soldering systems (LRA series), laser fume extraction for CO2 and Nd:YAG laser systems in PCB processing (LAS series), fine dust and gas extraction in chemical laboratories and coating lines (ASD/ACD), and high-volume extraction in automotive electronics manufacturing and medical device production.
